Circular RNA hsa_circ_0002124 promotes hepatocellular carcinoma cell proliferation through the MAPK pathway

Introduction

Globally, hepatocellular carcinoma (HCC) accounts for approximately 90% of all primary liver cancers. HCC is one of the leading causes of cancer-related deaths, of which 50% occur in China (1). Currently, the most effective treatment for HCC remains surgical treatment. However, because of the lack of effective strategies for early diagnosis, only 30–40% of patients with HCC are considered suitable for radical resection. Nevertheless, because of the high recurrence and metastasis rate following surgery, the prognosis of these patients with HCC remains poor (2). Therefore, more effective tumor markers are the key to early diagnosis, early treatment, and improved prognosis of HCC.

Circular RNA (circRNA) is a type of noncoding RNA that is widely detected in mammals. circRNA is primarily involved in gene regulation in vivo (3-5). Most of the circRNAs are derived from the exon region of the gene, whereas a small part is formed by intron splicing (6,7). Unlike long noncoding RNAs (lncRNAs) and microRNAs (miRNAs), circRNA does not contain a 5’ end and a 3’ end structure; they are formed by a covalently closed cyclic structure (8). CircRNA is widely involved in human physiological and pathological regulation: (I) circRNA can act as a miRNA “spill” (miRNA sponge); (II) circRNA could interact with target proteins, and (III) circRNA can be translated into peptides (9). Studies on cancer have reported that circRNA acts as “miRNA cavernous body” and could indirectly regulate downstream target genes (10,11). It has been reported that one circRNA contains at least one miRNA binding site. Moreover, circRNAs can adsorb miRNA as a “cavernous body” of RNA. Therefore, circRNAs could regulate gene expressions through the mechanism of competitive endogenous RNAs (ceRNAs) (9). In 2010, Pandolfi et al. have proposed that lncRNAs, pseudogene RNA, and circRNA contain a common site that can be bound by miRNAs (12). The competitive binding of miRNAs leads to the formation of a mutually regulated network between these different types of RNA that plays an important role in the various cell physiological processes (13). In HCC, a previous study has suggested that circHIPK3 can act as a “cavernous body” to adsorb miR-124. Therefore, IL6R and DXL2 expressions were upregulated via the ceRNA mechanism, thereby promoting the proliferation of HCC cells (14). Although the current studies have suggested the importance of its role in liver cancer, additional number of circRNAs and their detailed functions in HCC remains to be evaluated in the future.

Hsa_circ_0002124, first reported by Jeck et al. in 2013, is located in chr15:41667909-41669502, which is the region of intron 9 in NuSAP1 (15). It is reported that NUSAP1 may be a target of miR-122 involved in cell cycle-associated processes during HCC progression (16). Moreover, the increased NUSAP1 expression had been detected in HCC cells and tissues, and increased levels of NUSAP1 in HCC samples have been correlated with shorter survival time of patients (17). These evidences implicate the role of NUSAP1 in HCC progression. As the hsa_circ_0002124 expression and functions in HCC remain largely unknown, further exploration on this topic could provide insights into the understanding of circRNAs as a whole in the carcinogenesis of HCC. A literature review showed that hsa_circ_0002124 has not previously been reported to be directly involved in HCC; to the best of our knowledge, this is the first study to investigate the role of hsa_circ_0002124 in HCC progression. In the present study, we employed PCR to identify hsa_circ_0002124 in HCC cells. The hsa_circ_0002124 expression in clinical samples was tested using qPCR. Moreover, the cell functions of hsa_circ_0002124 in HCC cells were examined with the knockdown and overexpressed hsa_circ_0002124 in 97H cells. Gene ontology (GO) and KEGG analysis were further performed to uncover the key functions and pathways in HCC. The interaction networks between hsa_circ_0002124 and its downstream miRNAs and genes were constructed using the Cytoscape software. Additionally, Western blotting was used to confirm the expression changes of key proteins (i.e., p-JNK, p-ERK, p-P38, and c-Myc) in the MAPK pathway. Our results would be helpful to understand the detailed role of hsa_circ_0002124 in HCC cells.

Methods

Clinical samples

The present experiment was approved by the Committee on the Ethics of Sun Yat-sen University (approval No. SYSU-20161078). All subjects were completely informed about the study goals and procedure and provided their signed informed consent. The HCC tissues and their paired pericarcinomatous tissues of 20 patients with HCC were collected according to the standard operation procedures at a third affiliated hospital of the Sun Yat-sen University. The biopsies were immediately frozen and stored at −80 °C until further processing for total RNA preparation.

Cell treatment

The LO2 cells, HepG2 cells, Huh7 cells, 97L cells, 97H cells, Hep3B cells, and LM3 were obtained from ATCC (Virginia, USA) and maintained in RPMI 1640 with 10% (v/v) FBS (Invitrogen, USA). The culture medium contained 100 U/mL penicillin/streptomycin. The cells were cultured in a humidified chamber with 5% CO₂ at 37 °C. After 3 days, 0.25% of trypsin (Thermo Fisher Scientific, USA) was routinely used for digestion. The log phase cells with excellent growth conditions were selected for further experimentation. Sequence hsa_circ_0002124 was downloaded from the cirBase database (http://www.mirbase.org/). The circRNA overexpression vector PCDNA 3.1-circRNA was purchased from Addgene (USA). In the present study, we selected 97H cells to perform cell transfection. The QIAGEN Plasmid Mini Kit (QIAGEN, Germany) was used to obtain purified plasmids according to the manufacturer’s protocol. Subsequently, PCDNA 3.1-circRNA was transfected into 97H cells via the Lipofectamine 3000 Transfection Reagent (Thermo Fisher Scientific, Waltham, MA, USA). The PCDNA 3.1-circRNAs were added to the transfection reagents diluted in the Opti-MEM medium. The mixture was incubated at room temperature for 10–15 min to form the PCDNA 3.1-circRNA–transfection reagent complexes, followed by its addition to the cells and further incubation for 48 h. Moreover, double-stranded siRNAs (dsRNA) targeting hsa_circ_0002124 were synthesized by chemical methods (ReiBo Biotech, China). The nucleotide sequence of the dsRNA for hsa_circ_0002124 was 5'-CUCCAGACAAAUUAUUACC-3' and 3'-GAGGUCUGUUUAAUAAUGG-5'. The nucleotide sequence of the control siRNA from a scramble sequence was 5'-UUCUCCGAACGUGUCACGUTT-3' and 3'-TTAAGAGGCUUGCACUGAGCA-5'. The cells were seeded at 5×10⁵ cells per well in 6-well plates in DMEM containing 10% FBS without penicillin and streptomycin and incubated overnight. Transfection experiments were performed with the OPTI-MEM serum-free medium and Lipofectamine 2000 reagent at a final siRNA concentration of 100 nM. qRT-PCR was performed to validate the effectiveness of the treatments.

qPCR

The TaKaRa MiniBEST Universal Genomic DNA Extraction Kit (TaKaRa, Japan) was applied to harvest the gDNA of HCC tissues and paired pericarcinomatous tissues. The detailed operation products were obtained according to the manufacturer’s instructions. Moreover, the TaKaRa MiniBEST Universal RNA Extraction Kit (TaKaRa, Japan) was used to exact total RNAs from LO2 cells, HepG2 cells, Huh7 cells, 97L cells, 97H cells, Hep3B cells, LM3, cell mixture of 7 cells (1×10⁶ cells from each cell line), and tissue samples. cDNAs of different samples were synthesized by the PrimeScript™ II 1^st Strand cDNA Synthesis Kit (TaKaRa, Japan). The experiment was conducted as per the manufacturer’s instructions. The concentration of gDNA and cDNA were assessed using NanoDrop 6000 (Thermo Fisher, USA). The OD260/OD280 value of 1.8–2.1 was considered to represent an ideal sample. Furthermore, the integrity of gDNA and cDNA was examined on denaturing agarose gel. We designed the following two primer pairs to identify the liner DNA and the corresponding circRNA (hsa_circ_0002124): circRNA (120 bp): hsa_circ_0002124-CF, 5'-AAACAACCCCATCTCCAGACA-3' and hsa_circ_0002124-CR, 5'-AGGGGACGAGACAAACTTGC-3'; liner DNA (123 bp): hsa_circ_0002124-LF, 5'-GTTGACAACTGAGGCAACGC-3' and hsa_circ_0002124-LR, 5'-TGCCCCCATGGTTTTAGCTT-3'. PCR reaction system (20 µL) was used in the present study constituting 10-µL 2× PCR Taq MasterMix with dye (Applied Biological Materials, USA), 0.5-µL primer mixture (5 pmol each), 1-µL DNA template (approximately 20 ng), and 8.5-µL ddH₂O under the following thermal conditions: 2 min at 95 °C, followed by 40 cycles at 95 °C for 1 min, 60 °C for 1 min, 72 °C for 1 min, and 72 °C for 7 min. The PCR products were analyzed using agarose gel electrophoresis (1.5%) and Sanger sequencing. Moreover, we performed qPCR to determine the hsa_circ_0002124 expression. GAPDH was employed as an internal gene. The 10-µL qPCR system contained 5-µL 2× SsoAdvanced^™ Universal SYBR^® Green Supermix (BioRad, USA), 0.5-µL primers (5 pmol each), 0.5-µL DNA template (approximately 20 ng), and 4-µL ddH₂O. The QuantStudio 6 Flex Real-Time PCR System (ABI, USA) was used to conduct the following thermal steps: 3 min at 98 °C, followed by 40 cycles at 95 °C for 15 s and at 60 °C for 25 s. The ΔΔct method was used to calculate the RNA expression with the relative standard curve.

GO and KEGG analysis

Hsa_circ_0002124 were uploaded into the function annotation portal of DAVID database, as described previously (18). Following the enrichment annotation, a list of GO items were obtained. The related pathways of the parental genes of has_circ_0002124 were analyzed using KEGG. P<0.05 and FDR <0.05 were considered significant.

Interaction analysis

Cytoscape is an online bioinformatics resource platform for constructing biomolecular interaction networks (18). To investigate the ceRNA mechanism of hsa_circ_0002124, the target miRNAs and genes were analyzed using Cytoscape platform to identify the densely connected region in the PPI network from the STRING database (19).

Cell proliferation, behavior, cycle, and apoptosis

Cell proliferation of differently-treated cells was tested using the MTT Kit (Sigma Aldrich, USA). The OD values were collected at three different time points (24, 48, and 72 h). The Oris™ Cell Migration Assay (Amsbio, UK) was used to examine cell migration. Briefly, 1.5×10⁵ mock-vehicle-treated 97H cells and 1.5×10⁵ overexpressed hsa_circ_0002124-treated 97H cells were seeded on the top chamber of each transwell. After culturing at 37 °C for 24 h, the cells that passed through the bottom side membrane were fixed with methanol. Hematoxylin was used to stain cells. The cell number was counted under optical microscope. Further, the Cultrex^® Cell Invasion Assay (Amsbio, UK) was used to analyze cell invasion by different treatments, according to the manufacturer’s protocol. Furthermore, we analyzed the cell cycle of differently-treated 97H cells. Flow cytometry was applied to analyze the cell cycle distribution of mock-vehicle-treated 97H cells and overexpressed hsa_circ_0002124-treated 97H cells. After 36 h of transfection, the cells were digested with 0.25% trypsin and fixed with 70% ethanol. FACS calibur flow cytometer (BD Biosciences, USA) was employed to test the cell cycle distribution by different treatments. In addition, we analyzed the cell apoptosis of mock-vehicle-treated 97H cells and 1.5×10⁵ overexpressed hsa_circ_0002124-treated 97H cells using the Annexin V-FITC Apoptosis Staining/Detection Kit (Abcam, USA) according to the manufacturer’s protocol.

Western blotting

Mock-vehicle-treated 97H cells (2.9×10⁶) and overexpressed hsa_circ_0002124-treated 97H cells were treated with pre-cooled cell lysate (volume ratio of PMSF: RIPA cell lysate =1:120). The slurry was centrifuged with 13,000 r/min for 5 min (in a low-temperature mode). Subsequently, the supernatant was transferred to a new 1.5-mL tube, which was immediately stored at −80 °C. The protein loading buffer was added to the collected protein samples. The mixture was heated on a 100 °C boiling water bath for 5 min to completely denature the protein. Thereafter, these proteins were transferred onto a polyvinylidene difluoride membrane (Millipore, USA). After being blocked for 1 h at room temperature, the membrane was incubated with rabbit polyclonal anti-mouse p-JNK (1:2,000), JNK (1:2,000), p-ERK (1:2,000), ERK (1:2,000), p-P38 (1:2,000), P38 (1:2,000), c-Myc (1:2,000), and β-Actin (1:2,000) antibody (BOSTER, USA) for 12 h. Subsequently, the treated proteins were incubated with the corresponding secondary antibody (1:2,000 dilution) for 1 h at room temperature (BOSTER, USA). An ECL chemiluminescence detection kit was used to stain the protein bands (Beyotime Institute of Biotechnology, China), and the Odyssey Infrared Imaging System (LI-COR Biosciences, USA) was used to observe and quantify the protein bands.

Statistics

Data were plotted and assessed using Graphad Prism software and expressed as mean ± standard deviation (mean ± SD). Two independent sample t-tests and two-way ANOVA were used in the experiment, and the difference obtained was considered significant at P<0.05.

Results

Hsa_circ_0002124 could be identified in HCC cells

Hsa_circ_0002124 was first reported by Jeck et al. in 2013 (15). Figure 1A suggested the structure of hsa_circ_0002124 to be 226 bp in length and derived from the intron 9 of NUSAP1. To identify hsa_circ_0002124 in HCC cells, we designed convergent and divergent primers to perform PCR reaction using cDNA and gDNA of a mixture of liver cells (Figure 1B). The results indicated that PCR production of hsa_circ_0002124 was obtained with the expected band size from cDNA but not from gDNA. To confirm the results, we performed Sanger sequencing using the cDNA PCR product (Figure 1C), following which the back-spliced junction site of hsa_circ_0002124 was validated. Therefore, hsa_circ_0002124 could be identified in HCC cells.

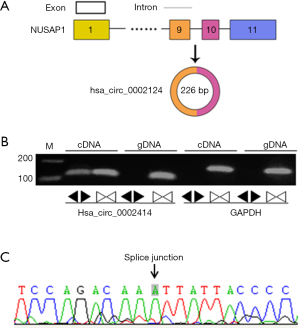

Figure 1 Identification of hsa_circ_0002124 using PCR and Sanger sequencing. (A) The structure of hsa_circ_0002124 in NUSAP1. (B) Hsa_circ_0002124 was amplified using convergent and divergent primers using cDNA and gDNA of a mixture of liver cells. circRNA could only be amplified in the cDNA template. M: DNA molecular markers; 200 and 100: 200-bp length and 100-bp length, respectively. GAPDH was used as an internal reference. (C) Sanger sequencing method was used to further confirm hsa_circ_0002124. The black arrow suggests the splice junction of hsa_circ_0002124.

The hsa_circ_0002124 expression was upregulated in HCC cells and clinical samples

To study the hsa_circ_0002124 expression, we analyzed the expression conditions in HCC tissues, paired pericarcinomatous tissues, and seven liver cells (LO2 cells, HepG2 cells, Huh7 cells, 97L cells, 97H cells, Hep3B cells, and LM3 cells). The hsa_circ_0002124 expression in Hep3B cells and LM3 cells tended to be lower than that in normal liver cells (LO2 cells; Figure 2A). However, the hsa_circ_0002124 expression in HepG2 cells, Huh7 cells, 97L cells, and 97H cells was higher than that in the normal liver cells (LO2 cells). These results suggested the heterogeneity of the hsa_circ_0002124 expressions in different HCC cells. Further, we analyzed the hsa_circ_0002124 expression in HCC tissues of 20 patients and their paired pericarcinomatous tissues (Figure 2B). Our results showed that the hsa_circ_0002124 expressions in HCC tissues were significantly higher than those in paired pericarcinomatous tissues (P<0.05).

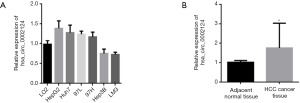

Figure 2 The hsa_circ_0002124 expression analysis in HCC cells and clinical samples. (A) The relative hsa_circ_0002124 expression in 7 HCC cell lines. GAPDH was used as an internal reference. (B) The relative hsa_circ_0002124 expression in clinical samples. GAPDH was used as an internal reference. Three biological and technical replicates were performed for statistical analyses. The t-test method was used to calculate the statistical significance. *, P<0.05. HCC, hepatocellular carcinoma.

Knockdown and overexpressed hsa_circ_0002124 affect 97H cell function

Based on the evidences accumulated in the present study, we speculated that the knockdown and overexpression of hsa_circ_0002124 in 97L cells would affect the cell functions, such as cell proliferation, behavior, cycle, and apoptosis. We first performed that the knockdown of hsa_circ_0002124 in 97H cells could inhibit the cell functions (Figure 3). Figure 3A illustrates the hsa_circ_0002124 expressions in normal- and knockdown-treated 97L cells. The hsa_circ_0002124 expression was significantly inhibited in the knockdown group (P<0.0001). Cell proliferation analysis of 97H cells with or without knockdown hsa_circ_0002124 at 3 time points (i.e., 24, 48, and 72 h) suggested no differences in the OD values obtained at 24 and 48 h, and at 72 h; the OD value of normal 97H cells was significantly higher than that of knockdown hsa_circ_0002124-treated 97H cells (P<0.01) (Figure 3B). Moreover, the analysis of cell migration and invasion of 97H cells without or with the knockdown hsa_circ_0002124 treatments suggested that the cell number of cell migration and invasion were significantly lower in knockdown hsa_circ_0002124-treated 97H cells than in normal 97H cells (P<0.05) (Figure 3C,F). Furthermore, the cell cycle distribution analyses indicated that the cell number of knockdown hsa_circ_0002124-treated 97L cells in the G1 phase was significantly increased and the cell number in the S phase was significantly decreased (P<0.05) compared with that of normal 97L cells, which suggests that the cell cycle was blocked at the G1 phase (Figure 3D,F). In addition, the analysis of the cell apoptosis of 97H cells with knockdown treatment indicated that knockdown hsa_circ_0002124-treated 97H cells significantly promoted cell apoptosis compared with the normal 97H cells (P<0.01, Figure 3E,F). These results revealed that hsa_circ_0002124 could facilitate HCC development.

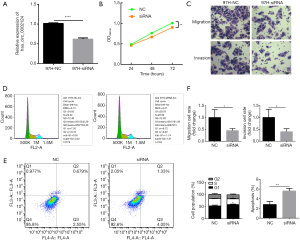

Figure 3 Cell functional changes of normal 97H cells and knockdown hsa_circ_0002124-treated 97H cells. (A) qPCR method was used to confirm the hsa_circ_0002124 expression in 97H cells with or without knockdown hsa_circ_0002124 treatments; (B) cell proliferation analysis of 97H cells with or without knockdown hsa_circ_0002124 treatments at 3 time points (24, 48, and 72 h); (C) cell migration and invasion analysis of 97H cells with or without knockdown hsa_circ_0002124 treatments; (D) cell cycle distribution of 97H cells with or without knockdown hsa_circ_0002124 treatments; (E) cell apoptosis analysis of 97H cells with or without knockdown hsa_circ_0002124 treatments; (F) quantification analysis of cell migration, invasion, cycle, and apoptosis of 97H cells with or without knockdown hsa_circ_0002124 treatments. Three biological and technical replicates were performed for the statistical analysis. Differences between both groups were tested by two-way ANOVA and t-test. *, P<0.05; **, P<0.01; ****, P<0.0001.

In contrast, we investigated the effectiveness of overexpressed hsa_circ_0002124 in 97L cells (Figure 4). Figure 4A shows the hsa_circ_0002124 expressions in normal- and overexpression-treated 97L cells. The results revealed that the hsa_circ_0002124 expression was significantly promoted in the overexpressed group (P<0.001). Cell proliferation analysis of 97H cells with mock vector-treated or with overexpressed hsa_circ_0002124 at 3 time points (24, 48, and 72 h) showed no differences among the OD values detected at 24 and 48 h. The OD value of mock vector-treated 97H cells was significantly lower than that of overexpressed hsa_circ_0002124-treated 97H cells (P<0.01; Figure 4B). Moreover, cell migration and invasion analysis of mock vector-treated and overexpressed hsa_circ_0002124-treated 97H cells revealed that the cell number of cell migration and invasion were significantly higher in overexpressed hsa_circ_0002124 treated-97H cells than in mock vector-treated 97H cells (P<0.05; Figure 4C,F). Furthermore, cell cycle distribution analysis indicated that the cell number of overexpressed hsa_circ_0002124-treated 97L cells in the G1 phase was significantly decreased and that the cell number in the S and G2 phases was significantly increased (P<0.05) compared with mock vector-treated 97L cells, thereby suggesting that overexpressed hsa_circ_0002124 treatments are helpful in promoting the transaction of the cells in the G1 phase to the S and G2 phases (Figure 4D,F). In addition, cell apoptosis of overexpressed hsa_circ_0002124 treated-97H cells decreased the number of cell apoptosis compared with that in the mock vector-treated group (Figure 3E,F) (P<0.01). Our results further suggest that hsa_circ_0002124 facilitates HCC development.

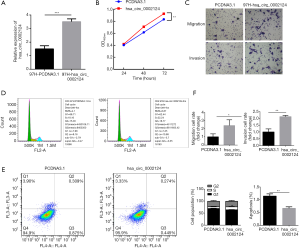

Figure 4 Cell functional changes of mock vector of PCDNA 3.1-treated 97H cells and overexpressed hsa_circ_0002124-treated 97H cells. (A) qPCR method was used to confirm the hsa_circ_0002124 expression in mock vector of PCDNA 3.1-treated 97H cells and overexpressed hsa_circ_0002124-treated 97H cells; (B) cell proliferation analysis of mock vector of PCDNA 3.1-treated 97H cells and overexpressed hsa_circ_0002124-treated 97H cells at 3 time points (24, 48, and 72 h); (C) cell migration and invasion analysis of mock vector of PCDNA 3.1-treated 97H cells and overexpressed hsa_circ_0002124-treated 97H cells; (D) cell cycle distribution of mock vector of PCDNA 3.1-treated 97H cells and overexpressed hsa_circ_0002124-treated 97H cells; (E) cell apoptosis analysis of mock vector of PCDNA 3.1-treated 97H cells and overexpressed hsa_circ_0002124-treated 97H cells; (F) quantification analysis of cell migration, invasion, cycle, and apoptosis of mock vector of PCDNA 3.1-treated 97H cells and overexpressed hsa_circ_0002124-treated 97H cells. Three biological and technical replicates were performed for the statistical analyses. Differences between both the groups were tested by two-way ANOVA and t-test. *, P<0.05; **, P<0.01; ***, P<0.001.

The enrichment GO terms and KEGG

As shown in Figure 5A, the results from GO verified that hsa_circ_0002124 were significantly clustered in Biological Process (BP), Cellular Component (CC), and Molecular Function (MF). The three most significant GO terms in BP were cellular process, biological regulation, and single-organism process, those in CC were cell, cell parts, and cell organelles, and that in MF was binding. In the KEGG analysis, the targets were enriched in the following pathways: Pathways in cancer, PI3K-AKt signaling pathway, HTLV-I infection pathway, and MAPK signaling pathway (Figure 5B).

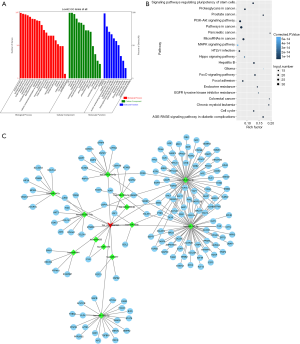

Figure 5 GO, KEGG analysis and the interaction network among hsa_circ_0002124 target genes. (A) GO analysis showed that circRNAs were significantly clustered in the Cellular Component, Molecular Function and Biological Process; (B) KEGG analysis of hsa_circ_0002124; (C) the interaction network predicted the interaction among the hsa_circ_0002124 target genes.

The interaction network

The results in the interaction network showed that hsa_circ_0002124 connected 13 miRNAs, including hsa-miR-944, hsa-miR-620, hsa-miR-577, hsa-miR-4782-3p, hsa-miR-29b-1-5p, hsa-miR-203a-5p, hsa-miR-200a-3p, hsa-miR-190b, hsa-miR-190a-5p, hsa-miR-147a, hsa-miR-141-3p, hsa-miR-135b-5p, and hsa-miR-1270. Through the interaction network construction, 186 target genes were considered to be associated with HCC (Figure 5C), of which the MAPK signaling pathway-related genes were found to be highly frequent.

Knockdown and overexpressed hsa_circ_0002124 affected the protein expressions in the MAPK pathway

To further study the protein changes in the MAPK pathway, we performed Western blotting of the knockdown and overexpressed hsa_circ_0002124-treated 97H cells. For knockdown hsa_circ_0002124 treatment, the relative expressions of p-JNK/JNK, p-ERK/ERK, p-P38/P38, and c-Myc in knockdown hsa_circ_0002124-treated 97H cells were significantly lower than those in normal 97H cells (P<0.05) (Figure 6). For overexpressed hsa_circ_0002124 treatments, the relative p-JNK/JNK, p-ERK/ERK, p-P38/P38, and c-Myc expressions in overexpressed hsa_circ_0002124-treated 97H cells were significantly higher than those in mock vector-treated 97H cells (P<0.05) (Figure 6). These results indicate that the hsa_circ_0002124 expression changes in 97H cells are closely associated with the pivotal protein expressions in the MAPK pathway.

Figure 6 Western blotting of the protein expressions in MAPK signaling pathway in knockdown and overexpressed hsa_circ_0002124-treated 97H cells. (A) Protein bands analysis of p-JNK, JNK, p-ERK, ERK, p-P38, P38, c-Myc, and β-Actin in knockdown and overexpressed hsa_circ_0002124-treated 97H cells; (B) quantification analysis of p-JNK, JNK, p-ERK, ERK, p-P38, P38, c-Myc, and β-Actin in knockdown and overexpressed hsa_circ_0002124-treated 97H cells. Three biological and technical replicates were performed for the statistical analyses. The differences between the groups were calculated by the t-test method. *, P<0.05; **, P<0.01; ***, P<0.005.

Discussion

In the past few decades, although circRNA has been reported as a by-product of splice-mediated splicing errors (9), it had not attracted sufficient attention from researchers (20). However, with the widespread application of high-throughput sequencing technology and bioinformatics, it has been revealed that circRNA is ubiquitous in eukaryotes (21). Increasing evidence has indicated that circRNA could form a closed loop structure by nonlinear reverse splicing, and its expression is the characteristic of tissue-specific, cell-specific, and growth-stage variability (22,23). In cancer, circRNAs can act as a competitive endogenous RNA or miRNA molecular sponge, which could be involved in cancer development (9). Other circRNAs contain a miRNA binding site that could inhibit mRNA degradation by competitively binding to miRNA (24). For example, cir-ITCH can act as a molecular sponge of miR-7, miR-17, and miR-214, inhibiting Wnt/β-Catenin signaling pathway in esophageal squamous cell carcinoma (25). Moreover, ciRS-7 participates in the development and progression of gastric cancer by interacting with miR-7 (26). Furthermore, Hsa_circ_0005386 regulates Notch1 expression by interacting with miR-129-5p in the HCC process, thereby indicating that it can be a potential biomarker for HCC diagnosis (27).

Hsa_circ_0002124 is located at chr15:41667909-41669502, which is the region of intron 9 in NuSAP1. A previous study has shown that NuSAP1 is a microtubule-binding protein that plays an important role in spindle assembly. Its excessive expression leads to the aggregation of microtubules, resulting in a variety of cell arrest and spindle formation inhibition (28). The NuSAP1 mRNA expression levels and protein levels are strictly regulated, which was adapted to the cell cycle process. The NuSAP1 expression reaches its peak in the G2/M period, and the deduction of its expression can lead to stagnation (29). In recent years, the NuSAP1 overexpression has been noted in several tumors, such as pancreatic cancer, melanoma, glioblastoma, childhood acute lymphoblastic leukemia, breast cancer, and acute myeloid leukemia. The NuSAP1 overexpression in tumor is often associated with cancer cell invasiveness (30). For example, Gulzar et al. have reported that recurrence following prostatectomy is significantly associated with transcriptional ascending of NuSAP1. Furthermore, the elevated transcription levels are associated with poor postoperative prognosis in prostate cancer (31). Therefore, NuSAP1 is considered a new biomarker for prostate cancer. Satow et al. have found that the NuSAP1 expression was upregulated in HCC tissues. However, the detailed molecular mechanism remains unclear (32).

In the present study, we revealed that the hsa_circ_0002124 expression was upregulated in HCC cells and clinical samples, which is consistent with the NuSAP1 expression. This evidence is expected to provide a novel clue to the HCC research. Cell functional studies have also suggested that the hsa_circ_0002124 expression is closely associated with cellular proliferation, behavior, cycle, and apoptosis. All these evidences have indicated that hsa_circ_0002124 contains the characteristics that promote HCC development. KEGG and interaction network analyses of hsa_circ_0002124 have indicated that hsa_circ_0002124 could be a molecular sponge of miRNAs, which regulates the key protein expressions in the MAPK pathway. In addition, we assessed the protein expression changes with overexpressed and knockdown hsa_circ_0002124-treated 97H cells. Knockdown hsa_circ_0002124-treated 97H cells showed reduced relative expression of p-JNK/JNK, p-ERK/ERK, p-P38/P38, and c-Myc compared with the normal 97H cells. On the contrary, overexpressed hsa_circ_0002124-treated 97H cells showed increased p-JNK/JNK, p-ERK/ERK, p-P38/P38, and c-Myc expression compared with mock vector-treated 97H cells. The hsa_circ_0002124 expression changes in 97H cells were closely associated with the pivotal protein expressions in the MAPK pathway. HCC is a highly malignant cancer, and elucidating the signaling pathways involved in the development of HCC is essential for the study of new anticancer drugs. Previous studies have shown that ERK, JNK, and p38 and the downstream transcription factors in the MAPK signaling pathway are closely associated with the occurrence and development of liver cancer. For example, the activated ERK signaling pathway plays a role in HCC associated with HBV and HCV infection (33). In JNK knockout mice, the occurrence of DEN-induced HCC is significantly reduced (34). Moreover, the negative regulation of p38 signaling pathway in HCC has been demonstrated in a mouse model with liver-specific p38 knockdown (35). All these evidences support that the core proteins in the MAPK pathway are closely associated with HCC development. In the present study, we speculated that hsa_circ_0002124 is a molecular sponge of miRNA molecular, which regulates the key protein expressions in the MAPK pathway. Therefore, hsa_circ_0002124 is a potential biomarker for HCC diagnosis as well as a novel proliferative factor in HCC. However, the specific regulation mechanism of hsa_circ_0002124 in HCC remains to be further elucidated.

Conclusions

In summary, we confirmed the identification of hsa_circ_0002124 in HCC cells. The hsa_circ_0002124 expression in HCC tissues was significantly higher than in pericarcinomatous tissues. Knockdown and overexpressed hsa_circ_0002124 treatments resulted in changes of cell function, behavior, and apoptosis. Moreover, hsa_circ_0002124 could be a molecular sponge of miRNAs, which regulates the key protein expressions in the MAPK pathway. Our findings are expected to provide detailed understanding regarding the role of hsa_circ_0002124 in HCC.
