Withaferin A suppresses skin tumor promotion by inhibiting proteasome-dependent isocitrate dehydrogenase 1 degradation

Introduction

A metabolic shift often accompanies carcinogenesis. Cancer cells lean to utilizing a high rate of glycolysis to generate energy instead of oxidative phosphorylation (OXPHOS) even in the presence of oxygen, known as the “Warburg Effect” (1) or aerobic glycolysis. An important benefit of enhanced aerobic glycolysis is that the largely produced metabolic intermediates serve as the building blocks for biosynthesis (2). Associated with the metabolic switch is the dysregulation of crucial metabolic enzymes. Isocitrate dehydrogenases (IDHs) as the most pivotal metabolic enzyme catalyze the nicotinamide adenine dinucleotide (NAD⁺)-dependent or nicotinamide adenine dinucleotide phosphate (NADP⁺)-dependent transformation of isocitrate to α-ketoglutarate (3). IDHs possess three isoforms: IDH3 is the main form of IDH involved in the TCA cycle, and no mutation in any of the IDH3 subunits is reported in cancer cells at present. IDH1 and IDH2 mutations have been reported in gliomas and acute myelogenous leukemia (4). Mutant IDHs produce 2-hydroxyglutarate. It is possible to regulate the hypermethylation of RIP3 promotor mediated by DNA methyltransferase (DNMT1), impairing necroptosis to contribute to tumorigenesis (5); therefore, 2-hydroxyglutarate has been recognized as an onco-metabolite (6). Unlike IDH2/3, IDH1 located in cytosol, whose substrate and product could shuttle between mitochondria and cytosol, has been determined as a tumor suppressor since its stability plays an essential role in carcinogenesis (7). Our previous study demonstrated that the protein and activity levels of IDH1 were inhibited by tumor promoter treatment, not IDH2. Therefore, maintaining the expression and activity levels of IDH1 would be of importance to carcinogenesis inhibiting.

As one of the major bioactive compounds derived from Withania somnifera, Withaferin A (WA) has been used for the treatment of nervous and sexual disorders (8). Recent studies have demonstrated the anti-tumor potential of WA, which shows that WA exerts the anti-proliferation activity in non-small cell lung cancers (9), osteosarcoma (10), breast cancer (11), prostate cancer (12), colon cancer (13), and pancreatic cancer (14), either in vitro or in vivo. Meanwhile, a clinical trial of WA has been launched for treatment of metastatic melanoma (15). Our early studies have shown that WA inhibits skin cell transformation and blocks tumor promoter-induced metabolic alterations (16), which make WA a potential chemopreventive agent. However, the molecular mechanisms of chemoprevention could be different from its anti-tumor activities.

Increasing evidences show that ubiquitin-proteasome pathway (UPP) inducing degradation of tumor suppressors plays a contributing role during carcinogenesis (17,18). In detail, to cooperate with ubiquitin-activating enzymes E1 and ubiquitin-conjugating enzymes E2, ubiquitin E3 ligases combine and modify specific substrates leading to their degradation by 26S proteasome (19). This ubiquitin E3 ligase pathway is crucial during tumorigenesis (20,21), which may also serve as the target for chemoprevention. Based on computer simulation (22) and experimental data (17,23), it has been proved that WA could bind to the 20S, 26S proteasome core complex, to inhibit the UPP. In present study, we will examine whether WA may target UPP, thereby stabilize IDH1 as an important mechanism of chemoprevention.

Methods

Cell lines, reagents, and treatment

Murine skin epidermal JB6 Cl-41 P+ cells (purchased from American Type Culture Collection) were grown in EMEM (Gibco) medium containing 5% fetal bovine serum (FBS), penicillin and streptomycin in a 37 °C incubator under 5% CO₂. WA, dissolved in dimethyl sulfoxide (DMSO; Sigma, St Louis, MO, USA), was purchased from ChromaDex (ASB-00023250; Irvine, CA, USA). 12-O-tetradecanoylphorbol-13-acetate (TPA; P1585, Sigma), MG-132 (HY-13259; MCE, Monmouth Junction, NJ, USA), and cycloheximide (CHX; C7698, Sigma) were dissolved in DMSO.

Isolation of total RNA and real-time PCR

Total RNA was isolated from cells using E.Z.N.A total RNA kit II (OMEGA, Norcross, GA, USA) following the manufacturer’s instruction. Two µg of the purified RNA was reverse transcribed using HiScript II First Strand cDNA Synthesis kit (Vazyme, Nanjing, China) according to the manufacturer’s instruction. The mRNA level of IDH1 was determined by quantitative real-time PCR analysis using qPCR SYBR Green Master mix (Vazyme) which was normalized to 18S RNA as the internal control. IDH1 primer: GACTCAGTCGCCCAAGGT (Sense), GCAGCCTCTGCTTCTACC (Antisense); Nrf2 primer: TGGACGGGACTATTGAAGGCTG (Sense), GCCGCCTTTTCAGTAGATGGAGG (Antisense); 18S RNA primer: CTCAACACGGGAAACCTCAC (Sense), CGCTCCACCAACTAAGAACG (Antisense). Each sample was analyzed in triplicate, and the expression levels were normalized using the 2^−ΔΔCt -based fold change method.

Preparation of whole-cell lysate

Whole-cell lysate was extracted from cultured JB6 P+ cells in RIPA lysis buffer (Thermo Fisher Scientific, Waltham, MA, USA) containing the protease inhibitor cocktail (Thermo Fisher Scientific). The supernatant collected to measure the protein concentration was detected by BCA assay (CWBIO, CW0014S).

Western blot analysis

Forty micrograms of whole-cell lysate were separated by 10% SDS-PAGE and transferred onto PVDF membranes. Antibodies against IDH1 (1:5,000), ubiquitin (1:2,000) and glyceraldehyde 3-phosphate dehydrogenase (GAPDH; 1:5,000) were purchased from Abcam (Cambridge, MA, USA). Antibody against β-actin (1:1,000), lactate dehydrogenase (LDH; 1:1,000), glucose transporter 1 (Glut1; 1:1,000), and HIF-1α (1:1,000) were purchased from Santa Cruz Biotechnology (Santa Cruz, CA, USA). The membranes were incubated with horseradish peroxidase conjugated anti-rabbit or anti-mouse secondary antibodies (1:5,000, Thermo Fisher Scientific). The blots were detected by Biokit Technology Maxilumin™-WB Pico Chemiluminescence Substrate reagent (Baizhi, Bejing, China) and exposed to GeneGnome XRQ chemiluminescence film (Gene Company Limited, Winooski, VT, USA).

Proteasome 20S activity assay

JB6 P+ cells were seeded in a 96-well plate before treated with TPA and/or WA. Proteasome activity was detected using Proteasome 20S Activity Assay Kit (Sigma) according to the manufacturer’s instruction. Proteasome assay loading solution was added to each well, and the plate was incubated for 2 h at 37 °C protecting from light. The fluorescence densities were monitored at λex =490 nm and λem =525 nm. The proteasome activity was calculated according to manufacturer’s instructions (Gene Company Limited).

Immunoprecipitation

For identification of ubiquitinated IDH1 protein, 2 mg of whole-cell lysate were freshly prepared. An aliquot of the supernatant was incubated with anti-isocitrate dehydrogenase antibody (6 µL Abs to 2,000 µg protein in 500 µL cell lysate) overnight at 4 °C with gentle rotation. 25 µL of pre-cooled protein G agarose slurry (Cell Signaling Technology, Danvers, MA, USA) was then added and incubated at 4 °C for 2 hours to capture the immune-complex, which was then centrifuged at 12,000×g at 4 °C for 2 minutes to collect the conjugates. After washing three times, the conjugates were resuspended with 2 times loading buffer, which were then analyzed by western blot analysis. The membranes were hybridized with primary antibodies followed by incubation with appropriate HRP-conjugated secondary antibodies.

IDH1 siRNA and vector transfections

Cells were seeded at 2×10⁵ per well in 6-well tissue culture plates, and transfection was started when cells became 70–80% confluent. For each transfection, 2 µL of the IDH1 siRNA duplex (Santa Cruz Biotechnology, Santa Cruz, CA, USA) was diluted into 100 µL of siRNA transfection medium (Santa Cruz Biotechnology) and labeled as Solution A. Solution B consisted of 2 µL of transfection reagent (Santa Cruz Biotechnology) diluted into 100 µL of siRNA transfection medium. Solution A and B were mixed gently and incubated for 30 min at room temperature. Cells were washed once with 2 mL of siRNA transfection medium. For each transfection, 0.8 mL of siRNA transfection medium was added to each tube containing the solution A/B mixture, mixed and directly added to the washed cells. Six hours later, 2 mL of 1× normal growth medium was added to the cells containing the transfection mixture. The cells were incubated for additional 24 h and subjected to western blot analysis.

For IDH1 overexpression, the cells were washed with PBS and incubated with Opti-MEM medium (Gibco) for 30 min. Five microliter of Lipofectamine 2000 Transfection Reagent (Invitrogen by Thermo Fisher Scientific, Waltham, MA, USA) was diluted with Opti-MEM medium into 125 µL, 2.5 µg of pcDNA3.1 vector or pcDNA3.1-IDH1 plasmid was diluted with Opti-MEM medium into 125 µL. The diluted DNA was added to Lipofectamine 2000 reagent (lipo: DNA ratio =1:1), followed by mixed gently and incubated for 5 min at room temperature. For each transfection, the DNA-lipid complex was added to cells. Four hours later, the Opti-MEM containing the transfection complx was replaced by normal growth medium. After 48 h, cells were collected and assayed.

Alpha-ketoglutarate quantitative assay

Cells treated with TPA and/or WA were collected and resuspended with α-KG Buffer. The supernatant was deproteinized by passing through a 10 kD MWCO spin filter (Thermo Scientific Pierce). Two microliters of the whole-cell lysate filtrate was diluted to 50 µL with α-KG Buffer. Alpha-ketoglutarate concentrations were measured using α-Ketoglutarate Assay Kit (Sigma) according to the manufacturer’s instructions. For each sample, the concentration of α-KG was recorded by spectrophotometry at 570 nm, and calculated by the equation provided by the manufacturer (Gene Company Limited).

Mitochondrial complex I activity assay

The collected cells were lysed by homogenization. The supernatant was collected by centrifugation at 600 g for 5 min at 4 °C. After then, the precipitate was collected by centrifugation at 11,000 g for 10min at 4 °C. Mitochondrial samples were obtained followed by the precipitate was ultrasonically disrupted on ice. Mitochondrial complex I activity was measured using Mitochondrial Respiratory Chain Complex I Activity Assay Kit (Solarbio, Beijing, China) according to the manufacturer’s instruction. The content of complex I was determined at the initiation and 2-min later respectively, which was recorded by spectrophotometry at 340 nm, and calculated by the equation provided by the manufacturer (Gene Company Limited).

LDH activity assay

Cells were resuspended by LDH assay buffer, and then the supernatant was collected. LDH activity was measured using LDH Activity Assay Kit (Sigma) according to the manufacturer’s instructions. The content of LDH was monitored by spectrophotometry at 450 nm, and calculated by the equation provided by the manufacturer (Gene Company Limited).

Mouse vascular endothelial cell growth factor quantitative assay

Cells gathered were resuspended with PBS, and the process that samples frozen at −80 °C for 10 min was repeated three times. The collected supernatant was the sample solution applied to measure the concentration of vascular endothelial growth factor (VEGF). Mouse VEGF concentration was measured using Mouse VEGF ELISA Kit (Yuanmu Biological Technology, Shanghai, China) according to the manufacturer’s instructions (Gene Company Limited).

PHD quantitative assay

Cells gathered were resuspended and frozen at −80 °C for 10 min, which was repeated three times. The collected supernatant was applied to measure the concentration of proline hydroxylase (PHD). PHD concentration was measured using PHD ELISA Kit (Xinyu Biological Technology, Shanghai, China) according to the manufacturer’s instructions, which was recorded by spectrophotometry at 450 nm, and calculated by the equation from manufacturer recommended (Gene Company Limited).

Statistical analysis

One-way analysis of variance (ANOVA) followed by Newman-Keuls post-test was used for multi-group comparisons. All of the experiments have been repeated at least three times. P<0.05 was considered significant.

Results

Downregulation of IDH1 is predominantly due to tumor promoter TPA-induced protein degradation

As an important metabolic enzyme, IDH1 reversibly converts isocitrate to α-ketoglutarate in cytosol. Previously we have demonstrated that WA inhibits tumor promoter TPA-induced IDH1 inactivation in JB6 P+ cells (Figure S1). To detect if the expression of IDH1 could be regulated in transcription level, the mRNA levels of IDH1 were detected. Data showed that the IDH1 mRNA levels were no significantly changed after TPA and/or WA treatment (Figure 1A). These results suggest that IDH1 might be regulated at translation or post-translation level but not in transcription level.

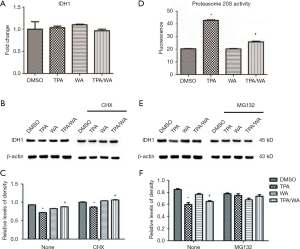

Figure 1 WA inhibited the UPP to stabilize IDH1 protein. (A) JB6 P+ cells were treated with TPA: 5 nM; WA: 0.625 µM; WA/TPA: co-treatment for 24 h. Measurement of the mRNA levels of IDH1. (B) Cells were pretreated with CHX (10 µg/mL) for 4 h followed by TPA and/or WA for 24 h. Western blot analysis for IDH1 protein. β-actin served as the loading control. (C) Densitometric analysis for blots shown in (B). (D) Cells were treated the same as described in (A). Measurement of the proteasome 20S activity. (E) Cells were pretreated with 10 µM MG132 for 4 h followed by TPA and/or WA treatments for 24 h. Western blot analysis for IDH1 protein. (F) Densitometric analysis for blots shown in (E). Multi-group analyses were performed using a one-way ANOVA followed by Newman-Keuls post-test. *, TPA compared with the DMSO treatment, P<0.05. ^#, WA/TPA compared with the TPA treatment, P<0.05. n=3 in each group. WA, Withaferin A; UPP, ubiquitin-proteasome pathway; IDH1, isocitrate dehydrogenase 1; TPA, 12-O-tetradecanoylphorbol-13-acetate; CHX, cycloheximide; DMSO, dissolved in dimethyl sulfoxide.

To further investigate how IDH1 was regulated, a protein synthesis inhibitor cycloheximide (CHX) was employed. JB6 P+ cells were pre-treated with CHX for 4 hours and then treated with TPA and/or WA for 24 hours. The effect of WA on IDH1 protein levels was not changed when cells were pretreated with CHX (Figure 1B,C). Therefore, we speculated WA may be able to stabilize IDH1 at the post-translation stage.

The inhibition of target protein degradation through the ubiquitin-proteasome proteolytic pathway which plays an essential role in the protein metabolism is a recently developed approach to cancer treatment. Proteasome 26S is the most common form of the proteasome, which contains one 20S core particle structure. We first measured the proteasome activity in JB6 P+ cells after treated by TPA and/or WA. TPA-induced significantly increases in proteasome activities (Figure 1D), which contributed to the degradation of protein by activating the proteasome pathway. However, WA attenuated the positive effect of TPA on proteasome (Figure 1D), thereby maintaining protein stability. When the proteasome inhibitor MG132 was applied, the protein levels of IDH1 were restored to normal levels (Figure 1E,F). From the effect of WA/TPA on JB6 P+ cells decreased by MG132 pretreated, we speculated that WA prevented the downregulation and degradation of IDH1 via inhibiting the UPP. For further investigation, we detected the ubiquitination of IDH1. IDH1 proteins were immuno-precipitated, and detected with an anti-ubiquitin antibody. IDH1 expression levels were significantly increased after WA treatment in contrast with that TPA treatment both in the whole-cell lysate and the lysate followed by immunoprecipitation (Figure 2A,B,C). However, increased ubiquitinated IDH1 was observed after TPA treatment before and after immunoprecipitation, indicating that TPA induced the ubiquitination and degradation of IDH1 protein (Figure 2D,E,F). In contrast, WA treatment reduced the ubiquitinated IDH1 and proteasome activity. These results further demonstrate that WA could stabilize IDH1 by inhibiting the UPP.

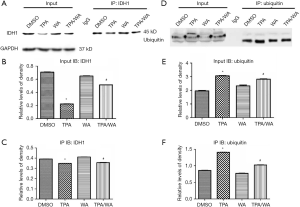

Figure 2 WA inhibited IDH1 ubiquitination. JB6 P+ cells were treated same as before. (A) Western blot analysis for total un-ubiquitinated IDH1. GAPDH served as the loading control. (B) Densitometric analysis for the total un-ubiquitinated IDH1 protein in whole-cell lysis. (C) Densitometric analysis for total un-ubiquitinated IDH1 protein after immunoprecipitation normalized to IgG heavy chain. (D) Western blot analysis for ubiquitinated-IDH1 (Ub-IDH1). (E) Densitometric analysis for the ubiquitinated protein in whole-cell lysis. (F) Densitometric analysis for the ubiquitinated-IDH1 protein after immunoprecipitation. Multi-group analyses were performed using a one-way ANOVA followed by Newman-Keuls post-test. *, TPA compared with the DMSO treatment, P<0.05. ^#, WA/TPA compared with the TPA treatment, P<0.05. WA, Withaferin A; UPP, ubiquitin-proteasome pathway; IDH1, isocitrate dehydrogenase 1; TPA, 12-O-tetradecanoylphorbol-13-acetate; CHX, cycloheximide; DMSO, dissolved in dimethyl sulfoxide.

IDH1, as a possible tumor suppressor, inhibits aerobic glycolysis and maintains mitochondrial functions

To explore how altered levels of IDH1 affects cellular metabolism, we either overexpressed or knocked down IDH1 in JB6 P+ cells. At first, JB6 P+ cells were transfected with either control siRNA or siRNA to IDH1, and the transfection efficiency was monitored by the IDH1 expression (Figure S2A,B). Similarly, cells were transfected with the pcDNA3.1 or pcDNA3.1-IDH1 vector, and the transfection efficiency was also detected by the IDH1 expression (Figure S2C,D). The concentration of α-KG, the product of IDH1, was detected in these transfected cells. Alpha ketoglutarate levels were significantly increased in pcDNA3.1-IDH1 compared with siRNA-IDH1-transfected cells (Figure 3A). Next, we measured mitochondrial complex I activity, a marker for mitochondrial functions. The complex I activity was significantly increased in pcDNA3.1-IDH1-transfected, but slightly decreased in siRNA-IDH1-transfected cells (Figure 3B). The collected data mirrored that IDH1 functioned in protecting the mitochondria from dysfunction. To observe the impact of IDH1 on glycolysis in carcinogenesis, the expression levels of LDH which is the essential enzyme involved in glycolysis, were detected. WA suppressed the TPA-induced upregulation of LDH expression (Figure 3C,D). WA as an anti-tumor agent might block the tumorigenesis on account of reducing the energy supply provided by glycolysis. Overexpression of IDH1 also inhibited LDH expression, which was reversed by knockdown of IDH1 (Figure 3E,F). In addition, the LDH activity was determined by using the same samples collected from JB6 P+ cells which were transfected with pcDNA3.1-IDH1. IDH1 overexpression reduced the activity of LDH (Figure 3G). These observations indicate that IDH1 might ward off tumorigenesis just as WA, which was mediated by the inhibition on glycolysis.

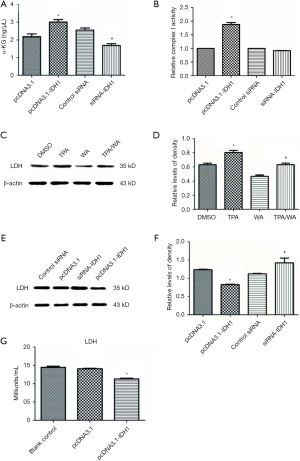

Figure 3 The effect of IDH1 on LDH and complex I activities. JB6 P+ cells were transfected with pcDNA3.1-IDH1 or siRNA-IDH1 for 6 h. (A) The concentrations of α-KG. (B) The activity of mitochondrial complex I. (C) JB6 P+ cells were treated same as before. Western blot analysis for endogenous LDH. (D) Densitometric analysis for blots shown in (C). (E) Western blot analysis for endogenous LDH. (F) Densitometric analysis for blots shown in (E). (G) Detection of LDH activity. Multi-group analyses were performed using a one-way ANOVA followed by Newman-Keuls post-test. *, pcDNA3.1-IDH1 compared with the pcDNA3.1 treatment, P<0.05. ^#, siRNA-IDH1 compared with the pcDNA3.1-IDH1 treatment, P<0.05. WA, Withaferin A; UPP, ubiquitin-proteasome pathway; IDH1, isocitrate dehydrogenase 1; TPA, 12-O-tetradecanoylphorbol-13-acetate; CHX, cycloheximide; DMSO, dissolved in dimethyl sulfoxide.

WA suppresses the HIF-1α pathway

Hypoxia inducible factor-1α (HIF-1α) is indispensable in hypoxia, which regulates the biological metabolism of cancer cells to maintain their proliferation. As a cofactor, α-KG produced from IDH1 regulates the activity of PHD, and PHD inhibits HIF-1α activity. Here we measured the expression of HIF-1α targeted genes, including glucose transport protein (Glut) and VEGF. The expression levels of Glut1 and HIF-1α were increased after TPA treatment, which were inhibited by WA (Figure 4A,B). IDH1 overexpression also inhibited the expression of Glut and HIF-1α, but the downregulation of IDH1 enhanced its expression (Figure 4C,D). It was consistent that WA and IDH1 overexpression had the similar impact on the downstream of HIF-1α. Then, the results revealed that WA decreased the levels of VEGF (upper panel), but increased the levels of PHD (lower panel) (Figure 4E). The reduced levels of VEGF by either WA or IDH1 overexpression (Figure 4F) were consistent with the results of Glut1 and HIF-1α, which demonstrated that WA might be an inhibition agent to HIF-1α pathway. The finding that increased level of PHD coincided with the accumulation of α-KG when IDH1 was overexpressed also further supported the connection between PHD and IDH1. Collectively, our results indicate that WA stabilizes IDH1 during tumor promotion, and maintains the activity of PHD which inhibits the activation of HIF-1α, serving as an important mechanism of chemoprevention.

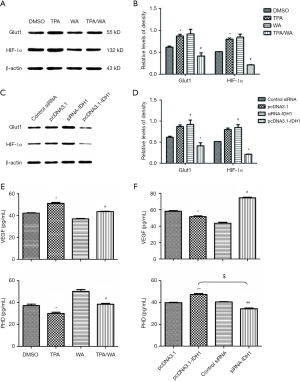

Figure 4 Both WA and IDH1 inhibited the HIF-1α signaling. Western blot analysis for HIF-1α and Glut1 after WA treatment (A) or IDH1 vector transfection (C) in JB6 P+ cells. (B) Densitometric analysis for blots shown in (A). (D) Densitometric analysis for blots shown in (C). Detection of the activity of VEGF (upper panel) and PHD (lower panel) after WA treatment (E) or IDH1 vector transfection (F). Multi-group analyses were performed using a one-way ANOVA followed by Newman-Keuls post-test. *, TPA compared with the DMSO treatment, P<0.05. ^#, WA/TPA compared with the TPA treatment, P<0.05. **, pcDNA3.1-IDH1 compared with pcDNA3.1 treatment, P<0.05. ^##, siRNA-IDH1 compared with the control siRNA treatment, P<0.05. $, siRNA-IDH1 compared with the pcDNA3.1-IDH1 treatment, P<0.05. n=3 in each group. WA, Withaferin A; UPP, ubiquitin-proteasome pathway; IDH1, isocitrate dehydrogenase 1; TPA, 12-O-tetradecanoylphorbol-13-acetate; CHX, cycloheximide; DMSO, dissolved in dimethyl sulfoxide.

Discussion

IDH1 converts isocitrate to α-KG in the cytoplasm, which activates dioxygenases. Another metabolic enzyme glutamate dehydrogenase (GDH) also converts glutamate to α-KG (24). Our early studies have demonstrated neither TPA nor WA treatment alters GDH activity (16), suggesting that the changes in the α-KG levels mainly come from IDH. Alpha-KG shuttles between the cytosol and mitochondria so that IDH1 is indirectly involved in the tri-carboxylic acid cycle (TCA) (25). Our data have demonstrated that elevated levels of IDH1 increases whereas reduced levels of IDH1 decreases mitochondrial complex I activity, suggesting that IDH1 could maintain the normal mitochondrial functions. Tumorigenesis is often associated with a metabolic shift. Cancer cells predominantly produce energy by a high rate of glycolysis followed by lactic acid fermentation even in the presence of oxygen, known as the “Warburg Effect” (1). Our data show that WA could significantly block the expression of LDH, and overexpression of IDH1 also inhibits both the expression and activity levels of LDH, suggesting a possible mechanism that IDH1 suppresses tumor promotion via inhibiting glycolysis.

WA is a bioactive compound derived from Withania somnifera, which has been used in clinic for the treatment of nervous and sexual disorders (8). Our preliminary studies have shown that WA inhibited skin tumorigenesis both in vitro and in vivo combined with the overexpression and increased enzyme activity of IDH1 (16,26). Nevertheless, how WA acts as a chemopreventive agent mediated by IDH1 is unclear. It is timely and significant to understand the mechanism of WA in chemoprevention. Our early studies show that WA could block tumor promoter TPA-induced inactivation of IDH1 during tumor promotion (16). As a target gene of nuclear factor erythroid 2-related factor 2 (Nrf2), the promoter of IDH1 includes the antioxidant response element (ARE) which is the binding site of Nrf2 (27,28). We measured the mRNA level of Nrf2 (Figure S3), and results show that TPA treatment suppresses the mRNA levels of Nrf2, which is blocked by WA. However, the mRNA levels of IDH1 are not significantly changed during these treatments (Figure 1A), suggesting the effects on IDH1 are not due to its gene transcription. When applying the protein synthesis inhibitor CHX, the protein levels of IDH1 do not show significant differences between different treatments, suggesting the effects on IDH1 are not due to protein synthesis or the modification of post-translation. Therefore, we focus on whether WA stabilizes IDH1 during post-translation stage. There are two major and fundamentally different mechanisms by which cells degrade proteins, the lysosome and the proteasome (29,30). The UPP is a principal and highly effective protein-degradation pathway in the eukaryotic cells (31), which regulates a wild range of cellular biology including cell growth (32), cell signaling (33), cell immunity (34), cell differentiation (35), and other important cellular physiological processes. The disturbance in the ubiquitination process may lead to tumor promotion (36). WA has showed anti-angiogenesis pharmacological activities through targeting the UPP (37). Therefore, we measure the proteasome activity and in deed, WA suppresses TPA induced proteasome activity. Followed by employing the proteasome inhibitor MG132, WA prevented the downregulation and degradation of IDH1 induced by tumor promoter TPA via inhibiting the UPP. It is further demonstrated by results showing that WA blocks TPA-induced ubiquitination of IDH1, which is consistent with the function of WA as a proteasome inhibitor (38). Since the modification of IDH1 by ubiquitin is of great significance in regulating its degradation and activity, thereby furthermore generates biological effect, what kind of ubiquitinations occurs in IDH1? Which sites of IDH1 are modified by ubiquitin? The studies on the detection of ubiquitination sites are further conducting to explore the detail mechanism.

As a downstream molecular of α-KG, PHD inhibits the HIF-1α-induced signal pathway involved in tumorigenesis (39,40). Our data are showing that PHD activity is induced by WA treatment, as well IDH1 overexpression, establishing a link WA to HIF-1α. It is further supported by the data that WA blocks TPA-induced activation of Glut1 and VEGF, both the target molecules of HIF-1α and contributing to tumorigenesis (41,42).

Conclusions

Taken together, our present study has demonstrated a novel mechanism of how WA, as a potential chemopreventive agent, inhibits tumor promotion, starting from stabilizing IDH1 to inactivating HIF-1α signaling. These results uncover the mechanism of tumor suppressor gene IDH1 as a promising molecular target for chemoprevention, and WA might provide a guide for the discovery of chemopreventive chemicals.

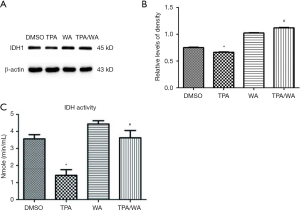

Figure S1 The effect of WA or TPA on IDH1 protein expression and activity. WA inhibited tumor promoter TPA-induced both IDH1 protein (A) and activity (C) downregulation in JB6 P+ cells. (B) Densitometric analysis for blots shown in (A). Multi-group analyses were performed using a one-way ANOVA followed by Newman-Keuls post-test. *, TPA compared with the DMSO treatment, P<0.05. ^#, WA/TPA compared with the TPA treatment, P<0.05. n=3 in each group. WA, Withaferin A; UPP, ubiquitin-proteasome pathway; IDH1, isocitrate dehydrogenase 1; TPA, 12-O-tetradecanoylphorbol-13-acetate; CHX, cycloheximide; DMSO, dissolved in dimethyl sulfoxide.

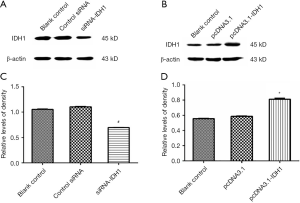

Figure S2 The corresponding data about the overexpression and knockdown of IDH1. JB6 P+ cells were transfected with control siRNA or siRNA-IDH1(A) and pcDNA3.1 or pcDNA3.1-IDH1(C) for 6 h. (B) Densitometric analysis for blots shown in (A). (D) Densitometric analysis for blots shown in (C). Western blot analysis for IDH1. *, TPA compared with the DMSO treatment, P<0.05, ^#, WA/TPA compared with the TPA treatment, P<0.05. WA, Withaferin A; UPP, ubiquitin-proteasome pathway; IDH1, isocitrate dehydrogenase 1; TPA, 12-O-tetradecanoylphorbol-13-acetate; CHX, cycloheximide; DMSO, dissolved in dimethyl sulfoxide.

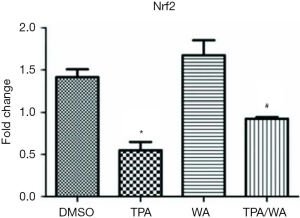

Figure S3 WA suppressed TPA-induced downregulation of the mRNA levels of Nrf2. JB6 P+ cells were treated same as before. Measurement of the mRNA levels of Nrf2. Multi-group analyses were performed using a one-way ANOVA followed by Newman-Keuls post-test. *, TPA compared with the DMSO treatment, P<0.05. ^#, WA/TPA compared with the TPA treatment, P<0.05. n=3 in each group. WA, Withaferin A; UPP, ubiquitin-proteasome pathway; IDH1, isocitrate dehydrogenase 1; TPA, 12-O-tetradecanoylphorbol-13-acetate; CHX, cycloheximide; DMSO, dissolved in dimethyl sulfoxide.
