Dose accumulation in IMRT for left breast cancer determined by applying deformation registration

Introduction

Intensity-modulated radiation therapy (IMRT) has gradually become an important part of comprehensive treatment for breast cancer (1). IMRT can improve the dose uniformity of a target and effectively reduce the dose and exposure volume of organs at risk (OARs), such as the heart and lungs (2). The current target range of breast radiotherapy includes the chest wall and breast cancer lymph node drainage area (3); these are complex targets for which target and OAR dose-volume assessments are essential. Radiation-induced heart injury (RIHI) and radiation-induced lung injury (RILI) are the two most problematic issues in the clinical treatment of left breast cancer (LBC) (4,5). Clinical studies have shown that radiotherapy for LBC increases the probability of ischemic heart disease, pericarditis and valvular disease (6,7). Darby (8) found that the incidence of ischemic heart disease was proportional to the average radiation dose delivered to the heart and that the risk of morbidity began to increase within 20 years after radiotherapy. In the process of radiotherapy for breast cancer, respiration, target regression, heartbeat, weight loss and other factors change the shape and location of the target volume, resulting in decreased in the accuracy of the actual evaluation (9). Therefore, in theory, continued use of the initial plan to evaluate the target volume and dose delivered to OARs may lead to a large error between the planned dose and the actual radiation dose. In this study, breast cancer patients undergoing IMRT were selected, and the radiotherapy target volume included the supraclavicular lymph node drainage area and the chest wall. On this basis, the dose of two IMRT plans for breast cancer was acquired by rigid and deformation methods based on a deformation registration (DF) technique. The dose-volume indices of the target volume and normal tissues, such as the heart and lungs, were evaluated and compared with those of the original intensity modulation plan. The purpose of this study was to quantify the changes in the target and OAR dose-volume indices, including those in the chest wall and involved lymph nodes, in patients with breast cancer during IMRT.

Methods

General patient information

This study was a retrospective analysis of 16 female patients aged 27–66 years (median age of 42.5 years) with LBC who were treated from September 2016 to July 2018 at Shandong Cancer Hospital. The target volume included the lymph node drainage area plus the chest wall.

Image acquisition and design planning

The patients were placed in a supine position, after which the breast brackets were fixed, and their arms were lifted out to fully expose the left breast. A positioning scan was performed using a Philips large-aperture analog positioning machine. The scanning range extended from the ring membrane to the lung base to obtain the positioning CT image (CT₁). After CT₁ was introduced into a Varian Eclipse 13.5 system, the doctors outlined the whole breast clinical target volume, CTV₁, and performed CTV extrapolation to obtain the planned target volume, PTV₁, which delineated the OARs, including the heart and lungs. All delineations were completed by the same physician. The IMRT plan was designed using the Varian Eclipse 13.5 system. The radiotherapy plan involved X-ray irradiation at 6 MV, and a radiotherapy dose of 50 Gy/25 fractions was planned as the total dose for CTV₁. A CT scan was performed following radiotherapy with 30–36 Gy/15–18 fractions using CT₁, and CT₂ was obtained. The physician sketched CTV₂, PTV₂ and the OAR volume according to CT₂. The two positioning methods and the target volume delineation standards were consistent. The reset plan dose was based on the initial planned dose of 50 Gy/25 fractions. Radiotherapy with 50 Gy/25 fractions for CTV₂ was used as plan₂.

DF and dose accumulation

CT₁ was set as the reference image, and CT₂ was set as the target image; CT₂ was separately processed for rigid and DF to CT₁ using Varian Velocity 3.2.1 software (shown in Figure 1). According to the registration image deformation point review and the vector field generated by the vector review, the rigid and deformation plan₂ dose was determined according to plan₁ and summed with the plan₁ dose to obtain plan_rig and plan_def. The flow chart is shown in Figure 2.

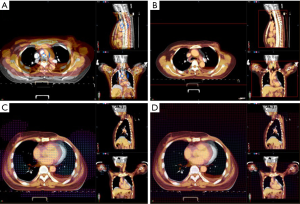

Figure 1 Deformation registration diagram. Before rigid registration (A); rigid registration (B); deformation registration vector audit (C); deformation registration grid audit (D).

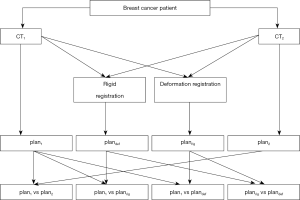

Figure 2 Schematic of the patient deformation registration process.

Statistical analysis

Statistical analyses of the data included the following. (I) Changes in the target and OAR volumes: calculation of the CTV, PTV, and heart and lung volume change rates. (II) Target and OAR dose-volume indices: determination of the target volume D₂, D₉₅, D_mean and PTV exposure dose >95% volume (denoted as V_PTV95%); the heart V₂₀, V₃₀, V₄₀ and D_mean; the left lung V₅, V₁₀, V₁₃, V₁₅, V₂₀ and V₃₀; and the right lung V₅, V₁₀, V₁₃ and V₁₅. (III) Dice similarity coefficients (DSCs): calculation of the pre- and post-deformation CTV, PTV, and heart and lung DSC as DSC =2|A∩B|/(|A|+|B|), where A is CTV₁ and the OAR volume and B is CTV₂ and the OAR volume. (IV) Homogeneity index (HI): calculation of the target dose as HI = (D₂ − D₉₈)/D_mean. (V) Conformity index (CI): calculation of the target dose CI as CI = (V_PTV95%/V_T) × (V_PTV95%/V_PTV), where V_T is CTV and V_PTV is PTV. Statistical analysis was performed using SPSS 19.0 software. The data are presented as the mean ± standard deviation. A paired t-test was used to compare plan₁ and plan₂, plan₁ and plan_rig, plan₁ and plan_def, and plan_rig and plan_def, with P<0.05 indicating a significant difference.

Results

Comparison of the target and OAR volumes between plan₁ and plan₂

Statistical analysis of CTV₁, CTV₂ and the OAR volume showed that PTV₂ and CTV₂ were significantly decreased by 11.2% and 8.5%, respectively (P<0.05). There were no significant differences in the lung volumes between the CT₂ and CT₁ groups (P>0.05). See Table 1 for details.

Comparison of plan₁ and plan₂ dose volumes

For the V₂₀, V₃₀, V₄₀ and D_mean of the heart, the plan₂ volumes were slightly less than the plan₁ volumes, but the differences were not statistically significant (P>0.05). See Table 2 for details. The V₅, V₁₀, V_13, V₁₅, V₂₀ and V₃₀ of the left lung were significantly lower in plan₂ than in plan₁ except for a slight increase in V₅; the difference was not statistically significant (P>0.05). See Table 3 for details. In the right lung, the V₅, V₁₀, V₁₃ and V₁₅ in plan₂ were slightly lower than those in plan₁ except for a slight increase in V₅, and the differences were not statistically significant (P>0.05). See Table 4 for details.

Comparison of plan₁ and plan_rig dose-volume indices

The dose-volume indices based on rigid registration showed that the CI of the plan_rig target volume changed from 1.08±0.12 to 1.33±0.16 with plan₁, and the difference was statistically significant (P<0.05). See Table 5 for details. Compared with the plan₁ group, the plan_rig group showed slight increase in the dose-volume indices of the heart and left and right lungs, but there were no significant differences between the groups (P>0.05). See Tables 2-4 for details.

Comparison of plan₁ and plan_def dose-volume indices

The dose-volume indices based on DF showed that the CI of the plan_def target range changed from 1.16±0.14 to 1.33±0.16 with plan₁, and the difference was statistically significant (P<0.05). See Table 5 for details. Compared with those in the plan₁ group, the dose-volume indices in the plan_def group were essentially the same, and the differences were not statistically significant (P>0.05). See Tables 2-4 for details.

Comparison of plan_rig and plan_def dose-volume indices

Comparing the rigid registration plan with the DF plan showed that the plan_rig target volume uniformity index of 0.38±0.13 decreased significantly to 0.25±0.07 for plan_def (P<0.05, Table 5). The DSCs of the PTV, CTV, heart, left lung, and right lung in the plan_rig and plan_def groups were 0.84±0.08 and 0.84±0.08, 0.86±0.11 and 0.85±0.11, 0.94±0.01 and 0.89±0.05, 0.96±0.01 and 0.91±0.03, 0.96±0.01 and 0.92±0.03, respectively, and the differences were statistically significant (P<0.05, Table 6). For the OARs, the V₂₀, V₃₀, V₄₀, and D_mean of the heart were increased by 6.1%, 7.3%, 11.9%, and 4.3%, respectively, in the plan_rig group compared with the plan_def group; the V₅, V₁₀, V₁₃, V₁₅, V₂₀, and V₃₀ of the left lung were increased by 0.5%, 1.2%, 1.5%, 1.7%, 2.1%, and 2.7%, respectively; and the V₅, V₁₀, V₁₃, and V₁₅ of the right lung were increased by 2.3%, 5.0%, 12.5%, and 6.7%, respectively. Paired t-tests of the abovementioned evaluation indices showed significant differences for the heart and left lung volumes (P<0.05) but not for the right lung (P>0.05). See Tables 2-4 for details.

Discussion

IMRT for breast cancer can ensure that the target tumor volume receives the prescribed dose while reducing the dose delivered to normal tissues (10,11). In a study of 14 breast cancer patients treated with IMRT and planned dosimetry, Liu (12) found that IMRT plans can meet the clinical dosimetry demands of postoperative radiotherapy for LBC and have a better conformity. Clinical data show that the exposure volume (V₅–V₃₀) of the affected lung at different doses can better predict the incidence of radiation pneumonitis, and the average dose delivered to the heart with different exposure volumes (V₂₀, V₃₀, V₄₀, D_mean) can be compared (4,13,14). Because is helpful to predict the probability of RIHI, accurately calculating the dose delivered to OARs is crucial for predicting radiation damage in breast cancer patients. In the middle and late stages of breast cancer treatment, the location, shape and size of the target volume and surrounding normal tissues change to varying degrees, which may lead to an insufficient dose delivered to the target volume and an increased dose delivered to normal tissues, thus affecting the therapeutic efficacy. Therefore, accurate assessment of the dose-volume indices of lung and cardiac tissue is critical.

In this study, after 15 to 18 fractions of radiotherapy in breast cancer patients, a repeat CT scan was obtained, and the IMRT plan was revised. Then, the two planned doses were rigidly determined according to the deformation fields of their corresponding CT images by the DF technique. The deformation field was superimposed to obtain the plan_rig and plan_def groups. Comparison of the plan_rig and plan₁ groups as well as the plan_def and plan₁ groups showed that the changes in the CTV, PTV, heart and lung volumes were small, especially that in the CTV (<10%), and the deformation was matched. The dose-volume indices of all OARs were essentially consistent with those in the plan₁ group, with no significant differences. Varian Velocity, the DF software used in this study, is a clinically applicable deformable image registration (DIR) technique for image registration that utilizes a B-spline free-form deformation algorithm. The B-spline algorithm is based on the Mattes formulation and consists of mutual information and proprietary methods not divulged by the vendor. The limited-memory Broyden-Fletcher-Goldfarb-Shanno optimization algorithm was used to find the optimal node value, with a maximum of 100 iterations and 20 corrections being used as a termination condition for the optimization algorithm (15). In an evaluation of velocity deformation accuracy, Palma et al. (16) suggested that the accuracy of DF ranges between 3 and 5 mm. Brock (17) showed that the average absolute error of DF is <2.5 mm. Schreibmann et al. (18) proved that B-spline deformation can simulate changes in lung volume within 3 mm. Hoffmann et al. (19) proved that velocity can reduce the average target registration error to a clinically acceptable level.

The DSCs of the heart and lungs post-deformation were significantly decreased compared with those pre-deformation (P<0.05). There were no significant differences in the dose-volume indices between the heart and lungs pre-deformation (P>0.05), and the dose-volume indices of the heart and left lung were significantly different post-deformation, which may have been caused by excessive deformation, leading to a superior CI in the plan_rig and plan_def groups. In this study, the DSCs of the organs post-deformation in this study were lower than those pre-deformation, indicating that the DIR was excessive in this study. Therefore, in this study, the post-deformation target and OAR dose-volume indices could not be used to evaluate the radiotherapy plan, and it was further confirmed that the initial plan could be used to evaluate the entire radiotherapy process.

In general, dose accumulation based on DF can be used to assess the target and OAR dose-volume indices throughout the course of radiation therapy. However, in patients with large changes in body position during treatment and large influences on the target volume, the contour difference between the two CT images was large. It is not appropriate to use the dose deformation and accumulation method to evaluate the target volume and dose variation in an OAR during radiotherapy (20). During radiotherapy in this study, shrinkage of the target volume was not obvious. The dose-volume indices of the OARs after DF were essentially consistent with those in the initial plan, and the organs remained at risk during the DF process. The excessive deformation caused the evaluation to be inaccurate. Therefore, the initial plan could be used to accurately predict the dose-volume indices of the heart and affected lung.

In summary, for patients with LBC, a synchronous radiotherapy target volume, including the lymph node drainage area and the chest wall, and the dose-volume indices of the first planned OAR volume can be used for pretreatment evaluation due to less changes in the tumor and OAR morphology and volume. While prediction of the target and OAR volumes may be compromised during execution of the entire radiotherapy plan.

Acknowledgments

Funding: Key Research and Development Plan of Shandong Province (2018GSF118048) and Key Research and Development Plan of Shandong Province (2018GSF118006).

Footnote

Conflicts of interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tcr.2019.11.31). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of this work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This retrospective study was approved by the Institutional Ethics Review Board of the Shandong Cancer Hospital (No. 201809021). Medical record review was performed in accordance with Institutional Ethics Review Board guidelines. Informed consent was waived due to the retrospective nature of the study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
