Air in the biliary duct as an indicator of Type V Mirizzi syndrome: a case report

Introduction

Mirizzi’s syndrome, known as extrinsic bile compression syndrome (EBCS), is a rare complication of gallstones, which was first described by Pablo Luis Mirizzi in 1948. Type V EBCS, in which the condition is complicated by cholecystoenteric fistula, exhibits both high mortality and morbidity (1,2).

Cases diagnosed with certainty before surgical exploration range from 8% to 63.4% (3). Earlier diagnosis of Type V MS can help the surgeon to plan more adequately before surgery. Our case demonstrates that air in the biliary duct is a sign of Type V EBCS. In conclusion, this case is instructive in diagnosis of the condition prior to surgery.

We present the following case in accordance with the CARE Guidelines. please refer to the article “Jun-Wei Zhang, Feng Tian, Bing-Qi Li, Yi-Zhi Wang, Jun-Chao Guo. Air in the biliary duct as an indicator of Type V Mirizzi syndrome: a case report”.

Case presentation

A 48-year-old Chinese male presented himself to our clinic, complaining of anorexia with weight loss and jaundice. He had no medical history of disease, and no inherited diseases. Blood tests done in the outpatient clinic on 2018-09-18 showed alanine aminotransferase (ALT) 111 U/L (normal 9–50 U/L), galactosyl glucosyltransferase (GGT) 787 U/L (normal 10–60 U/L), alkaline phosphatase (ALP) 547 U/L (normal 45–125 U/L), total bilirubin (TB) 29.9 µmol/L (normal 5.1–22.2 µmol/L), direct bilirubin (DB) levels 21.7 µmol/L (normal less than 6.8 µmol/dL) (Table 1). Ultrasound of the abdomen showed intrahepatic bile duct dilatation and a large gallstone about 4.4×1.8 cm² in size located in the neck of gallbladder. MRI and MRCP indicated intrahepatic duct dilatation and low signal intensity in the gallbladder (Figure 1).

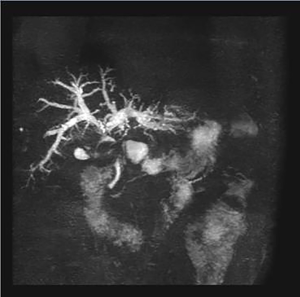

Figure 1 MRI: multiple filling defects in the gallbladder, the size of the area is about 3.0 cm × 2.5 cm. The common bile duct also exhibits filling defects and intrahepatic bile duct dilatation.

The patient was admitted to the hospital and blood tests were performed on 2018-11-08. They showed his ALT 65 U/L (normal 9–50 U/L), GGT 773 U/L (normal 10–60 U/L), ALP 547 U/L (normal 45–125 U/L), TB levels 14.7 µmol/L (normal 5.1–22.2 µmol/L), DB levels 10.2 µmol/L (normal less than 6.8 µmol/dL) (Table 1). Computed tomography of the abdomen showed a large calculus at Hartmann’s pouch had obstructed the common bile duct (CBD), as well as the presence of air in the biliary duct. (Figures 2,3). We did not perform endoscopic retrograde cholangiopancreatography before surgery, because the patient no longer exhibited frank jaundice.

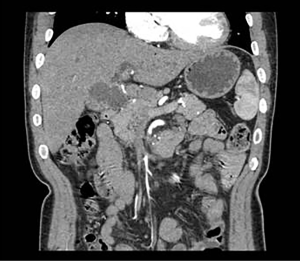

Figure 2 CT: the gallbladder area has a round shape with a slightly lower density. The gallbladder is poorly filled, the wall is thickened, and the normal structure of the cystic duct is unclear.

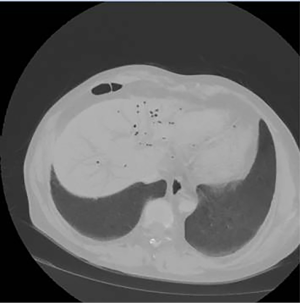

Figure 3 Spiral CT with evidence of pneumobilia.

As for the diagnosis, gallstones were definitely the first consideration. And the patient had increased DB, which led us to the diagnosis of bile duct stones. However, cholecystolithiasis with bile duct stone could not explain air in the bile duct or the decreased TB (from 29.9 to 14.7 µmol/L) before surgery, making presurgical diagnosis difficult. Finally, the patient agreed to the surgery, and consented to changes in the operative procedures as necessary.

Definitive diagnosis of two internal fistulas was made intraoperatively. First, we planned to do a laparoscopic cholecystectomy. However, during laparoscopic exploration, adhesions were found between the gallbladder and the duodenum. We then opted for open cholecystectomy. We incised rectus abdominis in the right upper quadrant, and found the gallbladder neck, CBD and hepatic duct tightly adhered and difficult to separate. The gallbladder was filled with calculi and a small amount of bile. The largest stone was about 4 cm in diameter. The base of the gallbladder had formed a fistula with the duodenum, and the gallbladder neck, packed with calculi, had penetrated the common hepatic duct, which is consistent with Mirizzi syndrome. The final intervention was cholecystectomy, cholecystocolic fistula excision and side-to-side Roux-en-Y choledochojejunostomy. The postoperative pathology was gallbladder adenomyomatosis and the postoperative course was uneventful. The patient was discharged a week after the operation. The patient’s historical and current information can be seen in the timeline image (Figure 4).

Figure 4 Timeline of the patient’s condition.

Discussion

Mirizzi syndrome, also known as EBCS, is a rare complication in which the CBD is obstructed by compression caused by the impaction of one or more gallstones in the cystic duct. In 2007, Beltran et al. added a Type V EBCS to the original four classifications, which validated the relationship of Mirizzi Syndrome to cholecystoenteric fistula (1).

Because Type V EBCS is a novel classification, there are only few case reports detailing it (4,5). To the best of our knowledge, ours shows that air in the biliary duct may be a sign of Type V EBCS. The fistula present between the gallbladder and the duodenum allows air to infiltrate the bile duct and bile to drain into the duodenum, which explains the patient’s decreased bilirubin levels and why some patients do not exhibit jaundice.

A search of the PubMed, Embase and Web of Science databases for the terms “aerobilia” and “Mirrizi syndrome” revealed two cases of Type V EBCS with aerobilia (5,6) caused by fistula or infection, the former corresponding to Type V EBCS (7,8).

Mirizzi syndrome is a dangerous anatomical transformation, representing a particular challenge for the biliary surgeon, and bears significant potential for morbidity and biliary injury. Preoperative recognition of this condition is important for avoidance of inadvertent ligation or severance of the bile duct. Surgical treatment should be planned after a careful assessment of the local situation and anatomy. Our case is instructive for surgeons in diagnosis of Type V Mirizzi syndrome prior to surgery, providing an avenue for more effective planning. However, our case has limitations, because air in the bile duct can be seen in other conditions, such as the uncomplicated biliary fistula, and Type V Mirizzi needs to be diagnosed by enhanced CT, MRCP and ultrasound combined intraoperative exploration.

Conclusions

Mirizzi syndrome is difficult to diagnose and treat. Air in the biliary duct as an indicator of this condition can assist in presurgical diagnosis. Cholecystectomy, fistula excision, and biliary-enteric anastomosis with Roux-en-Y loop appear to be the most appropriate surgical interventions for Type V.
