Accurate short tandem repeat analysis for confirmation of rare gestational adrenal choriocarcinoma: a case report

Introduction

Choriocarcinoma is a vascular aggressive tumor. There are two types of choriocarcinoma, gestational (secondary) choriocarcinoma (GC) and nongestational (primary) choriocarcinoma (NGC). It is important for clinicians to distinguish between these two types of tumor because of their different treatment and prognosis (1-6). Up till now, most of the literatures have mainly used two methods for auxiliary diagnosis. First is the time between diagnosed choriocarcinoma and last normal or abnormal pregnancy. The patient will be suspected with primary choriocarcinoma if the time period is more than 3 years (7). The diagnosis will be confirmed if the patient has menopause or is nulliparous (4,6). Second is the ultrasound of the pelvic cavity (8-11). If any mass is found in both pelvic cavity and extragonadal area in the ultrasound, the diagnosis is likely to be secondary choriocarcinoma (9). However, these methods mislead doctors sometimes because both of the detections can’t give an accurate diagnosis, which could lead to false treatment (6,7,12). According to what we have studied, some researchers used STR as a method to identify nongestational choriocarcinoma (5,6,13,14). However, they are all about choriocarcinoma in genital system. Up till now there hasn’t been a case in which a gestational adrenal choriocarcinoma using STR was reported.

Choriocarcinoma is a malignant carcinoma that easily spreads to the lung, the brain, and the liver (11). Adrenal choriocarcinoma is extremely rare (7,15). Herein, we describe a case of a 29-year-old woman who was diagnosed with adrenal choriocarcinoma. If the tumor was GC, the chromosomes of tumor cells should be similar to paternal chromosomes (7). To find the origin of the tumor, short tandem repeat (STR) (13) and pathologic analysis were used. Also, some related literatures were reviewed and concluded to differentiate between GC and NGC.

Case presentation

A 29-year-old woman visited several hospitals due to her unusual experience of seeking medical treatment from April 2018. Her medical history was not remarkable. She had her menophania at the age of 16. The period was 30–40 days and lasted for 6–7 days on average. Her menstruation seemed normal. There was no blood clot or dysmenorrhea during periods. She got married at the age of 20 and had 2 male babies (gravida 4 para 2) in 2009 and 2012, respectively. She had two induced abortions in 2015 and 2016 due to early pregnancy. Family history was not remarkable.

She was examined in a local hospital due to amenorrhea and irregular vaginal bleeding on April 23, 2018. Her serum human chorionic gonadotropin (β-hCG) was 634.2 mIU/mL. The intrauterine device was extracted and curettage was performed for the diagnosis of early pregnancy. The pathologic result showed various blood clots and a small amount of hypertrophic endometrium. The serum β-hCG increased to 3,295 mIU/mL after curettage. An ultrasound of the pelvic cavity was scheduled. There was a 1.6×0.8 cm mix-echoic mass on the right adnexa. She was suspected with tubal pregnancy. Thus, in early May 2018, a laparoscopic right-oviduct resection and a ligation of the left fallopian tube were performed. Intraoperative specimen was taken for pathologic research and the result was salpingitis.

After laparoscopy, her β-hCG increased from 2,381 to 4,073 mIU/mL and finally reached 11,204 mIU/mL in early June 2018. A computed tomography (CT) scan of her chest and the whole abdomen showed exudation and bilateral multiple lung nodules with little effusion in bilateral chest cavity. A mass in the left adrenal gland measuring 11×10 cm was suspected to be tumor. The laparoscopy was performed again in another local hospital. During the surgery, the mass was explored on the left adrenal gland (Figure 1A) with a large number of blood vessels. The doctors removed nothing during the operation. The patient was then transmitted to the Urologic Surgery Department of the First Affiliated Hospital of Xi’an Jiaotong University.

Figure 1 Laparoscopic mass, image pictures, gross specimen, and pathologic images of choriocarcinoma. (A) Intraoperative view of the mass in the left adrenal gland measuring about 7.6×10.3×11.0 cm; (B) CT scan of three masses in the lung; (C) CT scan of mass in the left adrenal gland; (D) gross specimen of the left adrenal gland; (E) HE staining of the choriocarcinoma (×200); (F) immunohistochemical staining of CK (×200); (G) immunohistochemical staining of P63 (×200); (H) immunohistochemical staining of PLAP (×200).

When admitted, her β-hCG was 8,182 mIU/mL. The ultrasound of the pelvis showed a slightly large uterus with rich blood flow on the interior wall. A CT scan of the cephalon, chest, and entire abdomen demonstrated multiple bilateral small nodules of the lung (five nodules in the left lung and four nodules in the right lung) (Figure 1B). A 7.6×10.3×11.0 cm mass was present in the left adrenal gland with an uneven inner density and a complete capsule (Figure 1C). A fine-needle biopsy was performed on the mass of the left adrenal gland, and afterward the pathologic diagnosis of choriocarcinoma was done. Based on Federation International of Gynecology and Obstetrics prognosis rating, the patient was diagnosed with adrenal choriocarcinoma (IV stage and score 13). Seven cycles of Etoposide (100 mg/m²), Actinomycin D (0.5 mg), Methotrexate (100 mg/m²), Vincristine (1.0 mg/m²), and Cyclophosphamide (600 mg/m²) were administrated to her. The serum β-hCG gradually decreased to 0.6 mIU/mL in November 2018. Meanwhile, CT scan and ultrasound were also performed alternatively. The size of the tumor decreased slightly, and the amount of the vessels declined. She was then followed-up closely in the next 3 months.

However, in March 2019, the patient demonstrated a gradual increase in β-hCG. Both CT scan and ultrasound showed a 10-cm-diameter mass in the left adrenal gland with circumferential blood flow around the tumor. The choriocarcinoma recurrence was then diagnosed. Two courses of EMA/EP, which includes Etoposide (150 mg/m²), Actinomycin D (0.5 mg), Methotrexate (100 mg/m²) and Cisplatin (75 mg/m²) as chemotherapy regimen were given. The hard mass in the left adrenal gland measuring 10×9×7 cm had an obscure boundary (Figure 1D). Because fourth degree bone marrow suppression of preoperative EMA/EP occurred, we had to change chemotherapy regimen. The five courses of combined-drug chemotherapy, in which it contained Methotrexate [0.29 mg/(kg·d)], Fluorouracil [25 mg/(kg·d)], and Etoposide (100 mg/d) were performed (16) as adjuvant therapy. In the middle of the first cycle of treatment, adrenalectomy was performed with the help of urologists. The postoperative pathologic research revealed massive necrosis and hemorrhage with many poorly differentiated choriocarcinoma cells with immunohistochemical staining (Figure 1E,F,G,H). Her β-hCG returned to normal range (<1 mIU/L) eventually with negative CT scan result of the adrenal gland. The change trend of blood β-hCG level during illness was concluded in Figure 2. The patient was still under supervision in the outpatient department. The timeline figure was shown in Figure 3.

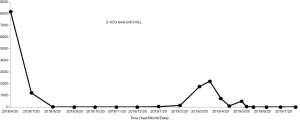

Figure 2 Concentration change in β-hCG level in blood during treatment.

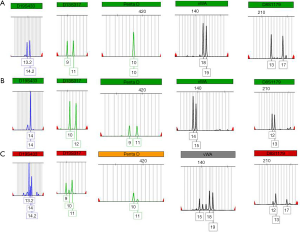

Figure 3 Five different short tandem repeats (D19S433, D13S317, Penta D, vWA, and D8S1179). The genotypes of C were matched to the coexisting genotypes of A and B, which meant that both maternal and patrilineal origin of the tumor was revealed. (A) Patient’s blood sample; (B) husband’s blood sample; (C) patient’s paraffin slides of tumor sample.

To distinguish primary and secondary choriocarcinoma of the left adrenal gland, a sample of the carcinoma and the couple’s blood was taken for further examination. All the examinations were carried out after the patient’s and her family’s agreement. The Microreader™ 21 (Direct) ID System (Suzhou Microread Genetics Co., Ltd., Suzhou, Jiangsu Province, China) was used for this analysis. For this case, a series of 6 formalin-fixed, paraffin-embedded tissue sections were prepared with 4-µm slide. DNA extraction was performed by following established protocols (17). Polymerase chain reaction amplification of 20 STR loci (CSF1PO, FGA, TH01, TPOX, vWA, D3S1358, D5S818, D7S820, D8S1179, D13S317, D16S539, D18S51, D21S11, Penta D, Penta E, D2S441, D2S1338, D12S391, D19S433 and D6S1043) and the amelogenin locus (for XY determination) was performed, with thermal cycling conditions and capillary electrophoresis carried out according to the manufacturer’s instructions. Electrophoresis was performed using an ABI 3130XL Genetic Analyzer (Applied Biosystems, Foster City, CA, USA). Capillary electrophoresis data among the maternal and patrilineal blood samples and villous tissues were analyzed by Genemapper ID software (version 3.2.1; Applied Biosystems) to identify alleles at each locus.

The preserved tumor tissue and blood samples of the patient and her husband were sent for genetic comparison to determine the origin of the tumor. The genotype that was extracted from the paraffin-embedded tumor specimen was both maternal and patrilineal, showing a GC. The GC matched the patient’s and her husband’s blood sample for multiple probes (Figure 4). The complete analysis result is shown in Figure S1.

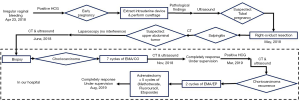

Figure 4 Historical and current timeline information.

Ethical approval for this clinic study was obtained from the institutional review board of the First Affiliated Hospital of Xi’an Jiaotong University. Written informed consent was obtained from the patient.

Discussion

Because the treatment and prognosis of primary and secondary choriocarcinoma differ, to distinguish these two types of carcinoma is necessary (1-6). Based on the review of related literatures, a series of measures were concluded for accurate diagnoses of primary choriocarcinoma. These measures can be divided into three groups: general analysis, microscopic analysis, and molecular detection.

General analysis includes sex, ability to be pregnant (or history of sex experience), and menophania. Sex seems to be the initial method for diagnoses since choriocarcinoma can occur in both sexes (2,18-20). And most clinicians believe that the diagnosis of primary choriocarcinoma is limited only to patients who are sexually immature, unable to conceive, or have never had sexual intercourse (3,4,10,13). Therefore, the patient in this case could not be definite according to her general analysis.

The pathologic origin of choriocarcinoma has not been confirmed yet. The most prevalent hypothesis shows that primary choriocarcinoma in extragonadal site might have been originated from the dedifferentiation of the adenocarcinoma (19). This hypothesis is based on both choriocarcinoma cells and adenocarcinoma cells present in many extragonadal choriocarcinoma cases (13,20). And the clinical manifestations are similar to both kinds of carcinoma (20). There have been cases of pure primary choriocarcinoma in the ovary (3,5,8,10). Hence, a presumption was made that pure primary choriocarcinoma might have originated from direct mutation of normal somatic cells. In this patient’s sample, there was no existence of adenocarcinoma. However, we cannot ignore the possibility that the appearance of adenocarcinoma might be complete metaplasia to choriocarcinoma with no residual adenocarcinoma (19). Therefore, a more appropriate molecular pathology way to find the origin of choriocarcinoma is needed.

Several researches have demonstrated that STR genetic analysis may help classify the tumor origin accurately, including most case reports and few case series (21-26). The latest and also the second largest case series, which through STR to analyze genotype patterns from tumoral and maternal formalin-fixed, paraffin-embedded (PPFE) tissue blocks in fifteen choriocarcinomas, illustrated that STR could serve as an useful examination to distinguish gestational choriocarcinoma from non-gestational choriocarcinoma (27). There has been no doubt that the quality and quantity of DNA extracted from biological samples is a key element for successful genetic analysis (28). And compared with blood samples, the process of PPFE could damage, modify, and degrade the DNA, and as a result, interfere with downstream genetic analysis such as STR analysis (29). Therefore, our study was designed to present the STR analysis through comparing the tumoral FFPE tissues, maternal and patrilineal fresh blood samples to discriminate gestational and non-gestational origin.

In this study, the sample of carcinoma from the patient as well as the peripheral blood sample of the patient and her husband was collected. The STR analysis demonstrated that the genotype extracted from the paraffin-embedded tumor specimen was both maternal and patrilineal. Hence, it can be concluded that the patient’s choriocarcinoma was related to pregnancy. Although the result did not meet our expectations, we describe a case in which a rare secondary adrenal choriocarcinoma was confirmed by STR analysis. There are literatures that describe DNA polymorphism analysis is also useful (5).

However, the treatment had some limitations. Because the tumor was huge, it would have been better if the tumor was removed after the first session of chemotherapy.

Above all, DNA analysis seems to be an accurate way to differentiate between GC and NGC. General analysis, microscopic analysis, and molecular detection should be done step by step for accurate diagnoses. An STR gene analysis was performed to confirm secondary choriocarcinoma. The patient was finally diagnosed with GC in the adrenal gland with lung metastasis.

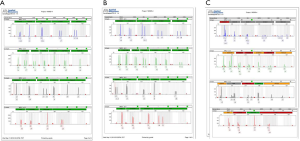

Figure S1 All three STR analysis and 21 loci are shown. (A) Patient’s blood sample; (B) husband’s blood sample; (C) patient’s paraffin slides of tumor sample.

Acknowledgments

Funding: This work was supported by the Clinical Research Award of the First Affiliated Hospital of Xi’an Jiaotong University, China (XJTU1AF-2018-017, XJTU1AF-CRF-2019-002), the Major Basic Research Project of Natural Science of Shaanxi Provincial Science and Technology Department (2018JM7073, 2017ZDJC-11), the Key Research and Development Project of Shaanxi Provincial Science and Technology Department (2017ZDXM-SF-068, 2019QYPY-138), the Shaanxi Provincial Collaborative Technology Innovation Project (2017XT-026, 2018XT-002), and the Medical Research Project of Xi’an Social Development Guidance Plan (2017117SF/YX011-3).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tcr.2020.04.08). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Ethical approval for this clinic study was obtained from the institutional review board of the First Affiliated Hospital of Xi’an Jiaotong University. Written informed consent was obtained from the patients for publication of this manuscript and any accompanying images. All procedures performed in studies involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
