Original Article

Comparison of whole exome sequencing in circulating tumor cells of primitive and metastatic nasopharyngeal carcinoma

Jinyuan Si1#, Bo Huang2#, Guiping Lan2, Benjian Zhang2, Jiazhang Wei2, Zhuoxia Deng2, Yiliang Li2, Ying Qin2, Bing Li2, Yan Lu3, Yongfeng Si2

1Department of Otolaryngology-Head and Neck Surgery, Xuanwu Hospital, Capital Medical University, Beijing, China; 2Department of Otolaryngology-Head and Neck Oncology, and Nasopharyngeal Carcinoma Institute, The People’s Hospital of Guangxi Zhuang Autonomous Region, Nanning, China; 3SurExam Bio-Techs, Guangzhou Technology Innovation Base, Guangzhou, China

Contributions: (I) Conception and design: J Si; (II) Administrative support: Y Si; (III) Provision of study materials or patients: J Si, B Zhang, J Wei, Z Deng, Y Li, Y Qin, B Li, Y Lu; (IV) Collection and assembly of data: J Si, B Huang, G Lan, B Zhang; (V) Data analysis and interpretation: J Si, B Huang, G Lan, Y Si; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Yongfeng Si, MD; Zhuoxia Deng. Department of Otolaryngology-Head and Neck Oncology, and Nasopharyngeal Carcinoma Institute, The People’s Hospital of Guangxi Zhuang Autonomous Region, 6 Taoyuan Road, Nanning, China. Email: syfklxf@126.com; 13878858299@126.com.

Background: Nasopharyngeal carcinoma (NPC) is one of the most common cancers. To investigate the gene mutation profile of NPC patients, we performed whole exome sequencing (WES) in tumor cells, peripheral blood cells, and circulating tumor cells (CTCs) of primitive and metastatic NPC patients, and explored its clinical significance.

Methods: Primitive tumor cells, white blood cells, and CTCs of patients were collected and hybridized with probes targeting whole exons. Mutational signatures, signaling pathways, and cancer associated genes from CTCs cells of two primitive and two metastatic patients were analyzed using gene ontology (GO) method.

Results: The mutational landscape of four primitive tumors showed that there were more MSH2 alterations in more non-silent mutation number patients Additionally, BAP1 gene mutation only occurred in metastatic patients. The most frequently mutated genes among the primitive tumor and CTC samples were CFAP74, MOB3C, PDE4DIP, IGFN1, CYFIP2, NOP16, SLC22A1, ZNF117, and SSPO. Interestingly, only PMS1, BRIP1, DEE, OR2T12, CPN2, MLXIPL, BAIAP3, IGSF3, SIN3B, and ZNF880 alterations occurred in primary tumors of metastatic patients. Primitive and metastatic NPC had significantly distinct mutational signatures. GO analysis revealed that each patient had his own mutational signaling pathways. Non-silent single nucleotide variations (non-silent SNVs) and insertion-deletion mutations (INDELs) in CTCs were more dramatic than in primitive tumor cells.

Conclusions: These changes are strongly relevant to their clinical characteristics and therapeutic strategy.

Keywords: Nasopharyngeal carcinoma (NPC); whole exome sequencing (WES); mutational signature; metastasis; circulating tumor cells (CTCs)


Submitted Dec 20, 2019. Accepted for publication Jun 03, 2020.

doi: 10.21037/tcr-19-2899


Introduction

Nasopharyngeal carcinoma (NPC) is one of the most common cancers in humans and frequently has a history of Epstein-Barr virus (EBV) infection associated with it and is prone to metastasize to distant lymph nodes and organs (1). The occurrence of NPC is a complex process that involves a combination of viral infection, environmental factors, and genetic aberrations (2,3). It is also related to diet habits, including the consumption of salted fish (4). In addition, recent studies have revealed that alterations of NFB signal pathway genes are also strongly associated with the pathology of NPC (5-7). The treatment of NPC patients currently consists of combination of radiotherapy and chemotherapy, including the use of cisplatin, 5-fluorouracil (5-FU), paclitaxel, and gemcitabine (7-9). However, the prognosis of most NPC patients is still poor. Therefore, applying genetic screening to detect specific biomarkers for treatment may be a better option, especially for patients with metastasis. To date, some reports have shown that soluble programmed death-ligand1 (sPD-L1) (10-12), microRNAs BART7-3p, BART13-3p (13,14), amyloid beta 4 (A4) (15), and soluble MHC class I chain-related molecule A (MICA) (16) are good candidates as NPC biomarkers. However, the sensitivity and specificity of these biomarkers are controversial. Therefore, many studies have tried to explore new specific methods for NPC diagnosis and outcome predictions, including the clinical significance of circulating tumor cells (CTCs) in NPC patients (17,18). To date, less NPC genomic data are available, which obstructs the understanding of NPC biology, disease progression, and selective treatment.

Next generation sequencing (NGS) is a very sensitive and reliable technique for disclosing complex genetic aberrations in cancer patients (19). Chow et al. (8) found that there is a high percentage of gene mutations in fresh NPC samples, including alterations in the EGFR-PI3K-Akt-mTOR, Notch, NFB, and DNA damage and repair (DDR) signaling pathways. Lin et al. (20) reported that frequent genetic lesions in NPC patients were closely associated with chromatin modification, autophagy, and the ERRBB-PI3K signaling pathway. These reports mainly utilized primitive tumor cells as sequencing sources, which may have limited their outcomes. Recent studies have indicated that whole exome sequencing (WES) from patient’s CTC samples reflect more accurately the genomic characterization of real tumors (21-23).

Here, we compared the gene mutations profiles of tumor cells and CTCs in primitive and metastatic NPC patients. CTCs originate from primitive tumors, where they are shed into the vasculature and/or lymphatics traveling in the blood circulation (24) to distant organs causing tumor metastasis. Therefore, the detection of CTC’s genomic DNA alterations is very helpful to determine patient prognosis and the appropriate treatment.


Methods

Subjects

We collected and sequenced a total of 12 samples from four patients from June, 2017 to June, 2018 at our hospital. Their identification numbers were K06275, 47 year-old male; K06269, 54 year-old male; K05734, 62 year-old male; K06262, 54 year-old male. K06275 and K06269 were patients with non-metastatic NPC. K06262 and K05734 were patients with metastasis. Samples were taken from peripheral white blood cells, primitive tumors using surgery or endoscopy, and CTCs. This study protocol was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and approved by ethical committee of the People’s Hospital of Guangxi Zhuang Autonomous Region. Approved protocol number was 2017-23. All patients gave informed consent.

Samples DNA Extraction and CTCs isolation

DNA from the primitive lesions in paraffin embedded tumors was extracted using the Maxwell16 FFPE plus LEV DNA purification Kit (Promega, Madison, USA). For CTC isolation, we followed the protocols described as the previous paper (25). Briefly, 5 mL peripheral blood from the patient’s vein was first lysed using red blood lysis buffer and then filtered through an 8 µM filter membrane. CTCs remained on the filter membrane, whereas white blood cells passed through the filter, after which, their DNA was extracted using the Maxwell 16 cell LEV DNA Purification kit (Promega, Madison, USA). The membrane with CTCs was hybridized using CanPatrolTM CTC RNAISH (SurExam Bio-Tech, Guangzhou, China) and identified. Then, confirmed CTCs were collected using a Palm Microbeam laser microdissection system and further enriched and amplified with the GenomePlex Single Cell. CTCs were classified as epithelial, mesenchymal, and mixed types according to their morphology and surface markers. Their graphs were shown as Figure 1. Whole Genome Amplification Kit (Sigma, USA). Finally, DNA fragments were obtained from amply and purification and were used for all subsequent experiments.

Figure 1 The graphs of circulating tumor cells (CTCs): (A) epithelial type CTCs, which detected by Alexa Fluor 594 (red color) labeled EpCAM,CK8, CK18,and CK19; (B) mesenchymal type CTCs, which detected by Alexa Fluor 488 labeled vimentin and Twist; (C) mixed CTCs were tested with epithelial and mesenchymal markers.

DNA library generation and sequencing

The above mentioned DNA was processed for amplification of targeting regions, primers digestion, adapter connection, fragment screening, and library enrichment with the Ion AmpliSeqTM Exome RDY 4×2 kit (Life Technologies, USA). Then, a library was constructed, preparing sequencing template with the use of Ion ChefTM (Life Technologies, USA). The sequencing templates were then transferred into PI sequencing chips and connected to an Ion Proton sequencing instrument (Life Technologies, USA) for high-throughput sequencing (HTS).

Experiment flowchart

The exome is the sum of all exons in one specimen. This region contains essential genetic information for protein translation (26). Exome sequencing utilized chips and probes hybridizing genomic deoxyribonucleic acid (DNA) sequencing of riched exons. Then, high throughout sequencing was-used to detect all samples.

Bioinformation analysis strategy

Raw reads were obtained from WES. Then, low quality (<10) sequences of less than 50 base pair were ruled out. After decontamination unique pairs were aligned with unique mapped reads in the whole genomic database. Subsequent genetic information analysis included targeting region sequencing depth, covering rate analysis, single-nucleotide polymorphism (SNP), and Indel detection, using the bioinformatics analysis tool Annovar. After screening for mutated genes with altered amino acid, we analyzed the linkage of the molecular mechanism, signal pathways and cellular functions in these altered genes and proteins using gene ontology (GO) analysis.


Results

Somatic mutational landscape in 4 NPC patients

To compare the profile of gene mutations in primitive and metastatic NPC patients, WES of white blood cells, tumor cells and CTCs from patients was performed and analyzed. All 4 patients were male. The age was between 47 to 62 years old. After ion torrent analysis of raw data of sequencing, they were screened and filtered. Then, we carried out Annovar analysis. Non-exonic region mutation sites, adapter, non-monoclonal fragments (multiple barcode), and synonymous mutations (SNV) were first ruled out. We chose non-synonymous mutations (non-SNV) as our data for analysis. The one of following three criteria was selected as our potential candidate genes: (I) significantly mutated genes previously reported in a large scale sequencing of NPC patients (20); (II) relevant genes in NPC as well as other cancers listed in the COSMIC database (http://cancer.sanger.ac.uk/cosmic/) (27); (III) genes that act in-pathways related to cancer according to the KEGG database (https://www.genome.jp/kegg). According to these criteria, we obtained the mutational landscape of 4 primitive tumor lesions (Figure 2). We found no significant difference between the non-SNV of the primitive lesions in the metastatic patients (K06262 and K05734) and the non-metastatic patients (K06269 and K06275). However, we found that there was MSH2 gene mutation in two non-SNV patients (K06275 and K06262), which suggested that the MSH2 gene mutation give rise to defects of the DDR function. This process in turn may have promoted the accumulation of mutations involved in tumorigenesis. In addition, we also found BAP1 gene alteration in a metastatic patient (K06262), which is relevant to invasion and tumor metastasis (28). This result indicated that this gene mutation enhanced the invasive ability of cancer cells, and resulting in metastasis.

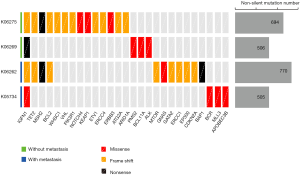

Figure 2 Mutational landscape of 4 nasopharyngeal carcinoma (NPC) primitive lesions: the left panel shows presence or absence of metastasis in the different patients; the middle panel shows driving mutations for each primitive tumor; the right panel shows non-silent mutation numbers (Non-SNV).

Mutational signature of the primary lesions and CTC samples

All single-nucleotide variations (SNVs) were classified into six categories according to the mutation directions (C > A, C > G, C > T, T > A, T > C, and T > G) (6). On the addition of mutated nucleotides at the 5’-terminal and 3’-terminal, there was total of 96 mutational contexts. Different mutational contexts have varying proportions in each tumor. This different ratio of 96 mutational contexts is defined as the mutational signature (29). Each signature has its corresponding generation mechanism. Therefore, we speculated that the mutational signature of each tumor contributes to its tumorigenesis. We analyzed a fraction of the 96 mutational contexts in four primitive NPC patients using the multiple linear regression models (30), and compared their mutational contexts with 30 mutational signatures in the COSMIC database (Figure 3). The left panel in Figure 3 shows a fraction of six mutational contexts and the right panel shows the-proportion of each signature. We found that all the four patients had a dominant 3 type signature, which results from double strand DNA break and causes dysfunction of homologous recombination. This also indicated that the genome is unstable in the process of carcinogenesis. Interestingly, we also found the unique signatures 5 and 4 in two metastatic patients, K06262 and K05734, respectively. The resulting mechanism of signature 5 is unclear; however, it has been identified in many kinds of cancers. In contrast, signature4 frequently occurs as a C > A transition in the transcribed strand that results from smoking. These results indicated that distinct life environments and styles caused different carcinogenesis mechanisms.

Figure 3 Mutational signature framework of four primitive tumor samples. The left panel shows a fraction of mutational contexts in each patient. The right panel indicates mutational signature patterns.

To evaluate specific gene mutations in CTCs, we also performed differential mutation analysis. Gene mutations from leukocytes were used as a negative control. We found almost identical mutations between primitive tumor and white blood cells. In contrast, there were tremendous differences between CTCs and white blood cells (Table 1). Specially, we found that CFAP74, MOB3C, PDE4DIP, IGFN1, CYFIP2, NOP16, SLC22A1, ZNF117 and SSPO mutations were involved in both primary tumor and CTC samples. CCDC144NL only occurred in primitive tumors. Interestingly, OR2T12, CPN2, MLXIPL, BAIAP3, IGSF3, SIN3B, and ZNF880 mutations were found in the metastatic group (supplementary material at http://fp.amegroups.cn/cms/123ade0661df7777fed15ae4e1cea7fa/TCR-19-2899-1.xlsx).

Table 1

Gene mutations in patient primary tumor (PT) and circulating tumor cells (CTC)

Gene K06269 PT K06275 PT K06262 PT K05734 PT K06269 CTC K06275 CTC K06262 CTC K05734 CTC
SAMD11 cT257A
NOC2L cT1532C, cG1531A, cA1529G, T672G C2018_2020del, C1178_1179GA, cA92G cA1024T, cG451A, c109_110del, cG67A
KLHL17 cA13G, G52A, cG1396A, cC1654A, cG1737C, cG1812A cT1261C cG1730C cG1703A
PLEKHN1 cC1186T cG568A, cA868G, cA1241G
PERM1 cA2299G, cT2204C, cA1652C, cC1649T, cG1640C, cG1626T, cT1105C, cA1096G, cT1085C, CT58A cG1357A, cC713T, cC707T, cC457T
ISG15 cA188G cG40A
AGRN cG2404A, cC2423T, cC4688T, cA4696G, cA4697C, cG4924A, cG5883C cG5536T, cG5626T cT1732C, cA2066T, cG3421T, cG3433A, cG4324A, cG4456A cT281C, cG1853A, cG2486A, cG2563A, cA2573G, cT2761C, cG4501A
TTLL10 cC969A c731delC, cG740A
TNFRSF18 cC562T cC445T
TNFRSF4 cT446C cG269A
SDF4 cG1015A, cG973A, cG763C, cG704A, cG657C, cG583A, cG280T, cG263A, cC259A, cC169A, cT143C cC1022T, cC650T
UBE2J2 cT247C cT239G cT527A cT122C
SCNN1D cG163C cG587A, cA1978G
ACAP3 cG2204T, cG1789A, cG1733T, cG1637A, cT1616A, cG1475T, cA1474G, cG1468C, cG1432A cC982T

GO pathway enrichment analysis

We further analyzed the pathway enrichment of gene mutations using GO analysis. The results are shown in the Figures 4 and 5 for the NPC patients. As an example, the graph shows that the UBC complex, ZNF family numbers, PCDH proteins, and IFNA were key mutated genes in patient K06269 patient (Figure 4). In contrast, PCDHGA10, SRA1, ZNF family numbers, CNOT1 and WNK1 gene mutations were involved in alterations of signaling pathways in patient K05734 (Figure 5). Similarly, HSPG2, NOTCH 4, PXN, PIK3R1 and GAB1 gene mutations occurred in patient K06275. CD40, HSPG2, EP300, LIMK1 and GNAS gene alteration were relevant to different signaling pathways in patient K06262 (data not shown). These data revealed that individual tumors had their own altered signaling pathways.

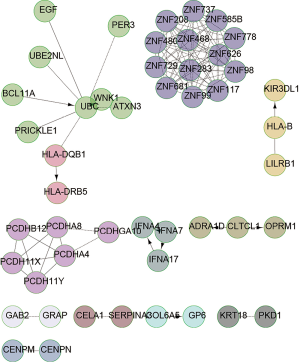

Figure 4 Pathway diagram summarizing the mutated genes in patient K06269. The results show that UBC complex, ZNF family numbers, PCDH proteins and IFNA are key mutated genes in K06269 patient.
Figure 5 Pathway diagram summarizing the mutated genes in patient K05734. The graph shows that PCDHGA10, SRA1, ZNF family numbers, CNOT1 and WNK1 gene alterations are involved in the signaling pathways.

Profiles of cancer associated gene mutations

Carcinogenesis is a multi-step procession many gene mutations accumulate at various stages. Up to 400 genes including oncogenes, tumor suppressor, cell cycle related, apoptotic, RNA transcription and translation, DDR genes are involved in this transformation. The present study confirmed these findings in the metastatic patient K 06262 (Table 2). These critical gene mutations definitively contributed to the occurrence of NPC. We found PMS2, BCL11A, PDE4DIP, and ALK4 gene mutations in the K06269 primitive lesion, which are related to DDR, metabolism, cell proliferation, and protein degradation. In contrast, ERCC3, EGFR, BRAF, and 155 gene mutations occurred in K06269 CTC samples. Similarly, MSH2, ERCC4, VHL, and 21 more gene mutations occurred in the K06275 primary lesion; PARP1, ERCC5, APC, and 264 more gene mutations occurred in K06275 CTC samples. Interestingly, MSH2, ERCC1, BAP1, and 26 more gene mutations, and MSH2, ERCC3, EGFR, and 240 more gene mutations occurred in K06262 primitive lesion and CTC samples, respectively. PDE4DI, and BCR2 mutations occurred in the patient K05734 primitive lesion. MSH2, ERCC3, HIF1A, and 237 more gene mutations occurred in the patient K05734 CTC sample (Table 3). We found that K06275 always had more mutations than the other three subjects in either primitive lesions or CTC samples. In contrast, subject K06262 from the metastatic group had more tumor associated gene mutations. Only K06262 had invasion relevant gene mutations in primitive lesions. However, all four CTC samples had more invasion and metastasis relevant gene mutations than primitive lesions.

Table 2

Function classification of gene mutations in K06262 primitive tumor sample

Gene AAChange ExonicFunc.refGene Classification
MSH2 c.196_197insG Stopgain DNA damage and repair
ERCC1 c.211delG Frameshift deletion DNA damage and repair
GATA2 c.441dupG Frameshift insertion RNA transcription and translation
TET2 c.4582delC Frameshift deletion RNA transcription and translation
PML c.1767delG Frameshift deletion RNA transcription and translation
JAK3 c.G2774T SNV RNA transcription and translation
CRTC1 c.1706delC Frameshift deletion RNA transcription and translation
CEBPA c.206delC Frameshift deletion RNA transcription and translation
CEBPA c.218_219del Frameshift deletion RNA transcription and translation
CEBPA c.208_209del Frameshift deletion RNA transcription and translation
CEBPA c.212delG Frameshift deletion RNA transcription and translation
EP300 c.4402dupA Frameshift insertion RNA transcription and translation
PDE4DIP c.T5207A SNV Metabolism
PDE4DIP c.C2353T Stopgain Metabolism
PDE4DIP c.1218delA Frameshift deletion Metabolism
PDE4DIP c.G180A Stopgain Metabolism
RET c.960_961del Frameshift deletion Metabolism
BCL9 c.1148_1149insG Frameshift insertion Development and differentiation
ACVR2A c.29_30insA Frameshift insertion Development and differentiation
ACVR2A c.G31T Stopgain Development and differentiation
TNK2 c.21delC Frameshift deletion Development and differentiation
HNF1A c.A1720G SNV Development and differentiation
CIC c.407_408insC Frameshift insertion Development and differentiation
IKBKB c.151delC Frameshift deletion Immunology
CDKN2A c.342delC Frameshift deletion Apoptosis
BCL2L2 c.265delG Frameshift deletion Apoptosis
EZH2 c.1682delA Frameshift deletion Proliferation
BCL2 c.119_120del Frameshift deletion Proliferation
TCF3 c.1474delG Frameshift deletion Proliferation
MARK4 c.1310delG Frameshift deletion Proliferation
MTOR c.3041_3042insT Frameshift insertion Signal transduction
GNAS c.C1522A SNV Signal transduction
BAP1 c.G88T Stopgain Tumor metastasis

Table 3

Cancer associated gene mutations in primary tumor (PT) and CTC of NPC patients

Name Classification K06269 PT K06275 PT K06262 PT K05734 PT K06269 CTC K06275 CTC K06262 CTC K05734 CTC
BRIP1 DNA damage cT1904C cC2443T, cA394C
DEE DNA damage C795delA, C737del
ERCC1 DNA damage C211delG cG^10A
ERCC2 DNA damage cT1987C, cA1936C cA523G
ERCC3 DNA damage cG421A, cA206G cG163A cC1611A
ERCC4 DNA damage C1107delA cG610A
ERCC5 DNA damage cA806G, cG2060A cG1109A, c1232delC cA1333C, cC2698T
FANCA DNA damage cA2069G, cT1171C cT3322C
FANCD2 DNA damage cG659A, cG898C cT328C, cC1382A cA887T, cA2420G cC221T, cT2245A
FANCG DNA damage cG248A, cT206C cT866C, cG259A cC1216T
MLH1 DNA damage cT259A, cC671T cA1138G cG395A, cT578C
MRE11A DNA damage cT851C, cA517G cT466C
MSH2 DNA damage C196-197invG C196-197invG cA37G, cT50C cC1799T, cG1862A cT2269A cG847A, cT895C
MSH6 DNA damage cG421C, cC587T cA2367C, cT2959C cG2689A, cA2822G
MUTYH DNA damage cA1583G, cT863C cA155G
NBN DNA damage cG1609G cT2245C, c1181del
NSD1 DNA damage cC73T, cA856C cT3365C, cT4880C cA527GcA1961C, cT115C, cG634A
PALB2 DNA damage cA2242T, cG829A cT3215G, cT2593C
PARP1 DNA damage cA2108G, c1791delT cA2173G, cT1982C cG1480A, cG447C cC2488A
PMS1 DNA damage cC3017T, cG775C cA133G, cA976G C518delA cG1390A, cT1652C
PMS2 DNA damage cC1454A cT866C
RAD50 DNA damage cG1131T, cA1192G cC2354T, cA2930G cA2567G, cT3664C cA140G, c163delG
RECQL4 DNA damage cG3552A, cT2282C cC1415T cT3083G, cC2309T

CTCs, circulating tumor cells; NPC, nasopharyngeal carcinoma.

Comparison of gene mutations in CTC samples

CTCs are considered one of the causes for cancer metastasis. Primitive tumor cells enter the peripheral blood and seed tumor cells into long distant organs, where they proliferate and amplify to form metastatic sites (31). We isolated CTCs from four patients using CTC isolation kits and performed WES to compare them with primitive tumors. The results are shown in Figure 6. We detected large amounts of somatic mutations. Although there were some identical mutations between primitive tumors and CTCs, we found that somatic mutations in CTCs were considerably higher than in the primitive tumor. These results indicated that CTC WES is very helpful tumor prediction and for diagnosis.

Figure 6 Comparison of cancer associated gene mutations in primitive tumors and CTCs. Venn diagram of the non-silent SNVs and INDELs in primitive lesion and CTC samples from 4 patients. SNVs, single nucleotide variations; INDELs, insertions and deletions.

Discussion

Carcinogenesis is involved in the alteration of multiple molecules and signaling pathway networks (32,33). Activation of oncogenes or inactivation of suppressor genes can give rise to the occurrence of cancers (34,35). Here, we utilized WES to trace gene alterations in primitive tumors and CTCs of two non-metastatic patients and two metastatic patients. The present data revealed that the somatic mutation rate in CTCs is significantly higher than in either primitive tumor or metastatic samples. Interestingly, the patients with high non-synonymous mutations had MSH2 gene mutation. In addition, we also found that BAP1 gene alteration, which is relevant to invasion and metastasis of cancer, occurred in a metastatic patient.

MSH2 gene encodes a DNA mismatch repair (MMR) protein, which is involved in many kinds of DNA repair (36). MSH2 alteration is frequently associated with hereditary nonpolyposis colorectal cancer (HNPCC) because of DNA microsatellite instability (37). Interestingly, immunotherapy of colorectal cancer patients with MSH2 mutation has shown great benefits (38). Our qPCR results revealed that there were significant high PD-L1 and CTLA4 levels in metastatic patients compared with non-metastatic patients. Previous studies have shown extensive expression of PD-L1 had extensive expressions in tumor cells or immune cells of NPC patients (39,40). The other data also showed that there were high PD-L1 level in NPC patients with MMR status (41). All together, these finding indicate that the use of immune checkpoint inhibitors in metastatic NPC patients may result in great outcomes. MSH2 dimerizes with MSH6 to form the MutSα mismatch repair complex, which repairs DNA longer insertion/deletion loops (42). MSH2 alteration is also involved in acute lymphoblastoid leukemia (ALL) patients (43). Here, we found an association between MSH2 mutations was associated in primitive and metastatic NPC patients with high somatic mutation ratio. This implied a key role of DDR gene dysfunction in the occurrence of NPC.

BAP1 gene encodes a deubiquitinating enzyme that acts as a nuclear-localizing protein. Mutations in this gene have been identified in some breast and lung cancers (27). BAP1 mutation is closely relevant to metastasis (28). In the present result showed that BAP1 alteration only happened in metastatic patient, confirming its role in metastasis. Two metastatic patients had the unique mutational signatures 4 and 5. This indicated that each patient is unique with his own environment and life style.

To date, previous reports have shown that sPD-L1 (10-12), microRNAs BART7-3p, BART13-3p (13,14), A4 (15), and MICA (16) as candidate biomarkers for NPC prognosis. The clinical significance of these markers for NPC metastasis remains. Recent studies revealed that gene mutations in the NF-κB signaling pathway were involved in the occurrence of NPC (5,6,8,44). Our current data revealed that more gene mutation occurred in NPC patients, including those in DDR, RNA transcription and translation, metabolism, apoptosis, and immunology pathways. This result hinted that the occurrence of NPC is more complex than we previously thought. We also found that CFAP74, MOB3C, PDE4DIP, IGFN1, CYFIP2, NOP16, SLC22A1, ZNF117, and SSPO mutations were present in all primitive tumor and CTC samples. Interestingly, OR2T12, CPN2, MLXIPL, BAIAP, IGSF3, SIN3B and ZNF880 only occurred in metastatic NPC patients. This finding demonstrated that these genes may be used as new biomarkers to target therapy. We plan to test these mutated genes in large a sample size in the future.

We also found that many DDR relevant gene mutations including BRIP1, PMS1 and DEE only existed in metastatic CTC samples. Graham et al. (45) found that PMS1 forms a complex with MIH1gene to correct mispaired DNA. Zhao (46) reported that MLH1, MSH2, MSH6 and PMS1 are present in stage II and III colorectal cancer patients. Velázquez et al. (47) found that BRIP1 gene mutations occurred in inherited breast cancer patients. It was also reported that the association between MSH6 and BRIP1 variants are relevant to oxidative DNA damage in triple negative breast patients (48). Here, we first have found that PMS1 and BRIP1 gene mutations are relevant to NPC metastasis.


Conclusions

Our data revealed that WES of CTC samples in NPC patients is a very powerful tool for distinguishing primitive and metastatic tumor. We found that a few critical gene mutations, such as those in the MSH2, BAP1, PMS1, DEE and BRIP1 genes are present in metastatic CTC samples. These genes may be used as new biomarkers to target-treatment.


Acknowledgments

The authors would like to thank the support from the National Science Foundation of China and the Major Program of Science and Technology Development Project of Guangxi Province.

Funding: This study was supported by the National Science Foundation of China (81760492) and by grants from the Major Program of Science and Technology Development Project of Guangxi Province (Grant no: GUIKEGONG 14124003–3).


Footnote

Data Sharing Statement: Available at http://dx.doi.org/10.21037/tcr-19-2899

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tcr-19-2899). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study protocol was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and approved by ethical committee of the People’s Hospital of Guangxi Zhuang Autonomous Region. Approved protocol number was 2017-23. All patients gave informed consent.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
