Immunohistochemical detection of cancer-associated fibroblasts in gastrointestinal cancer as a potential prognostic biomarker of survival: meta-analysis

Junjie Gu, Chenyu Wang, Xiuxiu Xu, Lin Zhao, Jianfeng Zhou, Chunmei Bai^, Zhao Sun

Department of Oncology, Peking Union Medical College Hospital, Chinese Academy of Medical Sciences, Beijing, China

Contributions: (I) Conception and design: C Bai, Z Sun, J Gu; (II) Administrative support: J Zhou, L Zhao; (III) Provision of study materials or patients: C Wang, J Gu; (IV) Collection and assembly of data: J Gu, C Wang, X Xu; (V) Data analysis and interpretation: J Gu, C Wang, Z Sun; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

^ORCID: 0000-0003-1333-9145.

Correspondence to: Chunmei Bai; Zhao Sun. Department of Oncology, Peking Union Medical College Hospital, No. 41 Damucanghutong, Xicheng District, Beijing 100032, China. Email: baichunmei1964@163.com; jessiesz@126.com.

Background: The association between cancer-associated fibroblasts (CAFs) and prognosis of gastrointestinal cancer patients remains controversial. The purpose of the present article is to assess the role of CAFs in gastrointestinal cancer patients by performing a meta-analysis of the clinical trials published in the literature.

Methods: Several studies were conducted to compare survival between high proportion of CAFs and low proportion of CAFs in gastrointestinal cancer patients. Search strategies were performed in PubMed, EMBASE, Medline and the Cochrane Library database. Methodological quality was assessed with the Newcastle-Ottawa Quality Assessment Scale (NOS).

Results: Among 3,763 patients enrolled in 18 studies, the pooled hazard ratio (HR) 1.64 (95% CI, 1.43 to 1.87; P<0.001) for overall survival (OS) indicated that a high proportion of CAFs was associated with shorter OS. Among 3,137 patients in 7 studies, the pooled HR 2.56 (95% CI, 1.55 to 4.22, P<0.001) for disease-free survival (DFS) exhibited that a high proportion of CAFs was associated with higher risk of recurrence. The subgroup analyses based on different tumor types showed consistent results. CAFs had no correlation with age, gender, tumor localization, TNM stage, tumor grade, and tumor type.

Conclusions: The meta-analysis indicates that high proportion of CAFs is a valuable predictor of the prognosis in gastrointestinal cancer patients, and it may provide new ideas for targeted therapy in gastrointestinal cancer patients.

Keywords: Meta-analysis; prognosis; cancer-associated fibroblasts (CAFs); gastrointestinal cancer


Submitted Jun 20, 2020. Accepted for publication Sep 30, 2020.

doi: 10.21037/tcr-20-2365


Introduction

Gastrointestinal cancers, such as esophageal, gastric, colorectal cancers, are highly fatal cancers and have become the leading cause of death worldwide. According to the American Cancer Society, new cases of digestive system tumors will represent 18.4% of all sites tumors (3.2 million/17.4 million), and deaths of digestive system tumors will represent 26.4% of all sites tumors (0.6 million/2.7 million) in USA, 2018 (1). Immunotherapy and immune checkpoint inhibitors have brought revolutionary changes to the field of oncology, especially malignant melanoma, lung cancer in recent years. However, gastrointestinal cancer patients do not respond to this innovative therapy. Siska et al. (2) suggested a metabolic-tumor-stroma score (MeTS) to determine the likelihood of a successful anti-tumor immune response, and suggested in MeTS3-MeTS4 tumors with increasing levels of lactate and acidification, targeting glycolysis and/or stromal cells might be essential to allow an effective immune response, which is of special importance in the context of cancer immunotherapy.

The tumor microenvironment (TME) is equivalent to “alimentary soil” for tumor cells. Cancer-associated fibroblasts (CAFs), one of the most common stromal cells in the TME, is considered to be a class of continuously activated, highly contractive fibroblasts with needle-like morphology, which mainly express α-SMA, vimentin and fibroblast activation protein-α (FAPα) (3,4). CAFs play an important role in tumor metabolism, growth, metastasis, immune escape, chemotherapy resistance, immunotherapy resistance, etc. (5-7). Firstly, CAFs can promote tumor cells’ proliferation by providing nutrients to surrounding tumor tissues. CAFs can produce a large amount of lactic acid, ketone body and amino acid through glycolysis. Tumor cells can ingest lactic acid, amino acid and ketone body, and utilize these energy-rich nutrients for oxidative metabolism, and then produce adenosine triphosphate (8,9). Secondly, CAFs can directly or indirectly regulate tumor immunity by secreting cytokines. CAFs can secrete transforming growth factor-β, tumor necrosis factor, CC chemokine ligand, IL-4, IL-6, IL-10, prostaglandin E2, human leukocyte antigen, nitric oxide, et al, and can recruit a large number of inhibitory immune cells to tumor tissues (10), and form inhibitory immune microenvironment, which directly or indirectly regulates tumor immune. Thirdly, chemokines, cytokines and angiogenic factors secreted by CAFs can promote epithelial mesenchymal transformation, stem cell transformation of tumor cells, and promote angiogenesis. Chemokines can promote stem cell formation of tumor cells (11,12), induce drug resistance (13), and promote angiogenesis (14) by upregulating the expression of epithelial mesenchymal transformation related genes such as ZEB-1, CXCR4 and Snail, etc. (15). Fourthly, CAFs can secrete chemokines to promote tumor cells metastasis. Specially, PDGF-activated CAFs in colorectal cancer can promote distant metastases through stanniocalcin 1 secretion, etc. (16). In addition to releasing chemokines, CAFs-mediated TME remodeling can also promote tumor invasion and metastasis. Finally, CAFs can induce drug resistance of tumor cells. CAFs can inhibit tumor cells from ingesting antitumor drugs by improving the interstitial fluid pressure of tumor tissue (17), and can also interact with tumor extracellular matrix, thus giving rise to epithelial mesenchymal transformation of tumor cells, and ultimately resulting in chemotherapy resistance of tumor cells (18). CAFs can produce a large amount of lactic acid by converting to glycolysis, regulate the activity of proton pump on tumor cell membrane, increase the acidity of TME, and alkalize the cytoplasm of tumor cells, and thus lead to chemotherapy and immunotherapy resistance of tumor cells (19). Therefore, CAFs can promote tumor proliferation, epithelial mesenchymal transformation, immune-suppression, chemotherapy and immunotherapy resistance.

Is high proportion of CAFs in tumor stroma an efficient biomarker to differentiate gastrointestinal cancer patients who are at high or low risk of poor prognosis? Several literatus have investigated the prognostic significance of CAFs in gastrointestinal cancer patients. However, the prognostic significance of CAFs in gastrointestinal cancer patients remains controversial due to limited number of studies, enrolled patients and inconsistent results. Therefore, this study intends to further evaluate the prognostic significance of CAFs in gastrointestinal cancer patients, and to explore the relationship between CAFs and the clinicopathological characteristics of gastrointestinal cancer patients.

We present the following article in accordance with the PRISMA reporting checklist (available at http://dx.doi.org/10.21037/tcr-20-2365).


Methods

This meta-analysis adhered to the standard guidelines for meta-analyses and systematic reviews. This study was based on data from previously published studies, and therefore ethical approval was not necessary.

Literature search

Two researchers (Chenyu Wang and Junjie Gu) independently performed a comprehensive systematic search in PubMed, Embase, Web of Sciences, and the Cochrane Central Register of Controlled Trials (CENTRAL) databases. The search strategy was accordance to the guidance of the Cochrane handbook. The key words include “gastrointestinal cancer” OR “gastrointestinal cancers” OR “gastrointestinal carcinoma” OR “gastric cancer” OR “gastric cancers” OR “gastric carcinoma” OR “esophageal cancer” OR “esophageal cancers” OR “esophageal carcinoma” OR “colorectal cancer” OR “colorectal cancers” OR “colorectal carcinoma” OR “colon cancer” OR “colon cancers” OR “colon carcinoma” OR “rectal cancer” OR “rectal cancers” OR “rectal carcinoma”, “cancer-associated fibroblast” OR “carcinoma-associated fibroblast” OR “CAF” OR “peritumoral fibroblast” OR “activated fibroblast” OR “myofibroblast” OR “myofibroblasts”. Recent conferences including American Society of Clinical Oncology (ASCO), European Society for Medical Oncology (ESMO) were also screened.

Inclusion and exclusion criteria

Inclusion criteria in this analysis were set out as follows: (I) all patients were histologically diagnosed as gastrointestinal cancer, including esophageal cancer, gastric cancer, and colorectal cancer; (II) the detection of CAFs was determined in human tissues using immunohistochemistry, including fibroblasts-associated protein (FAP), α-smooth muscle actin (α-SMA) and direct CAFs signature or infiltration score; (III) patients were divided into high and low proportion groups; the relationship between CAFs detection and survival outcome was investigated; (IV) studies provided sufficient information to estimate hazard ratio (HR) about overall survival (OS) and their 95% confidence intervals (CIs). Studies that failed to meet the inclusion criteria were excluded.

Data extraction

The relevant data were extracted independently by two reviewers (Junjie Gu and Chenyu Wang) and reached a consensus on all items. The following information was extracted from each enrolled trial: general information (name of the first author, year of publication, date of extraction, title of study and author’s publication details), number of patients, clinicopathological parameters of patients, cutoff value, evaluation of CAF detection, OS, HRs and 95% CIs for OS. If the HRs were not directly reported, we contacted the authors of the primary studies for additional data. If authors did not respond, we extracted data from survival curves.

Quality assessment

A quality assessment was independently conducted for all of the enrolled studies by two investigators (Junjie Gu and Chenyu Wang) using the Newcastle-Ottawa Quality Assessment Scale (NOS), and any disagreement was resolved by discussion and consensus. The maximum possible score is nine points, and NOS scores greater than six are considered high-quality studies.

Statistical analyses

HRs and their associated 95% CIs were pooled to analyze the prognostic value of CAFs detection in gastrointestinal cancer patients. If HRs and corresponding 95% CIs were not available, we calculated these data from available numerical data using the methods reported by Parmar et al. (20). Statistical heterogeneity was evaluated using the chi-squared test and I2. Statistically significant heterogeneity was defined as a P value of <0.1 or an I2 statistic >50%. If heterogeneity was observed, a random-effects model was used to reduce the impact of heterogeneity on the results. Otherwise, the fixed-effects model was chosen. Publication bias was assessed by Egger’s and Begg’s tests. All statistical analyses were performed using STATA version 14.0 (StataCorp LP, College Station, TX, USA). A P value <0.05 was considered to indicate statistical significance.


Results

Study selection

According to our search strategy, 768 studies were identified. Through reading the study titles and abstracts, 224 records were removed because of duplicate studies, and 490 records were removed because of non-relevance with the theme. After reviewing the full texts of the 54 potentially eligible records in detail, the following studies were excluded: studies belonging to reviews, letters, personal opinions or conference abstracts without full-text and sufficient information about the relationship between CAFs and survival (n=12), studies investigating the prognostic value of other biomarkers (not FAP, a-SMA or direct CAFs signature or infiltration score) (n=14), studies using risk ratio (RR) to analyze the prognostic value of CAFs in gastrointestinal cancer patients (n=4), studies using odds ratio (OR) to analyze the prognostic value of CAFs in gastrointestinal cancer patients (n=1), and studies providing insufficient information to estimate HRs about OS and their 95% CIs (n=3). Eventually, 21 studies (21-41) were enrolled in this meta-analysis. A flowchart depicting the study selection is shown in Figure 1.

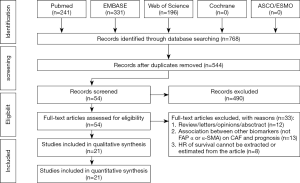

Figure 1 PRISMA flow chart of study selection.

Study characteristics

The characteristics of the enrolled studies are shown in Table 1. In total, twenty studies including 6,537 patients were enrolled in the pooled analysis. The included studies were published between 2010 and 2020 in English. OS was recorded in 18 studies. Study quality, as assessed by the NOS, ranged from seven to eight. Hence, the studies were relatively high quality.

Table 1

Characteristics of the studies included in the meta-analysis

Author Year Country No. Cancer Stage CAF biomarker High CAF density Outcome HR estimation 95% CI P value Quality Assessment (score)
Ituka D (21) 2018 Japan 94 CC III+IV a-SMA 40/94 (42.6%) OS 1.18 0.56–3.55 0.463 8
Ituka D (21) 2018 Japan 73 CC III+IV a-SMA 31/73 (42.5%) DFS 4.21 1.35–13.13 <0.001 8
Kwak Y (22) 2014 South Korea 181 CC All a-SMA NA OS 1.038 0.607–1.773 0.892 7
Wikberg ML (23) 2013 Sweden 455 CC All FAP 55/455 (12.1%) OS 1.72 1.07–2.76 0.026 7
Hanley CJ (24) 2018 UK 56 CC Early stage a-SMA 39/56 (69.6%) OS 7.25 1.68–31.30 0.008 7
Underwood TJ (25) 2015 UK 183 EC I-III a-SMA 171/183 (93.4%) OS 7.07 1.7–29.39 0.007 7
Cheng Y (26) 2015 China 95 EC I-III a-SMA 43/95 (45.3%) OS 2.196 1.150–4.193 0.017 7
Cheng Y (26) 2015 China 95 EC I-III a-SMA 43/95 (45.3%) DFS 1.258 0.733–2.160 0.405 7
Ha SY (27) 2014 China 116 EC All FAP 71/116 (61.2%) OS 1.64 0.86–3.15 0.136 7
Lin C (28) 2016 China 387 GC I-III a-SMA 195/387 (50.4%) OS 1.434 1.064–1.943 0.019 7
Schweiger T (29) 2015 Australia 51 CC All a-SMA 14/51 (27.5%) OS 2.57 0.84–7.84 0.017 8
Schweiger T (29) 2015 Australia 51 CC All a-SMA 14/51 (27.5%) DFS 3.99 1.53–10.41 0.008 8
Henry LR (30) 2007 USA 40 CC All a-SMA 16/40 (40%) OS 2.00 0.93–4.29 0.042 7
Chen L (31) 2017 China 60 CC All FAP NA OS 2.12 1.08–4.16 <0.001 7
Ma Y (32) 2018 China 95 GC I-III FAP 58/95 (61.1%) OS 2.590 1.253–5.353 0.010 7
Wen X (33) 2017 China 105 GC I-III FAP 44/105 (41.9%) OS 1.943 1.083–3.484 0.002 7
Chen Y (34) 2014 China 50 EC II-III a-SMA 23/50 (46%) DFS 0.92 0.92–3.30 0.016 7
Kuroda K (35) 2019 Japan 584 GC All a-SMA NA OS 1.27 0.90–1.80 0.180 8
Kather JN (36) 2019 German 409 CC II CAF signature NA OS 2.35 1.06–5.23 0.036 7
Kather JN (36) 2019 German 500 CC III CAF signature NA OS 4.14 1.58–10.82 0.0038 7
Kashima H (37) 2019 Japan 94 ESCC All FAP 43/94 (45.7%) OS 1.89 1.14–3.15 0.017 7
Kashima H (37) 2019 Japan 94 ESCC All FAP 43/94 (45.7%) DFS 4.17 1.65–10.6 0.002 7
Zhan S (38) 2020 China 198 GC All a-SMA 118/198 (59.6%) OS 1.28 0.79–2.09 0.007 7
Liu J (39) 2018 China 60 GC All FAP 30/60 (50%) OS 1.24 0.6–2.53 <0.01 7
Higashino N (40) 2019 Japan 69 ESCC All a-SMA 33/69 (47.8%) DFS 3.702 1.317–10.401 0.013 7
Higashino N (40) 2019 Japan 69 ESCC All FAP 30/69 (43.5%) DFS 4.388 1.013–19.017 0.048 7
Dienstmann R (41) 2019 Spain 2,636 CC II/III CAF infiltration score 1,055/2,636 (40%) DFS 2.54 1.08–6.02 0.03 7

No., number of patients; NA, not available; CC, colorectal cancer; GC, gastric cancer; EC, esophageal cancer; ESCC, esophageal squamous cell carcinoma; OS, overall survival; CAF, carcinoma associated fibroblasts.

Correlation between CAFs and clinicopathological characteristics

In this present study, we investigated the association between CAFs and clinicopathological characteristics. In the enrolled 21 studies, 9 studies reported the relationship between presence of CAFs and clinicopathological features of tumors, including age, gender, tumor localization, TNM stage, tumor grade, and tumor type. Among them, 4 studies were about colorectal cancer, 3 studies about esophageal cancer, and 2 studies about gastric cancer. After analyzing the results of these 9 studies, we found it was unnecessary to perform meta-analysis to analyze the correlation between CAFs and patients’ age, gender, tumor localization, TNM stage, tumor grade and tumor type, because there was no significant difference in each study (all P value >0.05). Therefore, we can safely draw the conclusion that there was no significant association between CAFs and gastrointestinal cancer patients’ clinicopathological characteristics.

CAFs as a prognostic factor for gastrointestinal cancer

Among the 21 included articles, 18 studies involving 3,763 patients reported the relationship between CAFs and OS in gastrointestinal cancer patients. The pooled HR for OS showed that high proportion of CAFs was associated with poor OS (HR 1.64, 95% CI, 1.43 to 1.87, P<0.001) in gastrointestinal cancer with a 64% increase in the risk of mortality (Figure 2). Seven articles involving 3,137 patients reported the relationship between CAFs and disease-free survival (DFS) in gastrointestinal cancer patients. The pooled HR for DFS showed that high proportion of CAFs was associated with poor DFS (HR 2.56, 95% CI, 1.55 to 4.22, P<0.001) in gastrointestinal cancer with a 156% increase in the risk of recurrence (Figure 3). In the subgroup analysis, the pooled HR for OS in 8 articles involving 1,846 colorectal cancer patients showed that high proportion of CAFs was associated with poor OS (HR 1.82, 95% CI, 1.43 to 2.32, P<0.001) (Figure S1); 6 articles involving 1,429 gastric cancer patients showed high proportion of CAFs was associated with poor OS (HR 1.45, 95% CI, 1.21 to 1.73, P<0.001) (Figure S2); 4 articles involving 488 esophageal cancer patients showed high proportion of CAFs was associated with poor OS (HR 2.03, 95% CI, 1.46 to 2.83, P<0.001) (Figure S3).

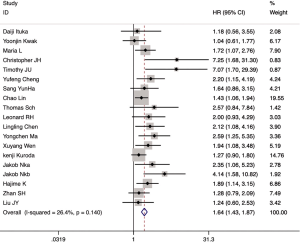

Figure 2 Forest plot describing the association between CAFs and OS in gastrointestinal cancer patients. CAFs, cancer-associated fibroblasts; OS, overall survival.

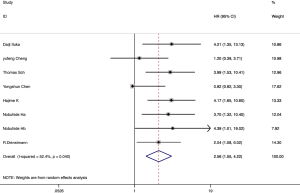

Figure 3 Forest plot describing the association between CAFs and DFS in gastrointestinal cancer patients. CAFs, cancer-associated fibroblasts; DFS, disease-free survival.

Heterogeneity analysis and publication bias

Heterogeneity observed in the analysis of correlation between CAFs and DFS (I2=52.4%, P=0.04). Thus, a random-effects model was employed for this analysis. The other analysis was carried out using a fixed-effects model. And both Egger’s and Begg’s test were applied to evaluate the publication bias in this meta-analysis. There was no evidence of publication bias shown in these studies regarding the HR and OS (Egger’s test P=0.103, Begg’s test, P=0.880).


Discussion

Gastrointestinal tumor is a common malignant tumor with high mortality worldwide. TNM staging (UICC/AJCC) is widely used to predict gastrointestinal cancer patients’ prognosis at present. However, TNM staging cannot fully predict gastrointestinal cancer patients’ prognosis due to tumor heterogeneity. Therefore, seeking new molecular predictive biomarkers is an important mission in gastrointestinal cancer field, and the relationship between TME and gastrointestinal cancer might provide new research strategies for this field.

Previous studies have demonstrated that high density of CAFs indicates poor prognosis in patients with oral squamous cell carcinoma (OSCC) (42) and breast cancer (BC) (43). This study intended to resolve the question that whether high proportion of CAFs serves as a prognostic predictor in gastrointestinal cancer patients or not. This study suggests “Yes, it does”. In this study, we conducted a meta-analysis of 18 previously published high-quality studies on the correlation between CAFs and OS of gastrointestinal cancer patients, and found that high proportion of CAFs was associated with poor OS in gastrointestinal cancer patients (HR 1.64, 95% CI, 1.43 to 1.87, P<0.001) with a 64% increase in the risk for mortality. A meta-analysis of 7 studies in the subgroup study showed that high proportion of CAFs was associated with poor DFS in gastrointestinal cancer patients (HR 2.56, 95% CI, 1.55 to 4.22, P<0.001) with a 156% increase in the risk of recurrence. Through the study screening, quality evaluation and final meta-analysis, we strictly followed the standard guideline of Cochrane handbook, and all the data were authentic and reliable. It was thought that the heterogeneity of colorectal cancer and stomach cancer might affect the result, however, we ultimately chose gastrointestinal cancer patients as the research object in this meta-analysis due to the following reasons. They all belong to digestive tract tumors and their biology behaviors have much in common on one hand; on the other hand, the number of studies published on colorectal cancer or gastric cancer is rather limited, and the subgroup analyses based on different tumor types show consistent results. In this meta-analysis, we found no obvious heterogeneity between these 21 studies, therefore, mixed effect model was used. This was the first meta-analysis investigating the prognostic significance of CAFs in gastrointestinal cancer patients, and it clearly and objectively explicated that high proportion of CAFs was associated with poor prognosis in gastrointestinal cancer patients. However, it also had certain limitations: this study enrolled 21 studies with 6,537 gastrointestinal cancer patients, although the results were positive with statistically significant differences, the number of enrolled literatures was less still for meta-analysis.

What is the specific mechanism that high proportion of CAFs was associated with poor prognosis in gastrointestinal cancer patients? The specific mechanism could not be illuminated at present. Tumor’s behavior was not entirely determined by tumor cells themselves. According to the “seed and soil” hypothesis, the tumor stroma (soil) was crucial to the development and progression of tumor cells (seeds). CAFs was an important component of TME, which were equal to activated fibroblasts in tumor stroma. As was depicted in the introduction part, many literatures had reported that CAFs could provide nutrients necessary for tumor cells’ growth, directly or indirectly regulate tumor immunity, promote tumor tissue’s endothelial cells’ proliferation, epithelial mesenchymal transformation, and angiogenesis, promote tumor growth, invasion, chemotherapy resistance and immunotherapy resistance (4-6,12,13), and thus resulting in tumor patients’ poor prognosis. Professor Song team recently reported that CD10+GPR77+ CAFs could maintain tumor cells’ stemness through the continuous activation of NF-κB signaling pathway, thereby promoting tumorigenesis and tumor cells’ chemotherapy resistance in BC and gastric cancer patients (44). Fang et al. first reported that highly metastatic hepatocellular carcinoma cells could secrete exosomes containing mir-1247-3p, leading to the continuous activation of the β1-integrin-NF-κB signaling pathway in CAFs and further promoting tumor progression (45). However, there are few reports on the specific mechanism of CAFs regulating tumor progression in gastric cancer and colorectal cancer. Previous studies have reported that CAFs could promote the migration and invasion of gastric cancer cells by up-regulating the expression of β1-integrin (46) or matrix metalloproteinase-2 (MMP) (47). CAFs could promote the expression of lysyl oxidase and collagen type I through the high expression of transcriptional protein 1 (Tgfb1i1) induced by the transforming factor β1, thereby forming a microenvironment that could promote tumor growth (48). Gonçalves-Ribeiro et al. (49) found that CAFs could induce tumor cells remaining in the G0/G1 phase through the activation of PI3KCA/AKT/mTOR/Survivin signaling pathway and JAK/STAT signaling pathway, which could ensure DNA repair and accurate entrance and exit from mitosis, thus reducing the lethal effect of chemotherapy on tumor cells and leading to chemotherapy resistance. However, these studies mainly focused on a small part of the regulatory effect of CAFs, and could not yet propose a comprehensive explanation of the main regulatory mechanism that CAFs could promote poor prognosis of gastrointestinal cancer patients, nor could it provide an appropriate therapeutic target for clinical treatment, so more in-depth and complete studies are needed to fill this gap.

In conclusion, this study is the first to analyze the relationship between CAFs and the prognosis of gastrointestinal cancer patients, and found that a high proportion of CAFs was associated with poor prognosis of gastrointestinal cancer patients, which might provide new ideas for targeted therapy in gastrointestinal cancer patients. Large well-designed researches are necessary to acquire high-quality evidence.


Acknowledgments

We thank all the authors of the enrolled published papers for their valued contributions to the field.

Funding: None.


Footnote

Reporting Checklist: The authors have completed the PRISMA reporting checklist. Available at http://dx.doi.org/10.21037/tcr-20-2365

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tcr-20-2365). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This research does not involve human subjects, human materials, and therefore is not subject to approval of an institutional ethics committee.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
