Nomogram for predicting the risk of bone metastasis in breast cancer: a SEER population-based study

Introduction

Breast cancer has the highest incidence of female cancer in the world (1). Bone is the most common metastatic site associated with breast cancer, which accounts for 65–75% of distant metastases among breast cancer patients (2). Bone metastases may occur independently or with visceral metastases, with best survival reported in patients with bone-only metastases (3,4). Median survival for bone-only metastases has been reported to be as high as 72 months in one study (4), but can be substantially less (4-6), and only 20–30% of patients with breast cancer are expected to achieve 5 year survival post diagnosis of bone metastases (2,7).

The burden of bone metastases for patients is considerable, those patients are prone to develop SREs in the first year that could seriously lower the quality of life, increase healthcare costs, decrease survival rates, and even lead to death (2,8). In recent years, several clinical trials demonstrated that, bone targeting agents (i.e., bisphosphonates, denosumab) were the most effective for SREs prevention in solid tumors, while significantly delaying the time to first SRE and improving patients’ quality of life (9). However, the current treatment for bone metastases is palliative (9). Our study aimed to select the patients with high propensity for breast cancer bone metastasis through existing methods, in order to take appropriate intervention measures in time to prevent or delay the occurrence of SREs and prolong their survival time.

We found that there have been few studies involving the correlation between breast cancer metastases with biological factors at present. Moreover, the reported results were contradictory (10-12), remaining some uncertain clinical issues. Press and Wei’s studies suggested that luminal A breast cancer was more prone to bone metastasis (10,11), while Otto thought luminal B breast cancer had the highest risk of incidence of bone metastasis (12). Further research will be needed to identify effective factors for predicting risk of bone metastases. Currently, nomograms have been developed in most cancer types (13-15). It has been proposed as an alternative or even as a new standard for diagnosis and/or prediction (16-18). Therefor we attempt to establish a nomogram for breast cancer patients with bone metastases based on clinicopathologic data from SEER database and 120 patients in the First Affiliated Hospital of China Medical University, to determine whether this model provides more-accurate prediction of risk of bone metastases.

Based on the comprehensive treatment and good prognosis, the population of patients diagnosed with stage IV breast cancer is relatively low. It is difficult to collect data of stage IV breast cancer patients, which limits further research. The SEER database, which represents 30% of the information about cancer patients in the United States (19), is more reliable to show the real situation of most patients. The aim of the nomogram is to predict high-risk of bone metastases and take an effective intervention during follow-up, so that increase the survival rate and even benefit a few patients clinical cure. We present the following article in accordance with the TRIPOD reporting checklist (available at http://dx.doi.org/10.21037/tcr-20-2379).

Methods

Patients and study design

We obtained population-based data from the SEER 18 registry research database (SEER*Stat Version 8.3.6). With the SEER database, we identified 446,807 cases of breast cancer, of which 6,988 eligible patients with distant metastases from January 2010 to December 2015. The time frame was selected because information on specific distant metastatic sites and detailed molecular subtypes from SEER were available only for those who were diagnosed after 2010. Inclusion criteria included: (I) stage IV breast cancer with distant metastases; (II) intact clinicopathologic characteristics; (III) primary invasive breast cancer; (IV) intact metastatic sites; (V) adults (>18 years old); (VI) single-source breast cancer; (VII) active follow-up; (VIII) female.

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This article does not contain any studies with human participants or animals performed by any of the authors. All procedures performed in study involving human data were extracted freely from the SEER Research Data available to the public online (https://seer.cancer.gov/data/access.html).

The primary cohort of 4,895 breast cancer patients were in the inclusion criteria selected from the SEER database between 2010 and 2015. Those patients were eligible for univariate and multivariate logistic analysis. Internal validation of the developing group was performed using the bootstrap validation approach on 1,000 cases. The internal validation group consisted of 2,093 patients. From 2020 to 2014, an external validation group of 120 patients diagnosed with distant metastases of breast cancer in the First Affiliated Hospital of China Medical University was retrospectively studied, using the same inclusion criteria.

Biological factors

The information including age, surgery of primary site, histologic grade, histologic types, tumor (T), lymph nodes (N), estrogen receptor (ER), progesterone receptor (PR), human receptor epidermal growth receptor-2 (HER-2) and metastatic sites were obtained from the SEER database between 2010 to 2015. The current American Joint Committee on Cancer (AJCC) staging systems: TNM system (versions 6.0 and 7.0) are prognostic systems that stratify cancer patients into different risk groups (20). T0 patients are defined as not having evidence of a primary tumor, according to the TNM system, in both AJCC versions 6 and 7. Patients were stratified as four subtypes: HR+/HER-2−; HR+/HER-2+; HR−/HER-2+ and HR−/HER-2−. HR+ represents ER+ and/or PR+, while HR− represents ER− and PR−. According to AJCC guidelines for breast cancer and the Scarff-Bloom-Richardson system, histologic grade was divided into three groups: grade I (3–5 points); grade II (6–7 points) and grade III (8–9 points). The absolute numbers were calculated for breast cancer patients with bone metastases identified at the time of diagnosis. Absolute numbers were also calculated after stratification by age, histologic type, histologic grade, surgery of the primary site, and other factors.

Statistical analysis

The statistical analyses to identify risk factor were performed using SPSS (version 21.0 for Mac; SPSS, Inc., Chicago, IL, USA). Table 1 presented the clinicopathologic characteristics of developing cohort and validation cohort. Univariate logistic regression was used to determine the biological factors associated with the incidence of bone metastases and those statistically significant variables were included in the multivariate logistic regression analysis. P value <0.05 was considered statistically significant.

A nomogram was formulated based on the results of multivariate analysis using forward stepwise method to select the independent variables and by using the package of ‘rms’ in R (version 3.5.2, USA). The performance of the nomogram was evaluated by the area under the curve (AUC) value of ROC curve. With the AUC value closer to 1, the risk prediction became more accurate. The calibration plot of prediction model was used to assess the agreement between observed outcome frequencies and predicted probabilities. The calibration plot was designed to descript the relationship between the predicted probability of bone metastasis and the observed frequencies of bone metastasis in the validation set by fitting a polynomial logistic function. And it also calculates the 95% confidence interval (95% CI) through 1,000 repeated bootstrapping. When the 95% CI does not cross the bisector, statistically significant deviation from the bisector vector occurs. Wider confidence intervals are considered as a higher degree of uncertainty, for tiny proportion of patients is at the specific risk interval. Small P value (P<0.05) provides evidence that the prediction model’s calibration is not perfect. Large P value of calibration test suggests that there is not strong evidence of model’s lack of fit.

Results

We selected 446,807 breast cancer patients from SEER database (19), and the breast cancer metastatic rate was 4.912%, which was in agreement to the 6% reported by Hagberg (21). Moreover, breast cancer with bone metastases accounted for 63.9% of metastatic breast cancer cases, which is consistent with 65–75% incidence of bone metastases among breast cancer patients worldwide (2). The overall median follow-up time was 22 and 47.4 months for SEER data and clinical data. Breast cancer patients with bone-only metastases had a better prognosis than other metastatic breast cancer patients. There were substantive differences in overall survival (OS) (χ²=274.0, P<0.001) among the three metastatic groups of SEER database. The median OS time was 43, 22 and 31 months respectively in bone-only, bone + visceral and extraskeletal metastatic groups.

The study involved 7,108 cases of breast cancer (4,895 cases in the SEER development group, 2,093 cases in the SEER validation group and 120 cases in the clinical validation group). The demographic and clinicopathologic characteristics of patients in the primary and validation cohorts are listed in Table 1.

Nomogram development

The results of the univariate and multivariate logistic analysis were listed in Table 2. Upon univariate and multivariate analysis of the developing group, the independent prognostic factors for bone metastasis were age, surgery of the primary site, histologic grades, histologic types and breast cancer subtypes (P<0.001), while the T and N were not correlated statistically significant to bone metastases.

Risk predictive nomogram

The individualized nomogram prediction model that integrated all significant independent factors for bone metastases in the developing group is shown in Figure 1. Based on the nomogram, we can get the score corresponding to each prediction indicator, and the total score is corresponding to the probability of risk prediction of bone metastases.

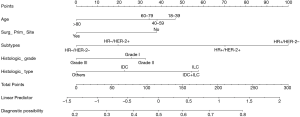

Figure 1 Nomogram to predict the probability of bone metastasis in the patient with breast cancer.

As shown in Figure 1, the highest probability of subtype is HR+/HER-2− (100 points), it Intuitively shows that HR+/HER-2− breast cancer is more prone to bone metastasis than triple-negative breast cancer, followed by the HR+/HER-2+ subtype (61 points). The susceptible factors associated with increasing incidence of bone metastases: young patients, HR+ subtype, low histological grade, infiltrative lobular carcinoma (ILC), and primary breast site without surgery.

Nomogram validation

The validation of the model was based on discrimination and calibration. We drew the ROC curves of predicted probability and calculated the AUC values in the development and validation group. The AUC values for the nomogram established in the development group internal validation group and external validation group were 0.678, 0.689 and 0.704 (Figure 2A,B,C), suggesting that the nomogram was a useful predictive model.

Figure 2 ROC curves for validating the discrimination power of the nomogram. (A) SEER development group; (B) Seer validation group; (C) clinical validation group. AUC =0.678 vs. 0.689 vs. 0.704.

The 95% CI of calibration belt in both development and validation groups did not cross the diagonal bisector line, and the P value were 0.982, 0.662 and 0.245 respectively (Figure 3A,B,C). Therefore, the calibration plot showed good agreement between prediction and observation in the probability of bone metastases.

Figure 3 Calibration plots of the nomogram for the probability of bone metastatic patients with breast cancer in the development group and validation groups. (A) SEER development group; (B) SEER validation group; (C) clinical validation group. P value =0.982 vs. 0.662 vs. 0.245.

Discussion

Bone metastasis is not life-threatening, but the SREs can lead to a poor prognosis for breast cancer patients and even a decrease of their survival time (5). We developed a helpful nomogram based on common clinicopathologic factors available from pathology reports. We aim to filter out high-risk patients and take effective treatment timely, which will make it possible for clinical benefit. Although some models have been recently developed to risk prediction, the population studied in academic cancer centers with breast cancer is relatively small compared with SEER database, which limits the veracity of the model (22). Ouldamer has verified that the MDACC model failed to confirm its generalizability to predict the risk of bone metastasis in an independent stage I–III breast cancer population (22). External and internal statistics validated the nomogram (AUC value was 0.689 and 0.704), attesting to the strength of our model built on the large number of patients.

A multivariate logistic regression analysis of the nomogram revealed that HR+ subtypes was a significant predictor for a high-risk bone metastasis. Yann Delpech published a model without molecular subtypes classification, but our prediction model made it more comprehensive (23). We identified that HR+/HER-2− subtypes and HR+/HER2+ subtypes were more susceptible to bone metastasis, which was consistent with the rule of subtypes distribution reported by Yang (24). HR−/HER-2+ and triple-negative breast cancer more often metastasize to visceral organs, it may explain that those patients have died of visceral metastases before bone metastases were noted (21,25).

The nomogram showed that ILC was more likely to develop bone metastasis than infiltrative ductal carcinoma (IDC). In the United States, ILC accounts for 10–15% of all breast cancer, while in China accounts for 2.1–2.6% of all breast cancer. Because of deficient research data, the mechanism of tumor metastasis has not been thoroughly studied. Previous study reported that comparing to IDC, ILC was usually diagnosed in an advanced stage, with larger tumor size and more positive lymph nodes (26,27). Some studies showed different prognosis of ILC (28,29). It is reported that 80% of ILC cells have completely lost the expression of E-cadherin causing reduce intercellular adhesion, and P120 staining showed a deficiency of cell membrane expression (30). Aromatase inhibitors were recommended for postmenopausal ILC patients (31), but the high-risk performance of tumor indicated that we need to consider stronger endocrine therapy and/or other comprehensive treatment for bone metastases of ILC.

Age and histologic grades were independent prognostic factor for the occurrence of bone metastases. Purushotham and James (32,33) have reported age and grade also were significant predictors results in different prediction models. We demonstrated that young/low histologic grades patients were more prone to develop bone metastases. There are few studies on this issue at present, and additional experimental data are needed.

In our study, young age and HR+/HER-2− subtype were prognostic factors for increasing incidence of bone metastases. According to the results of the TAILORx trial, early breast cancer patients with HR+/HER2−, negative axillary lymph nodes, less than 50 years old and a recurrence score of 11–15 could benefit from adjuvant chemotherapy (34). Although it was a trial based on early breast cancer patients, it still inspired us that those advanced HR+/HER2− young breast cancer patients (<50 years old) with moderate risk of recurrence detected by 21 genes test would benefit from adjuvant chemotherapy to reduce the risk of bone metastasis. In addition, taking the joint experiment of Text/soft into account, young breast cancer patients with HR+ should not only strengthen chemotherapy, but also strengthen adjuvant endocrine therapy to prolong disease free survival. Besides, the systemic treatment regimens for bone metastases will be more precise with the refinement of biological factors. Further researches will be expected.

As shown in Figure 1, surgery could significantly reduce the risk of bone metastasis compared with those without surgery. In addition, it has been known that resection of the tumor with negative surgical margin will reduce the tumor burden and improve prognosis of patients (35). A recent phase III trial (E2108) reported the meaningful results that there was no significant difference for stage IV breast cancer in OS (P=0.63) or progression-free survival (P=0.40) comparing optimal systemic therapy (OST) and locoregional treatment (LRT) with OST alone arm. However, there were much likelihood of locoregional recurrence/progression and the worse health-related quality of life both in the OST (36). This provided us with a new therapeutic idea for decreasing the risk of incidence of breast cancer bone metastasis and relieving the SREs. For young/HR+/HER2− patients who can tolerate surgery and in whom the resectable tumor with negative resection margin, surgery may be not only a treatment to relieve local complications, but also would be a method to reduce tumor burden. As for prolonging the survival of patients with distant metastases, there will need more sufficient evidence to prove. The SEER database lacks patient basic data, lifestyle, genetic testing, and other information, which are important factors causing the difference in survival rates. Furthermore, a nomogram needs to contain more risk variables to increase credibility.

Conclusions

The nomogram as proposed in this study objectively and accurately predicted the risk of breast cancer patients with bone metastases. In this study, young patients, HR+ subtype, low histological grade, ILC, and primary breast site without surgery were susceptibility factors for the incidence of skeletal metastases. For these high-risk patients, we should take early identification and effective measures during the follow-up and treatment to control tumor growth and prolong the survival time of patients, and delay progression of SREs at the same time. Additional studies are required to determine whether it can be applied to other patient groups.

Acknowledgments

Funding: The work was supported by Subject Development Project of China Medical University (No. 3110117053 to BC). The funders had no role in the study design, collection and analysis of the data, decision to publish, or manuscript preparation.

Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at http://dx.doi.org/10.21037/tcr-20-2379

Peer Review File: Available at http://dx.doi.org/10.21037/tcr-20-2379

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tcr-20-2379). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This article does not contain any studies with human participants or animals performed by any of the authors. All procedures performed in study involving human data were extracted freely from the SEER Research Data available to the public online (https://seer.cancer.gov/data/access.html).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
