A network pharmacology approach for investigating the multi-target mechanisms of Huangqi in the treatment of colorectal cancer

Introduction

Colorectal cancer (CRC), a noncommunicable disease, is the third most prevalent cancer in the world, accounting for approximately 10% of cancer-related fatalities (1,2). Aging, poor dietary habits, smoking, low physical activity, and obesity are the major causes of CRC (3). The proximal colon is the site most commonly affected by CRC (accounting for approximately 41% of cases), followed by the rectum (28%), and the distal colon (22%) (4). Laparoscopic surgery is widely adopted in the treatment of primary CRC, and resection accompanied by radiotherapy is commonly used to treat metastatic disease. For patients with advanced CRC, neoadjuvant and palliative chemotherapy is widely used (5-7). Despite the improvement of treatment strategies for CRC, the mortality rate remains between 40–50% (2). Therefore, further exploration of novel treatments for CRC patients is necessary.

Traditional Chinese medicine (TCM), an essential component of complementary and alternative therapy, is a product of more than a thousand years of development and is popular in Asian countries, especially China. With their “multicomponent-multitarget-multipathway” characteristics, TCMs have clear advantages in the prevention and treatment of complex diseases, especially in the aspect of “treating the same disease with different treatments” (8). In the treatment of cancer in particular, long-term chemoradiotherapy results in adverse reactions, such as myelosuppression, cumulative neuropathy, gastrointestinal tract reactions, and organ damage, which severely reduce the quality of life of patients and can lead to treatment interruption. Additionally, chemoradiotherapy is often hindered by therapeutic resistance (9). In recent decades, TCM has been used increasingly in Western countries owing to its reduced side effects and its capacity to both prevent and treat cancer (10).

Astragalus membranaceus, colloquially referred to as Huangqi (HQ), is a classical Chinese medicine commonly used to treat cold, diarrhea, fatigue, and anorexia (11,12). It can also play an important role in the treatment of heart failure and chronic liver disease (8,13). Recently, HQ has been shown to inhibit tumor growth and to decrease cell invasiveness and angiogenesis, and it is also capable of enhancing the chemosensitivity of hepatoma cells (14-16). As HQ injection has achieved positive results in clinical trials, it has been approved by the China Food and Drug Administration (17). A series of recent retrospective experimental studies have shown that conventional chemotherapeutics based on FOLFOX 4, 5-FU, and oxaliplatin can be used in combination with HQ and other Chinese herbal medicines to treat mid- to advanced-stage CRC. It can improve the quality of life of patients showing that increases the tumor response rate (TRR) and reduce the incidence of severe neutropenia, nausea, vomiting, and neurotoxicity associated with chemotherapy, showing that HQ has a good antitumor activity in the treatment of CRC (9,18,19). Nevertheless, the ingredients and targets of HQ in CRC need to be further explored.

It is generally believed that drug discovery requires a system-level multi-pharmacological approach to solve problems, such as the lack of efficacy of a single-target compound and emerging drug resistance. The advancement of the information age has yielded innovations in various network technologies. Based on systems biology, bioinformatics, and high-throughput histology, network pharmacology that integrates pharmacology and information networks is gaining momentum (20). The concept of network pharmacology was first proposed by Hopkins in 2007 (21). It is an effective method for mapping the unexplored target space of natural products, which provides a systematic means to expand the available drug space of proteins related to various complex diseases. By taking a network pharmacology approach, researchers can directly identify drugs and disease targets from a large amount of data (22), and gain a better understanding of the mechanisms and pathways between them, which supports the discovery of new treatment options and readjustments to the use of approved drugs (23). Currently, the scope of application of network pharmacology is expanding. It currently includes exploration of the basic pharmacological mechanisms and effects of drugs on diseases, the analysis of TCM theory (24), and study of TCM’s application (25). In this network pharmacology analysis, we aimed to investigate the underlying mechanism of HQ administration in the management of CRC at the molecular level, as well as to provide direction for further research in this field. We present the following article in accordance with the MDAR checklist (available at http://dx.doi.org/10.21037/tcr-20-2596).

Methods

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This research does not involve human subjects, human materials, and therefore is not subject to approval of an institutional ethics committee.

Retrieval of chemical ingredients

We performed a comprehensive search of the Traditional Chinese Medicine Systems Pharmacology database (TCMSP, https://tcmspw.com/tcmsp.php) to obtain the chemical ingredients of A. membranaceus by using the keyword “Huangqi”. After retrieving the chemical ingredients, PubChem (https://pubchem.ncbi.nlm.nih.gov/) was used to verify the corresponding compound name and molecular structure. Active compounds of HQ were screened under the criteria of oral bioavailability (OB) ≥30% and drug-likeness (DL) ≥0.18.

Prediction of CRC and HQ targets

Potential targets of active compounds in HQ were retrieved from the TCMSP database, and their molecular names were converted into gene ID using the Uniprot database (https://www.uniprot.org/). GeneCards is a searchable, integrated database of human genes that provides concise genomic information. We searched for CRC-related genes and targets by using the keyword “colorectal cancer”. Then, we used venny (https://bioinfogp.cnb.csic.es/tools/venny/) to visualize the overlapping genes and targets between HQ and CRC for downstream analysis.

Construction of HQ-CRC target network

Cytoscape (version 3.2.1) was used to construct the compound-disease network. Potential active compounds, genes, and targets of HQ and CRC were treated as the components of the network. The network analysis function of Cytoscape was used to analyze the network topological parameters and to assess the significance of each node according to betweenness centrality (BC) and degree.

Protein-protein interaction (PPI) network

Overlapping genes and targets of HQ and CRC were input into the Search Tool for the Retrieval of Interacting Genes/Proteins (STRING) database (https://string-db.org/) to construct the PPI network under the criteria of minimum required interaction score =0.4. Disconnected nodes in the network were hidden.

Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analysis

Overlapping genes between HQ and CRC were subjected to GO and KEGG enrichment analyses. The Database for Annotation, Visualization, and Integrated Discovery (DAVID, version 6.8, https://david.ncifcrf.gov/) was used as the reference database.

Cell culture and Cell Counting Kit-8 (CCK-8) assay to detect cell viability

The human CRC HCT116 cell line was purchased from the American Type Culture Collection and placed in high-glycemic Dulbecco’s Modified Eagle Medium (DMEM; Guangzhou Genio Biotech Co., Ltd.) containing 1% penicillin/streptomycin and 10% fetal bovine serum. The cells were placed in an incubator at a constant temperature of 37 °C with 5% CO₂, and the medium was changed every 2 days. The cells were observed under a microscope, and 0.25% trypsin (Guangzhou Genio Biotech Co., Ltd.) was used after the cells are 80–90% fused. The cells were digested and subculture was continued in a 1:2 ratio. Then, HCT116 cells in good growth condition were inoculated into 96-well plates at 5×10³ cells/well after trypsinization (100 µL per well), and routinely cultured in an incubator for 24 hours at 37 °C with 5% CO₂. Quercetin, isorhamnetin, and formononetin (Sigma-Aldrich, USA) were added as the experimental group at a concentration of 20 µM. Cells treated with dimethyl sulfoxide (DMSO) solution served as a control group. Each group was set up with 5 multiple wells. After culture for 48 hours, the cells were collected, and 10 µL CCK-8 reagent (Promega, USA) was added to each well. The cells were incubated at 37 °C for 2 hours, and then a microplate reader was used to determine the absorbance value (A value) at 450 nm. The experiment was repeated 3 times. The results were expressed in terms of cell viability according to the following formula: cell viability = (experimental absorbance – blank hole absorbance)/(control hole absorbance – blank hole absorbance) ×100%.

Real-time quantitative polymerase chain reaction (PCR)

Four primers, CCL2, CXCL8, CXCL10, and PTGS2, were purchased from Sangon Biotech Corporation (Shanghai, China). The sequence details are listed in Table S1. HCT116 cells were intervened with the above 3 drugs at a concentration of 20 µM for 48 hours. After that, the cells were collected, and RNA was extracted using the TRIzol method. After the purity and integrity of the RNA had been determined, cDNA was prepared through reverse transcription. The PCR conditions were the following: pre-denaturation at 95 °C for 1 minute; denaturation at 95 °C for 15 seconds, annealing at 58 °C for 20 seconds, extension at 72 °C for 20 seconds, for 40 cycles; then, extension at 72 °C for 5 minutes to terminate the reaction. After the completion of real-time quantitative PCR (RT-qPCR), the reliability of the melting curve and amplification curve results obtained by PCR was quantitatively analyzed, and the cycle threshold (Ct) was set. The ratios of CCL2, CXCL8, CXCL10, PTGS2 and the internal control, β-actin, were used to represent their relative expression levels, and the relative mRNA expression intensity of each was calculated. There were three duplicate holes in each group, and the test was repeated 3 times.

Statistical analysis

SPSS 22.0 (IBM Corp., Armonk, NY, USA) and GraphPad Prism 7 (GraphPad Software, Inc., San Diego, CA, USA) were used for data analysis and graphing. Differences between groups were analyzed using t-test or one-way analysis of variance. A P value <0.05 indicated a statistically significant difference.

Results

Retrieval of putative ingredient targets

Using the keywords and criteria described above, we retrieved 24 active compounds and 360 putative target genes of HQ from the TCMSP database, the names of which were subsequently converted into gene ID using Uniprot. Detailed information of the selected ingredients is displayed in Table 1.

Identification of compound-disease-related genes

The search of the GeneCards database using the term “colorectal cancer” identified 9,876 CRC-related genes. The compound targets and the disease targets were intersected, and the overlapping genes between HQ and CRC were visualized in a Venn diagram (Figure 1).

Figure 1 Overlapping targets between potential HQ targets and CRC targets. HQ, Huangqi; CRC, colorectal cancer.

Network visualization

The HQ-CRC network, which was constructed in Cytoscape, comprised 177 nodes and 318 edges. The network is displayed in Figure 2. Sixteen candidate compounds had a median of 13 degrees, which suggested that most HQ compounds affected multiple targets. Quercetin, kaempferol, and formononetin were found to act on 129, 47, and 24 targets, respectively. The OB of quercetin, kaempferol, and formononetin was 46.43%, 41.88%, and 69.67%, respectively, indicating that they might be the active compounds of HQ due to their considerable positioning in the network.

Figure 2 Compound-target network of HQ. The blue triangles represent targets; the orange ones represent the compounds from HQ, respectively. HQ, Huangqi.

Overlapping genes were input into the STRING database to construct a PPI network with a minimum required connection score of 0.4. As shown in Figure 3A, the PPI network comprised 161 nodes and 2,662 edges, with an average degree of 33.1. Within the network, AKT1, interleukin (IL)-6, and vascular endothelial growth factor A (VEGFA) were the predominant genes, with 109, 101, and 97 interactions, respectively. The top 30 genes with the highest number of interactions are shown in Figure 3B.

Figure 3 CRC-target STRING network and core genes. (A) Network of the shared targets. The orange nodes represent targets and the node size is proportional to the degree centrality by topology analysis. (B) The top 30 shared targets based on degree centrality. CRC, colorectal cancer.

In order to reveal the mechanisms underlying the effects of HQ on CRC, the PPI network of HQ putative targets and the PPI network of CRC-related targets were merged to identify the candidate targets for HQ against CRC. This network consisted of 5,706 nodes and 139,142 edges, and is presented in Figure 4A. A network of significant targets for HQ against CRC was constructed, and it contained 1,327 nodes and 58,194 edges (Figure 4B). The median values of degree centrality (DC) and BC were 61 and 4,664, respectively. The candidate targets were further screened, and 61 targets with DC >61 and BC >4,664 were identified (Figure 4C). A total of 61 core target genes of HQ in CRC were eventually identified.

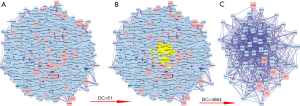

Figure 4 Identification of candidate targets of HQ against CRC. (A) The interactive PPI network of HQ putative targets and CRC-related targets. (B) PPI network of significant proteins extracted from A. (C) PPI network of candidate HQ targets for CRC treatment extracted from B. DC, degree centrality; BC, betweenness centrality; HQ, Huangqi; CRC, colorectal cancer; PPI, protein-protein interaction.

GO and KEGG enrichment analysis

The names of overlapping genes between HQ and CRC were converted into symbol ID with the Uniprot database serving as a reference. In regard to the GO enrichment analysis, the genes were enriched in response to lipopolysaccharide (LPS), RNA polymerase II transcription factor complex, and DNA-binding transcription activator activity, with an adjusted P value of 2.10E−28, 5.98E−8, and 1.77E−7, respectively. Details of the GO enrichment analysis are shown in Table S2, and the top 20 GO terms are shown in Figure 5. The highly enriched GO terms in biological processes, cellular components, and molecular functions included regulation of gene silencing, regulation of gene expression, nucleoplasm, nucleus, protein binding, and ubiquitin protein ligase binding.

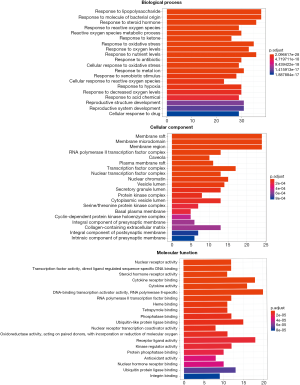

Figure 5 GO terms of candidate targets of HQ against CRC. The top 20 GO functional categories with adjusted P values <0.05 were selected. GO, gene ontology; HQ, Huangqi; CRC, colorectal cancer.

The KEGG enrichment analysis revealed that the genes were enriched in AGE-RAGE, IL-17, and tumor necrosis factor (TNF) signaling pathways, with an adjusted P value of 4.37E−25, 1.42E−19, and 2.10E−19, respectively. Details of the KEGG enrichment analysis are given in Table S3. In Figure 6, the size of the spot represents the count of genes and the color represents the adjusted P value.

Figure 6 KEGG pathway enrichment of candidate targets of HQ against CRC. Pathways that had significant changes of adjusted P values <0.05 were identified. The size of the spot represents the count of genes while the color represents the adjusted P value. KEGG, Kyoto Encyclopedia of Genes and Genomes; HQ, Huangqi; CRC, colorectal cancer.

Gene-pathway network analysis

The gene-pathway network was constructed based on the significantly enriched pathways and genes that regulate these pathways, and is presented in Figure 7. Topological analysis of 20 pathways and 88 genes with BC was carried out. The squares represent target genes and the V-shapes represent pathways in the network. The network diagram suggested that AKT1 had the highest BC and was the core target gene. A number of other genes, including MAPK1, RELA, IKBKB, CHUK, and IL-6, also had high BC, suggesting that they might be key target genes of HQ in CRC.

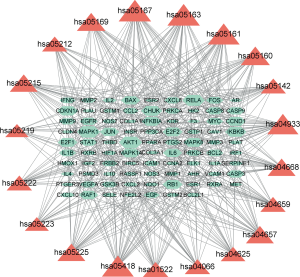

Figure 7 Gene-pathway network of HQ against CRC. Topological analysis of 20 pathways and 88 genes with betweenness centrality was carried out. The cyan squares represent target genes, and the red triangles represent pathways. A larger size represents higher betweenness centrality. HQ, Huangqi; CRC, colorectal cancer.

The active component of HQ inhibits the activity of HCT116 cells

CRC (HCT116) cells were treated with quercetin, isorhamnetin, or formononetin, the three main components of HQ, for 48 hours. The results of CCK-8 assay showed that compared with the control group, the growth activity of HCT116 cells treated with quercetin, isorhamnetin, or formononetin at a concentration of 20 µM was reduced, and this effect was most obvious in the quercetin group (Figure 8A). The results showed that HQ had an inhibitory effect on the growth of HCT116 cells.

Figure 8 The IL-17 signaling pathway was inhibited in CRC cells and regulated cell proliferation. (A) Cell activity was detected using a Cell Counting Kit-8 assay. (B) The expression of downstream IL-17 signaling pathway genes in drug-treated cells was determined by RT-qPCR. Control group: DMSO; experimental groups: quercetin 20 µM, isorhamnetin 20 µM, formononetin 20 µM (*, P<0.05; **, P<0.01; ***, P<0.001). IL; interleukin; CRC, colorectal cancer.

Effect of HQ on IL-17 signaling pathway

Next, we investigated the mechanism of the inhibitive effect of HQ on HCT116 cells. After 48 hours of drug treatment, compared to that in the control cells, the mRNA expression intensity of CCL2, CXCL8, CXCL10, and PTGS2 was decreased in HCT116 cells in the experimental groups, to varying degrees (Figure 8B).

Discussion

Previous studies investigating HQ had revealed its anti-oxidative and anti-inflammatory effects, as well as its enhancement of immune system response, which suggested that HQ could be an alternative potential antitumorigenic agent (26). In addition, formononetin, one of the active compounds of HQ, was reported to exert an anti-angiogenic effect on colon cancer cells in vitro and in vivo, and in combination with 5-FU, it was demonstrated to increase the chemosensitivity of cancer cells, which indicated a synergistic effect with chemotherapy (15,27). However, the specific mechanism of the antitumorigenic effect of HQ at the molecular level requires further investigation.

In enrichment analysis, response to LPS is positioned at a leading place, and LPS is an essential product of Gram-negative microbiota in the gut. In addition, elevated LPS is commonly seen in CRC patients, even those with early-stage adenoma (28). Through its activation of toll-like receptor 4 (TOR4), NF-κB, and β1 integrin-mediated cell adhesion, LPS is associated with the progression of CRC and promotes the progression of CRC metastasis (29-31), which corroborates the significant role of LPS in CRC treatment. Several studies reported that programmed cell death protein 1/programmed death-ligand 1 (PD-1/PD-L1) blockade therapy was effective in CRC patients and that the efficacy of PD-1-based immunotherapy was affected by the gut microbiome (32-34). Furthermore, a recent study to investigate the association between LPS and the failure of PD-1/PD-L1 therapy concluded that LPS was potentially the main reason for the failure of PD-1/PD-L1 therapy in CRC patients (35). Combined with the results of this network analysis, HQ was revealed to respond strongly to LPS, which might indicate its capacity to regulate the level of LPS and its potential synergistic effect with CRC immunotherapy. Furthermore, according to a recent study, LAYN expression could be adopted as a prognostic biomarker to determine immune infiltration in CRC (36), which could be a potential method to further validate the effect of HQ.

Moreover, GO analysis also showed response to oxidative stress to be enriched. Some studies have reported that oxidation promotes the progression of CRC (37,38). For example, in colorectal cells, the butyrate level was found to be associated with the butyrate-induced pro-apoptotic process; as a result, oxidation of butyrate affected the butyrate protective effect in CRC. Fatty acid oxidation was also found to lead to CRC progression, and fatty acid oxidation-derived energy can induce tumor metastasis (39). Carnitine palmitoyl transferase 1 (CPT1), a rate-limiting fatty acid oxidation enzyme responsible for transporting fatty acid into mitochondria, has been found to be associated with CRC, and inhibition of CPT1A showed a positive outcome in CRC treatment (37). Together with the results of the present network analysis, these findings suggest that HQ is capable of regulating oxidative process, which might indicate an antitumorigenic effect.

In this study, KEGG enrichment analysis showed that the AGE-RAGE signaling pathway was ranked first, followed by inflammation-related pathways, such as the IL-17 and TNF signaling pathways. Excessive endogenous or exogenous advanced glycation end products (AGEs) have been implicated in cancer development (40). Receptor for advanced glycation end products (RAGE) activation initiates downstream signaling pathways to promote inflammation, inhibit apoptosis, increase angiogenesis, and tumor growth and invasion (41). Specifically, the expression of AGE-RAGE was detected in colorectal carcinoma, and even in precancerous lesions such as colon adenomas, and has been validated by in vitro experiments and in vivo animal models (42-44).

Inflammation-related pathways were also enriched in the KEGG analysis. Development from normal cells to CRC requires a number of inflammatory factors, and CRC is more likely to occur in patients with chronic or inflammatory bowel disease (45). The activation of immune signaling pathways by bacteria leads to a loss of hemostasis and creates a proneoplastic inflammatory environment. Both inflammasome activation and NF-κB pathway were reported to be stimulated by mutational scenario or microbes, and the NF-κB pathway was shown to mediate the production of cytokines, like IL-6, which is one of the pathogenic factors in CRC (46). The enrichment of two major enriched pathways reported in this study, the AGE-RAGE and inflammation-related signaling pathways, confirms the antitumorigenic effect of HQ.

Nevertheless, several limitations of this network analysis should be taken into consideration. First, owing to polypharmacy of TCM, the retrieved active compounds were predicted and might not be the actual molecules absorbed. Second, HQ consists of several compounds with different formulations; therefore, the antitumorigenic effects of the individual active compounds are still elusive. Finally, research results need to be validated in a cellular or animal model. Therefore, we performed in vitro experiments, which confirmed that the three active components of HQ, quercetin, isorhamnetin, and formononetin, promote the apoptosis of CRC cells by reducing the expression of CCL2, CXCL8, CXCL10, PTGS2, and other genes. We also identified CCL2, CXCL8, CXCL10, and PTGS2 as key genes in the IL-17 signaling pathway. Together, our findings verified the antitumor activity of HQ.

Conclusions

The results of this network pharmacology analysis revealed that HQ exerts a potential antitumorigenic effect on CRC by interfering with oxidation and inflammation-related processes, which may provide a novel approach for combination treatment in CRC patients receiving immunotherapy.

Acknowledgments

Funding: This research was supported by the Chair Professor Foundation of the First Affiliated Hospital of Jinan University (702023), the Research Incubation Fund (802175), the Guangdong education department (2018GWQNCX050) and the Basic and Applied Basic Research Fund of Guangdong Province (2019A1515011763; 2019A1515110543).

Footnote

Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at http://dx.doi.org/10.21037/tcr-20-2596

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tcr-20-2596). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This research does not involve human subjects, human materials, and therefore is not subject to approval of an institutional ethics committee.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
