Flattening filter free stereotactic body radiation therapy for lung tumors: outcomes and predictive factors

Introduction

Unlike conventional radiation therapy, stereotactic body radiation therapy (SBRT) allows accurate delivery of a highly focused ablative radiation dose to the tumor in fewer treatment fractions while reducing unnecessary dose to the surrounding normal tissues. Currently, SBRT is considered a treatment option for early stage non-small cell lung cancer (NSCLC) patients who are medically inoperable or deny surgery with excellent outcome (1-3). For patients with lung metastases, reports on the use of SBRT in patients whose metastases are limited in number (oligometastases) or limited by site of progression (oligoprogression) are emerging and the results are promising (4,5).

Flattening filter is generally used to provide flat dose at a certain depth to give uniform intensity across the treatment field. The removal of flattening filter allows the delivery of the flattening-filter-free (FFF) beam contributes to dose rate escalation. FFF beam has a cone-shaped dose profile, giving up to four-fold higher dose rate in the center of the beam compared to the flattened beam (Figure 1). This FFF characteristics facilitate treatment optimization to shorten treatment time, sharper penumbra and less out-of-field dose that should translate into less intrafraction motion error and less dose to normal tissue (6-8). Despite numerous dosimetric studies, there are few clinical studies on SBRT with FFF in early stage NSCLC and lung metastases that have been reported (9-14). Therefore, we retrospectively assessed the 2-year local control (LC), overall survival (OS) and predictive factors relating to the treatment outcomes in patients who received lung SBRT using FFF. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/tcr-20-3174).

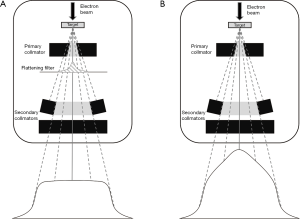

Figure 1 Shows beam profiles obtained using flattened filter (A) and flattening filter free (B).

Methods

Study population

Our study is a retrospective, single center study. This study was approved by the Institutional Review Board of the Faculty of Medicine, Chulalongkorn University, Bangkok, Thailand (approval No. 465/60) and conducted in accordance with the Declaration of Helsinki (as revised in 2013). Because of the retrospective nature of the research, the requirement for informed consent was waived. After receiving the approval from the institutional review board, we retrospectively identified and selected patients with early stage NSCLC and oligometastatic/oligoprogressive lung tumor (OLT) treated with SBRT using FFF at King Chulalongkorn Memorial Hospital from February 2014 to July 2019. Oligometastases was defined as up to 3 metastases in any single organ system and up to 5 hematogenous metastases with controlled primary tumor. Oligoprogression was defined as the progression of a solitary or few tumors in the lung while the rest of the tumors responded to or were stable with systemic therapy. Patients with follow-up period less than 3 months or lacked follow-up imaging were excluded.

Treatment and evaluation

Four-dimension computed tomography (4D-CT) or deep inspiration breath hold (DIBH) CT simulation were used to account for internal organ motion. Axial acquisitions were done with spacing ≤3 mm. Gross tumor volume (GTV) was delineated using CT pulmonary window. No expansion was added to create clinical target volume (CTV). An additional 0.5 cm radially and 1 cm craniocaudally were added to GTV to create planning target volume (PTV) for patients using breath hold techniques, while an additional 0.5 cm in all dimensions was added to create PTV for patient using 4D-CT. All patients received unflattened beam using 6 and 10 MV photon with volumetric modulated arc therapy (VMAT) technique on Varian Eclipse^TM Treatment Planning System version 11.0.31 (Varian Medical Systems, Palo Alto, USA). The maximum dose rate for FFF beams was 1,400 monitor units (MU)/min for 6 MV and 2,400 MU/min for 10 MV. Dose fractionation and plan evaluation followed our institution’s protocol. Early stage NSCLC received radiation dose ranged from 48–60 Gy in 3–8 fractions based on tumor location. For lung metastases, the dose was selected from the protocol or at the discretion of the treating physicians. Dose was prescribed to isodose between 60–90% where the center of mass was normalized to 100%. Treatment planning goals included 100% prescription dose delivered to 95% of the PTV. Dose to critical structures was achieved according to American Association of Physicists in Medicine (AAPM) Task Group 101 recommendation (15). The interval between treatment fraction was 24–48 hours.

Post-treatment evaluation included clinical examination, CT scan of the thorax, and/or fluorodeoxyglucose-positron emission tomography (FDG-PET) CT scan at 3 and 6 months after SBRT, every 3–6 months for the first 2 years, and then every 6 months for up to 5 years, and annually thereafter. Tumor response was officially evaluated by radiologists.

The primary outcome of the study was LC. LC was defined as stable disease, partial or complete response as observed at follow-up imaging and determined by using Response Evaluation Criteria in Solid Tumors (RECIST) criteria version 1.1. All targeted lesions were accounted for LC assessment. Patients were observed for LC, even if new distant lesions were found. The secondary outcomes were OS, and early and late toxicities. Time to LC and survival were assessed from the date of the first SBRT. Patterns of failure included local failure (LF), regional failure, involved lobe failure and distant failure were recorded. LF was defined as recurrence within irradiated PTV areas. Regional failure was defined as recurrence at the regional lymph node within the lung, bronchial hilum or mediastinum. Involved lobe failure was defined as recurrence in the same lobe. Distant failure was defined as a failure outside the primary lobe and at other organs. When biopsy was not possible, the radiographic progression was defined as an interval increase in size of mass or focal metabolic uptake on FDG-PET/CT. Data were extracted from the patient’s medical records and treatment planning system. All doses were converted into biological effective dose at α/β =10 (BED₁₀) using linear-quadratic model: BED₁₀ = number of fractions x dose per fraction (1 + dose per fraction/10). Acute and late toxicities were graded according to the Common Terminology Criteria for Adverse Events (CTCAE) version 4.03.

Statistical analysis

LC and OS were assessed using the Kaplan-Meier method. Log rank test was used to compare survival between 2 groups. Cox regression model was used for univariate analysis to identify the relationship between the outcomes and the prognostic factors. Factors with P values of <0.2 were incorporated into the multivariate logistic regression model using a stepwise backwards selection process. The cut-off values for dose-volume parameters were determined using the receiver operating characteristic (ROC) analysis and its area under the curve (AUC). Youden’s index was used to identify the cut-off values that gave the maximum sensitivity and specificity. The SPSS software (version 22.0; IBM) was used for the statistical computations. All tests were two-sided and P values of less than 0.05 was considered statistically significant.

Results

Patients, tumors, and treatment characteristics

Between February 2014 to July 2019, two from 96 patients were excluded due to lack of follow-up imaging after treatment. The remaining 94 patients with 129 lesions were included for analysis with median follow-up time of 30 months (interquartile range, 16–43 months). Patient and tumor characteristics are shown in Table 1. Median age of all patients at time of SBRT was 65 years (IQR 55–75 years). Of 129 lesions, 20.2% were early NSCLC and 79.8% were lung metastases. The most common primaries of the lung metastases were colorectal cancer (CRC) (41.7%), NSCLC (18.4%) and head and neck cancer (14.6%). Indication for SBRT in patients with early stage NSCLC was mainly medically inoperable (92.3%). Doses of 48–60 Gy in 3–8 fractions (7.5–18 Gy/fraction, BED 100–151.2 Gy₁₀) were given to early NSCLC and 25–70 Gy in 1–10 fractions (5–30 Gy/fraction, BED 48–180 Gy₁₀) were given to lung metastases. The most used dose fractionation was 12 Gy ×5 fractions for early NSCLC and 10 Gy ×5 fractions for metastatic lung cancers. All patients were treated with VMAT with FFF technique and completed treatment without any interruption.

Outcomes

At the final analysis, two lesions from the early stage NSCLC group and 13 lesions from the lung metastases group had LF. Six patients (13.6%) from the early NSCLC group and 36 patients (52.9%) from the lung metastases group died. Two-year LC was achieved in 88.9% and 85.7% in patients with early NSCLC and OLT, respectively; the 2-year LC was comparable between the 2 groups (P=0.464). Two-year OS was significantly higher for early NSCLC; the 2-year OS for early NSCLC was 83.3% and OLT was 68.7% (P=0.035) (Figure 2). Median OS was 38 months for OLT. Distant failure was the predominant pattern of failure for both groups as shown in Table 2. The most common toxicities were radiation pneumonitis (22.3% had grade 1, and 4.2% had grade 2) followed by chest wall pain (4.3% had grade 1, and 2.1% had grade 2). No acute and late toxicity greater than grade 2 were found. There was no difference between central and peripheral tumor groups regarding toxicities except fracture of the rib which was found in 7 patients (7.4%) with extreme peripheral lesions.

Figure 2 The Kaplan-Meier curves for local control (A) and overall survival (B) after lung SBRT. NSCLC, non-small cell lung cancer; SBRT, stereotactic body radiation therapy.

Factors predicting local recurrence after SBRT for oligometastases/OLTs

Due to the small number of early stage NSCLC patients, we did not perform the univariate analysis to define factors associated with outcomes. For the metastases group, the univariate analysis showed that the age, sex, primary tumor origin, tumor maximal diameter, tumor location and radiation dose, including prescribed dose BED₁₀ (cut off 100 Gy), PTV mean BED₁₀ (cut off 130 Gy), BED₁₀ to 95% of PTV volume (D95) (cut off 108 Gy) and GTV mean BED₁₀ (cut off 147 Gy), were associated with LF. However, in multivariate analysis, only CRC origin [HR 10.59, 95% confidential interval (CI), 2.29–48.95, P=0.003] and lower GTV mean BED₁₀ (HR 5.16, 95% CI: 1.13–23.59, P=0.034) were significant predictors for higher LF (Table 3).

In the lung metastatic group, 43 lesions were primary CRC and 11 lesions had LF. All dose parameters except for prescribed BED₁₀ were significantly associated with LF. GTV mean BED₁₀ ≤147 Gy, PTV mean BED₁₀ ≤130 Gy and, PTV D95 BED₁₀ ≤108 Gy were associated with an increase in LF in CRC metastases (Figure 3). There was no significant difference in OS regardless of recurrent status (P=0.226) or primary histology (P=0.434).

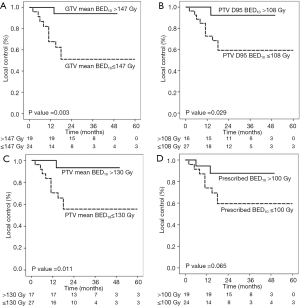

Figure 3 The Kaplan-Meier curve for local control for colorectal lung metastases with irradiation doses. GTV mean BED₁₀ >147 and ≤147 Gy (A), PTV D95 BED₁₀ ≤108 and >108 Gy (B) PTV mean BED₁₀ ≤130 and >130 Gy (C), prescribed BED₁₀ >100 and ≤100 Gy (D). GTV, gross tumor volume; BED, biological effective dose; PTV, planning target volume.

Discussion

This study confirmed the efficacy of FFF-VMAT for SBRT in the treatment of lung cancers with no severe toxicity. The results were consistent with previous studies reporting the clinical outcomes of SBRT which had a 2-year LC of 87.9–98.5% in early NSCLC and 77.9- 88% in metastatic lung tumor (1,5,16-22). Our results were also in line with other studies investigating SBRT with FFF in lung tumors which had a LC of 89–100% for both primary and secondary lung tumors (9,23,24). FFF technique permits a considerable increase in the dose rate delivery and reduce treatment time by more than 50% compared to flattening filter (FF) technique without compromising the plan’s quality (23,25,26). Our study reported median beam-on-time of less than 2 minutes which was in line with previous VMAT-FFF studies conducted in patients with lung tumors (12,13). Decreased treatment time can improve treatment efficacy for SBRT because it reduces the likelihood of intrafraction motion and reduces the likelihood of undesirable patient motion during treatment. However, the radio-biological consequence of this technique is still unknown. Few studies compared clinical outcome of FFF and FF techniques and found no difference regarding LC rate and toxicities (13,14). Due to limited data of clinical efficacy and safety of FFF method, our study suggested that FFF-VMAT for SBRT shorten the treatment time while maintaining a high LC rate with low toxicity.

There were conflicting results of outcome after SBRT in lung metastases regarding primary cancer (20,27-29). Compared to other histologies, Binkley et al. (27) treated 77 patients with 122 oligometastatic lung tumors with SBRT and reported significantly higher cumulative incidence of LF at 12 and 24 months (25.5% and 42.2%, respectively) in CRC lung metastases. Takeda and colleagues (29)also reported LC rate in CRC oligo-metastatic lung tumors was significantly worse than other origins. Similarly, we observed decreased local tumor control for CRC lung metastases but comparable OS. This is probably due to the salvageability of the metastatic lesions and/or effective systemic therapy for CRC.

Currently, there is no consensus for optimal SBRT dose for lung metastases. It has been widely accepted that a BED₁₀ at isocenter >100 Gy is required to achieve optimal LC in early NSCLC (30). The practice of SBRT for lung metastases has mostly been adapted from experiences in early NSCLC. Therefore, data of dose-response relationship in lung metastasis is lacking. A data of 327 lung metastases patients treated with SBRT from a multinational center showed that BED of 100 Gy₁₀ or more was associated with better LC (31). However, using the prescribed dose may not be a good parameter. Even if the prescribed dose is the same, the dose received by the PTV can be different depending on the choice of prescription dose line and dose distribution. A few studies suggested that the mean dose of GTV and PTV may be relevant in predicting the outcome for lung SBRT treatment (18,32). Zhao and colleagues (18)conducted a large series to identify the optimal dose parameters for predicting local/lobar control after SBRT in early stage NSCLC and found that BED to 95% of PTV >86 Gy and PTV mean BED₁₀ >130 Gy were both significantly associated with decreased LF. In our study, average mean dose of PTV of primary lung cancer group achieved this radiation dose level, 162.6 Gy. In contrast, the mean dose of PTV of metastatic group was only 128.2 Gy. This could explain our findings that LF in metastatic group is higher than primary lung cancer group. Likewise, GTV mean BED₁₀ ≤147 Gy was a significant predictor for LF in our study. Furthermore, we found GTV mean BED₁₀ ≤147 Gy, PTV mean BED₁₀ ≤130 Gy, and PTV D95 BED₁₀ ≤108 Gy were associated with an increase in LF in CRC lung metastases. These results supported the idea that primary CRC was probably a radioresistant phenotype and had a dose-response relationship (33). Therefore, the current study suggested that adequate dose should be considered to achieve good LC for OLT and potential role for dose escalation for primary CRC. Recently, patterns of in-field recurrence after SABR in early stage NSCLC have been classified into central high-dose and peripheral high-dose failures which the underlying causes are possibly different (19).Clonal resistance could be the cause of central high-dose failure which dose escalation is essential for better LC. Further investigation of in-field recurrence patterns in metastatic lung cancer could give insight to improve radiation treatment for better outcomes. In addition, GTV mean BED₁₀, PTV mean BED₁₀ and PTV D95 BED₁₀ should be taken into account when optimizing the SBRT plan for the treatment of lung tumors.

This study had some limitations. First, the dose fractionation in our study was not uniformly prescribed. There were a wide range of radiation doses and fractionations that were used because there is no standard fractionation for lung metastases. However, these heterogenous doses help us to determine the dose-response relationship for LC and warrant prospective clinical trials to confirm the values of this dose-outcome relationship. Second, the sample size of our early stage NSCLC group was too small to detect any relationship between the factors and outcomes. Most of the patients in our hospital were OLT. Third, all of our patients were from a single institution with short follow-up period. Therefore, additional studies with a larger sample size and longer follow-up period should assess the FFF’s effects in early stage NSCLC and OLT patients.

Conclusions

This study confirms the clinical efficacy and safety of lung SBRT using FFF-technique for both early stage NSCLC and oligometastatic/oligoprogressive lung cancer patients. Our findings support the role of using a high BED₁₀ regimen to achieve good LC for OLT and the potential role for dose escalation for primary CRC.

Acknowledgments

We would like to thank for English editing service which offered through the Research Affairs at Faculty of Medicine, Chulalongkorn University.

Funding: None.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/tcr-20-3174

Data Sharing Statement: Available at http://dx.doi.org/10.21037/tcr-20-3174

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tcr-20-3174). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was approved by the Institutional Review Board of the Faculty of Medicine, Chulalongkorn University, Bangkok, Thailand (approval No. 465/60) and conducted in accordance with the Declaration of Helsinki (as revised in 2013). Because of the retrospective nature of the research, the requirement for informed consent was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
