Diagnostic significance of a color Doppler ultrasound combined with serum CXCL16 and E-cad in cervical cancer

Introduction

The incidence of cervical cancer is ranked second among female malignant tumors in the world (1), and its age of onset has a significant downward trend in epidemiological investigations, which seriously affects the life safety of patients. Additionally, the clinical symptoms of cervical cancer are not obvious, such that by the time of diagnosis, the vast majority of patients have progressed into the middle or late stages of cervical cancer. Thus, the timely diagnosis of patients at an early stage has significant effects on the prognosis of patients (2). In the process of tumor progression, most of the neovascularization are flexuous, and the deformity rate is high due to the significant imbalance of vascular endothelial cell function. Consequently, the maximum peak systolic velocity (PSV) and resistance index (RI) (3) of the hemodynamic arteries around the mass and the mass examined by transvaginal color Doppler ultrasound can reflect the angiogenesis of the tumor to some extent. Further, ultrasounds show the progress of tumors; however, the diagnostic efficiency of ultrasounds is low. Thus, it is important that biomarkers be identified in a timely manner in clinical diagnoses.

Many studies have explored the correlation between biomarkers and the results of transvaginal color Doppler ultrasonography for cervical cancer, such as p53. However, the aim of the study was to assess the effectiveness of radiotherapy (RT) by detecting the expression of p53 protein combined with the signs of transvaginal color Doppler ultrasound in patients with advanced cervical cancer (4). The biomarkers used to diagnose cervical cancer are carcinoembryonic antigen (CEA) and squamous cell carcinoma antigen (SCC). Carcinoembryonic antigen is a commonly used biomarker of cervical cancer. However, abnormally elevated expression of CEA can also be seen in cancers such as rectal cancer, breast cancer, and lung cancer (5-7). Therefore, the specificity for the diagnosis of cervical cancer is poor. SCC is a specific antigen secreted by squamous cell carcinoma, which is related to the development of cervical cancer. It has high specificity but low sensitivity (8). Studies have found that chemokine 16 (chemokine 16, CXCL16) is related to tumor metastasis, invasion, adhesion and directional migration. The studies had confirmed that serum CXCL16 expression had the highest positive rate in cervical cancer. Among other diseases of the cervix, the positive rate is low and the specificity is high (9).

E-cad, a calcium-dependent cell adhesion protein that help to enhance the adherens junctions between cells, that is significantly correlated with tumor migration, invasion, and prognosis (10,11). CXCL16, a cxcr6 receptor-binding chemokine that functions as a scavenger receptor for oxidized low density lipoprotein (oxldl) when expressed by macrophages (12) are the most promising biomarkers for the early diagnosis of cervical cancer. Trend factor interleukin-16, Interleukin-8, and CXC chemokine ligand-16 (CXCL16) reflect the levels of inflammatory responses in local lesions to some extent (13). The decrease of E-cad expression will increase the risk of tumor invasion, early occurrence and metastasis. Five hundred and twenty-two (42.6%) participants included in 20 studies presented reduced E-cad expression. The downregulation of E-cad was associated with unfavorable overall survival in cervical cancer patients. E-cadmay can act as a metastatic suppressor protein, and therefore can be used as a diagnostic biomarker for cervical cancer. The increased expression of CXCL16 will increase the risk of tumor metastasis, invasion, adhesion and directional migration. The CXCL16 is present in the membrane and cytoplasm of neoplastic epithelial cells. While the tumor lesions progress from CIN1, CIN2, and CIN3 to invasive cancer, the distribution and expression intensity of CXCL16 increased as well. The expression of CXCL16 and CXCR6 in healthy cervical tissue, CIN, and cervical carcinoma were analyzed by using tissue chip technology and immunohistochemistry method. The association of protein expression with clinicopathologic features and overall survival was analyzed by using Kaplan-Meier curve. The patients with higher CXCR6 expression had significantly lower overall survival rates as compared to those with lower CXCR6 expression. The increased co-expression of CXCL16/CXCR6 in CIN and cervical cancer indicates that the development of cervical cancer is a durative process (14,15). If the expression of E-cad decreases and the expression of CXCL16 increases, it is highly likely to predict the formation and migration of cervical cancer.

The objective of this study is to assess the diagnostic value of a color Doppler ultrasound combined with measures of serum CXCL16 and E-cad levels in the diagnosis of cervical cancer. We hypothesis that the diagnostic accuracy could be significantly improved by combining these 3 markers, compared with using single indicator. We present the following article in accordance with the STARD reporting checklist (available at http://dx.doi.org/10.21037/tcr-21-123).

Methods

Study design

This is a retrospective study carried out in Lianyungang Maternal and Child Health Care Hospital in Jiangsu province China which was performed in accordance with the STARD 2015 guidelines for reporting diagnostic accuracy studies (16).

General information

200 patients, who had been diagnosed with cervical cancer and treated at our hospital from May 2018 to April 2020, participated in this prospective study. The patients were aged 40–49 years old, and had an average age of 45.57±2.09 years and an average body mass index (BMI) of 24.25±2.18 kg/m². According to the pathological grading standard of the International Federation of Obstetrics and Gynecology of Cervical Cancer (FIGO), the average maximum diameter of a tumor is 19.90±3.01 mm (17). Of the patients, 45 had stage I cervical cancer, 92 had stage II cervical cancer, and 63 had stage III cervical cancer. One hundred healthy people from the same period were also selected to participate in the study as members of the control group. Notably, there were no significant differences in the general data between the two groups (P>0.05). All the patients signed the informed consent form, which was provided to and approved by the Ethics Committee of Lianyungang Maternal and Child Health Care Hospital (No.: LYG-ME2020056). All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013).

To be eligible to participate in the study, the patients had to meet the following inclusion criteria: (I) meet the diagnostic criteria for cervical cancer (6); (II) have no other primary tumors; and (III) have a card score of more than 60. Patients were excluded from the study if: (I) they had a mental disorder; (II) could not communicate normally; (III) were lactating or pregnant; and/or (IV) had other reproductive system diseases.

Research methods

Ultrasonic diagnosis

The ultrasonic instrument used in this study was a Siemens AcusonAntares ultrasonic diagnostic instrument. The frequency of the vaginal probe was set to 7.5 m. The shape, size, edge, and internal shape of the uterus were diagnosed using a two-dimensional ultrasound. Additionally, the blood flow at the site of the lesions was compared using color Doppler flow imaging after the diagnoses had been made. The blood flow velocity related indexes of the three vessels were also measured, and the PSV and RI of the hemodynamic artery were recorded, and their average values were calculated in the area for which the ultrasound showed the most significant blood flow.

Serological diagnosis

Elbow vein blood was collected timely after enrollment and supernatant was collected after centrifugation at 3,500 r/min after all the patients had been enrolled in the group. Additionally, the CXCL16 and E-cad levels of the patients were analyzed using an enzyme-linked immunosorbent assay (Roche, Shanghai). The operation procedure was carried out in strict accordance with the instructions.

Observation index

• The ultrasonic parameters of the PSV and the RI of the observation group and the control group were compared.
• The ultrasonic parameters of the PSV and the RI of patients at different pathological (i.e., stages I, II, and III) were compared.
• The serum indexes (i.e., serum CXCL16 and E-cad levels) of the observation group and the control group were compared.
• The serum CXCL16 and E-cad levels in patients at different pathological stages (i.e., stages I, II, and III) were compared.
• The correlation between the disease progression and ultrasonic and serological indexes were analyzed. A Spearman correlation analysis was used to analyze the progress of the disease, and determine the correlations between disease diagnoses and ultrasound and serological indexes.
• The efficacy of an ultrasonic diagnosis combined with measures of serum CXCL16 and E-cad levels was analyzed. The receiver operating characteristic curve (ROC) was used to analyze the efficacy of the combined diagnosis and the individual diagnoses of the ultrasound and serum CXCL16 and E-cad levels.

Statistical analysis

SPSS20.0 was used to collect and analyze the data. Additionally, a Chi-square test and an independent sample t-test were used to compare patients’ basic data; a correlation analysis was used for the Spearman analysis, and diagnostic efficiency was used for the ROC curve analysis. The measurement data were expressed as mean ± standard deviation (SD), and the count data was expressed as a percentage. A P<0.05 indicated that a difference was statistically significant.

Results

Comparison of ultrasonic parameters between the two participant groups

As Table 1 and Figure 1 shows, the PSV of the patients in the observation group was significantly higher than that of the PSV of patients in the control group (t=17.914, P<0.05). The RI of patients the observation group was significantly lower than that of patients in the control group (t=9.565, P<0.05).

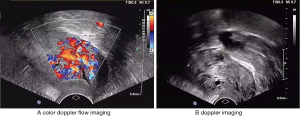

Figure 1 Ultrasonic images of patients in the observation group.

Comparison of ultrasonic parameters in patients at different pathological stages

As Table 2 shows, there were significant differences between the PSV (F=14.345, P<0.05) and RI (F=15.090, P<0.05) of patients at different pathological stages. A pairwise comparison showed that PSV significantly increased and the RI significantly decreased as the pathological stage progressed.

Comparison of serum indexes between the two groups of participants

The serum CXCL16 and E-cad levels of participants in the observation group were significantly higher than those of participants in the control group (Table 3).

Comparison of serum CXCL16 and E-cad levels in patients at different pathological stages

There were significant differences in the serum CXCL16 and E-cad levels of patients at different pathological stages. A pairwise comparison showed that serum CXCL16 and E-cad levels increased significantly as the pathological stages progressed (see Table 4).

Analysis of the correlation between disease progression and the ultrasonic and serological indexes

The diagnosis and progression of cervical cancer were positively correlated with the levels of PSV, CXCL16 and E-cad, and negatively correlated with the RI; the differences were statistically significant (see Table 5).

Analysis of the efficacy of the ultrasonic diagnosis combined with serum CXCL16 and E-cad levels

The sensitivity of the ultrasonic diagnosis and the combined diagnosis of serum CXCL16 and E-cad levels in patients with cervical cancer was significantly higher than that in patients with cervical cancer alone. The ROC curve showed that the cut-off values of PSV, RI, CXCL16, and E-cad in patients with cervical cancer were 14.25, 0.50, 40.15 ng/mL, and 85.36 pmmol/L, respectively (see Table 6 and Figure 2).

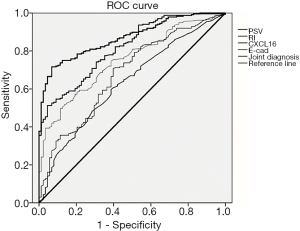

Figure 2 Analysis of diagnostic efficiency of the ultrasound combined with measures of serum CXCL16 and E-cad levels. CXCL16, CXC chemokine ligand-16.

Discussion

As one of the most common gynecological malignant tumors in clinic, the medical imaging diagnosis of cervical cancer has made considerable progress due to the continuous improvement of clinical diagnostic skills (18). In the early stage of the disease and at the various stages of treatment, timely adjustment of the treatment protocols has positive significance for the patients (19). Further, there is a significant correlation between the migration of tumor cells and the formation of micro-vessels infiltrated in tumor cells in the study of the disease progression of cervical cancer (20). The objective index of tumor patients’ infiltration and progression captures the increase of micro-vessel density in the local focus in the study of vascular endothelial cells of tumor cells (21). The probability of tumor cells entering the blood through microcirculation increases significantly (22), increasing the risk of distant spread of tumor.

The analysis of the ultrasonic indexes of the patients revealed that the PSV of patients in the observation group was significantly higher than that of the control group, and the RI of patients in the observation group was significantly lower than that of the control group. A pairwise comparison showed that the PSV of the patients increased significantly and the RI decreased significantly as the pathological stage of the patients progressed. The analysis showed that the measurements of PSV and RI mainly reflected the blood flow velocity and vascular elastic resistance. During the progression of the disease, due to the significant changes in metabolic function, the ability of tumor cells to plunder nutrients from the lesion site is significantly increased, which necessitate a large number of blood vessels to transport the nutrients. Moreover, in the process of angiogenesis, the malformation rate of neovascularization increases significantly due to a local inflammatory reaction and endothelial dysfunction. The increase of the vascular malformation rate causes significant changes in the hemodynamics of patients. However, the analysis of ultrasonic indicators of patients has a number of limitations in the diagnosis of cervical cancer (23), because benign lesions of the cervix may cause significant changes of regional blood parameters as well. Consequently, if an ultrasound is the only instrument used, it can easily result in false positives in clinical diagnoses. Thus, an analysis of the biomarkers of patients has great value in the clinical diagnosis of patients (24).

In the present study, the results of the analysis of the serological indexes of patients showed that the serum CXCL16 and E-cad levels of patients in the observation group were significantly higher than those of patients in the control group. A pairwise comparison showed that the serum CXCL16 and E-cad levels of patients increased significantly as the pathological stages progressed. The analysis also showed that E-cad is an important molecule of cell adhesion and a polar calcium-dependent transmembrane glycoprotein that maintains the intact structure of cells. Additionally, it plays an important role in the early stage of tumor development and migration. Serum CXCL16 reflects the level of inflammatory reaction in a local lesion area to a certain extent. As the degree of canceration increases, the serum CXCL16 level also increases. Huang et al. (15) showed that serum CXCL16 levels significantly increase as patients’ degree of canceration increases. Further, Zacapala-Gómez et al. (25) reported that the level of E-cad was significantly correlated with the degree of canceration in patients, which is consistent with the results of the present study.

In addition, an analysis of joint diagnostic efficacy, found that the critical values of the PSV, the RI, CXCL16, and E-cad in patients with cervical cancer were 14.25, 0.50, 40.15 ng/mL, 85.36 pmmol/L, respectively. These results could serve as reference values for the clinical diagnosis of cervical cancer. The specificity, sensitivity and the AUC were significantly increased which indicated that the diagnostic performance was significantly improved by combining the Doppler ultrasound with serum CXCL16 and E-cad than that of the individual parameters.

However, it should be noted that this study also had some limitations. Due to the limited sample size, the evidence level is relatively low and the conclusion of the present study is not convincing enough. Randomized controlled trials with large sample size are warranted in the future.

Overall, the results showed that the sensitivity of patients with cervical cancer in the diagnosis of color Doppler ultrasound combined with measures of serum CXCL16 and E-cad is high. Thus, it is recommended for use in clinical practice.
