PLGA nanoparticles delivering CPT-11 combined with focused ultrasound inhibit platinum resistant ovarian cancer

Introduction

Ovarian cancer (OC) is the most common malignant tumor of gynecology. According to the latest statistics, ovarian cancer accounted for 22.9% of reproductive tract cancer (1). Around 80% OC cases have already developed to middle or late stages when diagnosed. Therefore, the mortality rate ranks first in gynecological cancers (2). Clinically, platinum drugs (cisplatin, carboplatin, oxaliplatin, nedaplatin, etc.) combined with paclitaxel is the first-line chemotherapy regimen for ovarian cancer. However, 70% patient relapse after initial treatment and show resistance to platinum drugs, which is the main cause of patients’ death (3). For those platinum-resistant patients with recurrent OC, the second-line chemotherapy without cross-resistance with platinum is necessary. The commonly used drugs including camptosar (CPT-11), while those drugs have limit effects and severe side effects (4). CPT-11, a semi-synthetic derivative of camptoacine, is a selective inhibitor of DNA topoisomerase I (Topo I). However, the efficacy of CPT-11 is not high. ten Bokkel Huinink et al. found that the total response rate of CPT-11 for recurrent OC was only 20–25% (5). In the phase II clinical study of Takeuchi et al. (6), 52 OC patients who had received chemotherapy were treated with CPT-11, and they also found that the response rate was 23%. In addition, CPT-11 had obvious adverse reactions, e.g., delayed diarrhea and neutropenia (7). After CPT-11 administration, more than 40% patients exhibited III–IV degree of diarrhea, 78.7% patients showed neutropenia, and the incidence of III–IV neutropenia up to 48% (8). Because of the serious side effects, the treatment has to be stopped in advance or the doses has to be reduced (9), and that’s one of the key factors which limit its dosage and effectiveness.

Macromolecular polymers have the property of forming capsule and film, with a very good stability. The surface of drug-carrying microsphere can be coupled with antibodies or ligands after appropriate treatment (10). It is known that OC cells specifically express the luteinizing hormone-releasing hormone (LHRH) receptors (11). Platinum-resistant A2780/DDP cells of OC highly express LHRH receptor, and lipid microspheres carrying paclitaxel (PTX) linked with LHRH-a through biotin can accurately deliver drugs to the target area (12). Poly lactic-co-glycolic acid (PLGA) microsphere is a new kind of polymer drug-carrying microsphere. Compared with lipid microspheres, PLGA microsphere has obvious advantages, including the small particle size, higher loading rate, ability to be complete depredated into non-toxic H₂O and CO₂ in human body, and satisfactory stability (10). Generally, the maximum size of tumor vascular endothelial space is up to 800 nm (13), and PLGA microsphere can be made into nanometer particles with 10–500 nm size, which is easy to reach the target through the vascular endothelial space.

Luteinizing hormone releasing hormone analog (LHRH-a) is an ideal peptide molecule targeting OC cells, and A2780/DDP express LHRHR (Luteinizing hormone releasing-hormone receptor) is an ideal cell line for the study of platinum-resistant OC.

In this study, PLGA nanoparticles were loaded with CPT-11 and LHRH-a, which increased the targeting of nanoparticles and their drugs to OC cells, a novel CPT-11 loaded nanoparticles was successfully synthesized with PLGA material and it was connected with LHRH-a molecules. This novel targeted drug-loaded nanoparticle (LHRH-a/CPT-11/PLGA) can specifically bind to OC cells and locally release CPT-11 when triggered by focused ultrasound irradiation. Theoretically, this strategy can improve the overall treatment efficacy and our study provides a reference for the further treatment of recurrent platinum-resistant OC.

We present the following article in accordance with the ARRIVE reporting checklist (available at http://dx.doi.org/10.21037/tcr-20-3171).

Methods

Materials

Human OC cell line A2780/DDP was purchased from Shanghai Suer Biotechnology Co., Ltd. RPMI 1640 culture medium (containing 10% fetal bovine serum) was used to culture the cells at 37 °C and with 5% CO₂, 10% fetal bovine blood should be added before use, penicillin and streptomycin were added (final concentrations of 100 and 100 U/mL, respectively). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Preparation of PLGA nanospheres

PLGA-H₂O nanoparticles were prepared by double emulsion method: 25 mg PLGA was dissolved in 2 mL trichloromethane, and then 0.2 mL double distilled water was added to the solution. The white emulsion (w/o nanometer microsphere) was obtained by oscillating the continuous wave 45 s with an energy of 80 w. Next, 2.5 mL 5% of PVA was added, and the high-speed dispersing homogenizer was used (1,300 r/min for 2 min). The w/o/w microspheres were generated. Then, it was stirred for 2 h to fully volatilize trichloromethane at room temperature with the magnetic mixer. After high-speed centrifugal washing for 3–5 times (5,000 rpm for 5 min) by ddH₂O, PLGA-H₂O nanoparticles were collected and stored at 4 °C until use.

Preparation of CPT-11/PLGA nanospheres: 1 mg CPT-11 powder was added into 0.2 mL deionized water to produce the 5.0 mg/mL CPT-11 solution, and then it was added to chloroform solution with PLGA.

Preparation of targeted nanospheres (LHRH-a/CPT-11/PLGA): the targeted nanospheres were prepared through the method of double emulsification and carbodiimide activation. The CPT-11/PLGA microspheres were dissolved in MES Buffer solution (pH =6), and the activators EDC and INHS were added according to the mass ratio of 1:2:2. Then 2 mg LHRH-a were added into the solution, mixed at 4 °C on shaker for 3 hours. The liquid system was centrifuged at 5,000 rpm and washed for 3–5 times with the MES buffer solution (pH =8).

FITC-labeled CPT-11/PLGA nanospheres: these microspheres were prepared by the method of double emulsification. On the basis of CPT-11/PLGA nanospheres, an appropriate amount of FITC. Fluorescent marker dye was added at the same time.

FITC-labeled targeted nanospheres (FITC-LHRH-a/CPT-11/PLGA): on the basis of LHRH-a/CPT-11/PLGA microspheres, an appropriate amount of FITC-fluorescent marker dye was added into the solution at the same time.

All the above microspheres were sterilized by Co60 irradiation sterilization (25 Gy). The irradiation site was the radiation center of the third military medical university. Microspheres after sterilization were stored at −20 °C for later use.

Encapsulation rate and drug loading rate assessment

The maximum absorption wavelength of CPT-11 was determined. The CPT-11 solution was (20 µg/mL) was conducted ultraviolet scanning at 200–600 mm. Next, 25 µL LHRH-a/CPT-11/PLGA nanospheres suspension was diluted to a volume of 250 µL and placed in a 37 °C gas bath oscillator. After full degradation, the solution was centrifuged at 500 rpm for 10min, the absorbance value was determined at the wavelength of 254.5 nm and 500 mm with an ultraviolet spectrophotometer. In LHRH-a/CPT-11/PLGA nanospheres, the CPT-11 content was calculated as: the determined concentration × solvent volume (250 µL). The drug loading (%) was calculated as: CPT-11 content/total weight of nanospheres ×100%. Encapsulation rate (%) was calculated as: CPT-11 content in nanospheres/total drug input ×100%. The experiment was repeated three times and the averaged results were used for analysis.

Cell viability assays

The cell concentration was adjusted to 1×10⁵/mL and inoculated on a 96-well plate with 100 µL per well. The cells were cultured overnight in an incubator. Different concentrations of CPT-11 were added into the cells and then cultured in incubator for 24, 48 and 72 h. Next, 10 µL CCK-8 solution was added to each well and incubated for 4 h, and then the absorbance value at 450 mm was determined. Besides, the half inhibitory concentration (IC50) was calculated based on the cell viability.

In vitro targeting detection assays

Routine trypsin digestion and cell counting were performed on A2780/DDP cells during the logarithmic growth period, and the cells were divided into three groups: (I) the fluorescence targeted microspheres group (FITC-labeled LHRH-a/CPT-11/PLGA microspheres); (II) the pretreatment fluorescence targeted microsphere group (LHRH-a pretreated and FITC-labeled LHRH-a/CPT-11/PLGA microsphere); (III) fluorescence non-targeted microspheres group (the FITC-labeled CPT-11/PLGA microspheres). The cells in the three groups were respectively treated with 40% paraformaldehyde and fixed for 15 min and were washed with PBS for three times. The nuclei were stained with DAPI (PBS diluted, 1:1,000) for 3 min. The slices were sealed with glycerin. The fluorescence distribution was detected with a confocal microscope.

Cell cycle assays

The cells were cultured in 6-well plates, and when the density in a plate reached 60–70%, the corresponding drugs, reagents and microspheres were added respectively (the same amount of normal saline was added in the control group). The ultrasonic irradiation group was treated with ultrasonic intensity irradiation of 1.5 W/cm² for 60 s. After treatment, cells were collected, 1mL pre-cool 70% ethanol was added to cells, gently blown and mixed, and then fixed at 4 °C for 2 h. Subsequently, 0.5 mL propidium iodide staining solution (0.5 mL staining buffer, containing 25 µL 20× propidium iodide staining solution and 10 µL 50× RNase A) was added, cells were re-suspended and incubated for 30 min at 37 °C in dark. The fluorescence at 488 nm wavelength was detected by flow cytometry. The experiment was independently repeated three times.

Western blotting

Cells were lysed in lysis buffer (Biyuntian, CHINA). After being determined the protein concentration, the cellular protein was subjected to SDS-PAGE and western blot analysis with the following primary antibodies. Bcl-2, Caspase3, MMP2, GAPDH antibody was bought from Abcam HA.

RNA extraction and QPCR assays

After the culture medium was discarded, TRIzol reagent was directly added to the culture plate for RNA extraction. And reverse transcription was performed. The primers used for RT-PCR were as follows (5'-3'): Bcl-2: AGGGACGGGGTGAACTGG; CTACCCAGCCTCCGTTATCC. Casp3: AGAACTGGACTGTGGCATTGAG; GGCACAAAGCGACTGGATG. MMP2: TTTGACGGTAAGGACGGACTC; TACTCCCCATCGGCGTTC. Actin: TGACGTGGACATCCGCAAAG; CTGGAAGGTGGACAGCGAGG.

In vivo tumor studies

The animal experiment was approved by the Ethics Committee of The IRB of Third Xiangya Hospital, Central South University. BAL B/C female nude mice (5 weeks old, 20 g) were purchased from Beijing Huafukang Biological Technology Co., Ltd. The animals were kept in a SPF room, and all the materials for breeding were strictly sterilized. Experiments were performed under a project license (license number: 2020SYDW0627) granted by the Veterinäramt des Kantons Zürich, Switzerland, in compliance with the Swiss Animal Protection Act (TSchG) and the Swiss Animal Protection Ordinance (TSchV).

Construction of subcutaneous transplantation tumor was performed on nude mice as follow. A2780/DDP cells in logarithmic growth stage were prepared into cell suspension with concentration of 1×10⁷/mL after routine digestion and centrifugation. Around 1.5×10⁶ tumor cells were transplanted subcutaneously in each nude mouse. Subsequent experiment grouping was: blank control group (Con); CPT-11 group (CPT-11); CPT-11 combined ultrasound group (CPT-11 and US); PLGA-H₂O microsphere group (PLGA-H₂O); PLGA-H₂O microsphere combined ultrasound group (PLGA-H₂O and US); CPT-11/PLGA microsphere group (CPT-11/PLGA); CPT-11/PLGA microsphere combined ultrasound group (CPT11/PLGA and US); LHRH-a/CPT-11/PLGA microsphere group (LHRH-a/CPT-11/PLGA).

LHRH-a/CPT-11/PLGA microsphere combined ultrasound group (LHRH-a/CPT-11/PLGA and US). After the tumor grew to 0.8–1.0 cm, 45 nude mice with similar tumor size were selected and randomly divided into nine groups (5 nude mice in each group). All groups were treated every 2 days (on 4, 7, 10 and 13 days, respectively). And the tumor volume of nude mice was continuously measured. The tumor inhibition rate was calculated as: (the average tumor weight of control group - the average tumor weight of each treatment group)/the average tumor weight of control group ×100%. After nude mice were sacrificed, each tumor was removed, fixed overnight, embedded, and cut into sections for subsequent immune-histochemical experiments.

Statistical analysis

One-way ANOVA was used to evaluate the difference between the groups. Unpaired Student’s t-test was used to evaluate the difference between the two groups. P<0.05 was statistically significant, and P<0.01 was extremely statistically significant. Statistical analyses were performed by SYSTAT SigmaPlot 10.0 statistics software.

Results

LHRH-a/CPT-11/PLGA nanoparticles

Well-constructed drug-loaded PLGA nanospheres (LHRH-a/CPT-11/PLGA) dissolved in water were milky white suspension. Under the light microscope, they had uniform size, regular morphology, spherical shape and good dispersion, and no obvious adhesion or local agglomeration among the nanoscale microspheres were observed (Figure 1A). Transmission electron microscopy showed that CPT-11 was evenly distributed in the center of PLGA nanometer microsphere (Figure 1B).

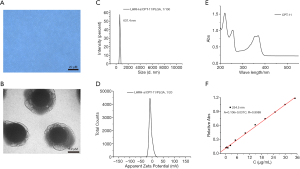

Figure 1 Characteristics of LHRH-a/CPT-11/PLGA nanometer microspheres. (A) LHRH-a/CPT-11/PLGA nanospheres under microscope (×600). (B) Transmission Electron Microscope detection. (C) Particle size distribution of LHRH-a/CPT-11/PLGA. (D) Potential distribution of LHRH-a/CPT-11/PLGA. (E) UV (ultraviolet) scanning spectrum of CPT-11. (F) Calibration curve of CPT-11. LHRH-a, luteinizing hormone releasing hormone analogue; CPT-11, irinotecan HCl trihydrate; PLGA, poly lactic-co-glycolic acid.

The particle size was 637.4±57.0 nm (Figure 1C). LHRH-a/CPT-11/PLGA nanometer microspheres were negatively charged, and the ZETA potential after dilution of 20 times was −6.48±6.71 mV (Figure 1D). The UV scanning spectrum of CPT-11 was shown in Figure 1E. CPT-11 has the maximum absorption peak at 254.5 nm, which was used as the measuring wavelength. The regression equation of the content determined of CPT-11 was A =0.106+0.031C, R =0.9989 (Figure 1F). There was a linear relationship in the range of 0.250–35.0 µg/mL. The encapsulation rate of LHRH-a/CPT-11/PLGA nanometer microsphere was 33.61%±8.16% and the drug load was 4.80%±8.16%.

After ray sterilization, there was no significant change in the concentration and morphology of targeted drug-loaded nanospheres (LHRH-a/CPT-11/PLGA). After place at −20 °C or 4 °C for 14 days, their morphology and particle size did not change significantly. However, the particle size of the nanometer microspheres gradually increased with the storage time, and the clustering phenomenon of microspheres appeared after one month (not shown).

Targeted nanoparticles inhibited the proliferation of OC cells

In vitro, with the increase of CPT-11 concentration, the inhibition rate to A2780/DDP cells increased. Also, the inhibition rate at the same drug concentration showed a time effect. From 24 h, 48 h to 72 h, the inhibition rate of CPT-11 on A2780/DDP cells increased gradually (Figure 2A), and the IC₅₀ value at 72 h was 0.2 mg/mL.

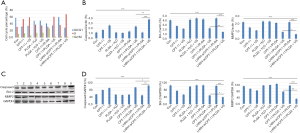

Figure 2 Targeted inhibition of tumor cell proliferation by LHRH-a/CPT-11/PLGA nanometer microspheres. (A) CPT-11 inhibit the proliferation of ovarian cancer cell A2780/DDP (a cisplatin-resistant A2780 cell line). (B) LHRH-a/CPT-11/PLGA target A2780/DDP cells. (C) inhibition effects of treatments on proliferation of A2780/DDP cells. LHRH-a, luteinizing hormone releasing hormone analogue; CPT-11, irinotecan HCl trihydrate; PLGA, poly lactic-co-glycolic acid. *, P<0.05; **, P<0.01.

Laser confocal microscopy showed the distribution of targeted drug-carrying microspheres with green ring fluorescence around the A2780/DDP cells. After repeated washing with PBS buffer following pretreatment with LHRH-a, little green fluorescence was observed around A2780/DDP cells in the targeted microsphere group (Figure 2B). CPT-11 nanoparticles significantly inhibited the proliferation of OC cells. As shown in Figure 2C, there were significant cytotoxic effects on A2780/DDP cells in CPT-11 group, CPT-11 with US group, CPT-11/PLGA with US group and LHRH-a/CPT-11/PLGA with US group. Among them, the cytotoxic effect of LHRH-a/CPT-11/PLGA + US group was significantly stronger than that of CPT-11 group (P=0.003), CPT-11 with US group (P=0.004) and CPT-11/PLGA with US group (P=0.042). The differences between CPT-11/PLGA with US group and CPT-11/PLGA group (P=0.001), and between LHRH-a/CPT-11/PLGA with US group and LHRH-a/CPT-11-PLGA Group (P=0.001) were statistically significant. Compared with the control group, there were no significant difference between the pure PLGA-H₂O group (P=0.957), the PLGA-H₂O-US group (P=0.837), the CPT-11/PLGA group (P=0.671), and the LHRH-a/CPT-11/PLGA group (P=0.322).

Cell cycle distribution was detected by flow cytometry. Compared with the control group (Con), all the A2780/DDP cells in the showed increased s-phase cell ratio to different degrees, including CPT-11 group (P=0.0002), CPT-11 with US group (P=0.0002), CPT-11/PLGA with US group (P=0.000), LHRH-a/CPT-11-PLGA with US group (P=0.000). The S phase of cell cycle blocking effect was the strongest in the LHRH-a/CPT-11/PLGA with US group (Figure 3A).

Figure 3 LHRH-a/CPT-11/PLGA nanometer microspheres promote apoptosis of ovarian cancer cells. (A) Cell phase distribution of A2780/DDP cells (a cisplatin-resistant A2780 cell line) in the treatment by FCM (Flow cytometry). (B) mRNA level of Bcl-2/caspase3, and MMP2. (C,D) Protein level of Bcl-2/caspase3, and MMP2. In Figure 3C, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 6, 7, 8 and 9 represent Con, CPT-11, CPT-11 + US (focused ultrasound), PLGA + H₂O, PLGA + H₂O + US, CPT-11/PLGA, CPT-11/PLGA + US, LHRH-α/CPT-11/PLGA, LHRH-α/CPT-11/PLGA + US. LHRH-a, luteinizing hormone releasing hormone analogue; CPT-11, irinotecan HCl trihydrate; PLGA, poly lactic-co-glycolic acid. *, P<0.05; **, P<0.01; ***, P<0.001.

We have preliminarily demonstrated that targeted drug-carrying microspheres combined with focused ultrasound can strongly inhibit the proliferation of tumor cells. In the follow-up experiments, we further detected the expression of proteins related to apoptosis and invasion of OC cells after treatment of targeted drug-carrying microspheres combined with focused ultrasound. The mRNA expression level of Caspase3 in LHRH-a/CPT-11/PLGA with US group was significantly up-regulated, and the expression levels of Bcl-2 and MMP2 in this group were lower than other groups. AS shown in Figure 3B, the mRNA expression of Bcl-2, Caspase3 and MMP2 in LHRH-a/CPT-11/PLGA-US group was significantly different from that of other treatment groups (P<0.01). While the differences between the PLGA-H₂O group, PLGA-H₂O with US group, CPT-11/PLGA group and LHRH-a/CPT-11/PLGA group were not statistically significant versus control (P>0.05). The levels of Bcl-2, Caspase3 and MMP2 protein expression were significantly changed in all treatment groups. And the expressions of Bcl-2, Caspases3 and MMP2 in the LHRH-a/CPT11/PLGA with US group were significantly higher than those in the other treatment groups (P<0.05), while the expression levels of Bcl-2 and MMP2 in the LHRH-a/CPT11/PLGA + US group were significantly lower than those in the other groups (P<0.05). There was no significant difference between the simple PLGA-H₂O group, the PLGA-H₂O with US group, the CPT-11/PLGA group, the LHRH-a/CPT-11/PLGA group and the control group (P>0.05) (Figure 3 C,D).

Nanoparticles inhibit the growth of OC cells in vivo

In order to verify whether these microspheres can inhibit targeted tumor in vivo, we established the subcutaneous transplantation tumor model Using the nude mice (Figure 4A), and the nanoparticle therapy was administered when tumors formed. Under the confocal laser microscope, there was a large amount of green fluorescence distribution around cells in the fluorescence targeted microspheres group after injection of FITC-labeled LHRH-a/CPT-11/PLGA microspheres (Figure 4B). However, no significant green fluorescence was observed in the tumor tissues of the LHRH-a pretreated group and the non-targeted fluorescent microsphere group.

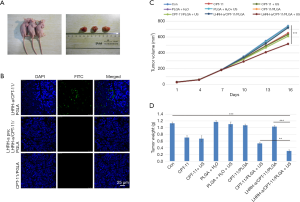

Figure 4 LHRH-a/CPT-11/PLGA nanoparticles targeted inhibit tumor growth. (A) Subcutaneous xenotransplantation tumor model of human ovarian tumor in nude mice. (B) LHRH-a/CPT-11/PLGA target xenograft tumor (×800). (C) Growth curve of transplanted tumor in nude mice of each treatment group. (D) Weight of transplanted tumor in each group after treatment. LHRH-a, luteinizing hormone releasing hormone analogue; CPT-11, irinotecan HCl trihydrate; PLGA, poly lactic-co-glycolic acid. **, P<0.01; ***, P<0.001.

As tumor growth curve shown in Figure 4C, the tumor growth of the control group, PLGA-H₂O group, PLGA-H₂O with US group, CPT-11/PLGA group and LHRH-a/CPT-11/PLGA group was rapider than other treatment groups. The tumor growth of the LHRH-a/CPT-11/PLGA with US group was the slowest, and the tumor volume was significantly smaller than that of the other groups. There was no significant difference in growth inhibition among the PLGA-H₂O group, PLGA-H₂O with US group, CPT-11/PLGA group and LHRH-a/CPT-11/PLGA group in comparison with the control group (P=0.05).

Different degrees of tumor growth inhibition were observed in the CPT-11 with the US group, CPT-11/PLGA with US group and LHRH-a/CPT-11/PLGA with US group compared with the control group. Among them, the LHRH-a/CPT-11/PLGA with US group had the strongest inhibition effect (P=0.025), as shown in Figure 4D. After sacrifice, the weight of the dissected tumor was compared, the LHRH-a/CPT-11/PLGA with US group had the lowest weight (inhibition rate 73.5%). Above findings suggest that the targeted microspheres combined with focused ultrasound could achieve g inhibition of tumor growth than the single drug treatment.

From this experiment, we found that targeting drug-delivering microsphere joint focused ultrasound irradiation group of nude mice subcutaneous transplantation tumor growth inhibition is the strongest. While tumor inhibition rate of the blank control group, PLGA-H₂O group, PLGA-H₂O with US, CPT-11/PLGA group and LHRH-a/CPT-11 were low and without statistical difference between groups. Firstly, PLGA-H₂O and PLGA-H₂O joint of ultrasonic irradiation had no obvious inhibition effect on tumor; secondly, inhibition of CPT-11/PLGA and LHRH-a/CPT-11/PLGA on tumor tissue had no obvious difference compared with controls group, which mean two groups of microspheres in the body were still stable, not easy to be destructed and to insourcing release chemotherapy drugs. PLGA-H₂O group and PLGA-H₂O with US group has no obvious statistical difference on the tumor inhibition, showed that low intensity ultrasound irradiation itself can’t kill or inhibit tumor. This result was consistent with the research of Pu et al. (14). CPT-11/PLGA group and CPT-11/PLGA with US group, LHRH-a/CPT-11/PLGA group and LHRH-a/CPT-11/PLGA with US group, they showed that PLGA micropellets can be broken by ultrasound under the stimulation of ultrasound localization and irradiation, and the CPT-11 chemotherapy drugs can be released under the action of ultrasound to play their role in inhibiting the growth of tumor tissue. CPT-11/PLGA-US and LHRH-a/CPT-11/PLGA-US, these two groups of tumor growth inhibition rate also have obvious difference, because the targeted microspheres can bind with tumor, selectively gathered around the tumor tissues. Under the ultrasonic excitation, CPT-11 was released in the high local concentrations around the tumor tissue, inhibition was much higher. The LHRH-a/CPT-11/PLGA with US was also significantly different from that in the CPT-11 with US group, indicating that the targeted drug-carrying microspheres under the excitation of focused ultrasound could achieve significantly stronger inhibition of tumor tissue growth than the single drug treatment.

Vascular endothelial growth factor (VEGF) plays an important role in the invasion and metastasis of OC through binding to its corresponding receptor (VEGFR) (14,15). With the increase of VEGF secretion, tumor angiogenesis contributes to the growth and metastasis of tumor cells. Immuno-histochemical results showed that the expression level of VEGF in the control group was the highest, and the expression level of VEGF in the PLGA-H₂O group, PLGA-H₂O with US group, CPT-11/PLGA group and LHRH-a/CPT-11/PLGA group was similar to the control group, followed by the CPT-11group, the CPT-11 with US group and the CPT-11/PLGA with US group, and the expression level in the LHRH-a/CPT-11/PLGA with US group was the lowest. As shown in Figure 5A, VEGF in the LHRH-a/CPT-11/PLGA with US treatment group was significantly lower than that in other treatment groups.

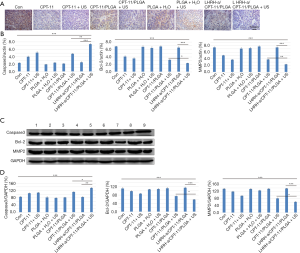

Figure 5 LHRH-a/CPT-11/PLGA nanoparticles promote tumor apoptosis. (A) VEGF expression level in transplanted tumor in each treatment group. (B) mRNA level of Bcl-2/caspase3, and MMP2 in tumor after treatment. (C,D) Protein level of Bcl-2/caspase3, and MMP2. In Figure 5C, 1, 2, 3, 4, 5, 6, 7, 8 and 9 represent Con, CPT-11, CPT-11 + US (focused ultrasound), PLGA + H₂O, PLGA + H₂O + US, CPT-11/PLGA, CPT-11/PLGA + US, LHRH-α/CPT-11/PLGA, LHRH-α/CPT-11/PLGA + US. LHRH-a, luteinizing hormone releasing hormone analogue; CPT-11, irinotecan HCl trihydrate; PLGA, poly lactic-co-glycolic acid. *, P<0.05; **, P<0.01; ***, P<0.001.

Meanwhile, we examined the expression of genes associated with apoptosis and invasion in OC cells. The results of real-time quantitative PCR showed that the mRNA expression levels of Bcl-2 and MMP2 in LHRH-a/CPT-11/PLGA with US group were lower than other groups, while their mRNA expression levels of caspase-3 were significantly up-regulated. The mRNA expression of Bcl-2, Caspase3 and MMP2 in the LHRH-a/CPT-11/PLGA with US group were significantly different from other treatment groups (P<0.01). CPT-11 group, CPT-11 with US group and CPT-11/PLGA + US, compared with the control group, there was a significant difference (P<0.01). There were no significant differences between the PLGA-H₂O group, the PLGA-H₂O + US group, the CPT-11/PLGA group and the LHRH-a/CPT-11/PLGA group versus the control group (P>0.05), as shown in Figure 5B. Consistently, Western blotting analysis showed caspase3 in LHRH-a/CPT-11/PLGA + US group was significantly higher than other treatment groups (P<0.01), while Bcl-2 and MMP2 expression in this group were significantly lower (P<0.05). As shown in Figure 5C,D, the expression of these protein markers in the CPT-11 group, CPT-11 with US group and CPT-11/PLGA + US group were significantly different compared with the control group (P<0.05), while there were no significant differences between the PLGA-H₂O group, PLGA-H₂O with US group, CPT-11/PLGA group and LHRH-a/CPT-11/PLGA group versus control group (P>0.05).

The above results confirmed that targeted drug-carrying microspheres combined with focused ultrasound (LHRH-a/CPT-11/PLGA with US) can strongly inhibit the proliferation, invasion and metastasis of OC cells and drive apoptosis of OC cells.

Discussion

The survival of recurrent platinum resistant OC patients is short, and the treatment method is mainly palliative therapy. It is a challenge to improve the curative effect of the non-platinum second-line chemotherapy drugs, and reduce the side effects of chemotherapy at the same time. Targeted delivery of drug-loaded microspheres is an effective method to solve this problem, and it is also a hot topic in the research of targeted therapy for tumor. It delivered drug along with the blood flow to the target tissue or organ, and the key steps include: ultrasonic localization irradiation, drug delivery microsphere rupture, drug release; an increase in drug concentration around targeting tumor, and exerting killing effects (16). In contrast, normal tissues (in non-ultrasonic irradiation areas) are not affected and side effects can be largely avoided. Targeted nanospheres combined with focused ultrasound are expected to become a routine method for the treatment of malignant tumors (17).

At present, a large number of studies use lipid microspheres as drug carriers. However, these microspheres usually have a large particle size (most of which are more than 1,000 mm). In addition, there are disadvantages such as low drug loading, poor stability and short drug maintenance time in target tissues and organs. In vivo, the lipid drug-carrying microspheres are easily affected by the complex internal environment in the body, such as temperature, shearing force of blood flow, etc. (18). The above shortcomings limit the wide application of lipid microspheres.

A large number of studies have shown that ultrasound assisted microspheres have better efficacy and lighter side effects than chemotherapy alone (19). The application of drug-loaded ultrasound microspheres in the treatment of OC has also been reported. Rapoport et al. first coated the chemotherapy drug paclitaxel with liposome microspheres and then administered the drug. Compared with the pure paclitaxel group, the drug efficacy of paclitaxel coated with liposomes was significantly enhanced, while the toxic and side effects related to paclitaxel were reduced by 10 times (20). Rapoport prepared a novel doxorubicin-carrying nanosphere by encapsulating doxorubicin with a polymer amine and adding perfluoropentane, which also had the function of ultrasonic imaging (21). Medda et al. prepared a targeted microsphere connected with LHRH-a and used it in the nude mouse OC A2780/DDP model. Similarly, it could enhance the apoptosis of tumor and inhibit tumor growth by affecting tumor angiogenesis. As a drug carrier, PLGA has obvious advantages over lipid microspheres including: small particle size, high drug loading, non-toxic side effects of biodegradable substances, good stability, etc. (22). The PLGA microsphere is more likely to pass through the vascular endothelial space to the tumor tissue space. Therefore, there are potential advantages in the treatment of recurrent platinum-resistant OC with ultrasonic nano-PLGA microsphere loaded with CPT-11 targeted delivery.

Conclusions

CPT-11 delivering PLGA nanoparticles with LHRH-a specifically target OC cell A2780/DDP, and work locally when combined with focused ultrasound. They increase local drug concentration and reduce side effects. This research may provide a new effective therapeutic strategy for recurrent platinum resistant ovarian cancer.

Acknowledgments

The authors are grateful to Absatou Traoré, MAS, Department of Obstetrics and Gynecology, Third Xiangya Hospital, Central South University for her language editing assistance and contributions.

Funding: None.

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at http://dx.doi.org/10.21037/tcr-20-3171

Data Sharing Statement: Available at http://dx.doi.org/10.21037/tcr-20-3171

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tcr-20-3171). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Experiments were performed under a project license (license number: 2020SYDW0627) granted by the Veterinäramt des Kantons Zürich, Switzerland, in compliance with the Swiss Animal Protection Act (TSchG) and the Swiss Animal Protection Ordinance (TSchV).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
