Laparoscopic pancreaticoduodenectomy: a retrospective study of 200 cases and the optimization of the single-center learning curve
Original Article

Laparoscopic pancreaticoduodenectomy: a retrospective study of 200 cases and the optimization of the single-center learning curve

Yi-Chen Tang, Qin-Qin Liu, Yong-Gang He, Jing Li, Xiao-Bing Huang

Department of Hepatobiliary Surgery, the Second Affiliated Hospital of Army Medical University, Chongqing, China

Contributions: (I) Conception and design: YC Tang, J Li, XB Huang; (II) Administrative support: YC Tang, XB Huang, J Li; (III) Provision of study materials or patients: YG He, QQ Liu, YC Tang; (IV) Collection and assembly of data: J Li, YC Tang; (V) Data analysis and interpretation: YG He, QQ Liu; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Xiao-Bing Huang; Jing Li. Department of Hepatobiliary Surgery, The Second Affiliated Hospital of Army Medical University, No. 183, Xinqiao High Street, Shapingba District, Chongqing 400037, China. Email: 1038915320@qq.com; xqyylj@163.com.

Background: Laparoscopic pancreaticoduodenectomy (LPD) is widely used in several centers. This study analyzed the postoperative complications rate curve, possible cause, and solution of LPD and open pancreaticoduodenectomy (OPD).

Methods: Between January 2015 and December 2019, the study included 213 and 204 patients undergoing OPD and LPD, respectively. Postoperative outcomes, complications, and complication risk, along with operation time were analyzed, and the learning curve was determined.

Results: The OPD group (378.7±8.98 min) had shorter operation time than the LPD group (402.5±7.12 min) (P=0.037). Blood loss was significantly lower in the LPD group (389.9±19.05 mL) than in the OPD group (530.1±33.55 mL) (P<0.001). The incidence of biliary-enteric anastomosis leakage was higher in the LPD group (2.9%) than in the OPD group (0.5%) (P=0.0495). The LPD group showed lower lung infection (7.4% vs. 17.4%, P=0.037), incision infection (1% vs. 8.5%, P<0.001), and anal exhaust time (3.35±0.07 vs. 4.05±0.07 days, P<0.001) than the OPD group. The biliary-enteric anastomosis leakage was strongly correlated with the pancreatic fistula (B/C) (R=0.6410), intraperitoneal infection (R=0.6126) and Clavien-Dindo Classification ≥3 (R=0.7403). According to the cumulative sum (CUSUM) curve, pancreatic fistula had a negative K value in 44 cases, biliary-enteric anastomosis leakage had a negative K value in 46 cases, and Clavien-Dindo Classification ≥3 had a negative K value in 40 cases. The learning curve for LPD has an inflection point in 86 cases.

Conclusions: LPD is safe and effective for patients with pancreatic cancer, and has a long learning curve and improved postoperative complications in 50 cases. This study’s results will help in reducing the complication rates of the first 50 consecutive cases of LPD.

Keywords: Pancreaticoduodenectomy; learning curve; postoperative complications


Submitted Mar 22, 2021. Accepted for publication May 21, 2021.

doi: 10.21037/tcr-21-518


Introduction

Pancreaticoduodenectomy (Whipple procedure) has been widely known as an effective treatment for the pancreatic head, especially periampullary carcinoma (1). The traditional open approach has been used for pancreaticoduodenectomy, which includes the resection of the duodenum, thorough lymph node dissection, vascular resection and anastomosis, and reconstruction of the digestive tract. However, patients undergoing the complex operation tend to have a high perioperative complication rate and a long recovery period (2).

Gagner and Pomp first reported the surgical feasibility of laparoscopic pancreaticoduodenectomy (LPD) in 1994, and they believed that laparoscopic surgery was more complex than open surgery (3). With the advances of operative techniques, great progress has been observed in LPD in recent years. Studies have also observed the advantages of LPD as follows: lesser blood loss, faster recovery of the gastrointestinal function, and shorter recovery periods compared to the open approach (4-6). Large pancreatic centers have also analyzed the feasibility and learning curve of LPD in large cohort studies (7,8). However, the safety and efficacy of the operation have not been assessed by single centers in large cohort studies (more than 200 cases). Moreover, only little attention has been given to the postoperative complications rate curve, possible cause, and solution of LPD. Therefore, the aim of this retrospective study was to investigate the complications rate curve, possible cause in large cohort studies, and develop a protocol to prevent the severe postoperative complications.

We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/tcr-21-518).


Methods

Study design

A total of 417 patients with pancreatic head cancer and periampullary tumor (common bile duct tumor and ampullary tumor), undergoing surgeries at Xinqiao Hospital from January 2015 to December 2019, were included in the study. All the operations were completed by a separate team, guided by the assigned researcher. This separate team had previously completed 3 cases of LPD. Moreover, 213 patients who underwent open pancreaticoduodenectomy (OPD) and 204 patients who underwent LPD were included in this study. LPD and OPD were running at the same time period. The inclusion criteria were: benign and malignant pancreatic tumors located at the head of the pancreas, tumors located at the lower part of the common bile duct and ampulla tumors; had not received gastrointestinal surgery; and no tumor invasion the coeliac trunk, common hepatic artery, and superior mesenteric artery. LPD and OPD had the same inclusion criteria. The exclusion criteria were: those who could not tolerate general anesthesia, and arterial invasion and distant metastases were considered contraindications for the operation. In the early stage, simple cases were selected for LPD, and after 60 cases, LPD and OPD had the same inclusion criteria, such as vascular reconstruction of the SMV. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study had been approved by the institutional review board of Chongqing Xinqiao Hospital (Approval Number: AF/SC-08/1.0; Approval Date: 2018.10.16). Each patient had signed the informed consent with regard to the operation and use of data on their status before and after the operation.

All participating surgeons had performed 50 or more pancreatoduodenectomies (open), completed the training programme in LPD. Before the operation, all patients had undergone the necessary clinical and laboratory examinations to assess the primary tumor invasion, vascular invasion, and distant metastasis. Computed tomography was performed routinely. Before the operation, percutaneous transhepatic cholangial drainage was performed on patients with serum bilirubin exceeding 200 µmol/L. According a preoperative risk score model to preoperatively predict the risk of postoperative pancreatic fistula (9). Frozen sections were prepared to examine the surgical margins of the common bile duct/pancreas, the pathologic examination to meet the R0 standard.

Eight-step laparoscopic operative technique (a standard process of pancreaticoduodenectomy)

(I) Exposure and stripping of the pancreatic head: Kocher maneuver and dissociate the pancreatic head completely, exposing the inferior vena cava, right renal vein, and superior mesenteric artery. (II) Exposure of pancreas and gastrectomy: the gastrocolic ligament was opened, the neck of pancreas was cut, gastrectomy was performed using surgical stapler (EGIAUSYND, EGIA60AVM, EGIA60AMT COVIDIEN). (III) Dissection of porta hepatis: dissect the porta hepatis along common hepatic artery, and divide the common hepatic duct (CHD). (IV) Resection of the uncinate process: cutting off the Treitz ligament and the jejunum, converging into the pancreatic head from the superior mesenteric vein and superior mesenteric artery, the identified blood vessels would be cut off until a complete resection is performed. (V) Reconstruction of the pancreaticojejunostomy: duct-to-mucosa reconstruction were performed (measure operative time). The 3-0 Prolene (WB558 ETHICON) was used for the full-thickness suture of the pancreas and outer mucosa of the jejunum. The 5-0 PDS II (W9073 ETHICON) was used for the interrupted suture of the pancreatic duct and jejunal mucosa. (VI) Reconstruction of hepaticojejunostomy: the 5-0 polydioxanone (VCP397H ETHICON), 4-0 V-loc (VLOCL0803 COVIDIEN), and 5-0 PDS II were chosen for hepaticojejunostomy, several sutures were performed to reduce the tension (measure operative time). (VII) Reconstruction of gastrojejunostomy: use a stapler to perform the gastrojejunostomy anterior to the mesocolon (measure operative time). (VIII) Placement of the drainage system and closure of the incision (Figure 1). The above laparoscopic operative were performed with a 3D laparoscopic system (26605AA, STORZ). Gen11 intelligent energy system (ETHICON) and HARMONIC 1100 Shears (ETHICON) were used for energy sealing and dissecting.

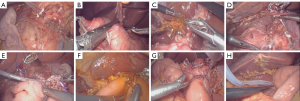

Figure 1 Eight-step laparoscopic operative technique. (A) Exposure and stripping of the pancreatic head; (B) exposure of pancreas and gastrectomy; (C) dissection of porta hepatis; (D) resection of the uncinate process; (E) reconstruction of the pancreaticojejunostomy; (F) reconstruction of hepaticojejunostomy; (G) reconstruction of gastrojejunostomy; (H) placement of the drainage system and closure of the incision.

Perioperative care

The nasogastric tube was pulled out 1–3 days after the operation, whereas the abdominal drainage tube was pulled out 3–6 days after the operation. A continuous injection of somatostatin (6 mg) via a micropump was started 24 h before the abdominal drainage tube was pulled out. Patients began to eat food 2–5 days after operation, depending on their conditions. Subcutaneous unfractionated or fractioned heparin was used for thromboembolic prophylaxis.

Biostatistics and statistical analysis

We collected clinicopathological characteristics of patients, operative outcomes (operative time, estimated blood loss, histopathological characteristics) and postoperative complications [pancreatic fistulas were diagnosed and classified (9)].

All continuous data were presented as median and mean ± standard deviation (SD), and frequencies were presented when appropriate for the type of data. The mean values of the continuous variables were compared with a two-tailed Student’s t-test. Nonparametric statistical tests were used if the variables did not follow a normal distribution. Categorical variables were presented as numbers and percentages and were compared using Pearson’s χ2 test or Fisher’s exact test for contingency tables. For all analyses, a P value <0.05 was considered statistically significant. Moreover, Spearman’s rank correlation coefficients were used to analyze relationships of the operative complication. Statistical analyses were carried out using Statistical Product and Service Solutions (SPSS) version 21.0 software (SPSS Inc., IBM, Armonk, NY, USA). The learning curve for LPD and its operative complication rate were evaluated using cumulative sum (CUSUM). CUSUM was conducted using the Intercooled Stata 13.0 statistical software package. GraphPad (7.01 GraphPad Software, San Diego, CA, USA) software was used for plotting.


Results

Patient characteristics

The study included a total of 417 patients undergoing pancreaticoduodenectomy in our center, and they were classified into two groups, based on their respective operative methods: OPD group (213 patients) and LPD group (204 patients) (Table 1). The two groups did not differ in age, sex, body mass index (BMI), American Society of Anesthesiology (ASA) physical status, symptom, tumor size on imaging, preoperative biliary drainage, percutaneous transhepatic cholangial drainage, endoscopic retrograde biliary drainage, the number of pancreatic ductal adenocarcinoma (PDAC) patients and high risk for postoperative pancreatic fistula. Fewer patients have a history of abdominal surgery in the LPD group compared to those in the OPD group (17.9% vs. 22.4%). Furthermore, more patients with preoperative biliary drainage by percutaneous transhepatic cholangiodrainage (PTCD) were observed in the LPD group than in the OPD group (34.3% vs. 25.4%). Differences in the two clinical characteristics were statistically significant (P<0.05).

Table 1

Clinicopathological characteristics of patients (n=417)

Characteristics OPD (n=213) LPD (n=204) P value
Age, mean ± SD, y 56.42±1.07 58.37±0.88 0.159
Sex, n (%)
   Male 130 (61.0) 120 (58.8)
   Female 83 (38.9) 84 (41.2) 0.645
BMI, mean ± SD 1.616±0.015 1.582±0.019 0.171
Abdominal surgery in medical history, n (%) 52 (24.4) 36 (17.9) 0.016*
ASA physical status, n (%)
   1 52 (24.4) 66 (32.4)
   2 127 (59.6) 110 (53.9)
   3 34 (16.0) 28 (13.7) 0.229
Symptoms, n (%)
   Abdominal pain, n (%) 145 (68.1) 151 (74.0) 0.181
   Jaundice, n (%) 143 (67.1) 127 (62.3) 0.297
   General weakness, n (%) 31 (14.6) 20 (9.8) 0.139
Tumor size on imaging, mean ± SD, mm 26.68±1.34 24.01±1.01 0.110
Preoperative biliary drainage, n (%) 67 (31.5) 77 (37.7) 0.177
   Endoscopic retrograde biliary drainage, n (%) 13 (6.1) 7 (3.4) 0.202
   Percutaneous transhepatic cholangial drainage, n (%) 54 (25.4) 70 (34.3) 0.045*
High risk for postoperative pancreatic fistula, n (%) 46 (21.6) 52 (25.5) 0.348
PDAC patients, n (%) 99 (46.5) 76 (37.3) 0.056

Data are mean ± SD and n (%). *, P<0.05 as statistically significant. OPD, open pancreaticoduodenectomy; LPD, laparoscopic pancreaticoduodenectomy; SD, standard deviation; BMI, body mass index; ASA, American Society of Anesthesiology; PDAC, pancreatic ductal adenocarcinoma.

Histopathological characteristics and operative outcomes

In terms of operative outcomes (Table 2), the median operative time of the OPD group was 378.7±8.98 min, whereas that of the LPD group was 402.5±7.12 min. Therefore, the OPD group had shorter operative time than the LPD group (P=0.037). We analyzed the corresponding operative time according to the operative step. In the operative data of the 200 cases, the pancreaticoduodenectomy time in the OPD group was 256.5±8.31 min, which is shorter than that (287.4±6.56 min) in the LPD group (P=0.004). The pancreaticojejunostomy time in the OPD group was 29.35±0.41 min, which is significantly shorter than that (33.81±0.50 min) in the LPD group (P<0.001). The drainage placement and closure time in the LPD group was 24.32±0.70 min, which is shorter than that (48.33±0.50 min) in the OPD group (P<0.001). However, no statistical difference was observed between the two groups with regard to the hepaticojejunostomy time and gastrojejunostomy time. The blood loss in the LPD group was 389.9±19.05 mL, which is significantly lower than that (530.1±33.55 mL) in the OPD group (P<0.001). Conversion to OPD happened in 14 (6.86%) of the 204 cases undergoing LPD. In terms of histopathological characteristics, no statistical difference was found between the two groups regarding tumor size, pancreatic duct size, pancreas texture, pathological diagnosis, bile duct size, R0 resection rate, lymph node dissection, vascular resection and reconstruction rate, and proportion of malignancy.

Table 2

Operative outcomes and histopathological characteristics

Clinical characteristics OPD (n=213) LPD (n=204) P value
Operative time, mean ± SD, min 378.7±8.98 402.5±7.12 0.037*
51–204 cases: operative time, mean ± SD, min 375.3±9.31 384.7±6.42 0.459
Pancreaticoduodenectomy time, mean ± SD, min 256.5±8.31 287.4±6.56 0.004*
Pancreaticojejunostomy time, mean ± SD, min 29.35±0.41 33.81±0.50 <0.001*
Hepaticojejunostomy time, mean ± SD, min 24.81±0.48 25.47±0.47 0.313
Gastrojejunostomy time, mean ± SD, min 23.82±0.41 24.84±0.40 0.072
Drainage placement and closure time, mean ± SD, min 48.33±0.50 24.32±0.70 <0.001*
Estimated blood loss, mean ± SD, mL 530.1±33.55 389.9±19.05 <0.001*
Tumor size (mm) 24.95±1.30 22.06±0.88 0.062
Pancreas duct size (mm) 4.29±0.13 4.08±0.13 0.271
Pancreas texture (soft:hard) 113 (53.1):100 127 (62.3):77 0.057
Pathological diagnosis, n (%) 0.094
   PDAC 87 (40.8) 60 (29.4)
   Neuroendocrine tumor 6 (2.8) 8 (3.9)
   Intraductal papillary mucinous neoplasm 13 (6.1) 9 (4.4)
   Common bile duct cancer 53 (24.9) 52 (25.6)
   Ampulla of Vater cancer 31 (14.6) 46 (22.5)
   Others 23 (10.8) 29 (14.2)
Bile duct size (mm) 13.38±0.40 14.24±0.39 0.132
Margin status (R0:R1) 188 (88.3):25 190 (93.1):14 0.087
LN harvest, mean ± SD, n (%) 10.69±0.51 10.84±0.41 0.818
Vascular resection, n (%) 22 (10.3) 14 (6.9) 0.208
Malignancy, n (%) 170 (79.8) 175 (85.8) 0.107
Conversion from laparoscopy to open, n (%) 14 (6.9)

Data are mean ± SD and n (%). *, P<0.05 as statistically significant. Others include spindle cell tumors, duodenal cancer, ampulla of Vater adenoma, solid pseudopapillary tumor. OPD, open pancreaticoduodenectomy; LPD, laparoscopic pancreaticoduodenectomy; SD, standard deviation; PDAC, pancreatic ductal adenocarcinoma; LN, lymph node.

Postoperative complications and oncologic outcomes

After comparing the postoperative complications in the OPD group (213 cases) and LPD group (204 cases), we found that (Table 3) the two groups did not differ in Clavien-Dindo Classification, surgical re-intervention, pancreatic fistula, post-pancreatectomy site hemorrhage, gastrointestinal hemorrhage, intraperitoneal infection, or time of postoperative hospital stay. Among the postoperative complications, the incidence of biliary-enteric anastomosis leakage in the LPD group was 2.9%, which is higher than that (0.5%) in the OPD group (P=0.0495); on the other hand, the incidence of lung infection in the LPD group was 7.4%, which is lower than that (17.4%) in the OPD group (P=0.037). Incision infection was found in only 2 (1%) patients undergoing LPD and 18 (8.5%) patients undergoing OPD, therefore the LPD group had significantly lower incision infection than the OPD group (P<0.001). Furthermore, significantly earlier anal exhaust was observed in the LPD group than in the OPD group (3.35±0.07 vs. 4.05±0.07 days, P<0.001). We analyzed the correlation between Clavien-Dindo Classification ≥3 and severe postoperative complications by chi-square test. Biliary-enteric anastomosis leakage and intraperitoneal infection were independent factors leading to severe postoperative complications (P<0.001) (Table 4).

Table 3

Postoperative complications

Postoperative complications OPD (n=213) LPD (n=204) P value
Clavien-Dindo Classification, n (%)
   <3 196 (92.0) 186 (91.2)
   ≥3 17 (8.0) 18 (8.8) 0.757
Surgical re-intervention, n (%) 7 (3.3) 6 (2.9) 0.840
Pancreatic fistula (B/C), n (%) 16 (7.5) 14 (6.9)
   B 13 (6.1) 10 (4.9)
   C 3 (1.4) 4 (2.0) 0.815
Biliary-enteric anastomosis leakage, n (%) 1 (0.5) 6 (2.9) 0.049*
Post-pancreatectomy site hemorrhage, n (%) 22 (10.3) 12 (5.9) 0.097
Gastrointestinal hemorrhage, n (%) 21 (9.9) 21 (10.3) 1.000
Intraperitoneal infection, n (%) 21 (9.9) 19 (9.3) 0.850
Lung infection, n (%) 37 (17.4) 15 (7.4) 0.037*
Incision infection, n (%) 18 (8.5) 2 (1.0) <0.001*
Anal exhaust time, mean ± SD, day 4.05±0.07 3.35±0.07 <0.001*
Delayed gastric emptying, n (%) 21 (9.9) 34 (16.7) 0.035*
Postoperative hospital stay, mean ± SD, day 13.48±0.56 12.91±0.65 0.314

Data are mean ± SD and n (%). *, P<0.05 as statistically significant. OPD, open pancreaticoduodenectomy; LPD, laparoscopic pancreaticoduodenectomy; SD, standard deviation.

Table 4

Chi-square test was used to analyze the correlation between Clavien-Dindo Classification ≥3 and severe postoperative complications

Postoperative complications Clavien-Dindo Classification <3 (n=186) Clavien-Dindo Classification ≥3 (n=18) P value
Pancreatic fistula (B/C), n 11 3 0.085
Post-pancreatectomy site hemorrhage, n 10 2 0.323
Gastrointestinal hemorrhage, n 20 1 0.449
Intraperitoneal infection, n 10 9 <0.001
Biliary-enteric anastomosis leakage, n (%) 1 (8.2) 5 (20.6) <0.001

P<0.001 as statistically significant.

Interestingly, the delayed gastric emptying was observed in 34 (16.7%) patients of the LPD group, and in 21 (9.9%) patients of the OPD group, P=0.035. To explain this phenomenon, we also extracted and compared the relevant clinical data [operative time, blood loss, the severity of complications, postoperative pancreatic fistula (B/C), number of days after the nasogastric tube was pulled out, number of days with postoperative activities, postoperative albumin, postoperative pain score, and procalcitonin] of the 34 patients with delayed gastric emptying in the LPD group and the 170 patients without delayed gastric emptying in the LPD group (Table 5). The grade of complication, according to the Clavien-Dindo Classification (P=0.03) and postoperative pancreatic fistula (B/C) (P<0.001), were higher in the group with delayed gastric emptying than in the control group. We also found that removing the nasogastric tube too early (less than 3 days) after the operation was strongly associated with the delayed gastric emptying [odds ratio (OR): 0.058, 95% confidence interval (CI): 0.024–0.141, P<0.001] and might be the critical factor in delaying gastric emptying.

Table 5

Bootstrap replications in the univariate analyses of the factors related to clinically relevant postoperative delayed gastric emptying (n=34) following LPD

Clinical characteristics Control (n=170) Delayed gastric emptying (n=34) OR (95% CI) P value
Operative time, mean ± SD, min 396.1±7.66 429.3±17.3 0.081
Estimated blood loss, mean ± SD, mL 386.7±22.43 451.4±45.30 0.237
Clavien-Dindo Classification, n (%)
   <3 156 (91.8) 27 (79.4)
   ≥3 14 (8.2) 7 (20.6) 2.889 (1.068–7.814) 0.030*
Postoperative activities, n (%)
   ≤3 days 64 (37.6) 15 (44.1)
   >3 days 106 (63.4) 19 (55.9) 0.500
Postoperative albumin, n (%)
   <35 mmol/L 81 (47.6) 17 (50.0)
   >35 mmol/L 89 (52.4) 17 (50.0) 0.802
Postoperative pain score, n (%)
   ≤3 132 (77.6) 21 (61.8)
   >3 38 (22.4) 13 (38.2) 0.051
Procalcitonin, n (%)
   <0.25 mmol/L 91 (53.5) 17 (50.0)
   ≥0.25 mmol/L 79 (46.5) 17 (50.0) 0.706
Pull out the stomach tube, n (%)
   <3 days 13 (7.6) 20 (58.8)
   ≥3 days 157 (92.4) 14 (41.2) 0.058 (0.024–0.141) <0.001*
Pancreatic fistula (B/C), n (%) 3 (1.8) 11 (32.4) 1.452 (1.150–1.834) <0.001*

Data are mean ± SD and n (%). *, P<0.05 as statistically significant. LPD, laparoscopic pancreaticoduodenectomy; OR, odds ratio; CI, confidence interval; SD, standard deviation.

We analyzed the overall survival of LPD and OPD. We excluded 18 cases in the survival analysis [lost to follow-up (14 cases), 30-day postoperative deaths (4 cases)]. There were no significant difference in overall survival rate between LPD (25±1.6 months) and OPD (25 ±3.1 months) (P=0.991) (Figure 2).

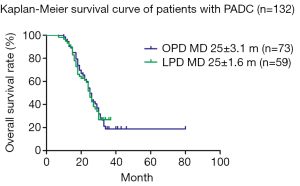

Figure 2 Kaplan-Meier survival curve of patients with PDAC. PDAC, pancreatic ductal adenocarcinoma; OPD, open pancreaticoduodenectomy; LPD, laparoscopic pancreaticoduodenectomy; MD, mean difference.

CUSUM analysis of the complication rate and learning curve

We used the CUSUM to analyze the major postoperative complication rate. The average complication rate in 204 patients after LPD was used to judge successes and failures. In the learning curve with a good coefficient of determination, the following were observed: R2=0.9752 for pancreatic fistula with a negative K value in 44 cases; R2=0.9949 for biliary-enteric anastomosis leakage with a negative K value in 46 cases; and Clavien-Dindo Classification ≥3 (R2=0.9266) with a negative K value in 40 cases. However, poor-fitting (R2<0.9) was observed for post-pancreatectomy site hemorrhage, gastrointestinal hemorrhage, and intraperitoneal infection; therefore, the results were excluded (Figure 3).

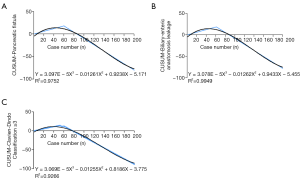

Figure 3 CUSUM analysis the major postoperative complication rate for LPD. (A) CUSUM analysis of pancreatic fistula rate for LPD; (B) CUSUM analysis of biliary-enteric anastomosis leakage rate for LPD; (C) CUSUM analysis of ≥3 of Clavien-Dindo Classification a rate for LPD. The black line is fitted curve. CUSUM, cumulative sum; LPD, laparoscopic pancreaticoduodenectomy.

CUSUM analysis was performed to determine inflection points for any decrease in the operative time for LPD. We also investigated the risk-adjusted CUSUM plot. The coefficient of determination, R2=0.9891, shows the high fitting. The learning curve comprised three periods based on the changes of consecutive successes or failures (Figure 4).

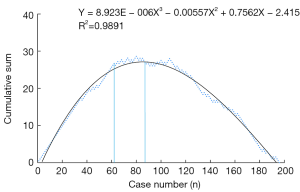

Figure 4 CUSUM analysis of operative time for LPD (the black line is fitted curve). (I) Period 1: study (1–61 cases); (II) period 2: accumulation (62–86 cases). If the slope K is negative from case 87, it indicates the start of period 3 (87–200 cases); (III) period 3: the operative time for complete lymph node dissection, vein resection, or pancreatic head tumor resection tends to be lower than the mean operative time. The black line is fitted curve. CUSUM, cumulative sum; LPD, laparoscopic pancreaticoduodenectomy.

Discussion

As LPD techniques advance, LPD or RPD (10-12) have been widely used in more centers. Although LPD has been basically known by the industry for its thoroughness, its safety is still being questioned further. Moreover, the correlation between the postoperative complications and prognosis should be further investigated. In our study, the operative time was retrospectively analyzed first. Overall, the operative time for OPD was shorter than that for LPD. This may be associated with the early period of the process of LPD which was time-consuming. Previous studies (13-15) support this finding, but the number of cases increases, the operative time for LPD will not differ significantly with that for OPD after passing the learning curve of LPD. We divided the operation into eight standard processes and found that LPD is more time-consuming than OPD during the pancreas duodenum resection and biliary-intestinal anastomosis. However, LPD is significantly less time-consuming than OPD during the drainage tube placement and abdominal closure. Therefore, the operative time after passing the learning curve did not differ between LPD and OPD. LPD had significantly less intraoperative blood loss than OPD, there was no clear difference between the two surgical methods during the lymph node dissection. As we have seen, both RPD and LPD have less blood loss and fewer complications compared to OPD. LPD and RPD have similar learning curves and operative time. The author personally think that RPD is better than LPD in gastrointestinal reconstruction, but worse than LPD in surgical field of vision (16). This result may be related to the robot-assisted pancreaticoduodenectomy field of vision. LPD was converted to OPD in 14 patients, of which 10 had severe lymph node metastases in the coeliac trunk and around the superior mesenteric artery, 3 had colon invasion, and 1 had severe intraperitoneal adhesion after the operation.

In terms of postoperative complications, LPD showed lower lung infection, lower incision infection, and faster gastrointestinal exhaust than OPD. These results are consistent with the study of Nassour et al. (17-20). However, no significant difference was found in severe postoperative complication, pancreatic fistula, hemorrhage, postoperative abdominal infection, and time of postoperative hospital stay, but it is worth noting that biliary-enteric anastomosis leakage was found in six patients undergoing LPD. This surgical complication is very rare in OPD and indicates a pancreatic fistula and abdominal infection. Using the chi-square test, we found that the biliary-enteric anastomosis leakage was strongly associated with the severe complications observed after LPD. Continuous polydioxanone suture was applied in five of the six patients who underwent LPD and developed biliary-enteric anastomosis leakage. We suspected that the polydioxanone might damage the bile duct with the thin wall or the infected bile duct so that the duct jejunum anastomotic stoma does not heal, thus resulting in an anastomotic fistula. The 5-0 PDS II was chosen for CJ in the last 154 cases, biliary-enteric anastomosis leakage was no recurrence.

Moreover, we analyzed the cumulative curve of high fitting complications. The severe complications after LPD included pancreatic fistula (6.9%) and biliary-enteric anastomosis leakage (2.9%). The severe complication rate was 9%, which is relatively low in the industry (21-23). Therefore, we used our own complication rate as a reference value in the CUSUM of successes. The CUSUM curve of pancreatic fistula had an inflection point in 44 cases, whereas the inflection point of the severe complication curve occurred in 40 cases, which are consistent with the previous studies on LPD reported by Lancet and others (24-26). This means that relatively severe complications may be reduced after 50 cases or more. Many articles on the study of LPD have mentioned that it may be the key for the successful promotion of LPD to encourage surgeons to learn more about, as well as gain more experience in, the early stage of LPD (27,28). Biliary-enteric anastomosis leakage was emphasized in our study since it often indicates biliary fistula, pancreatic fistula, and intestinal leakage. Also a high probability of subsequent abdominal infection, hemorrhage, and pulmonary infection was observed. The incidence of biliary-enteric anastomosis leakage in the LPD group significantly higher than the OPD group, and biliary-enteric anastomosis leakage was mostly present in the first 50 cases of LPD. Therefore, we believe that biliary-enteric anastomosis leakage may be the worst complication observed in early stage of LPD, and its prevention could be an important issue to be considered regarding the patient’s safety after LPD.

Interestingly, the postoperative gastrointestinal emptying disorder was more noticeable in patients undergoing LPD than in patients undergoing OPD. Moreover, this is in contrast with our previous finding that the time of postoperative intestinal exhaust was shorter for LPD than that for OPD (29). Therefore, we performed a single-factor regression analysis on the conditions of the patients with gastrointestinal emptying disorder after LPD and found that in addition to the severe postoperative complication, the premature removal (<2 days) of the nasogastric tube was an independent factor causing the gastric emptying disorder. It could also be possible that the gastrointestinal decompression was stopped too early for patients undergoing LPD. Furthermore, the 3–4 days after PD may be long enough to pull out the nasogastric tube from patients.

We analyzed the learning curve of LPD. Apart from this, the doctors studied their experience from the first 61 consecutive cases. During this period, the cases with relatively simple medical histories were chosen. Many factors may lead to a prolonged operative time or change of operative method. Moreover, the doctors gained a stable surgical experience from 62–86 cases. The inflection point occurred after 87 cases, whereas the operative time was shortened. As surgeons are more experienced, performing some of the difficult operations became more feasible, such as pancreatic head cancer operations. More complex operations, such as superior mesenteric vein vascular reconstruction, were performed only after 107 cases. Furthermore, the learning curve of this study was consistent with the findings of van Workum (30). The learning curve of LPD had an inflection point in 80–100 cases.

In summary, after more than 4 years of study on LPD in over 200 cases, we have confirmed the safety and efficacy of LPD. Studies have shown that LPD can achieve effective resection without increasing the risk of complications. However, LPD has a longer learning curve than OPD. The learning curve for LPD has an inflection point in 80–100 cases. After passing the learning curve, surgeons would summarize a standard process. The severe complication rate after LPD will be significantly reduced after 50 cases. A high risk of biliary-enteric anastomosis leakage may be observed in the early stage of LPD. After the analysis, we found that the best way to prevent biliary-enteric anastomosis leakage is to avoid damaging (such as being cut by a polydioxanone) the bile duct as far as possible; moreover, the surgeon’s familiarity with anastomosis is another important factor. We recommend separate training laparoscopic hepaticojejunostomy, in order to be trained in performing the procedure and pass the learning curve before performing LPD. We hope that this study can contribute in the decline of the complication rate in the first 50 consecutive cases of LPD. Further discussions regarding the results of this prospective study will also be included in subsequent research.


Acknowledgments

The authors wish to thank Dr. Nan You for processing the statistical analysis; and thanks to Enago for the help in editing and revising the manuscript by native English.

Funding: This research is supported by Key R&D Projects of Chongqing Municipality on Technology Innovation and Application Demonstration Project (project number: cstc2018jscx-mszdX0012).

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/tcr-21-518


Footnote

Data Sharing Statement: Available at http://dx.doi.org/10.21037/tcr-21-518

Peer Review File: Available at http://dx.doi.org/10.21037/tcr-21-518

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tcr-21-518). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study had been approved by the institutional review board of Chongqing Xinqiao Hospital (Approval Number: AF/SC-08/1.0; Approval Date: 2018.10.16). Each patient had signed the informed consent with regard to the operation and use of data on their status before and after the operation.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
