Impact of high-dose rate radiotherapy on B and natural killer (NK) cell polarization in peripheral blood mononuclear cells (PBMCs) via inducing non-small cell lung cancer (NSCLC)-derived exosomes

Introduction

Lung cancer, as the most commonly diagnosed malignancy, results in the highest incidence of cancer-related death worldwide (1), with non-small cell lung cancer (NSCLC) accounting for 85% of all lung cancer cases (2). Although much progress has been made in preclinical and clinical trials for NSCLC therapy, unfortunately, only 15% achieve 5-year survival after their initial diagnosis.

Distant metastasis is considered to be one of the most critical of the failures in NSCLC therapy. Recent studies have demonstrated that radiotherapy can not only destroy the primary lesion itself but can also eliminate distant metastasis, which is known as the abscopal effect (3); however, the mechanism underlying this effect has not yet been fully explored. It has been revealed that the expression of major histocompatibility complex (MHC) class I molecules involved in antigen presentation are increased after irradiation in a dose-dependent manner (4), implying that the immune system contributes to eliciting radiation-related abscopal effects (5). In addition, accumulated evidence indicates that stereotactic body radiotherapy is necessary to stimulating a systemic antitumor immune response (6,7). In recent years, ultrahigh-dose rate stereotactic body radiotherapy has become a focal point of research in the field of NSCLC radiotherapy, as this approach has the advantage of being able to deliver a high dose in a short period of time (8,9). However, whether or not ultrahigh-dose rate stereotactic body radiotherapy can augment the antitumor immune response is unknown, while the function of the dose rate in the regulation of the antitumor immune response is also poorly understood.

Many studies have demonstrated that exosomes derived from tumor cells can promote intercellular communication and regulate the immune response in the microenvironment by recruiting immune-related natural killer (NK) cells, T lymphocytes, and B lymphocytes (10,11). Several recent studies have shown that X-rays not only increase the secretion of exosomes released by tumor cells and the uptake of exosomes by recipient cells, but also lead to changes in the composition of exosomes (12,13). Therefore, the present study was designed to evaluate the effect of ultrahigh-dose rate radiation on the redistribution of immune cells in human peripheral blood mononuclear cells (PBMCs) and to determine whether NSCLC-related exosomes are involved in the radiation-dependent immune response.

We present the following article in accordance with the MDAR checklist (available at http://dx.doi.org/10.21037/tcr-21-536).

Methods

Cell lines, cell culture, and coculture (PBMCs and cell lines)

An A549 cell line was obtained from the cell bank of the Chinese Academy of Sciences (Shanghai, China) and was cultured in a complete RPMI 1640 medium. Cultures in the log phase of growth were used for all experiments. One day before the irradiation, about 1×10⁶ cells per well were seeded in 6-well plates and incubated at 37 °C, 5% CO₂ for 24 hours. Transwell inserts with PBMCs (about 10×10⁶ cells per insert) were transferred onto A549 cell-containing wells 30 minutes after the irradiation of A549 cells. The cocultured cells were then cultured in the RPMI 1640 medium.

Isolation of PBMCs

All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of Chongqing University Cancer Hospital (NO.: CZLS2021042-A) and informed consent was taken from all the patients. Human whole blood was obtained from volunteers. On the same day of A549 cell irradiation, PBMCs were isolated from peripheral blood using Ficoll-Paque PLUS (GE Healthcare Bio-Sciences, USA). To separate PBMCs, 25 mL of Ficoll were placed in a 50 mL conical centrifuge tube, and an equal volume of whole blood diluted 1:1 with RPMI1640 was layered onto the Ficoll surface. The 50 mL tubes were centrifuged at 400 ×g for 30 min at room temperature. The PBMC interface between the Ficoll and plasma was carefully removed by pipetting and washed twice with phosphate-buffered saline (PBS) by centrifugation at 250 ×g for 10 minutes. After separation, PBMCs were resuspended in RPMI 1640.

Irradiation

The Varian TrueBeam^® Linear Accelerator (Edge) and the flattening filter-free (FFF) technique was used for irradiation (Radiation Oncology Center, Chongqing University Cancer Hospital, Chongqing, China). The instrument was set at radiation dose rates of 400, 1,000, 1,200, 1,600, and 2,400 MU/min. The A549 cells were irradiated at doses of 0, 2, 6, 10, 14, and 18 Gy.

Isolation of exosomes

The Total Exosome Isolation Reagent (Thermo Fisher Scientific, USA) was used for the isolation of exosomes from irradiated A549 cells. The exosome was isolated following the manufacturer’s instructions. The irradiated A549 cells were collected 24 hours after the irradiation and were washed twice with PBS by centrifugation at 300 ×g for 5 minutes and 3,000 ×g for 10 minutes. The isolation solution was added into the supernatant at a 1:2 ratio. The mixed solution was incubated overnight at 4 °C and then centrifuged at 10,000 ×g for 1 hour. The exosome was then resuspended in 100 µL of PBS and stored at −20 °C.

Protein determination of exosome

The protein content of the isolated exosome was determined as recommended by the manufacturer of the Pierce BCA protein assay kit (Pierce Biotechnology, Rockford, IL, USA). Total protein concentrations were determined using a linear standard curve established with bovine serum albumin (BSA). The protein concentrations were calculated as 1 µg protein/µL of plasma.

Coculturing of PBMCs and exosomes

The exosomes were obtained from the A549 cells and irradiated at a dose of 10 Gy and a dose rate of 2,400 MU/min after 24 hours of irradiation. PBMCs were also isolated from human whole blood obtained from volunteers. PBMCs and exosomes were cocultured in a 24-well plate for 24 hours.

Antibodies and flow cytometry

PBMCs from the cocultured system were collected and washed twice in PBS, and the cells were then resuspended in 100 µL of PBS and incubated for 30 minutes with the following monoclonal antibodies: anti-CD3, anti-CD4, anti-CD8, anti-CD45, anti-CD16, anti-CD56, anti-CD33, anti-CD11c, anti-CD14, anti-CD45RA, and anti-CCR7 antibodies (BD Biosciences, USA) (in the dark at room temperature). Stained samples were analyzed on an LSR II flow cytometer (BD Biosciences). Flow data were quantified using FlowJo software (FlowJo, LLC, Ashland, OR, USA).

Data analysis

The results are presented as mean ± standard error (SE). The data were analyzed by statistical software SPSS 21.0 (IBM Corp., Armonk, NY, USA). Student’s t-test was used for comparison of numeration data, and χ² test was used for rate comparison of lymphocytes between groups.

Results

Variation in composition of CD3− immune cell clusters (B and NK cell subsets) in PBMCs induced by A549 cells irradiated at a high-dose rate versus a conventional dose rate

A549 cells were cocultured with PBMCs for 2 days upon exposure to increased doses of radiation (0, 2, 6, and 10 Gy) using 6-MV X-rays at a dose rate of either 400 or 1,000 MU/min; then, the proportion of CD3− immune cell clusters in PBMCs were analyzed by flow cytometry. We found that the proportion of NK cells was significantly higher in the 10 Gy treatment group than in the nonirradiated group (15.27% in the 10 Gy group and 11.08% in the nonirradiated group) and in the other lower-dose treatment groups (10.76% in the 2 Gy group and 10.10% in the 6 Gy group) when A549 cells were irradiated at a dose rate of 1,000 MU/min (Figure 1A). However, the variation in the distribution of NK cells was not obviously detected in the increased radiation dose range using a dose rate of 400 MU/min (Figure 1B). In addition, an influence of the dose rate on the proportion of B cells was not observed (Figure 1C,D).

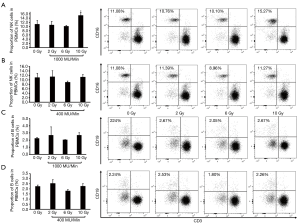

Figure 1 The proportion of changed CD3− immune cell clusters (B and NK cells) in PBMCs after coculture with A549 cells irradiated at various doses with the FFF technique at a high-dose rate and a conventional dose rate. (A) Proportion of NK cells in PBMCs after coculture with A549 cells irradiated at 1,000 MU/min. (B) Proportion of NK cells in PBMCs after cocultures with A549 cells irradiated at 400 MU/min. (C) Proportion of B cells in PBMCs after coculture with A549 cells irradiated at 1,000 MU/min. (D) Proportion of B cells in PBMCs after coculture with A549 cells irradiated at 400 MU/min. *P value <0.05. FFF, flattening filter-free; PBMC, peripheral blood mononuclear cell; NK, natural killer.

Comparison of CD3+ T cell subsets in PBMCs induced by A549 cells irradiated at a high-dose rate versus a conventional dose rate

Next, we compared the effect of A549 cells irradiated with a high-dose rate (1,000 MU/min) versus a conventional dose rate (400 MU/min) on the distribution of CD3+ T cell subsets. As described above, A549 cells were irradiated at escalating doses (0, 2, 6, and 10 Gy) using 6-MV X-rays at a dose rate of either 400 or 1,000 MU/min followed by coculture with PBMCs for 2 days. Flow cytometry was performed to analyze the proportion of CD3+ T cell clusters in PBMCs. Neither radiation dose escalation nor dose rate change was observed to affect the proportion of CD3+ T cell subsets, including those of CD4+ T cells, CD8+ T cells (Figure 2), T_CM cells, naive cells, T_EM cells, and T_EMRA cells (Figure S1).

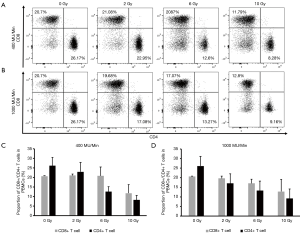

Figure 2 The proportion of CD3+ T cell subsets in PBMCs after coculture with A549 cells irradiated at various doses with the FFF technique at a high-dose rate and a conventional dose rate. (A,C) Proportion of CD8+/CD4+ T cells in PBMCs after coculture with A549 cells irradiated at 400 MU/min. (B,D) Proportion of CD8+/CD4+ T cells in PBMCs after coculture with A549 cells irradiated at 1,000 MU/min. PBMC, peripheral blood mononuclear cell; FFF, flattening filter-free; NK, natural killer.

Influence of high-dose rate radiation on the A549 cell-induced B and NK cell polarization in PBMCs

Given the effect of a single, high dose of irradiation at a high-dose rate of 1,000 MU/min on A549 cell-induced diversity of CD3− immune cell clusters, we further increased the radiation dose range from 10 to 18 Gy at the dose rate of 1,200, 1,600, and 2,400 MU/min respectively. Flow cytometry was performed to calculate the polarization of NK and B cell subsets in PBMCs after coculture with irradiated A549 cells. When using the dose rate of 1,200 MU/min, both NK and B cell proportions reached a peak in the 14 Gy treatment group. The proportion of B cells in PBMCs was 4.11%, 4.09%, 7.70%, and 4.18% respectively in the 0, 10, 14, and 18 Gy groups, while the proportion of NK cells in PBMCs was 4.97%, 4.18%, 7.66%, and 4.46% respectively in these groups (Figure S2), but the peak values of these two cell proportions were reached at a lower radiation dose of 10 Gy when a higher dose rate, ranging, from 1,600 to 2,400 MU/min, was used. At a dose rate of 2,400 MU/min (Figure 3), the proportion of B cells in PBMCs was 4.11%, 7.16%, 4.15%, and 3.9% respectively in the 0, 10, 14, and 18 Gy groups, while the proportion of NK cells was 4.97%, 7.86%, 4.12%, and 4.2% respectively in these groups (the proportion of B cells was 4.11%, 7.69%, 3.93%, and 3.60% in these groups at 1,600 MU/min, while that of NK cells was 4.97%, 7.93%, 4.84%, and 3.64% respectively; Figure S3). Thus, the optimized radiation regime for stimulating A549 cell-induced diversity of CD3− immune cell clusters was determined to be 10 Gy at a dose rate of 2,400 MU/min.

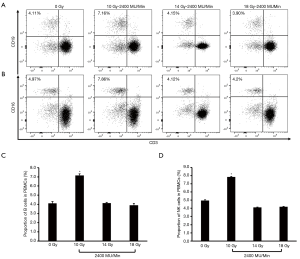

Figure 3 The polarization of B and NK cell subsets in PBMCs after coculture with A549 cells irradiated at various doses with the FFF technique at a high-dose rate (2,400 MU/min). (A,C) Proportion of B cells in PBMCs after coculture with A549 cells irradiated at 2,400 MU/min. (B,D) Proportion of NK cells in PBMCs after coculture with A549 cells irradiated at 2,400 MU/min. *P value <0.05. PBMC, peripheral blood mononuclear cell; NK, natural killer; FFF, flattening filter-free.

Influence of high-dose rate radiation on exosomes release from A549 cells

Growing evidence indicates that ionizing radiation induces an increase in exosome release in a dose-dependent manner, but it is unclear whether the radiation dose rate plays a critical role in promoting the release of exosomes. Interestingly, a single, high dose of irradiation (10 Gy treatment group) markedly stimulated A549-related exosome secretion in a radiation dose rate–dependent manner (1.01 and 1.12 respectively for the 1,200 and 2,400 MU/min groups) as compared with a single, low dose of irradiation (2 Gy treatment group) (Figure 4). Thus, conventional dose irradiation failed to increase cancer-derived exosomes even when the radiation dose rate was elevated (0.92 and 0.83 respectively for the 1,200 and 2,400 MU/min groups) (Figure 4).

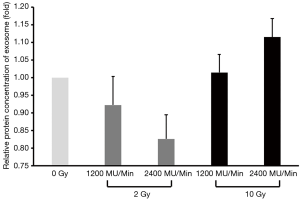

Figure 4 Cellular high-dose rate irradiation increased exosome release.

High-dose rate radiation-derived exosomes contributed to the polarization of B and NK cell subsets in PBMCs

Next, we examined whether the irradiated A549 cell-derived exosomes contributed to the polarization of NK and B cell subsets in PBMCs. Flow cytometry analysis indicated that the proportion of B and NK cells were significantly increased after the PBMCs were directly cocultured with exosomes from the A549 cells irradiated with the optimized regime (10 Gy at a dose rate of 2,400 MU/min). When added with exosomes, the proportion of B cells compared with the group without exosomes (blank group) rose from 5.24% to 6.87%, while the proportion of NK cells rose from 6.63% to 8.25% (Figure 5). These results suggest that the optimized radiation regime not only impacted intercellular communication through exosomes released from exposed donor cells, but also influenced the exosome uptake by the exposed recipient cells.

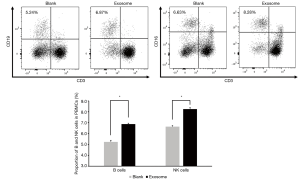

Figure 5 High-dose rate radiation-derived exosomes augmented the polarization of the B and NK cell subsets in PBMCs. *P value <0.05. NK, natural killer; PBMC, peripheral blood mononuclear cell.

Discussion

Exiting studies show that the fractionation and dose rate of irradiation play an important role in regulating immune response in the tumor microenvironment; for example, the recruitment of immune cells into the tumor microenvironment for lesions treated with ultrahigh dose rate stereotactic body radiotherapy is greater than that treated with conventional radiotherapy (CONV-RT) (14,15); however, it is not clear why this is the case. Here, we found that a single, ultrahigh dose of radiation was able to trigger the release of NSCLC-related exosomes and eventually polarize the cell phenotype of PBMCs towards a robust antitumor immune response.

Several experiments have examined ultrahigh dose rate radiotherapy through allowing a higher dose of radiation to be delivered to the lesion at the beginning of clinical treatment (15,16). Another study showed that ultrahigh dose rate stereotactic body radiotherapy could increase the recruitment of immune cells into the tumor microenvironment compared with CONV-RT (14). Our study further demonstrated that the optimal radiation regime to stimulate A549 cell-induced diversity of CD3− immune cell clusters was 10 Gy at a dose rate of 2,400 MU/min. On the contrary, one recent study found that a higher dose rate of 16.5 Gy using the FFF technique had no influence on the antitumor immune response (17). Thus, whether or not ultrahigh-dose rate stereotactic body radiotherapy has an effect on the immune system will need to be settled by further research.

An increasing number of studies have shown that exosome shuttling between cells regulates intercellular communication and can alter the phenotype of recipient malignant or stromal cells (18,19). X-ray radiation-induced exosomes can affect angiogenesis through the transport of microRNA (miRNA) to the stromal stem cells, and this biological effect can occur after the addition of the exosome derived from irradiated tumor cells to the stromal stem cells (20,21). Moreover, other recent research has found that X-rays do not only increase the secretion of exosomes released by tumor cells and uptake of exosomes by recipient cells, but also induce changes in component of exosomes (12,13). The present study showed that X-ray radiation with 10 Gy at a dose rate of 2,400 MU/min promoted the release of A549 cell-derived exosomes and further resulted in the polarization of the NK and B cell subsets in PBMCs. An ongoing study of exosome components represents the next step in research in this area for our research team.

In the present work, we found that the optimal radiation regime tended to affect the CD3− T cell subsets (such as NK and B cells) rather than the CD3+ T cell subsets. However, the interpretation of these results may be limited by our methodology, which consisted of an in vitro model. Since the NK cell-mediated killing of tumor cells is independent of MHC restriction and promotes antigen cross-presentation to CD8+ cytotoxic T cells (22), our in vitro study could only observe the NK cell activation. In addition, other studies have demonstrated that there is a significant association between B cells and CD8+ tumor-infiltrating lymphocytes (TILs) and have also found that increased levels of CD8+ and CD4+ TILs colocalizing with high B cell infiltration are related to long-term survival in NSCLC (23,24); thus, B cells appear to activate earlier than T cells. We will continue to investigate these issues using in vivo experiments, as they are required to examine the T cell immune response.

In summary, radiation influences the production of tumor-derived exosomes, which in turn regulate the redistribution of NK and B cells in vitro, with the optimal effect dependent on the appropriate radiation dose and dose rate. Our study sheds light on the effect of ultrahigh-dose rate stereotactic body radiotherapy on the redistribution of immune cells and demonstrates that NSCLC-related exosomes are involved in a radiation-dependent immune response. Our work provides new evidence for exploring the mechanisms by which radiation therapy, especially ultrahigh-dose rate stereotactic body radiotherapy, affects immune response.

Acknowledgments

The authors would like to thank Yi-Shan Zhang, De-Qing Liu, and Wei Zhou for editing the manuscript.

Funding: This study was supported by the National Natural Science Foundation Project (no. 81802740 to JDS, 82073347 to YZW, 81972857 to YW), the Key Technology Project for Prevention and Control of Major Diseases in Chongqing (Grant No. 2019ZX00), the Chongqing Basic Research and Frontier Exploration Project (Chongqing Natural Science Foundation; no. cstc2018jcyjAX0741), the Chongqing Natural Science Foundation Project (cstc2019jcyj-msxmX0648) and the Chongqing Science and Technology Commission Foundation Project (cstc2018jscx-msybX0153).

Footnote

Reporting Checklist: The authors have completed the MDAR checklist. Available at http://dx.doi.org/10.21037/tcr-21-536

Data Sharing Statement: Available at http://dx.doi.org/10.21037/tcr-21-536

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tcr-21-536). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of Chongqing University Cancer Hospital (NO.: CZLS2021042-A) and informed consent was taken from all the patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
