The Notch1 gene may control cell chemoresistance in esophageal squamous cell cancer

Introduction

Neoadjuvant chemotherapy (NAC) combined with surgery has become the standard treatment for patients with locally advanced esophageal cancer in Japan, based on the results of the Japan Clinical Oncology Group Trial 9907 (JCOG9907) (1). However, the results of our previous meta-analysis showed that nearly 40% of patients did not benefit from NAC, including approximately 5% of patients who experienced disease progression (2). Therefore, the key to the treatment of esophageal cancer lies in the screening of patients who will potentially benefit from chemotherapy and the adoption of new treatments for those who are resistant to chemotherapy. Nevertheless, the mechanism of NAC resistance in esophageal squamous cell carcinoma (ESCC) is not well understood thus far, and only some studies have demonstrated that the overexpression of certain genes may be related to NAC resistance. For example, the overexpression of MUC4 and MUC20 (3); CDKN1A, ELAVL2 and TSPAN4 (4); and ΔNp63 and SOX2 (5). The overexpression of these genes may serve as a biomarker to indicate resistance to NAC; however, evaluation at the gene expression level is a complex and error-prone process. Fortunately, with the maturation of next-generation sequencing (NGS) technology, gene sequencing has shown great advantages in accuracy compared to gene protein expression analysis because genes are immutable factors, making them easier to explore than proteins.

In a previous study, we performed NGS on patients with esophageal cancer after NAC and compared them with the sequencing results of samples before chemotherapy. Ultimately, we discovered that the NM_017617.3:c.1348G>A (p. Glu450 Lys) mutation of the NOTCH1 gene was likely to be related to NAC resistance in esophageal cancer (6). Currently, 4 Notch receptors (Notch1–4) and 5 ligands (DLL1, 3, 4 and JAG1, 2) have been identified in mammals (7,8). The interaction between these receptors and ligands controls the differentiation, proliferation, and apoptosis events of mammalian tissues. The Notch1 signaling pathway is a current focus area in tumor research. Existing studies have shown that the Notch1 signaling pathway is overactivated due to gain-of-function (GoF) Notch1 alterations in leukemia (9-12), non-small-cell lung cancer (NSCLC) (13), and breast cancer (14). However, the Notch1 signaling pathway is complex in ESCC, showing both under- and overexpression (15,16). Notch1 epidermal growth factor-like repeat sequence 11 interacts with the DLL4 Delta/Serrate/lag-2 (DSL) domain, and the 450th amino acid of the mutation is located in the Notch1 EGF-like repeat sequence 11 (17). Therefore, the change in the 450th amino acid may affect the interaction between Notch1 and DLL4, which may be related to NAC resistance in patients with ESCC.

In this study, we analyzed the changes in the interaction between Notch1 and DLL4 by constructing protein models of the Notch1 receptor and ligand to speculate on the role of mutated genes in NAC resistance. We expected to determine the molecular mechanism of NAC resistance in patients with ESCC to screen suitable patients for NAC and avoid toxicity in patients with drug resistance.

Methods

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Query and analyze Notch1 genetic information

Notch1 genetic information was obtained from the UCSC Genome Browser. Information about the NM_017617.3:c.1348G>A mutation site was acquired according to the naming rules of the mutation site formulated by the Human Genome Variation Society (HGVS). We used Clustalw software to analyze the results of multiple sequence alignment of the Notch1 protein from 12 species, including humans, chimpanzees, macaques, dogs, cows, mice, rats, chickens, zebrafish, Drosophila, anopheles, and frogs.

In silico analyses: molecular structure simulation of human Notch1 protein

We used Swiss-Model software to conduct homologous modeling of the human Notch1 protein. In the results, we found that model 5UK5.1. A represented the mutation site E450 (coverage was 298-488 AA), and the sequence identity reached 96.91%, including the EGF-like domain (412-450 AA) in the covered sequence. Then, we used PyMOL software to analyze the 3D structure of the missense mutation of the Notch1 protein and carried out site-directed mutagenesis.

In silico analyses: interaction analysis between Notch1 and DLL4

The crystal structure model (4xl1.pdb) of the interaction between Notch1 and DLL4 in Rattus norvegicus was obtained from the PDB database, and the comparative analysis of the Notch1 protein in Rattus norvegicus and humans revealed that the sequence identity was 90.61%. This model (4xl1.pdb) was used to construct the protein interaction model because of the high sequence similarity, and Wincoot software was used for site-directed mutations. A protein-ligand interaction profiler (PLIP) was used to calculate the noncovalent interactions in the Notch1-DLL4 complex before and after mutation to predict the impact of mutations on protein interactions (Figure 1).

Figure 1 Flowchart of the study. To analyze the surface charge change of the Notch1 protein, we first conducted homology modeling by Swiss-Model software and then gene mutation analysis by PyMOL software. To analyze the changes in the interaction forces of Notch1-DLL4, we found the interaction model of Notch1-DLL4 in Rattus norvegicus, carried out gene mutation modeling by Wincoot software, and used PLIP to calculate the interaction force of Notch1-DLL4. PLIP, protein-ligand interaction profiler.

Results

Notch1 genetic information

The human Notch1 gene is located on band 3 of region 34 of the long arm of chromosome 9 and consists of 34 exons and 33 introns. The Notch1 protein consists of a total of 2,555 amino acid residues. The transcript NM_017617.3 is 9309 bp in length, and the coding sequence (CDS) length is 7,668 bp [1–7,668]. The mutation site is located in exon no. 8, and the mutation from G to A results in the 450th amino acid of the peptide changing from Glu (E) to Lys (K). The mutation site (E450) is located in the epidermal growth factor-like domain (EGF_CA) from the Notch1 conserved domain in humans, and the interval is 412-450 AA. Multiple sequence alignment analysis showed that glutamic acid located at position 450 of the Notch1 protein is highly conserved (Figure 2 red box and black characters).

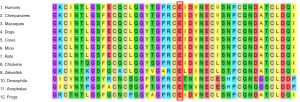

Figure 2 Results of multiple sequence alignment. The red frame is a mutant amino acid, and multiple sequence alignment of the partial amino acid sequence of the NOTCH1 protein showed conservation of glutamic acid 450 across different species.

The alteration of the surface potential of Notch1

The effect of the amino acid mutation (Glu450Lys) on the protein structure was observed after a site-directed mutation, which resulted in a change in the surface charge from negative to positive at the 450th amino acid (Figure 3). E450 was located in the EGF domain of the contact interface between Notch1 and DLL4 proteins, and its mutation caused changes in the surface charge, which might affect the binding of the Notch1 protein to DLL4.

Figure 3 Three-dimensional structure of the EGF domain of Notch1 protein (298-488AA). (A and C) are the structural diagrams of wild-type proteins, and (B and D) are the structural diagrams of site-specific mutations using PyMOL; (A and B) are protein structures shown in cartoon form, in which the red structure is an alpha helix, the yellow structure is a β-pleated sheet, the green bar is a loop, and the green ball is a Ca ion; (C and D) are schematic diagrams of the protein surface charge (blue represents positive charge, red represents negative charge, and white represents neutral charge), and the surface charge at amino acid 450 of the mutant changes from negative to positive.

The change in the interaction force between Notch1 and DLL4

As shown in Figure 4A, there were two water bridges and two hydrogen bonds formed by the residues of GLU-424, ARG-448 and GLU-450 in the A chain (Notch1) near the amino acid at the 450th position, together with TRY198 and TRY196 of DLL4. However, as shown in Figure 4B, the Notch1 protein was deformed slightly due to the mutations, and there were three water bridges and two hydrogen bonds formed by the residues of GLU-424, ARG-448 and GLU-450 in the A chain (Notch1) near the amino acid at the 450th position, together with TRY198 and TRY196 of DLL4.

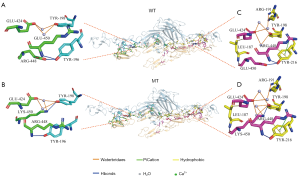

Figure 4 Interaction analysis between Notch1 and DLL4. (A, B, C and D) show the interaction of amino acid residues around the 450th amino acid (p.E450) WT and MT, respectively; the interaction between Notch1-DLL4 complex A chain (Notch1) and DLL4 is shown on the left (A and B) and the interaction between Notch1-DLL4 complex D chain (Notch1) and DLL4 is shown on the right (C and D) because the Notch1 protein is dimer; the green bar structure represents the A-chain amino acid residue (Notch1), and the cyan bar structure represents the DLL4 amino acid residue; the purple bar structure represents the D-chain amino acid residue (Notch1), and the yellow bar structure represents the DLL4 amino acid residue. WT, wild type; MT, mutation type.

As shown in Figure 4C, there were three water bridges, three hydrogen bonds, two hydrophobic bonds, and one pi bond formed by the residues of GLU-424, ARG-448, and GLU-450 in the A chain (Notch1) near the amino acid at the 450th position, together with ARG191, LEU187, TRY198, and TRY216 of DLL4. However, as shown in Figure 4D, there were four water bridges, three hydrogen bonds, two hydrophobic bonds, and one pi bond formed by the residues of GLU-424, ARG-448, and GLU-450 in the A chain (Notch1) near the amino acid at the 450th position, together with ARG191, LEU187, TRY198, and TRY216 of DLL4 (Figure 4).

The mutation resulted in the addition of two water bridges to the Notch1-DLL4 complex compared with the number of water bridges before the mutation, resulting in an enhanced interaction between the mutant Notch1 and DLL4 near the amino acid residues at position 450, which might increase the overall stability of the protein (Table 1).

Discussion

ESCC is a complex disease involving multiple genes and factors related to heredity. It can be distributed or inherited in families. The Notch gene was first discovered in fruit flies in 1919, and it was named for causing “notches” in the wing margin in flies (18). The Notch receptor mainly consists of an extracellular region, a transmembrane region and an intracellular region, and it is expressed as a heterodimeric protein on the cell surface. The structural domain of the extracellular portion consists of 29–36 epidermal growth factor (EGF)-like repeats and 3 cysteine-rich Lin Notch repeats (LNRs). The primary function of these domains is to bind ligands and initiate Notch. The Notch intracellular domain (NICD) consists of the following five parts: a RAM region, which can bind to DNA binding proteins; six ankyrin repeats (ANK), acting as an enhancer of Notch, mediating the interaction between Notch and other proteins; two nuclear localization signals (NLS); a transactivation domain (TAD), which has not yet been defined for Notch3 and Notch4; and a PEST (praline-glutamate-serine-threonine-rich domain) region, which is related to the stability of the Notch receptor (19). Notch signaling controls mammalian tissue differentiation, proliferation, and apoptosis events. Abnormal Notch signaling, including GoF Notch1 alterations, is involved in the biological processes of a several tumors, such as chronic lymphocytic leukemia, T-ALL, diffuse large B cell lymphoma, mantle cell lymphoma, NSCLC, and breast cancer (9-14) and LoF Notch1 alterations are found in tumor such as HNSCC, cutaneous squamous cell carcinoma, and SCLC (20-23). The role of Notch1 signaling in ESCC was not studied until relatively recently, and its role is not yet clear. A study of esophageal tissue in 9 patients showed that the Notch1 mutation was several times more common in the normal esophagus than in esophageal cancer (15), and another study focused on the exome sequencing results of 12 ESCC patients revealed that 21% of patients had Notch1-inactivating mutations (24). This indicated that the Notch1 signal intrinsically exerts tumor-suppressive effects. However, a study of 60 patients with ESCC, 42 patients with benign esophageal squamous epithelium, and 13 patients with eosinophilic esophagitis with continuous NICD immunohistochemical staining showed that patients with ESCC had high NICD expression and were more likely to die from the disease (25), and another study of the Notch1 signaling pathway in EC-9706 cells involving the induction of epithelial-to-mesenchymal transition (EMT) through Snail demonstrated that inhibiting Notch1 signaling can suppress tumor invasion and metastasis (26). This indicated that the Notch1 signal intrinsically exerts oncogenic effects. We believe that the differences in research conclusions are due to different research methods and small sample sizes, which further indicates the complexity of the Notch1 signaling pathway in esophageal cancer.

Chemotherapy resistance significantly reduces the survival of patients with ESCC. The results of some studies confirmed that abnormal activation of Notch1 signaling could lead to drug resistance in various tumors during chemotherapy, which was consistent with our previous studies. Alterations in microRNAs (miRNAs) are involved in the initiation and progression of human diseases, including cancer (27). Several studies have revealed that high expression of miRNAs can inhibit the Notch1 signaling pathway, thus enhancing the chemotherapy sensitivity of ovarian cancer (28), breast cancer (29), colorectal cancer (30) and prostate cancer (31). Several studies have shown that activation of the Notch1 signaling pathway can enhance the chemotherapeutic resistance of cancer cells (32-37), including esophageal cancer cells (33). In general, the resistance of tumor cells to chemotherapy was increased by upstream signaling or the direct activation of the Notch1 signaling pathway.

We previously found that Notch1 mutations might be associated with NAC resistance in patients with ESCC through NGS (6). The results of the present study demonstrated that the mutation site was located in the Notch1-DLL4 binding site, and the mutant domain was found to be highly conserved through bioinformatics analysis, highlighting the importance of this mutation site. By further analysis, we found that the mutation changed the protein surface charge of the binding site and increased the interaction force of the noncovalent bond compared with that of the wild type protein. This change might activate the Notch1 signaling pathway, leading to NAC resistance. However, one methodology limitation of this study was the lack of external validation in real-world samples from patients with ESCC and Notch1 signaling pathway alterations. Analyzing such samples is important and necessary for the study of the mechanism of NAC resistance in patients with ESCC, and we will perform these analyses in the future.

Conclusions

Missense mutations in the Notch1 gene lead to changes in the receptor surface charge and an increase in the number of noncovalent bonds in the binding site, which may cause the Notch1 signaling pathway to become more active. This may lead to NAC resistance in patients with ESCC. However, further in vitro experiments are needed to confirm our hypothesis.

Acknowledgments

Funding: This work was supported by the National Natural Science Foundation of China (No. 82002521) and Natural Science Foundation of Henan Province (No. 202300410389).

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/tcr-21-447). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Institutional ethical approval was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
