Primary mucinous adenocarcinoma of the left renal pelvis with ectopic inferior vena cava and invasion of the left renal vein and the adjacent inferior vena cava: a case report

Introduction

Primary mucinous adenocarcinoma of the kidney, lacking typical clinical manifestations and imaging features, is an especially rare malignancy and usually occurs in the renal pelvis (1,2). On the one hand, the patients may be easy to be missed due to having no symptoms in the early stage. On the other hand, ultrasound examinations often show cystic masses with dark areas of anechoic liquid, which are easily misdiagnosed as renal cysts. Before operation, it is particularly difficult to obtain a definite diagnosis in clinical practice (1). The vast majority of patients are diagnosed according to pathological results of specimens after surgical treatment (2,3). Up to now, there is a lack of other secure and effective therapy methods except operation (4). Moreover, prognosis of the patients is generally unfavourable, with about 50% of patients dying within 2 years after operation (5,6). Therefore, it is still of great practical value to report new case and review the previous literatures in order to provide more clinical experience for management of the disease. Here is a special case of primary mucinous adenocarcinoma of the left renal pelvis, invading the left renal vein and inferior vena cava. The patient exhibited an uncommon congenital variation of the inferior vena cava. Below the level of the right renal vein, its anatomical location was on the left side of the spine, adjacent to the abdominal aorta.

We present the following article in accordance with the CARE reporting checklist (available at https://dx.doi.org/10.21037/tcr-21-719).

Case presentation

Patient and treatment

This 42-year-old male patient complained of repeated and intermittent pain of left abdominal flank for more than 5 years and aggravation of the symptom for more than 1 month. At the beginning of 2012, he presented left abdominal flank pain without clear inducements. He had no fever, radiating pain in other areas, irritation sign of bladder, gross hematuria, etc. Ultrasound examination at the local hospital indicated that the upper pole of the left kidney had a cystic anechoic area. It was thought to be a cyst. No treatment was given. Observation and follow-up were recommended. Subsequently, he occasionally manifested left abdominal flank pain. In August 2015, he returned to the local hospital and underwent a needle biopsy of left renal mass under the guidance of ultrasound. The pathological result showed that the mass contained eosinophilic mucus with no definite structure. It was again considered as a cyst and surgical treatment was not performed. In March 2017, the patient’s symptom worsened after excessive activity and showed no significant relief after enough rest. For definite diagnosis and active treatment, he was admitted to the First Affiliated Hospital of the Army Medical University in April 2017. The vital signs were normal at the time of admission. The cardiopulmonary and abdominal physical examination exhibited no obvious abnormalities. There was no percussive pain in the right kidney area, but mild percussive pain was discovered in the left kidney area. No abnormality was found in blood routine, electrolyte, blood clotting index, liver function, and kidney function. Abdominal computed tomography (CT) scan demonstrated that the mass of the left kidney appeared as mixed density, mainly cystic density mixing with spot-like dense shadows, presenting polycystic changes with thick wall and no obvious enhancement (Figure 1A-1D). Below the level of the right renal vein, the anatomical location of the inferior vena cava was on the left side of the spine. There was filling defect area in the left renal vein and the adjacent inferior vena cava (Figure 1E,1F). Emission computed tomography (ECT) prompted that the blood supply and glomerular filtration function of both kidneys were normal, the right upper urinary tract drainage was unobstructed, and the left upper urinary tract drainage was slightly slow.

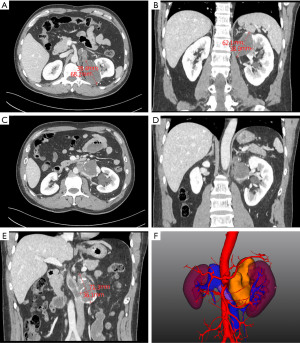

Figure 1 Computed tomography (CT) scan of renal medulla phase of artery angiography. (A,B) The mass was located in the upper pole of the left kidney. (C,D) The blood vessels of the left kidney were severely compressed by the huge mass. (E) The inferior vena cava was ectopic to the left, and its internal filling defect indicated emboli. (F) 3D visualization imaging of the left renal mass and the vessels. The mass was represented by orange tissue. The filling defect area was represented by purple tissue. The anatomic variation of the inferior vena cava was clearly shown again.

Combined with clinical manifestation, physical examination, laboratory tests and imaging changes, a preliminary diagnosis of the patient was considered to be left renal cystic tumor with emboli of left renal vein and inferior vena cava. He was advised to stay in bed to avoid serious cardiovascular complications, such as pulmonary embolism caused by abscission of emboli after excessive activity, and given active anticoagulant therapy. After adequate preoperative preparation, he was treated with radical resection of the left kidney and artificial vascular replacement of the inferior vena cava segment containing the emboli under general anesthesia. Dark red emboli were observed in the excisional inferior vena cava and left renal vein after operation. Anticoagulant therapy was continued to prevent thrombosis after artificial vascular replacement. Two weeks after surgery, he recovered and was discharged. Although prognosis of the patients is generally poor, there was no evidence of recurrence after more than 4 years of follow-up.

Pathology

On gross examination, the left kidney approximately measured 12 cm × 6 cm × 4 cm. The huge mass was found in the upper pole of the left kidney. After dissection, it was proved that the mass originated from the renal pelvis. Fibrous cords were seen in the mass to divide into cysts of varying sizes, which were filled with gray viscous jelly-like liquid (Figure 2A,2B). Microscopically, the tumor cells were oval or columnar, the cytoplasm was abundant with light staining, and the nuclei were round or polygonal with deep staining. The tumor cells were arranged in irregular glandular ducts or cords, with pools of mucus (Figure 3A,3B). Immunohistochemical experiments revealed that the tumor cells were positive for cytokeratin (CK) (Figure 3C), caudal type homeobox 2 (CDX-2) (Figure 3D) and carcinoembryonic antigen (CEA), but negative for CK7, CK20, synaptophysin (Syn), chromogranin A (Cg A) and vimentin (VIM). The number of Ki67 positive cells was about 2%. The above atypia cells were also found in the venous emboli. The patient had no history of gastrointestinal disease. On the basis of the histomorphological characteristics and immunohistochemical results, a final diagnosis of primary mucinous adenocarcinoma of the left renal pelvis with invasion of the left renal vein and the inferior vena cava was established.

Figure 2 Postoperative images of the left kidney and the mass. (A,B) Histologically, the mass was derived from the renal pelvis.

Figure 3 Histochemical staining of the resected mass. (A) Hematoxylin-eosin staining. The arrangement of tumor cells was either glandular or scattered individually (×200). (B) Hematoxylin-eosin staining. The tumor cells had large, deeply stained, and irregular nuclei, with less cytoplasm and high nucleocytoplasmic ratio (×400). (C) Immunohistochemical staining. The CK staining of tumor cell cytoplasm was positive (×200). (D) Immunohistochemical staining. The CDX-2 staining of the tumor cell nuclei was positive (×200).

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Discussion

Malignant tumors in the renal pelvis mainly originate from epithelial cells of urinary tract, including transitional cell carcinoma, squamous cell carcinoma and adenocarcinoma. Adenocarcinoma of the renal pelvis is the least common type, accounting for less than 1%. It can be further classified as tubulovillous, mucinous, or papillary nonintestinal categories, of which papillary nonintestinal category is the rarest subtype, followed by mucinous category (2,4,7).

In 1960, primary mucinous adenocarcinoma of the renal pelvis was first described by Hasebe et al. (8). To date, it remains an extremely rare tumor with fewer than 100 cases reported (9). At present, the pathogenesis of primary mucinous adenocarcinoma of the renal pelvis is still not clear. However, there are two leading theories widely accepted by most researchers. One theory holds that mucosal epithelium of renal pelvic may undergo glandular metaplasia under long-term chronic irritations such as nephrolithiasis, hydronephrosis and infection, and then abnormal hyperplasia and adenocarcinoma possibly occur (10,11). Because of the increased incidence of the lesions in anomalous kidneys such as horseshoe kidney and non-functioning kidney, the other theory suggests that primary mucinous adenocarcinoma also may arise from the sequestered renal epithelium within the parenchyma as a consequence of maldevelopment (4).

Primary mucinous adenocarcinoma of the renal pelvis lacks typical clinical manifestations. A recent article summarized the conditions of 30 patients reported in literatures since 2000 (1). Eleven cases presented single symptom of abdominal flank pain or discomfort, 3 cases presented single symptom of hematuria, and 2 cases presented single symptom of abdominal mass. Six cases with two or more symptoms mentioned above, only 1 case presented three symptoms, similar to renal cell carcinoma triad, which should be differentiated. The case we reported presented only abdominal flank pain, with no other symptoms. No diagnosis can be made solely on the basis of clinical presentation. In addition, abdominal ultrasonography, intravenous pyelography, abdominal CT and other imaging examinations may not be able to accurately identify the tumor (12). Radiological findings of previously reported cases revealed that most of the patients presented with hydronephrosis, pyonephrosis and calculi, some patients presented with a mass or tumor, and a few patients presented with obstruction or stenosis of pelvis ureteric junction (1). The patient we reported presented with a huge mass, which was initially misdiagnosed as a renal cyst. The needle biopsy did not show any findings. The possibility of tumor was not suspected until CT examination showed renal mixed density mass accompanied by emboli of left renal vein and inferior vena cava. It is difficult to make accurate diagnosis by preoperative clinical manifestations and imaging examinations. Apparently, postoperative pathological support is indispensably needed. However, a few literatures suggested that primary mucinous adenocarcinoma of the renal pelvis may be accompanied by increased carbohydrate antigen 19-9 (CA19-9) or CEA (4,13). Moreover, combination of imaging examinations and blood oncogenic biomarkers can improve the diagnostic accuracy to some extent (1). Unfortunately, the patient in this study was not examined for biomarkers, and corresponding evidence could not be obtained.

Mucinous adenocarcinoma usually occurs in the colorectal and ovarian regions and is characterized by a large amount of mucinous secretion, accounting for more than 50% of the tumor volume (14,15). For mucinous adenocarcinoma of the renal pelvis, metastasis of adenocarcinoma in other organs should be given priority. The diagnosis of primary mucinous adenocarcinoma of the renal pelvis can be established only if other organs are excluded (13).

Once the mass is misdiagnosed as a simple cyst or a benign tumor, it may cause treatment delay and serious consequences. Early surgical treatment can not only relieve the symptoms, but also prolong the patient’s life span and improve the quality of life (4). Because the overflow of cancer cells during operation or the implantation metastasis along the ureter might cause local recurrence, radical resection was recommended in clinical practice for patients suspected or initially diagnosed with mucinous adenocarcinoma of the renal pelvis (2,5-7). The kidney, ureter and bladder cuff on the affected side required radical resection (16). Previously, researchers had made some attempts on adjuvant therapy after operation, such as interleukin-2, radiotherapy and capecitabine (4,6,17). However, up to now, there is no conclusive evidence of the effectiveness of those methods, which needs further research and exploration.

In conclusion, primary mucinous adenocarcinoma of the renal pelvis is a rare and malignant tumor. It is pretty difficult to be diagnosed preoperatively. However, some clues may be found through integrating imaging examinations and blood oncogenic biomarkers. Postoperative pathological result is the gold standard for final diagnosis. Operation is currently the preferred treatment method and radical resection of the tumor can benefit patients.
