Application of contrast-enhanced ultrasound in the pathological grading and prognosis prediction of hepatocellular carcinoma
Introduction
The incidence of hepatocellular carcinoma (HCC) ranks sixth among malignant tumors and its fatality rate ranks third in terms of cancer-related deaths (1). HCC also ranks second among tumor-related diseases in males (2). There are approximately 750,000 new cases of HCC every year worldwide (3), and the prevalence in men is 2–4 times that in women (4). Studies have shown that the incidence of HCC is affected by many risk factors (5,6). HCC mostly occurs on the basis of liver cirrhosis, and then undergoes several stages of transformation, from regenerative nodules to dysplasia to liver cancer, which is accompanied by tumor angioarchitecture and blood perfusion (7,8). Early detection and diagnosis of HCC lesions and recurrence are important for improving the long-term prognosis and quality of life of patients. There are many factors affecting the prognosis of HCC, such as the pathological nature and differentiation degree of the tumor. The pathological grade of HCC is an important predictor that reflects the recurrence and survival of HCC patients after surgery or liver transplantation (9,10). Therefore, predicting the pathological grade of liver cancer before surgery can guide the formulation of HCC treatment strategies.
Conventional ultrasound is the primary monitoring method after radical resection of liver cancer, which can diagnose and differentiate tumors in the liver. With the continuous development of ultrasound imaging technology, clinical studies have proven that contrast-enhanced ultrasound (CEUS) can effectively strengthen the two-dimensional ultrasound information of the liver (11), reflecting the different blood perfusion of normal tissues and diseased tissues. CEUS is now capable of performing dynamic continuous imaging in real-time through mechanical index and contrast agents to detect tissue microcirculation, providing strong support for the qualitative determination of tumors and providing information of the differentiation status of tumor tissues (12,13). The purpose of this study was to investigate the correlation between the performance of CEUS and the pathological differentiation of primary HCC using CEUS, and to explore the relationships with metastatic prognosis, providing a basis for clinical treatment. We present the following article in accordance with the STARD reporting checklist (available at https://dx.doi.org/10.21037/tcr-21-1264).
Methods
General information
The information of 128 patients with HCC who underwent CEUS examination in our hospital from January 2017 to June 2020 was collected. According to the Edmondson-Steiner tissue differentiation system, patients were divided into a highly-differentiated group, moderately-differentiated group, and poorly-differentiated group. Patients were also divided into a recurrence group and non-recurrence group at follow-up, and all patients were followed up until January 2020. The basic characteristics of patients at admission and follow-up were collected and measured, including age, gender, HBsAg (positive/negative), alpha-fetoprotein (AFP) level (≤20/>20 ng/mL), Child-Pugh grade (A/B/C), tumor number, tumor average diameter, tumor location (left liver lobe/right liver lobe), and microvascular invasion (MVI, positive/negative). All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). All experiments were approved by the Ethics Committee of Cangzhou Central Hospital (No. 2017-118-01) and informed consent was taken from all the patients.
The inclusion criteria were as follows: (I) patients diagnosed with HCC; (II) maximum tumor diameter ≤5 cm; (III) CEUS performed within 1 week before the patient's biopsy or surgery; (IV) all patients and their families were aware of the research content, patients participated voluntarily, and signed an informed consent form.
The exclusion criteria were as follows: (I) patients with neurological diseases and behavioral disorders; (II) patients with other types of liver diseases such as liver cysts; (III) patients with other malignant tumors or distant metastasis of tumors; (IV) patients accepted systemic chemotherapy or local treatment; (V) patients who could not cooperate at follow-up.
Ultrasound examination
Doppler ultrasound, using a convex probe with a frequency of 1–6 MHz, was performed. First, routine ultrasound scanning was performed, and the size, shape, location, tumor boundary echo, internal echo, and blood flow of the liver tumors were observed and recorded. Subsequently, SonoVue contrast agent was injected from the anterior cubital vein, and then the tube was flushed with 5 mL of saline. Doppler ultrasound was continuously observed for 5 minutes to obtain and evaluate the CEUS image.
Three phases of contrast enhancement were recorded and analyzed: the arterial phase (10–50 s after the start of injection), the portal phase (80–120 s after the start of injection), and the anaphase (>120 s), as well as the quantitative analysis of rise time (RT), time to peak (TTP), mean transit time (mTT), intensity maximum (Imax), and enhancement rate.
Statistical analysis
SPSS 23.0 statistical analysis software was applied to analyze and process the obtained sample data. A t-test was used for the comparison of quantitative data, and the χ2 test or Fisher’s exact probability method was used for the comparison of qualitative data. P<0.05 indicated that the difference was statistically significant.
Results
Basic characteristics of patients
A total of 128 related cases were collected. According to the Edmondson-Steiner tissue differentiation system, 23 cases were highly-differentiated, 63 cases were moderately-differentiated, and 42 cases were poorly-differentiated. The comparison of the basic characteristics of patients with different levels of tissue differentiation is shown in Table 1. There were no significant differences in age, gender, HBsAg, AFP level, Child-Pugh grade, number of tumors, and tumor location among the three groups of patients, but there were significant differences in average tumor diameter and MVI.
Table 1
| Variables | Highly-differentiated (n=23) | Moderately-differentiated (n=63) | Poorly-differentiated (n=42) | F/χ2 | P |
|---|---|---|---|---|---|
| Age (years old) | 35.83±11.86 | 36.71±12.32 | 39.14±11.89 | 0.730 | 0.484 |
| Gender, n (%) | 0.338 | 0.845 | |||
| Male | 14 (60.9) | 34 (54.0) | 23 (54.8) | ||
| Female | 9 (39.1) | 29 (46.0) | 19 (45.0) | ||
| HBsAg, n (%) | 2.718 | 0.257 | |||
| Negative | 13 (56.5) | 29 (46.0) | 15 (35.7) | ||
| Positive | 10 (43.5) | 34 (54.0) | 27 (64.3) | ||
| AFP, n (%) | 1.648 | 0.439 | |||
| ≤10 | 3 (13.0) | 4 (6.3) | 2 (4.8) | ||
| >10 | 20 (87.0) | 59 (93.7) | 40 (95.2) | ||
| Child-Pugh grade, n (%) | 6.49 | 0.165 | |||
| A | 13 (56.5) | 48 (76.2) | 23 (54.8) | ||
| B | 8 (34.8) | 13 (20.6) | 15 (35.7) | ||
| C | 2 (8.7) | 2 (3.2) | 4 (9.5) | ||
| Number of tumors, n (%) | 2.339 | 0.311 | |||
| Single | 18 (78.3) | 46 (73.0) | 26 (61.9) | ||
| Multiple | 5 (21.7) | 17 (27.0) | 16 (38.1) | ||
| Tumor location, n (%) | 8.733 | 0.189 | |||
| Left lobe | 7 (30.4) | 17 (27.4) | 9 (21.4) | ||
| Right lobe | 8 (34.8) | 35 (56.5) | 23 (54.8) | ||
| Caudal lobe | 7 (30.4) | 7 (11.3) | 5 (11.9) | ||
| Whole liver | 1 (4.3) | 3 (4.8) | 5 (11.9) | ||
| Tumor diameter (cm), n (%) | 26.511 | <0.001* | |||
| <2 | 17 (73.9) | 38 (60.3) | 7 (16.7) | ||
| ≥2 | 6 (26.1) | 25 (39.7) | 35 (83.3) | ||
| MVI, n (%) | 11.442 | 0.003* | |||
| Negative | 19 (82.6) | 49 (77.8) | 21 (50.0) | ||
| Positive | 4 (17.4) | 14 (22.2) | 21 (50.0) |
*, P<0.05. AFP, alpha-fetoprotein; MVI, microvascular invasion.
Of the follow-up patients, there were 31 cases in the recurrence group and 97 cases in the non-recurrence group. The comparison of the basic characteristics of these two groups of patients is shown in Table 2. There were no statistically significant differences in age, gender, HBsAg, AFP level, Child-Pugh grade, tumor number, and tumor location between the two groups, but there were significant differences in average tumor diameter and MVI.
Table 2
| Variables | Non-recurrence (n=97) | Recurrence (n=31) | t/χ2 | P |
|---|---|---|---|---|
| Age (years old) | 36.45±12.27 | 40.16±11.17 | −1.496 | 0.137 |
| Gender, n (%) | 0.007 | 0.935 | ||
| Male | 54 (55.7) | 17 (54.8) | ||
| Female | 43 (44.3) | 14 (45.2) | ||
| HBsAg, n (%) | 0.561 | 0.454 | ||
| Negative | 45 (46.4) | 12 (38.7) | ||
| Positive | 52 (53.6) | 19 (61.3) | ||
| AFP, n (%) | 0.906 | 0.341 | ||
| ≤10 | 8 (8.2) | 1 (3.2) | ||
| >10 | 89 (91.8) | 30 (96.8) | ||
| Child-Pugh grade, n (%) | 4.001 | 0.135 | ||
| A | 68 (70.1) | 16 (51.6) | ||
| B | 23 (23.7) | 13 (41.9) | ||
| C | 6 (6.2) | 2 (6.5) | ||
| Number of tumors, n (%) | 1.595 | 0.207 | ||
| Single | 71 (73.2) | 19 (61.3) | ||
| Multiple | 26 (26.8) | 12 (38.7) | ||
| Tumor location, n (%) | 1.404 | 0.705 | ||
| Left lobe | 27 (27.8) | 6 (19.4) | ||
| Right lobe | 48 (49.5) | 19 (61.3) | ||
| Caudal lobe | 15 (15.5) | 4 (12.9) | ||
| Whole liver | 7 (7.2) | 2 (6.5) | ||
| Tumor diameter (cm), n (%) | 13.853 | <0.001* | ||
| <2 | 56 (57.7) | 6 (19.4) | ||
| ≥2 | 41 (42.3) | 25 (80.6) | ||
| MVI, n (%) | 6.200 | 0.013* | ||
| Negative | 73 (75.3) | 16 (51.6) | ||
| Positive | 24 (24.7) | 15 (48.4) |
*, P<0.05. AFP, alpha-fetoprotein; MVI, microvascular invasion.
The relationships of CEUS indicators between different levels of HCC differentiation
The relationships among the quantitative parameters of CEUS in the three groups of highly-differentiated, moderately-differentiated, and poorly-differentiated patients were analyzed. Comparing the three groups, it was found that the differences in mTT and Imax were not statistically significant, but the differences in RT, TTP, and enhancement rate were statistically significant (P<0.05). The RT and TTP of the highly-differentiated group were higher than those of the moderately-differentiated and poorly-differentiated groups, while the RT and TTP of the moderately-differentiated group were higher than those of the poorly-differentiated group. The enhancement rates of the highly-differentiated and moderately-differentiated groups were lower than the enhancement rate of the poorly-differentiated group. The specific comparison is shown in Table 3. The CEUS performance and its quantitative analysis curve of HCC patients with different levels of differentiation are shown in Figure 1.
Table 3
| Variables | Highly-differentiated (n=23) | Moderately-differentiated (n=63) | Poorly-differentiated (n=42) | F | P |
|---|---|---|---|---|---|
| RT | 11.09±1.87b | 9.86±2.38a | 6.39±1.09ab | 56.753 | <0.001* |
| TTP | 12.18±3.03b | 9.19±2.75a | 7.56±2.35ab | 22.108 | <0.001* |
| Enhancement rate | 0.63±0.16 | 0.76±0.15 | 0.80±0.14ab | 15.000 | <0.001* |
| mTT | 89.33±21.76 | 95.08±34.01 | 97.47±25.26 | 0.573 | 0.565 |
| Imax | 123.03±39.10 | 112.73±40.46 | 109.82±8.53 | 0.859 | 0.426 |
Compared with the highly-differentiated group, aP<0.05; compared with the moderately-differentiated group, bP<0.05. *, P<0.05. CEUS, contrast-enhanced ultrasound; RT, rise time; TTP, time to peak; mTT, mean transit time; Imax, intensity maximum.
The relationships of CEUS indicators between the recurrence group and non-recurrence group
There were significant differences in RT, TTP, enhancement rate, and Imax between the recurrence group and the non-recurrence group (P<0.05). The RT, TTP, and Imax of the recurrence group were lower than those of the non-recurrence group, but the enhancement rate was higher than that of the non-recurrence group (Table 4).
Table 4
| Variables | Non-recurrence (n=97) | Recurrence (n=31) | t/χ2 | P |
|---|---|---|---|---|
| RT | 9.66±2.52 | 6.70±1.74 | 6.064 | <0.001* |
| TTP | 9.68±3.04 | 7.42±2.78 | 3.841 | <0.001* |
| Enhancement rate | 0.73±0.16 | 0.82±0.15 | −2.609 | 0.010* |
| mTT | 95.29±30.54 | 93.41±25.62 | 0.309 | 0.758 |
| Imax | 118.66±38.66 | 97.89±38.77 | 2.602 | 0.010* |
*, P<0.05. CEUS, contrast-enhanced ultrasound; RT, rise time; TTP, time to peak; mTT, mean transit time; Imax, intensity maximum.
The relationships between RT, TTP, enhancement rate, and HCC pathological grade

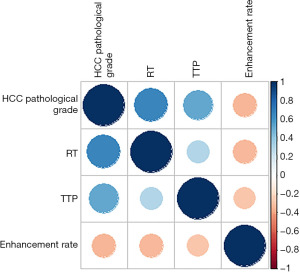

The relationships between RT, TTP, enhancement rate, and pathological grade were further analyzed. From Table 5 and Figure 2, it can be seen that RT and TTP were positively correlated with the degree of HCC differentiation. The higher the degree of HCC differentiation, the higher the level of the RT and TTP. The enhancement rate was negatively correlated with the degree of HCC differentiation. The higher the degree of HCC differentiation, the lower the level of the enhancement rate.
Table 5
| Variables | HCC pathological grade | |
|---|---|---|
| rs | P | |
| RT | 0.6720 | <0.001* |
| TTP | 0.5140 | <0.001* |
| Enhancement rate | −0.324 | <0.001* |
*, P<0.05. RT, rise time; TTP, time to peak; HCC, hepatocellular carcinoma.
The diagnostic value of CEUS indicators in the pathological differentiation of HCC
Subsequently, we analyzed the diagnostic value of the CEUS quantitative parameters RT, TTP, and enhancement rate in the pathological grading of HCC. The results in Table 6 showed that RT, TTP, and enhancement rate were statistically significant in the diagnosis of HCC with high differentiation, moderate differentiation, and poor differentiation (P<0.05). The areas under the curve (AUCs) for the RT, TTP, and enhancement rate were 0.802, 0.773, and 0.775, respectively, and RT had the greatest diagnostic efficiency.
Table 6
| Variables | AUC | P | Sensitivity | Specificity | Accuracy |
|---|---|---|---|---|---|
| RT | 0.802 | <0.001* | 100 | 50.48 | 0.5048 |
| TTP | 0.773 | <0.001* | 78.26 | 86.67 | 0.6493 |
| Enhancement rate | 0.775 | <0.001* | 73.91 | 88.57 | 0.6248 |
*, P<0.05. CEUS, contrast-enhanced ultrasound; HCC, hepatocellular carcinoma; AUC, area under the curve; RT, rise time; TTP, time to peak.
Multivariate analysis of the relationships between CEUS indicators, tumor diameter, MVI, differentiation degree, and HCC recurrence
A multivariate analysis of the relationships between quantitative parameters of CEUS, average tumor diameter, MVI, and HCC recurrence was performed (Table 7). The results showed that low levels of RT, TTP, and Imax, along with positive MVI, were risk factors for HCC recurrence, and there was no significant relationship between the differentiation degree, average tumor diameter, and HCC recurrence.
Table 7
| Variables | Univariate analysis | Multivariate analysis | |||||
|---|---|---|---|---|---|---|---|
| OR | 95% CI | P | OR | 95% CI | P | ||
| Differentiation degree | |||||||
| Highly-differentiated | 1.000 | – | – | 1.000 | – | – | |
| Moderately-differentiated | 1.527 | 0.300–7.787 | 0.610 | 0.231 | 0.029–1.841 | 0.167 | |
| Poorly-differentiated | 10.5 | 2.181–50.544 | 0.003* | 0.202 | 0.017–2.446 | 0.209 | |
| Tumor diameter | |||||||
| <2 | 1.000 | – | – | 1.000 | – | – | |
| ≥2 | 5.691 | 2.141–15.131 | <0.001* | 0.469 | 0.124–1.777 | 0.265 | |
| MVI | |||||||
| Negative | 1.000 | – | – | 1.000 | – | – | |
| Positive | 2.852 | 1.229–6.618 | 0.015* | 5.569 | 1.256–24.696 | 0.024* | |
| RT | 0.581 | 0.462–0.730 | <0.001* | 0.619 | 1.256–24.696 | 0.005* | |
| TTP | 0.722 | 0.589–0.884 | 0.722 | 0.786 | 0.445–0.862 | 0.034* | |
| Enhancement rate | 33.157 | 2.137–514.508 | 0.012* | 3.806 | 0.630–0.981 | 0.494 | |
| Imax | 0.986 | 0.974–0.997 | 0.013* | 0.980 | 0.083–175.298 | 0.023* | |
*, P<0.05. CEUS, contrast-enhanced ultrasound; HCC, hepatocellular carcinoma; MVI, microvascular invasion; RT, rise time; TTP, time to peak; Imax, intensity maximum.
Discussion
HCC is one of the most common malignant tumors worldwide (1). Among the mortality of tumor-related diseases, the HCC mortality of males ranks second, and the HCC mortality of females ranks sixth (2). The pathological grading of HCC is an important predictor of the recurrence and survival of HCC patients after surgery or liver transplantation (6,7). The risk of recurrence and metastasis of patients with poorly-differentiated HCC is significantly higher than that of patients with moderately-differentiated HCC (14,15). Accurately assessing the differentiation degree of HCC before treatment can help clinicians formulate and adjust treatment plans, and it is also beneficial for assessing the efficacy and prognosis after treatment. However, the current pathological results of HCC need to be confirmed by needle biopsy or postoperative pathology, which is partly limited.
CT, MRI, and CEUS have the advantages of dynamic and continuous imaging in real-time, which can obtain information during the entire enhancement period (0–360 s). However, CT and MRI can only achieve multilayer scanning of the lesion once. CEUS has been recognized by more and more clinicians and patients due to its real-time, low-cost, and low-risk features, and the diagnostic efficacy is comparable to advanced CT and MRI (16-19). Therefore, CEUS can be used to observe the internal blood supply of focal liver lesions. From the perfusion and clearance characteristics of the lesion, the differences in the morphological structure of the diseased tissue cells and the internal vascular morphology are obtained, and the nature of the lesion is finally identified, which is more conducive to the comprehensive analysis of the blood perfusion characteristics of the lesion (20-23). Benign and malignant tumors have unique performance on CEUS, which plays an increasingly important role in the identification of benign and malignant liver tumors. There are many different manifestations when using CEUS to examine HCC, the most common of which are “fast in and fast out” and “fast in and slow out/no out”. Depending on the degree of contrast intensity, there is a difference of significant enhancement and insignificant enhancement. Nicolau et al. (24) studied the CEUS performance of 104 cases of HCC, and 4 cases with significant enhancement in the arterial phase were all highly-differentiated HCC.
Among the patients in this study, 23 were in the highly-differentiated group, 63 were in the moderately-differentiated group, and 42 were in the poorly-differentiated group. Comparing the three groups, the differences in RT, TTP, and enhancement rates were statistically significant, while the differences in mTT and Imax were not statistically significant. Among them, the RT and TTP of the highly-differentiated and moderately-differentiated groups were higher than those of the poorly-differentiated group. There were no significant differences in mTT and Imax between the highly-, moderately-, and poorly-differentiated groups. Furthermore, we determined that RT and TTP were positively correlated with the HCC differentiation degree, and the enhancement rate was negatively correlated with the HCC differentiation degree. In addition, the receiver operating characteristic (ROC) curve showed that RT, TTP, and enhancement rate were statistically significant for the diagnosis of HCC of high differentiation, moderate differentiation, and poor differentiation, among which RT had the highest diagnostic accuracy.
Liver cancer is prone to metastasis. Studies have shown that poor prognosis may be related to the size and number of tumors, the patient’s own liver function, and the differentiation degree of the tumor, but there are not many studies investigating the association with imaging characteristics (25-27), making the prognosis prediction of HCC a critical step. In this study, we found that the RT, TTP, and Imax of the recurrence group were significantly lower than the non-recurrence group, while the enhancement rate was significantly higher than the non-recurrence group. Further multivariate analysis showed that low levels of RT, TTP, and Imax along with positive MVI and poor differentiation were risk factors for HCC recurrence, and there was no significant relationship between the average tumor diameter and HCC recurrence.
Conclusions
In summary, CEUS can significantly show the differences between the RT, TTP, and enhancement rate of HCC across different levels of differentiation, and it can also predict the recurrence of HCC. Low-level RT, TTP, and Imax as well as positive MVI and poor differentiation can cause the recurrence of HCC.
Acknowledgments
Funding: None.
Footnote
Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://dx.doi.org/10.21037/tcr-21-1264
Data Sharing Statement: Available at https://dx.doi.org/10.21037/tcr-21-1264
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/tcr-21-1264). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of Cangzhou Central Hospital (No. 2017-118-01) and informed consent was taken from all the patients.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
