Urethra-sparing surgery for a prostate cancer lesion in the anterior urethral zone with magnetic resonance-guided focused ultrasound: a case report

Introduction

Prostate cancer (PCa) is the most common malignancy among men worldwide (1). High-intensity focused ultrasound (HIFU) surgery is a focal therapeutic strategy for low- to intermediate-risk PCa with a low incidence of treatment-related complications compared to traditional whole-gland therapies such as radical prostatectomy (RP) and radiotherapy (RT) (2), which has also been proven to have acceptable survival and oncological outcomes with over 5-year follow-up data (3-6). Previously reported HIFU surgery generally used a hemi-gland or extended hemi-gland ablation scheme (2,7), which increases susceptibility to urethral injury. As a result, post-treatment bladder outlet obstruction (BOO) remains a common complication, the incidence of which could reach as high as 41% (8,9). Shoji et al. reported a urethra-sparing HIFU strategy (10); however, PCa lesions located in the anterior urethral zone are challenging to treat using this approach. Though focal HIFU is a promising method in overcoming the above challenge, it has been proven in previous study that patients with lesions in the anterior portion of the transitional zone treated with focal HIFU has a higher risk of urinary dysfunction 1 month after the treatment (11). Magnetic resonance-guided focused ultrasound surgery (MRgFUS) could achieve complete focal therapy with more accurate lesion location and real-time monitoring by multiparametric magnetic resonance imaging (mp-MRI) (12,13). Here, we report the case of an elderly male with PCa covering an area of the anterior urethral zone, and a feasible technique for urethra-sparing surgery using MRgFUS. We present the following article in accordance with CARE Guidelines (14) and the CARE reporting checklist (available at https://dx.doi.org/10.21037/tcr-21-1757).

Case presentation

A 79-year-old male presented with an elevated prostate-specific antigen (PSA) level of 8.766 ng/mL without any symptoms. The medical history of the patient included hypertension, nephron-sparing surgery, and radical left hemicolectomy. Digital rectal examination revealed no palpable nodules.

Urine analysis showed no signs of urinary infection. The results of pelvic mp-MRI revealed a mass approximately 1.8 cm ×1.0 cm in dimension, with a low signal on T2-weighted imaging (T2WI) and a high signal on diffusion weighted imaging (DWI) in the transitional zone, covering an area of the anterior urethral zone at 12 o’clock on T2WI. Part of the mp-MRI images are shown in Figure 1. No metastasis was found on prostate-specific membrane antigen positron emission tomography/computed tomography (PSMA PET/CT). A cognitive fusion transperineal target plus systematic mapping biopsy was performed. The results of histopathology demonstrated an International Society of Urological Pathology (ISUP) grade group 3 prostatic acinar adenocarcinoma, with the location of the lesion consistent with that on mp-MRI.

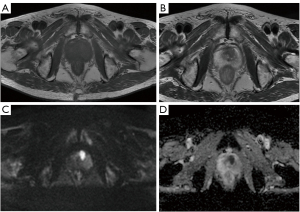

Figure 1 Pre-MRgFUS pelvic mp-MRI. (A) T1WI; (B) an inverted L-shaped lesion with a low signal was found on T2WI, covering an area in the anterior urethral zone; (C,D) A lesion within the left transitional zone with a high signal on DWI (C) and low signal on ADC map (D).

After fully informing the patient about the condition and treatment options, the patient chose to receive MRgFUS treatment in consideration of less trauma and functional preservation. A suprapubic catheter rather than a urethral catheter was inserted before the procedure to avoid an impact on the transmission of energy. The procedure was performed using an endorectal focused ultrasound ablation system (ExAblate 2100, InSightec, Haifa, Israel) integrated within a 3T MR scanner (Discovery MR750, GE Medical Systems, Milwaukee, Wisconsin, USA). The patient was positioned supine on the patient table under general anesthesia. After insertion of the probe and localization, the prostatic capsule, anterior surface of the rectal wall, and region of treatment (ROT) with at least 5-mm tumor-free margins were manually contoured on axial T2WI (Figure 2A). A total of 3 layers were planned for the treatment, with a 3 mm-interval between layers. In order to treat the lesion completely, we did not delineate the actual outline of the lesion, which appeared as an “inverted L shape” on T2WI imaging (Figure 1B); instead, an elliptic area was delineated covering both the urethra and the complete lesion with a safety margin of over 5 mm (Figure 2A). As the urethra was within the ROT, we planned to minimize injury to the urethra. Specifically, we rearranged the sequence of sonication of the macro spots, as shown by the green rectangle in Figure 2B. In order to minimize the thermal damage to the urethra (i.e., due to direct delivery of energy through or near the urethra), each sonication started from the lateral edge of the prostate instead of starting from the medial part of the prostate, as shown in Figure 2B. Thus, the accumulated thermal dose absorbed by the urethra, which was closest to the lesion located at the midline of the prostate, was reduced to a minimum. During the entire treatment, real-time temperature monitoring was realized by an overlay of MRI thermography over the anatomic images (Figure 2C), and a temperature over 65 °C within the target lesion was considered adequate for the treatment. After completion of sonication, a contrast-enhanced MRI was performed, which showed a non-perfused volume (NPV, 2.8 cc) covering the ROT outlined preoperatively (Figure 2D). An approximately inverted L-shaped NPV was observed on the adjacent layer on enhanced MRI, with the urethra enhanced on the imaging, suggesting preserved tissue activity (Figure 2E,2F).

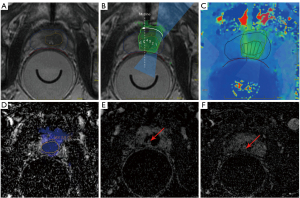

Figure 2 MRI during MRgFUS surgery and immediate post-MRgFUS MRI. (A) Pretreatment MRI shows the contoured rectal wall (red outline), prostate capsule (blue outline), and the region of treatment with a 5-mm tumor free margin (yellow outline) (B) MRI during the treatment process shows the macro spot planned for the target lesion (green rectangle) and the beam path (blue). The arrows and numbers show the direction and sequence of sonication, respectively; (C) The thermal map during the treatment shows heat deposition. Red is for high temperature (in this case, most red areas are due to artifacts, because temperatures in bones and the transducer could not be measured), green for thermal dose deposition, and blue is for low temperature; (D) Axial T1 contrast-enhanced image shows the non-perfused volume (orange outline) overlaid on the region of treatment by plan. (E,F) Post-treatment contrast-enhanced MRI shows enhanced urethral mucosa (red arrow) on the adjacent layer of sonication.

After the treatment, the suprapubic catheter was replaced by a urethral catheter, which was removed after a day, before discharge from the hospital. The patient recovered spontaneous micturition immediately after catheter removal but developed urinary retention on the night of discharge. A 16F Foley catheter was re-inserted and indwelled for 1 week before removal. Thereafter, the recovery was uneventful. The PSA level and International Prostate Symptom Score (IPSS) and Quality of Life (QoL) score were monitored at 1, 2, and 3 months after the treatment, the trends of which are shown in Figure 3, with a significant decline in the PSA level but no obvious changes in IPSS compared to the baseline score. The QoL score before MRgFUS and 1-, 2- and 3-month after the treatment were all 0 according to the questionaries acquired from the patient. The result of mp-MRI at the 3-month follow-up visit showed no signs of recurrence. The timeline of the medical history and management of the patient is shown in Figure 4.

Figure 3 PSA and IPSS trend after MRgFUS surgery. (A) PSA at baseline, 1st, 2nd, and 3rd month after the treatment, respectively; (B) IPSS at baseline, 1st, 2nd, and 3rd month after the treatment, respectively.

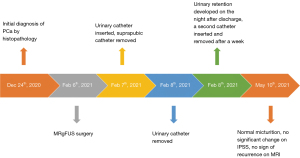

Figure 4 Timeline of management.

The patient presented in this case was from a prospectively designed study (ChiCTR2000034634) approved by the Institutional Review Board of Beijing Hospital. All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

Discussion

The appropriate management of PCa is of paramount importance, considering its high prevalence among men. The traditional approach for low- to intermediate-risk PCa is mainly whole-gland therapy, including RP and RT (15), which is associated with a considerable incidence of complications such as erectile dysfunction, urinary incontinence, and rectitis, significantly impacting patients’ quality of life (QoL). Active surveillance (AS) is an alternative to avoid overtreatment and treatment-related complications; however, it adds to the patient’s psychological and financial burden. Moreover, patients under AS have a chance to miss the opportunity for a cure, especially those with intermediate-risk PCa (16). HIFU therapy is a novel focal therapeutic strategy for PCa, representing the middle ground between whole-gland therapy and AS. HIFU uses the energy of ultrasound waves to destroy cancer cells by initiating the process of coagulative necrosis (17). Treating cancer lesions precisely but preserving normal tissue and function (18), it can reduce the risk of treatment-related complications, greatly improve patients’ QoL, and decrease the burden of complication management (3,4).

This case involved an elderly male diagnosed with intermediate-risk PCa in good health condition. Considering the complex history of abdominal and pelvic surgery, aspiration for a cure, and requirement of functional preservation, mainly urinary function, we regarded focal therapy using focused ultrasound as an optimal option. Traditional HIFU mostly uses a hemi-gland or extended hemi-gland ablation scheme to achieve complete tumor ablation due to the difficulty in localization and margin identification by ultrasound (2). Post-treatment BOO remains a common complication, which can be classified as early or delayed types (8,9), resulting from transient edema of the prostatic stroma (8,9) and urethral stricture with fibrosis, respectively (10). Shoji et al. reported a urethra-sparing HIFU approach to reduce treatment-related BOO, regarded safe for selected patients and effective for prevention of urethral stricture and delayed-type BOO (10). However, this approach was not appropriate for cancer lesions located in the anterior urethral zone. Moreover, it has also been proven that patients with lesions in the anterior portion of the transitional zone has a higher risk of urinary dysfunction 1 month after the treatment, even though treated by focal HIFU (11).

Taking advantage of the high resolution of soft tissues and real-time temperature monitoring from MRI, the MRgFUS represents a newer technique based on focused ultrasound, which can realize more accurate cancer localization and a closed-loop feedback control of energy deposition, and eventually better fulfill the goal of “focal” ablation. In this case, a mass within the left transitional zone was found, with a high signal on DWI and low signal on the ADC map. However, a comparatively larger lesion was seen on T2WI, with an area involving the anterior urethral zone. As the treatment was planned based on T2WI, a scheme for treating the complete “inverted L-shaped” lesion was established to avoid the risk of incomplete treatment. Injury to the urethra could not be completely avoided as it was situated within the path of energy propagation. Orihuela et al. proved that the prostatic urethra would develop a new epithelial lining over time after thermal injury (19), suggesting that treatment covering the urethra is a safe procedure. However, urethral stricture with fibrosis resulting in BOO was also reported after HIFU, probably due to the relatively extended treatment area. Thus, we hypothesized that by reducing the injury to the urethra and adjacent normal tissue, the risk of developing early- and delayed-type BOO could be reduced to a minimum. As the exposure temperature and exposure time under the temperature are two key parameters associated with cell necrosis (20), we fulfilled our goal by adjusting the sequence of sonication of the macro spots, starting from the lateral side, the spots at which were the farthest from the urethra, to the midline of the prostate. In this way, the first sub-spots of the sonication, which are usually the ones with the highest energy in comparison to the rest of the sub-spots in the macro-sonication, were located far away from the urethra. In turn, the spots on/near the urethra would be with less energy, mainly thanks to the accumulated heat from previous spots, which allowed lower energy to reach the required thermal dose. Using this approach, we reduced the persistent exposure time of the midline tissue, located closest to the urethra, at a high temperature, thus reducing the accumulated thermal dose. Post-treatment contrast-enhanced MRI showed the urethra on the adjacent layer with enhanced signal, demonstrating the efficacy of our method in the preservation of urethral tissue activity. The satisfactory early outcomes also demonstrated that with appropriate adjustments, the treatment with MRgFUS could fulfill the goal of avoiding the early obstruction symptoms caused by prostatic swelling. As for the impact on long-term outcomes, follow-up data are still needed; however, since the patient had no sign of dysuria postoperatively, we believed the treatment strategy we proposed here a safe method for a urethra-sparing surgery.

There is no consensus regarding the time for catheter removal after MRgFUS treatment. A range of 0–7 days after treatment before catheter removal was reported by previous studies (12,21,22). In this case, a suprapubic catheter was used first as the urethra lay in the path of energy propagation. It was replaced by a urethral catheter, which was removed at less than 48 h after the treatment. However, urinary retention occurred, necessitating re-insertion of the catheter, which was removed 7 days later. The cause of retention was mostly attributed to edema of the prostatic stroma. Specifically, edema might have occurred very close to the urethra in this case, causing obstruction. Therefore, for patients with PCa lesions adjacent to the urethra or with the urethra within the treatment area of MRgFUS, a prolonged catheter-indwelling time may be necessary.

Previous studies reported some preliminary results proving MRgFUS as a feasible and safe approach for PCa treatment, with acceptable oncological outcomes and satisfactory functional outcomes (12,13,21,23) and complication rates far below that of non-MR guided focal HIFU. In this case, no obvious unpleasant side effects were reported by the patient. No sign of recurrence was found at the 3-month follow-up visit, and there was no significant change in IPSS, signifying our plan of a urethra-sparing MRgFUS to be safe and feasible.

For patients with low- to intermediate-risk localized PCa, the safety and efficiency of the therapeutic regimen and the impact on QoL should be taken into consideration when making decisions. MRgFUS has the potential to be an alternative to whole-gland therapy with acceptable oncological outcomes and a far lower complication rate. For PCa lesions located in the anterior urethral zone, we proved in this case that MRgFUS can safely be administered with appropriate adjustment during the treatment process. However, the oncological and functional outcomes of our proposed treatment strategy still need to be tested in further studies with larger sample sizes.

The treatment approach using MRgFUS utilized in this case could be safely used for a urethra-sparing surgery of PCa lesions in the anterior urethral zone, without influencing post-treatment urination. The indwelling time of the catheter should be extended appropriately for full recovery from treatment-related prostatic edema around the prostatic urethra to avoid early urinary retention.
