Magnetic resonance imaging of pancreatic malignancy

Mellena D. Bridges

Department of Radiology, Mayo Clinic Florida, Jacksonville, FL 32224, USA

Correspondence to: Mellena D. Bridges, MD. Department of Radiology, Mayo Clinic Florida, 4500 San Pablo Road, Jacksonville, FL 32224, USA. Email:

Abstract: Pancreatic malignancies continue to present a huge challenge not only to the surgeon, the gastroenterologist, and the oncologist, but to the radiologist as well. The poorly marginated, invasive nature of pancreatic ductal adenocarcinoma (PDA), the controversies regarding the clinical import of intraductal papillary mucinous neoplasms (IPMN), and the pitfalls introduced by tumor mimics are among the frustrating issues that make caring for affected patients so difficult. Dealing effectively with these tumors requires the highest possible level of imaging protocol optimization and radiologist expertise. Moreover, the patient with a pancreatic malignancy is best served when communication among imagers and clinicians flows freely, allowing for intelligent, effective patient care decisions.

Keywords: MRI; pancreas; cancer; intraductal papillary mucinous neoplasm (IPMN); mucinous cystic neoplasm (MCN); autoimmune pancreatitis

Submitted Nov 09, 2015. Accepted for publication Nov 19, 2015.

doi: 10.3978/j.issn.2218-676X.2015.11.05

Pancreatic malignancies continue to present a huge challenge not only to the surgeon, the radiation oncologist, and the medical oncologist, but to the radiologist as well. The pancreas is centered in the abdomen, tucked into the duodenal sweep, behind both stomach and transverse colon, with associated image degradation from bowel gas and motion. To complicate the picture further, nearly all the important vessels in the abdomen, along with the bile duct, are in intimate association with the pancreas. Even without these anatomic factors, visualization of pancreatic ductal adenocarcinoma (PDA) would be difficult due to the tumor’s generally infiltrative nature, poor margination, and relatively bland enhancement pattern (Figure 1). Pancreatic duct obstruction is the rule, generally resulting in congested, inflamed background pancreatic parenchyma, another feature obscuring the actual tumor and its margins (Figure 2). Detection and margination of a pancreatic tumor can be problematic for any imaging modality, largely because of the hypovascular and infiltrative characteristics mentioned above, and because of mimics like focal IgG4-related pancreatitis, sequelae of trauma or pancreatitis, groove pancreatitis, metastases to the pancreas, and intrapancreatic splenule. Further, since the pancreas lacks a capsule, tumor rapidly infiltrates into the peripancreatic tissues and encases critical vessels (Figure 3). Given these challenges for detection and staging, it is not surprising that as many as 57% of laparotomies performed with curative intent discover locally advanced PDA or metastatic disease unrecognized by the preoperative workup (1).

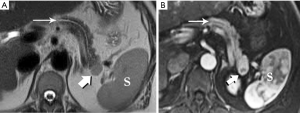

Figure 1 Ductal carcinoma of the pancreatic head. Coronal contrast-enhanced image hints at the presence of an ill-defined, hypo-enhancing tumor (long arrows) centered in the lower pancreatic head. Strands of tumor tissue infiltrate into and tether the small bowel mesentery.
Figure 2 Small pancreatic ductal adenocarcinoma (PDA) of the body of the pancreas. (A) The tumor itself is indiscernible on this axial thin-slice MRCP image, but its location is revealed by the abrupt caliber change of the pancreatic duct (arrow); (B) axial arterial phase enhanced image demonstrates the small, ill-defined, but resectable tumor (thick arrow) responsible for the duct obstruction. Thin arrow = hepatic artery; short arrow = superior mesenteric artery (SMA).

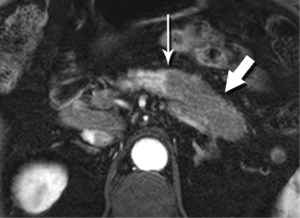

Figure 3 Infiltrative behavior of pancreatic ductal adenocarcinoma (PDA). Large tumor (T) of the pancreatic tail has infiltrated centrally to encase and narrow the tortuous splenic artery (thin arrows indicate two different segments of the artery). Tumor also abuts the superior mesenteric vein (SMV) (short arrow).

The radiologist is tasked not only with detecting a pancreatic tumor, but with determining whether it is currently, or potentially, surgically resectable. This is largely dependent on a tumor’s relationship with local arteries, specifically the celiac trunk, hepatic artery, and superior mesenteric artery (SMA). Attention must also be given to the status of the inferior vena cava, portal vein (PV), superior mesenteric vein (SMV), and first jejunal artery and vein. Current staging standards, published and periodically updated by the National Comprehensive Cancer Network (NCCN), describe three categories: resectable, borderline resectable, and unresectable, which are largely determined by these relationships, with slight variation depending on where in the pancreas the tumor resides (Figure 4). For example, a pancreatic head tumor is considered to have borderline resectability if it contacts the SMA, but the abutment must be less than 180 degrees (2).

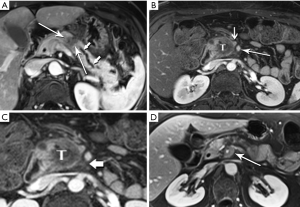

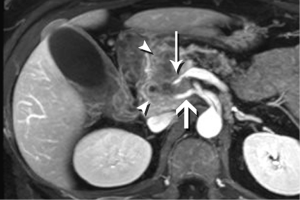

Figure 4 Criteria for resectability. (A) Small resectable tumor of the pancreatic body (long arrows) obstructs the upstream duct (short arrows), but is clearly confined to the pancreas; (B) hypoenhancing, borderline resectable tumor (T) expands the pancreatic head and broadly abuts the superior mesenteric vein (short arrow). Resectability will be determined by technical surgical issues; [long arrow = superior mesenteric artery (SMA)] (C) a closer look at this image reveals infiltrative tissue (arrow) behind the SMA; (D) a thick cuff of tumor tissue (arrow) completely engulfs the SMA, a feature of unresectability.

In our practice, patients are customarily offered neoadjuvant chemoradiation for borderline disease, and then imaged again to determine whether downstaging to resectability is possible (Figure 5). Changes in the appearance of irradiated tissue often mimic tumor infiltration, complicating assessment of treatment response, leading to frustration for the radiologist, and uncertainty for the entire management team as to the appropriate next step. Whether initially resectable, or downstaged through non-operative treatment, a detailed map of the local blood vessel anatomy must be created, especially any variants, such as a replaced right hepatic artery, which will usually course through the surgical field of a Whipple resection (Figure 6). These vascular issues become even more important when a laparoscopic surgical approach, with its limited field-of-view, is intended.

Figure 5 Pancreatic ductal adenocarcinoma (PDA) response to adjuvant chemoradiation. (A) Initial staging demonstrates a very poorly-defined pancreatic head mass with central necrosis (T). Complete encasement of the superior mesenteric artery (SMA) (long arrow), an important criterion for unresectability; [short arrow = superior mesenteric vein (SMV)] (B) complete regression of the tissue surrounding the SMA. Now resectable tumor recognizable only by a small area of necrosis seen on another slice, a remarkable response to treatment.

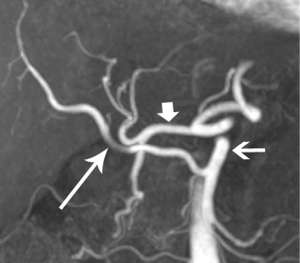

Figure 6 Magnetic resonance arteriogram (MRA) demonstrates a “replaced” right hepatic artery (RHA), an important normal variant. When the RHA (long arrow) arises from the superior mesenteric artery (SMA) (shorter arrow) rather than the common hepatic artery (thick arrow), it courses obliquely along the posterior margin of the pancreatic head. If not prepared for, a Whipple operation could be disastrous.

Moving beyond local staging, the imaging hunt for metastatic disease will focus on the liver, by far the most likely site, and screen for other sites of disease, such as the peritoneum (Figure 7). Discovery of liver metastases is critical to optimal management, to avoid treatment delay and the morbidity of surgery undertaken with the false assumption that the tumor is locally confined. It has been shown that occult liver metastases are often present at the time of pancreatectomy (3).

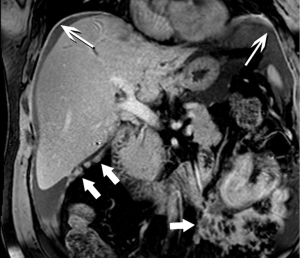

Figure 7 Peritoneal carcinomatosis. Plaque-like, enhancing tumor coats the peritoneum (long arrows) on this coronal enhanced MR image. More nodular implants are seen in Morrison’s pouch and in the mesentery (thick arrows).

Multiphase computed tomography (CT) for detection, staging, and post-treatment surveillance of PDA has received much attention in the literature over the past several decades, establishing itself as the gold standard imaging modality (4,5). Given the wide availability of high-quality CT systems and imaging protocols that are similar from institution to institution, current NCCN guidelines give CT first-line status for imaging work-up, with the caveat that high quality technique is required (6). Since PDA is generally a hypoenhancing tumor, at least two phases obtained following rapid bolus contrast injection (3-4 mL/sec) are required. The first, or pancreatic phase, is obtained at optimal pancreatic parenchymal enhancement, and the second, or portal phase, at optimal liver enhancement (7). In both phases, then, the primary tumor and any possible metastases will appear hypoattenuating to the background tissue. MRI is considered acceptable, but not preferable, due to expense, as well as the variable quality and expertise available in the radiology community. MRI protocols are also not currently standardized, and are not likely to be so in the near future, at least outside of academic centers and other high-level imaging practices. A role for positron emission tomography (PET) has not been established for a variety of reasons. For example, Wang et al. found that maximum standardized uptake value (SUVmax) of benign and malignant pancreatic lesions overlapped significantly in benign and malignant cases (8). Moreover, NCCN guidelines state that PET/CT is not a substitute for high-quality, contrast-enhanced CT. Addressing endoscopic ultrasound (EUS), the NCCN does not accord the procedure the status of a routine staging tool, but does recognize that EUS-directed biopsy is preferable to biopsy under CT (2,9).

In our institution, discussion and decisions regarding PDA management for individual patients occur in weekly multidisciplinary conferences. Accumulated experience in the group has led to fairly routine incorporation of EUS, not only for biopsy, but for tasks such as sampling of mucinous tumors, and clarification when CT or MRI is inconclusive or technically suboptimal. In addition, MRI has over the years become the primary imaging modality for diagnosis and staging of PDA for our patients.

While CT has always benefited from excellent spatial resolution, that is, the ability to depict fine structures and their relationships, it is eclipsed by MRI in the arena of contrast resolution, that is, the wide and manipulable gray scale that brings out differences between tissues, differences that may be subtle or indiscernible to CT. For example, it is contrast resolution that gives MRI its greater sensitivity to small liver metastases, which in turn may justify its additional cost. A recent study concluded that MRI outperforms multidetector CT for pancreatic metastases to the liver (10). Similarly, a meta-analysis found MRI superior to CT, FDG-PET, and PET-CT for hepatic metastases from gastrointestinal primaries (11). The improved contrast resolution of MRI is also responsible for the ease with which it can depict very small ducts and cystic lesions, which are markedly bright on heavily T2-weighted, fluid-sensitive techniques, popularly known as MR cholangiopancreatography (MRCP).

Required for PDA imaging with MRI is a multiphase contrast-enhanced protocol, using the same approach established for CT. Unique to MRI, diffusion-weighted imaging (DWI) has recently become sufficiently robust to be effective in the abdomen, and brings an exquisite sensitivity for most hepatic metastases (Figure 8). Fast, single-shot T2-weighted imaging, including MRCP, provides the final piece of vital information—the status of fluid-filled structures, whether pancreatic duct, bile duct, cystic lesions, or necrosis. An MRCP acquisition will also nicely demonstrate the classic double duct sign of a pancreatic head mass, where the desmoplastic, obstructing mass causes dilation of the ducts upstream (Figure 9). These three techniques form the bedrock of MRI imaging for PDA.

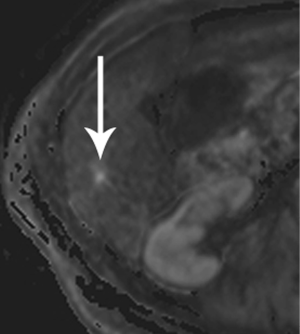

Figure 8 Liver metastasis. A tiny focus of high signal intensity is quite conspicuous on this diffusion-weighted image (DWI).

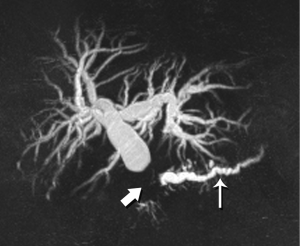

Figure 9 Double duct sign. Maximum-intensity reconstruction of a 3-D MR cholangiopancreatography (MRCP) acquisition shows the abrupt termination of the dilated pancreatic and bile ducts at the level of the pancreatic head, the classic sign of the presence of a carcinoma of the head of the pancreas.

Although the literature on staging emphasizes the relationship of tumor with the regional arteries, veins are often equally problematic It is true that even complete encasement of the PV is not considered an absolute contraindication to resection, unless technical issues impede the surgeon. However, in the setting of SMV invasion, we often discover that the tumor also involves critical jejunal tributaries or the inferior mesenteric vein, precluding successful surgical reconstruction. The anatomy of these vessels is also quite variable, so clear visualization is critical.

High-quality venous imaging has traditionally been elusive for conventional contrast-enhanced imaging, whether CT or MRI. Both iodinated contrast (for CT) and gadolinium-based contrast (MRI) are extravascular agents, that is, they quickly exit the blood pool at the tissue capillary bed. This is how tissue enhancement is accomplished, but it also means that beyond the arterial phase tissue enhancement tends to obscure vessels, especially small ones, and especially in areas where there is little separation of structures, like the pancreas and neighboring structures. To address this challenge, we have devised a novel approach to our PDA imaging that employs two different contrast agents. We first administer gadofosveset trisodium (AblavarR, Lantheus Medical Imaging, Billerica, MA, USA), a commercially available gadolinium-based agent that circulates in the blood pool for a prolonged period due to reversible binding with serum proteins. We then obtain magnetic resonance arteriogram and venogram (MRA/MRV) sequences in the coronal and axial planes using a hybrid technique that retains more information about tissue than conventional MRA, which is traditionally designed to exclude non-vascular structures as much as possible. When our conventional contrast agent is then injected, and subsequent imaging performed, the vessels, even smaller veins like jejunal tributaries and pancreaticoduodenal veins, retain their conspicuity in the context of the primary tumor and any extrapancreatic infiltration (Figure 10). An unexpected bonus has been visualization of liver metastases on the order of 3-4 mm in diameter, likely because the hybrid MRA slice thickness is between 1-2 mm (Figure 11). Finally, all of our PDA patients are scheduled on a 3 Tesla scanner to optimize spatial resolution.

Figure 10 Double contrast technique shows tumor involvement of right hepatic artery and main portal vein (PV). Large pancreatic head tumor (arrowheads) encases the replaced right hepatic artery (thick arrow). It also encases and markedly narrows the main PV (thin arrow) and superior mesenteric vein (SMV). Note conspicuity of both artery and vein.
Figure 11 Four mm liver metastasis. The excellent contrast resolution possible with MRI and the optimized technique permit this degree of conspicuity in such a tiny lesion.

While improvements in imaging technology provide increasingly reliable guidance regarding the presence and behavior of PDA, detection and staging remain extremely challenging, mirroring the intractability of this tumor when it comes to treatment. Incremental improvements should continue as technologies like PET-MR become more mature and novel molecular imaging agents become available. For the time being, however, it is clear that imaging and clinical management of PDA should occur in high volume centers with subspecialty expertise and state-of-the-art technology (7,12).

Acinar cell carcinoma

Although the second most common malignancy of the exocrine pancreas, acinar cell carcinoma is still quite rare, accounting for only 1-2% of these malignancies. It differs in both imaging appearance and prognosis from ductal adenocarcinoma, with improved outcomes (13,14). Acinar cell carcinoma is also famous for its ability to produce dramatically high levels of circulating lipase, resulting in an impressive clinical presentation involving painful subcutaneous nodules due to fat necrosis, polyarthropathy, and eosinophilia. However, this presentation occurs only in approximately 15% of cases, with non-specific weight loss and abdominal pain more often the presenting symptoms (14).

Relatively soft and well-circumscribed, at least in part because it does not elaborate the desmoplastic extracellular matrix that is so prominent a feature of PDA, the acinar cell tumor tends not to have an infiltrative appearance, but rather to appear as a solid mass, with varying amounts of intralesional necrosis (15). Its typically fairly large size at presentation may be due to delayed diagnosis made possible by this lack of infiltrative behavior. Enhancement also tends to be greater than the typical low-level enhancement of a ductal tumor, and duct dilation less common (Figure 12).

Figure 12 Acinar cell carcinoma. Arising from the pancreatic tail is a large, lobulated, well-circumscribed solid mass (T). Enhancement on this axial portal-phase contrast-enhanced image is moderate, and fairly uniform except for small foci of intralesional necrosis. While not encasing and occluding the splenic vein, as would a ductal adenocarcinoma, tumor thrombus can be seen protruding into the lumen of the vein (arrows).

Pseudopapillary tumor of the pancreas (PPT)

The uncommon, but not rare, PPT occupies a unique niche in the spectrum of pancreatic tumor due to its very specific demographic: young women. In a recent study of 97 patients with PPT, only 4 were male, and mean age in most reports is early 30’s (16). A low-grade malignancy, PPT rarely metastasizes, and local invasion is not a common feature. The large majority benefit from with surgical management, which is universally recommended, with resolution of symptoms and no recurrence (17-19). Unlike PDA, these are well-defined tumors, although they lack a real capsule, and they are more likely to occur in the tail and body than in the head. Heterogeneity is a very common feature, largely because of cystic elements, but with hemorrhage also recognized in 25-30% (20,21). Cystic elements are appreciated through their high signal intensity on T2-W images, and hemorrhage by the similarly high signal on T1-W images (Figure 13). Enhancement is variable, but tends to be progressive. Smaller tumors tend to behave somewhat differently, favoring a more homogeneous appearance on unenhanced imaging, but with early heterogeneous and progressive enhancement (22). Little has been reported about PPT’s appearance on DWI, but our institutional experience is that these lesions demonstrate significantly higher signal intensity on high b-value DWI than do PDA or mucinous pancreatic tumors. As these lesions enlarge, recognition of their origin in the pancreas becomes critical, especially those in the body and tail, so as not to mistake them for gastric GIST, adrenal lesions, or splenic masses.

Figure 13 Pseudopapillary tumor of the pancreas in a 32-year-old woman. (A) T2-W, fat-suppressed image shows a large, well-circumscribed tumor replacing the pancreatic head. The lesion is extremely heterogeneous, with multiple cystic foci (arrows); (B) T1-W fat suppressed image obtained before contrast injection reveals large areas of high-signal intensity material (arrow), compatible with hemorrhage; (C) once contrast has been administered, and the solid portions of the tumor enhance, the areas of hemorrhage appear relatively hypointense (arrow); (D) tumor conspicuity is high on this heavily diffusion-weighted image, reflecting high cellularity, hemorrhage and necrosis.

Pancreatic neuroendocrine tumor (PNET)

Although a functional PNET can present clinically with dramatic symptoms due to hypersecretion of one of several digestive hormones, the majority of these tumors are non-functional. Similarly, although often multiple when associated with genetic syndromes, especially multiple endocrine neoplasia type 1 (MEN-1), most PNET are solitary and sporadic (23). Reports regarding biologic behavior vary. The largest cohort has been compiled from the surveillance, epidemiology, and end results (SEER) registry. Among this group of nearly 1,500 PNET, the majority were malignant, with 60% metastatic at diagnosis, and 21% locally invasive, with prognosis somewhat improved for the functional variants (24). On the other hand, a single institution’s experience with 168 surgically resected PNETs found that more than three-quarters were benign, and half were found incidentally (25). Since they are symptomatic, functional tumors tend to be smaller when discovered, especially insulinomas.

The classic imaging appearance of functional PNET has been described as solid, well-circumscribed and hypervascular, which may be explained by the dense network of vessels encompassing the islet cells of the pancreas, required by the physiologic demand for a rapid supply of these hormones during the course of digestion. Imaging protocols have been devised to take advantage of these characteristics. A contrast-enhanced CT or MRI acquisition obtained in the arterial or pancreatic phase has long been considered critical for lesion detection, especially for the smaller, more solid tumors (Figure 14). For example, in a review of 30 resected insulinomas, only 63% were initially recognized on contrast-enhanced CT. However, in the subgroup of tumors that had undergone focused CT that had incorporated a pancreatic phase, all were recognized (26). Our MR experience with PNETs has been that a minority of these lesions can be frustratingly subtle with even the best designed imaging protocols, especially in the setting of MEN-1, due both to their usually small size and to their multiplicity (Figures 15,16). Also, although EUS has proven quite useful for detection and biopsy, we have found that even meticulous EUS often misses one or more lesions.

Figure 14 Insulinoma. Coronal image from an arterial phase acquisition reveals a small, hyperenhancing, well-circumscribed tumor (arrow). Notice prominent feeding artery (small arrows). P, pancreatic head; L, liver.
Figure 15 Subtle appearance of a tiny pancreatic neuroendocrine tumor. (A) The small lesion in the pancreatic tail is barely discernible on a fat-suppressed T2-weighted image; (B) challenging for detection, enhancement of tumor and the background pancreas is nearly identical.
Figure 16 Multiple pancreatic neuroendocrine tumors (PNETs) in a patient with Von Hippel Lindau syndrome. (A) Syndromic PNETs, most commonly seen in MEN-1, tend to be multiple and often quite small; (B) a dominant nodule demonstrates avid, homogeneous early contrast-enhancement.

Nonfunctional tumors have a more varied appearance, with hypoenhancing elements, necrosis, and invasive behavior developing as the lesions enlarge (Figures 17,18). Generally, PNETs are only mildly hyperintense on T2W images, with the exception of cystic components, which will be strongly hyperintense (27). Despite the fact that these tumors are generally thought of as solid masses, as many as 18% of PNETs less than 3 cm are predominately cystic (28), and when small lesions become cystic, they can easily be mistaken for side-branch intraductal papillary mucinous neoplasms (IPMN) or pseudocyst (Figure 19). The liver is by far the most likely target of metastases from PNETs, where the lesions are hyperenhancing and usually multiple (Figure 20). DWI sequences are exquisitely sensitive to the presence of liver metastases, out-performing T2-W and dynamic contrast-enhanced techniques alike, and should routinely be included in MR scanning protocols for PNETs (29).

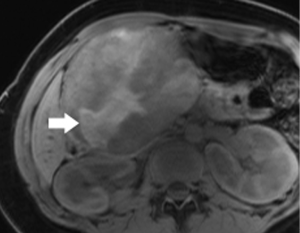

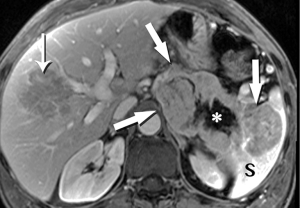

Figure 17 Pancreatic neuroendocrine tumor (PNET) with heterogeneous enhancement pattern. The center of this otherwise hyperenhancing tumor demonstrates less avid contrast uptake, likely indicating the early stages of central necrosis/fibrosis (long arrow = PNET, short arrows = pancreas). G, gallbladder.
Figure 18 Large, invasive pancreatic neuroendocrine tumor (PNET). Tumor (thick arrows) has obliterated the pancreatic tail and invaded the spleen (S). Notice the lack of central tumor enhancement, indicating necrosis (asterisk), and the large liver metastasis (thin arrow).
Figure 19 Cystic pancreatic neuroendocrine tumor (PNET). (A) A miniscule focus of high signal intensity (arrow) is barely visible on this fat suppressed, T2-weighted image; (B) a punctate hypointense focus is all that can be appreciated of the tumor on enhanced sequences.

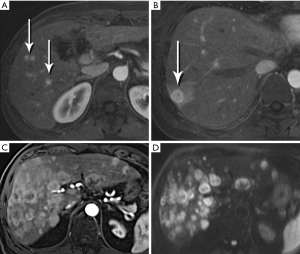

Figure 20 Liver metastases from pancreatic neuroendocrine tumors. (A) Tiny, solid, and hyperenhancing; (B) ring-enhancing; (C) multiple ring-enhancing lesions continue to grow despite aggressive radioembolization; (D) diffusion-weighted images, as here, are critical for detection and for assessment of treatment response. These metastases remain markedly conspicuous.

Intraductal papillary mucinous neoplasm (IPMN)

IPMN has attracted a remarkable, and increasing, amount of attention over the past 15-20 years. To a great degree, the still-escalating utilization of ever-more sophisticated imaging technologies has been responsible for the progressive increase in detection of these lesions. The sub-millimeter spatial resolution now available on multidetector CT (MDCT) systems and the excellent sensitivity of high-level MR systems for sub-centimeter cysts are the most important culprits. For example, in 2008, Laffan et al. reported a 2.6% prevalence of incidental pancreatic cysts found on MDCT (30). In a more recent study we have found an overall 43% incidental cyst prevalence in 500 patients undergoing abdominal MRI at our institution over a 10-year period, with the rate increasing during that time (31).

The defining feature of IPMN is intraductal accumulation of mucin produced by plaque-like tumors arrayed along the epithelial surface of the main pancreatic duct, its side branches, or both. As mucin accumulates, the affected duct dilates, sometimes to a remarkable degree, resulting in symptoms ranging from abdominal pain to pancreatitis (Figures 21,22,23). In early years, this entity was an endoscopic diagnosis made by recognition of mucin protruding into the duodenum through a bulging papilla (32), usually representing an advanced lesion.

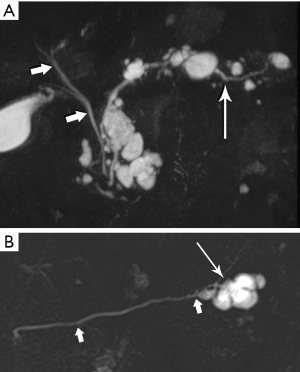

Figure 21 Intraductal papillary mucinous neoplasms (IPMN), main duct type. Axial thick-slab MR cholangiopancreatography (MRCP) image shows massive dilatation of the main pancreatic duct by hyperintense, cyst-like material (arrow = common bile duct, C = renal cyst).
Figure 22 Intraductal papillary mucinous neoplasms (IPMN), branch duct (bd) type. (A) Coronal thick-slab MR cholangiopancreatography (MRCP) image shows multiple cystic lesions arising from the main duct (long arrow), which is normal in caliber; (short arrows = bile duct) (B) coronal thick-slab MRCP shows a single multilocular bd-IPMN in the pancreatic tail (long arrow), clearly in communication with the main duct (short arrows).

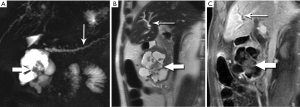

Figure 23 Intraductal papillary mucinous neoplasms (IPMN), mixed main duct—branch duct type. Many side branch lesions of varying sizes and locularity. Main duct (long arrows) moderately dilated (thick arrow = bile duct). Notice pancreas divisum.

In conjunction with increased and earlier detection, recognition of the malignant potential of IPMN lesions has led to confusion and controversy, with vacillating approaches to management. Intensive research efforts by the surgical, gastroenterology, and radiology communities are at last bringing some clarity to the conversation. One very large step has been taken with the recognition that main duct (md) and branch duct (bd) IPMN appear to be distinct lesions, given their markedly different rates of progression to frank malignancy and very different patient outcomes (33-35). In the past few years, in recognition of their very indolent growth pattern, simple imaging surveillance has become the primary management choice for small (<3 cm) suspected bd-IPMNs that lack suspicious features, enhancing mural nodules, or rapid growth in size (36-38).

Of greater concern are main duct or mixed main duct/side branch IPMN. The risk of malignant transformation appears to be an order of magnitude higher than for isolated bd-IPMN, and thus surgical resection or close surveillance are more often the appropriate management options. Consensus guidelines published in 2012 consider a main duct diameter of 10 mm or greater to be of high risk for malignancy, with 5-10 mm classified as worrisome (37). Enhancing nodules and obstructive jaundice are the other two high-risk stigmata. Even in the presence of stigmata of chronic pancreatitis, a main duct with a diameter of 5 mm or greater is worrisome (39).

High-resolution MRCP imaging is not only exquisitely sensitive to the presence of fluid, but it can also demonstrate the internal features of cystic lesions, such as locularity, septations, alterations in cyst fluid characteristics, and communication with the main duct, and is thus ideal for purposes of follow up (Figure 24). When combined with contrast-enhancing imaging, MR can distinguish between solid neoplastic mural nodules and clumps of non-enhancing inspissated mucin, and can detect enhancement of duct wall and septations. In a study of 51 patients with surgically resected md-IPMN who had undergone MRI/MRCP (40), Manfredi et al. found that enhancing mural nodules and diffuse duct involvement were most predictive of malignancy (Figures 25,26).

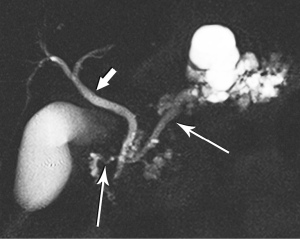

Figure 24 Malignant intraductal papillary mucinous neoplasms (IPMN). (A) Coronal thick-slab MR cholangiopancreatography (MRCP) image shows a large cystic lesion with a sizable filling defect (thick arrow) in the pancreatic head. Main duct caliber (thin arrow) is borderline; (B) sagittal thin slice MRCP shows the multilocularity of the bd-IPMN to better effect, as well as the multiple intralesional nodules (large arrow); (small arrow = intrahepatic bile ducts) (C) sagittal contrast-enhanced image proves that the filling defects are not mucin balls or debris, but enhancing, papillary nodules.
Figure 25 Malignant intraductal papillary mucinous neoplasms (IPMN), invasive. (A) Coronal thick slab MR cholangiopancreatography (MRCP) image shows a cystic-solid lesion in the pancreatic head (large arrow). The main duct (small arrows) is abnormal, with both dilated and strictured segments; (B) axial contrast-enhanced image through the pancreatic head reveals infiltrative tissue (arrows) extending anteriorly to involve the mesenteric vessels. T, tumor in the head; D, duodenum.
Figure 26 Diffuse malignant intraductal papillary mucinous neoplasms (IPMN). (A) Coronal thick-slab MR cholangiopancreatography (MRCP) image shows a massive cystic-solid mass (arrow) replacing the pancreas; (B) axial thin-slice MRCP shows replacement of the body and tail by the mass (thick arrows) (long arrows = solid papillary excrescences); (C) axial contrast enhanced image demonstrates the same findings and shows enhancement of the malignant excrescences.

Mucinous cystic neoplasm (MCN)

Another unique pancreatic tumor, the MCN is also a gender-specific entity: in a classic study of 130 MCN, all patients were women (41). This demographic distribution ceased to be surprising when ovarian stroma was recognized as a characteristic and requisite feature for diagnosis of this tumor. Although slow-growing and rather indolent, all MCN are considered to have malignant potential. With a mean age of 45 years, patients tend to be older than those with PPT. Their tumors are typically large, with a mean diameter of 10 cm, and nearly all are in the pancreatic body/tail (Figure 27). Primarily cystic, without internal hemorrhage, they contain mucin rather than serous fluid.

Figure 27 Mucinous cystic neoplasm (MCN) in a 21-year-old woman, without malignancy. (A) Axial T2-weighted, fluid-sensitive MR cholangiopancreatography (MRCP) image shows a large oligocystic lesion arising from the pancreatic body/tail (arrowhead = septation, thick arrow = small locule); (B) delayed-phase image shows very faint enhancement of thin walls of septum and locule. Splenic vein occlusion confirmed by the large, tortuous venous collaterals along the tumor margin (long arrow).

Recognition of the small mural nodules, which is where the dysplastic/neoplastic elements reside, is challenging for CT, but facilitated in MRI by the marked contrast between fluid and tissue (Figure 28). Subtraction of the pre-contrast from the post-contrast images will confirm that high signal foci represent enhancing tissue rather than hemorrhage or inspissated mucin. MRI readily characterizes the oligocystic nature of this tumor, the well-circumscribed wall, the very common small mural nodules, and the lack of hemorrhage or communication with the duct (42,43). Unless these features are clearly demonstrated on imaging, an MCN lesion is easily mistaken for a pseudocyst.

Figure 28 Mucinous cystic neoplasm (MCN) in a 42-year-old woman with a 5 mm invasive adenocarcinoma at histopathology. (A) Axial thin-slice MR cholangiopancreatography (MRCP) image demonstrates a large unilocular cystic lesion (thin arrow) replacing the pancreatic tail. Cystic-solid mural nodules project into the cyst fluid (thick arrow); (B) axial contrast-enhanced arterial phase image suggests possible small foci of nodule enhancement; (C) delayed-phase image confirms the enhancement and also highlights the mural thickening and enhancement consistent with the neoplastic origin of this MCN.


Primary pancreatic malignancies can be mimicked by a handful of other entities, including metastases from elsewhere, inflammatory processes, ampullary and bile duct tumors, and anatomic variants like intrapancreatic splenic tissue.

Metastases to the pancreas are quite uncommon, with a smattering of reports involving breast, colorectal, lung, and cutaneous melanoma primaries. By far the most common are of renal cell carcinoma (RCC) origin (44). Interestingly, these tend to be fairly indolent, perhaps due to a lower biologic aggressiveness of the primary, with generally excellent survival data, even when diagnosis is delayed (45-47). Metastases from RCC are recognized for a hypervascularity that results in striking early hyperenhancement similar to the appearance of a primary clear cell RCC, but also often not distinguishable from a PNET (Figure 29). Because of this behavior, inclusion of an arterial phase sequence following contrast injection is rewarded by greater tumor conspicuity against a background of more gradually enhancing pancreatic parenchyma (48). In our experience, multiple metastases occur more commonly than solitary lesions (Figure 30).

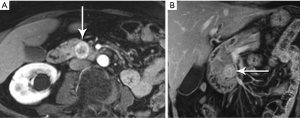

Figure 29 Renal cell carcinoma (RCC) metastasis to the pancreatic head mistaken for a pancreatic neuroendocrine tumor. (A) Well-circumscribed, hypervascular lesion (arrow) demonstrated on this contract-enhanced image obtained in the arterial phase; (B) lesion more subtle, and nearly isointense with pancreas, on coronal enhanced image obtained a minute later.
Figure 30 Multiple renal cell carcinoma (RCC) metastases to the pancreas with indolent growth pattern. (A) Coronal enhanced image demonstrates two of several metastases (arrows) discovered incidentally on an MRI obtained for another indication; (B) five years later the lesions are more evident and larger, but remain localized to the pancreas; (C) ten years later an arterial phase image obtained in a 3T scanner clearly delineates a number of hypervascular metastases, continuing to grow extremely slowly (long arrow = metastasis to gallbladder).

IgG4-related sclerosing disease is an umbrella term that refers to a family of fibrosing disorders characterized by tissue infiltration by IgG4 rich plasma cells. Potentially affected organs include kidneys, biliary tree, salivary glands, small bowel mesentery, and pancreas, alone or in combination. Because the disease often affects the pancreas focally, with swelling, decreased enhancement, and stricturing of involved ducts, IgG4-related pancreatitis can mimic pancreatic adenocarcinoma (Figure 31). Also diagnostically problematic is the absence of gland edema and peri-pancreatic fluid so typical of inflammatory pancreatitis. Although a good deal of attention has been paid in recent years to this entity, IgG4-related pancreatitis is still under-recognized, resulting in major surgeries and other unnecessary treatments for a disease that typically responds quite rapidly to steroids. Observations like focally increased bulk without infiltration beyond the gland; uniform low level enhancement; a narrowed and irregular, but not obstructed, duct; delayed capsule-like enhancement; and marked diffusion restriction should stimulate consideration of focal IgG4-related pancreatitis as an alternative to malignancy (49-52).

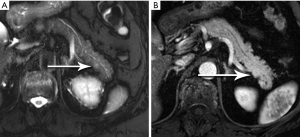

Figure 31 Focal IgG64-related autoimmune pancreatitis. The pancreatic tail and most of the body is swollen and poorly-enhancing (thick arrow), with a very clearly defined margin between it and the rest of the enhancing parenchyma (thin arrow). No invasion of local structures or splenic vein occlusion. Nonetheless, the patient underwent a distal pancreatectomy for suspicion of underlying malignancy.

Splenules, or accessory spleens, are very common incidental findings on cross-sectional imaging. Since they are most often found in the vicinity of the splenic hilum, they are also in close proximity to the pancreatic tail, sometimes actually within the substance of the tail. An intrapancreatic splenule can mimic a hypervascular pancreatic mass, such as a neuroendocrine tumor. Fortunately, a splenule will match the T2-W appearance, the diffusion behavior, and the very characteristic enhancement pattern of the spleen itself (Figure 32).

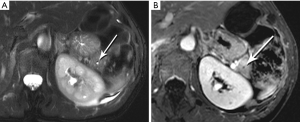

Figure 32 Intrapancreatic splenule. (A) Axial T2-WI through the pancreas shows a small well-defined nodule (short arrow) in the tail of this atrophic pancreas, with signal intensity identical to the spleen itself; (B) the nodule follows the enhancement of the spleen on this arterial phase along with the other phases following contrast administration. Thin arrow = pancreatic duct. S, spleen.

Ampullary carcinoma arises from the glandular epithelium of the ampulla of Vater and, like duodenal carcinoma, carries a more favorable prognosis than PDA (53). However, it is easily mistaken for carcinoma of the head of the pancreas since obstruction at the level of the ampulla will also produce the double duct sign for which PDA is so well known. It also tends to be similarly hypoenhancing, ill-defined, and small at presentation (Figure 33). Similar confusion can be created by cholangiocarcinoma affecting the distal, intrapancreatic portion of the bile duct.

Figure 33 Ampullary carcinoma. (A) Heavily T2-weighted coronal image through the pancreatic head (H) shows an unusually well-circumscribed tumor (long arrow) occupying the ampulla of Vater, obliterating the papilla, and protruding into the duodenal lumen; (B) on a coronal T1-W image obtained following contrast injection, the tumor enhances, but now appears less well-defined. Moderate bile duct dilatation (short arrow). Mild pancreatic duct dilatation (thick arrow). H, head of the pancreas.


Despite incremental improvements in diagnostic efficacy of imaging for cancer of the pancreas, detection, characterization, and staging of these lesions remain challenging. These challenges mirror the difficulties currently faced by the oncologists, gastroenterologists, and surgeons who are charged with managing the patients afflicted by pancreatic tumors. CT, MRI, and FDG-PET have roles that vary by institution, rightly so because levels of expertise vary. In summary, however, the patient will be best served by diagnostic imaging performed in high volume centers with state-of-the art technology (12). Perhaps even more important is the availability of interested sub-specialist radiologists who are educated to the oncologic and surgical issues critical to effective treatment of this stubborn, too-often lethal disease.

For the time being, however, it is clear that imaging and clinical management of PDA should occur in high volume centers with subspecialty expertise and state-of-the-art technology (7,12).
