Establishment of a 7-microRNA prognostic signature and identification of hub target genes in colorectal carcinoma
Introduction
Colorectal cancer (CRC) has high morbidity and mortality, colorectal adenocarcinoma is the main form and accounting for more than 95% of CRC patients (1). Due to its high heterogeneity, traditional predictors such as age and tumor-node-metastasis (TNM) stage are not sufficient to accurately predict the survival risk of CRC patients. Exploring novel biomarkers is necessary to provide effective and personalized predictive tools. For the past few years, investigators have carried out a series of explorations in this field, and several prognostic gene signatures (2,3), transcriptional signatures and noncoding RNA signatures have been published (4-6). However, there is still no recognized prognostic prediction model, and further research is required.
MicroRNAs (miRNAs) are a class of endogenous non-coding single-stranded RNA molecules about 20–25 nucleotides with regulatory functions, and participates in a series of important processes in life, including early development, cell proliferation, apoptosis, cell death, fat metabolism and cell differentiation. Many miRNAs expression profiles related to particular malignancies have been found to have tumor-suppressive or oncogenic roles in different cancer types and further affect the prognosis of patients. Moreover, the functions of miRNAs are involved in the occurrence, development and metastasis of tumors (7). For instance, Mirzaei et al. (8) reported that miR-29b has significant tumor-suppressive effects on chronic lymphocytic leukemia (CLL). In addition, Zhou et al. (9) discovered that miR-130a acts as an oncogenic miRNA in gastric cancer.
In our study, we sought to develop and validate a miRNAs prognostic signature through data mining of the Cancer Genome Atlas (TCGA) database. The prognostic model can identify high-risk CRC patients with lower survival rates to allow intervention can be initiated earlier to improve quality of life, and find prognostic related target genes through the interaction study and functional analysis of target genes, so as to provide new ideas for targeted therapy.
We present the following article in accordance with the TRIPOD reporting checklist (available at https://tcr.amegroups.com/article/view/10.21037/tcr-21-1992/rc).
Methods
Acquisition and processing of the data sets
MiRNAs expression data along with clinical information for 521 colorectal adenocarcinoma patients were downloaded from the TCGA database at http://cancergenome.nih.gov/ (up to March 2020). For miRNAs expression data, the miRNAs with minimal expression levels (<1) were first filtered out, and the data were then processed via a standard procedure using the “edgeR” package (version 3.6.2). Finally, 385 differentially expressed miRNAs were identified between cancer tissues and normal tissues in CRC patients, using |log2FC| of >1 and an adjusted P value of <0.05 as cutoff criteria. The heatmap of the top significantly differentially expressed miRNAs was generated with the “ggplot2” package (version 3.6.3). Patients with incomplete clinical information (including sex, age, TNM stage, survival status and overall survival time) were excluded from further analysis. Overall survival time and survival state were predicted outcomes. After the above exclusion steps, 415 CRC patients were enrolled in and divided into training set (n=208) and test set (n=207) randomly in R-3.6.1. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).
Screening the prognosis-related miRNAs and modeling in the training set
Firstly, the regression analysis of univariate Cox proportional hazards was performed in the training set to analyze the correlation between the expression level of each miRNA and the patient’s survival time and status via the R package “survival”. Secondly, least absolute shrinkage and selectionator operator (LASSO)-Cox regression was conducted on the miRNAs with a P value of <0.05 in the first analysis. LASSO is a compression estimate method that can produce a more refined model by constructing a penalty function. In this study, we used the R package “glmnet”. To determine the value of penalty parameter λ, cross-validation was carried out first, and the value of λ resulting in the minimum mean cross-validated error was selected (10). Thirdly, the selected miRNAs were included in the multivariate Cox regression analysis to calculate their respective coefficients. Lastly, the following micoRNA prognostic signature was constructed: micoRNA signature =, where i is the name of the prognostic miRNA and β is the coefficient of that miRNA in the third analysis. MiRNAs with a positive coefficient were considered as oncogenic miRNAs, while those with a negative coefficient were considered as protective miRNAs.
Efficacy verification of the miRNA signature in the three data sets
To further assess the efficacy of the micoRNA signature, we calculated the score of each patient in the three data sets (the training set, the test set and the entire set) based on this micoRNA signature. According to the median, each set was divided into a high-risk group and a low-risk group, and then the Kaplan-Meier survival analysis was applied to compare the overall survival difference between the high-risk group and the low-risk group using the R package “survival”. To verify the efficacy of the micoRNA signature, time-dependent receiver operating characteristic (ROC) curves and the areas under the ROC curves (AUCs) were obtained via the R package “timeROC”.
Combination of clinical factors to evaluate the efficacy of the micoRNA signature
In the entire data set, the micoRNA signature combining clinical factors (including age, gender, race, tumor site and TNM stage) was analyzed by univariate Cox regression and multivariate Cox regression to identify associations between these miRNAs and overall patient survival. The variables with a P value of <0.05 were included in further horizontal and vertical comparisons. ROC curve analysis was performed with the R packages “plotROC” and “ggplot2” to horizontally compare the micoRNA signature with clinical factors related to the prognosis of CRC. Kaplan-Meier survival curves were used for stratified longitudinal analysis.
MiRNAs target genes prediction and their interaction network
Target genes of the selected miRNAs were predicted via the following three miRNA databases: miRTarBase (http://mirtarbase.mbc.nctu.edu.tw/, version: 7.0), TargetScan (http://www.targetscan.org/, version: Human 7.2) and miRDB (http://mirdb.org/). The intersection of the results obtained from the three databases was considered the set of miRNA target genes. MiRNA target genes interaction network was achieved using the STRING database (https://string-db.org/, version: 11.0). Cytoscape (version: 3.7.2) was used to screen out the Top10 target genes, and MCODE plug-in was applied to select the important gene modules.
Functional enrichment analysis and survival analysis of target genes
Functional enrichment analysis of these miRNA-related genes was download from the STRING database after interaction network analysis, including Gene Ontology-biological process (GO-BP) enrichment analysis and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis. The results with a false discovery rate (FDR) of <0.05 were visualized using the R packages “Cairo” (version 3.6.3) and “ggplot2” (version 3.6.3). The online analysis site GEPIA2 (http://gepia2.cancer-pku.cn/) was used to perform ROAD and READ prognostic analysis of overall survival for Top10 target genes in the TCGA database.
Statistical analysis
Univariate Cox, LASSO-COX and multivariable Cox were used to select the prognostic miRNAs in R-3.6.1. LASSO-COX was conducted by R package “glmnet”. The penalty parameter λ was determined by cross-validation, and the value of λ resulting in the minimum mean cross-validated error was selected. Survivals were evaluated with the Kaplan-Meier method and log-rank test. P<0.05 was considered statistically significant.
Results
Patient data
MiRNA expression files and clinical information for 521 CRC patients (comprising 529 tumor samples and 11 normal tissues) were downloaded from the TCGA database. A total of 415 CRC patients with complete clinical data were enrolled in further analysis. All enrolled patients had primary adenocarcinoma, did not have a previous or concurrent malignancy, and received no chemotherapy or radiotherapy before surgery. After differential miRNA expression analysis, the 415 CRC patients were randomly divided into two sets (Table 1). The detailed research design could be seen in Figure 1A.
Table 1
Clinical information | Training set, n (%) | Testing set, n (%) | Entire set, n (%) | P value |
---|---|---|---|---|
N | 208 | 207 | 415 | |
Age (years) | 0.905 | |||
<65 | 97 (46.6) | 92 (44.4) | 189 (45.5) | |
≥65 | 111 (53.4) | 115 (55.6) | 226 (54.5) | |
Gender | 0.360 | |||
Female | 105 (50.5) | 90 (43.5) | 195 (47.0) | |
Male | 103 (49.5) | 117 (56.5) | 220 (53.0) | |
Race | 0.771 | |||
Asian | 7 (3.4) | 2 (1.0) | 9 (2.2) | |
Black | 108 (51.9) | 105 (50.7) | 213 (51.3) | |
White | 66 (31.7) | 74 (35.7) | 140 (33.7) | |
Not reported | 27 (13.0) | 26 (12.6) | 53 (12.8) | |
Tumor site | 0.814 | |||
Rectum | 27 (13.0) | 36 (17.4) | 63 (15.2) | |
Rectosigmoid junction | 28 (13.5) | 26 (12.6) | 54 (13.0) | |
Colon | 153 (73.6) | 145 (70.0) | 298 (71.8) | |
AJCC-T | 0.898 | |||
Tis | 1 (0.5) | 0 (0.0) | 1 (0.2) | |
T1 | 7 (3.4) | 7 (3.4) | 14 (3.4) | |
T2 | 36 (17.3) | 38 (18.4) | 74 (17.8) | |
T3 | 141 (67.8) | 140 (67.6) | 281 (67.7) | |
T4 | 23 (11.1) | 22 (10.6) | 45 (10.8) | |
AJCC-N | 0.532 | |||
N0 | 118 (56.7) | 118 (57.0) | 236 (56.9) | |
N1 | 55 (26.4) | 47 (22.7) | 102 (24.6) | |
N2 | 35 (16.8) | 42 (20.3) | 77 (18.5) | |
AJCC-M | 0.839 | |||
M0 | 155(74.6) | 158 (76.3) | 314 (75.7) | |
M1 | 32(15.4) | 33 (15.9) | 64 (15.4) | |
MX | 19 (9.1) | 15 (7.2) | 34 (8.2) | |
Unknown | 2 (1.0) | 1 (0.5) | 3 (0.7) | |
Pathological stage | 0.999 | |||
I | 39 (18.8) | 40 (19.3) | 79 (19.0) | |
II | 74 (35.6) | 76 (36.7) | 150 (36.1) | |
III | 63 (30.3) | 57 (27.5) | 120 (28.9) | |
IV | 32 (15.4) | 34 (16.4) | 66 (15.9) | |
Survival status | 0.841 | |||
Alive | 164 (78.8) | 168 (81.2) | 332 (80.0) | |
Dead | 44 (21.2) | 39 (18.8) | 83 (20.0) |
CRC, colorectal cancer; AJCC, American Joint Committee on Cancer.

Differentially expressed miRNAs between cancer tissues and normal tissues in CRC patients
Before analysis, data normalization and log2 transformation were conducted in the miRNA expression files firstly using R software (version 3.6.1). We finally identified 385 differentially expressed (231 upregulated and 154 downregulated) miRNAs (|log2FC| >1 and the adjusted P value <0.05) using the “DESeq” package (Figure S1). The heatmap of top25 differentially expressed miRNAs could clearly distinguish the CRC samples from the controlling normal samples (Figure S2).
Signature identification of the prognosis-related miRNA in the training set
Univariate Cox regression analysis with the LASSO method was used in the training set for selection of CRC prognosis-related miRNAs among the 385 differentially expressed miRNAs. Eleven miRNAs with the best fit were screened by LASSO-Cox regression method (Figure 1B,1C). Then, through a stepwise multivariate Cox regression analysis to maximize accuracy and validity, seven miRNAs were finally screened, and the prognosis-related miRNA signature was constructed based on the expression levels of these seven miRNAs. The signature formula was as follows: 7-micoRNA signature = hsa-miR-144 × −0.255 + hsa-miR-153-2 × 0.472 + hsa-miR-505 × 0.475 + hsa-miR-887 × 0.565 + hsa-miR-3199-2 × 0.509 + hsa-miR-561 × 0.452 + hsa-miR-3684 × 0.516. The higher concordance index (C index), the better model performance, and the C index of the 7-micoRNA signature was 0.772.
Among these miRNAs, hsa-miR-144 had a negative coefficient in the risk formula, indicating that it might be considered a protective miRNA; that is, the higher the expression level of this miRNA, the longer was the survival time of the patient. The remaining six miRNAs in this risk formula had positive coefficients, pointing that higher expression levels of these miRNAs were associated with shorter patient survival times.
Evaluation of the survival prediction capability of the 7-micoRNA signature in the training set
The 208 samples in the training set were scored according to the risk scoring formula and divided into the high-risk group (n=104) and the low-risk group (n=104), with a median value of 1.009 as the cutoff point. The Kaplan-Meier overall survival curves of the two groups showed statistically significant differences between patient survival (log-rank test P=5e−08) (Figure 2A). ROC curves along with AUC values were further generated to evaluate the prognostic ability of the 7-micoRNA signature (Figure 2B). The AUCs for 3- and 5-year survival in the training set were 0.769 and 0.889, respectively, indicating that the signature had good performance in predicting CRC patients’ survival risk. In addition, the distributions of the risk score, survival status and expression profile of the seven miRNAs in the training set were illustrated to visualize the analysis results (Figure 2C). Patients with higher risk scores had poorer overall survival than patients with lower risk scores, as shown in Figure 2C. The expression levels of the protective miRNA hsa-miR-144 were significantly decreased in patients with high-risk scores, whereas those of the remaining six oncogenic miRNAs (miR-153-2, miR-505, miR-887, miR-3199-2, miR-561, and miR-3684) were increased.

Performance verification of the 7-micoRNA signature in the test set and entire set
To evaluate the performance of the 7-micoRNA signature for predicting the survival of CRC patients, Kaplan-Meier survival analysis was conducted and ROC curves with AUC values were generated in the test set (n=207) and the entire set (n=415). Patients in the two validation sets were classified into a high-risk group and a low-risk group according to the constructed 7-micoRNA signature. Similar results were obtained in Kaplan-Meier survival analysis of the two set, in which the patients in the high-risk group had significantly shorter overall survival times than those in the low-risk group (Figures S3,S4). These results confirmed the power of the 7-micoRNA signature for predicting the prognosis of CRC patients. Besides, the overall survival times of patients in the high-risk group was significantly shorter than those of patients in the low-risk group; moreover, one protective miRNA, hsa-mir-144, was highly expressed in the low-risk group, while the remaining six oncogenic miRNAs were highly expressed in the high-risk group, reconfirming the results in the training set.
Combination of routine clinical factors for efficacy evaluation of the 7-micoRNA signature
Clinical factors play an important role in tumor prognosis. To construct a more stable and effective prognostic model, the 7-micoRNA signature combined with conventional clinical parameters (including age, race, sex, tumor site and TNM stage) was analyzed by univariate and multivariate Cox regression along with stratification analysis to evaluate the associations of these parameters with the overall survival in the entire data set. Variables with a P value of <0.05, the 7-micoRNA signature, age and TNM stage, were considered to be associated with prognosis, as shown in Table 2. In addition, the conclusion can be made that the 7-micoRNA signature is an independent risk factor for the prognosis of CRC patients.
Table 2
Variables | Univariate Cox | Multivariate Cox | |||||
---|---|---|---|---|---|---|---|
HR | 95% CI of HR | P value | HR | 95% CI of HR | P value | ||
Gender (female vs. male) | 0.995 | 0.646–1.533 | 0.983 | −0.279 | 0.608–1.454 | 0.780 | |
Race (Asian vs. Black vs. White reported) | 1.003 | 0.732–1.375 | 0.983 | −0.874 | 0.602–1.215 | 0.382 | |
Age (<65 vs. ≥65 years) | 2.101 | 1.338–3.299 | 0.001* | 4.017 | 1.634–4.164 | 5.89E−05* | |
Tumor site (rectum vs. colon) | 1.054 | 0.775–1.435 | 0.736 | 0.580 | 0.799–1.514 | 0.562 | |
TNM stage (I + II vs. III + IV) | 3.296 | 2.060–5.273 | 6.56E−07* | 4.751 | 1.983–5.185 | 2.02E−06* | |
7-micoRNA signature (low vs. high) | 4.365 | 2.557–7.453 | 6.66E−08* | 4.838 | 2.218–6.565 | 1.31E−06* |
*, P<0.05. CRC, colorectal cancer; TNM, tumor-node-metastasis; HR, hazard ratio.
Then, ROC curves and AUC values were used to horizontally compare the efficacy of the 7-micoRNA signature with those of patient age and TNM stage in predicting the prognosis of patients with CRC. First, the 7-micoRNA signature, age, and a new variable combining both of these variables were included in the analysis. As shown in Figure 3A, the 7-micoRNA signature showed a higher predictive power than the age. Then, the 7-micoRNA signature, TNM stage, and a new variable combining both of these variables were included; similarly, the predictive power of the 7-miRNA signature was superior to that of the TNM stage (Figure 3B).

Finally, analysis was performed on the 415 patients stratified by age and TNM stage to compare the risk score of the 7-micoRNA signature. The patients were divided by the average age in years into the younger group (<65, n=189) and the aged group (≥65, n=226). In the younger group, the 7-micoRNA signature divided the patients into a high-risk group (n=95) and a low-risk group (n=94) according to the median risk score. Kaplan-Meier survival curves showed that the difference between the two risk groups was statistically significant (P=0.00323695, Figure 3C). The corresponding values were also statistically significant (P=1e–07, Figure 3D) in the aged group, which was also divided into the high- and low-risk groups (n=112 and 114, respectively). Then, the patients were classified by TNM stage into the early-stage group (stages I + II, n=229) and the advanced-stage group (stages III + IV, n=186). In both stage groups, the 7-micoRNA signature separated the patients into a high-risk group and a low-risk group independently. Similarly, the Kaplan-Meier survival curves for both stage groups indicated that the overall survival times of patients in the high-risk groups were significantly shorter than those of patients in the low-risk groups (P=5.891e–05 & 0.00011855, Figure 3E,3F).
Target gene prediction of the seven prognostic miRNAs and their interaction network
To investigate the cellular processes and biological pathways associated with the seven prognostic miRNAs, miRNA target prediction was separately performed with miRDB, miRTarBase7.0 and TargetScan. MiRDB identified 6,267 miRNA-related genes (11), while TargetScan (12), the most comprehensive miRNA target gene database, identified 14,034 mRNAs. MiRTarBase (13), the experimentally validated miRNA-target interaction database, identified 149 mRNAs associated with the seven prognostic miRNAs. The intersection of the results from these three databases was identified as the set of miRNA targeted genes (n=67, Figure 4A) for further analyses. The interaction network of the sixty-seven target genes were constructed by the STRING database (14) (Figure S5). The interactions between target genes were download, which was input to software Cytoscape (version: 3.7.2). In addition, the top10 hub genes including PTEN, CDKN1A, NOTCH1, MTOR, EIF4E, HNRNPC, FOXO1, MCL1, SNAI1, DDX3X were screened out (Figure 4B), and two major gene modules were selected using MCODE plug-in (Figure 4C). Except DDX3X, other nine top10 target genes were all in the first module, which had a score of 6.154. The second module, consisting of DDX3X, DDX6, and YTHDC2, has a score of 3.

Functional enrichment and survival analysis of the target genes

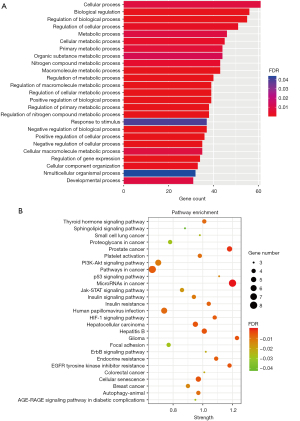

For functional enrichment, GO BP and KEGG pathway enrichment analyses were download from STRING database. Then, the terms with FDR <0.05 were visualized using the R packages “Cairo” and “ggplot2”. The GO analysis highlighted a 30- to 60-fold enrichment mainly in cell biological processes, metabolic processes, development and differentiation, as well as responses to stimulus (Figure 5A). The GO analysis results indicated the potential roles of the seven prognostic miRNAs in the regulation of CRC tumorigenesis and progression via targeting of their associated mRNAs. The KEGG analysis in biological pathways indicated that EGFR tyrosine kinase inhibitor resistance was a major factor affecting the prognosis of CRC patients, and the target genes involved mainly included MTOR, PTEN, BCL2, and PRKCA (Figure 5B, Table 3). We also found that MTOR signaling pathway was a key pathway in the downstream pathways of EGFR signaling pathway, including PI3K-Akt, HIF-1, JAK-STAT and ErbB signaling pathway. CDKN1A, which related to CRC, participated in the regulation of almost all the downstream EGFR signaling pathways with p53 signaling pathway included. Kaplan-Meier survival curves of the top10 target genes were ploted using the online analysis site GEPIA2 based on TCGA database, including COAD and READ (15). Finally, the results showed that CDKN1A, EIF4E and SNAI1 were associated with prognosis in patients with colorectal adenocarcinoma (Figure 6A-6C).

Table 3
Term | Strength | FDR | Matching target genes in the network |
---|---|---|---|
miRNAs in cancer | 1.2 | 8.93E-06 | NOTCH1, MTOR, MCL1, PTEN, BCL2, CDKN1A, PRKCA, ZEB2 |
EGFR tyrosine kinase inhibitor resistanceCellular senescence | 1.18 | 0.0053 | MTOR, PTEN, BCL2, PRKCA |
Endocrine resistance | 1.09 | 0.0067 | NOTCH1, MTOR, BCL2, CDKN1A |
HIF-1 signaling pathway | 1.08 | 0.0067 | MTOR, BCL2, CDKN1A, PRKCA |
Pathways in cancer | 0.66 | 0.0067 | NOTCH1, MTOR, PTEN, FOXO1, NFE2L2, BCL2, CDKN1A, PRKCA |
Insulin resistance | 1.04 | 0.0075 | MTOR, PTEN, FOXO1, PPP1CB |
Thyroid hormone signaling pathway | 1.01 | 0.0089 | NOTCH1, MTOR, FOXO1, PRKCA |
Autophagy - animal | 0.97 | 0.0097 | SNAP29, MTOR, PTEN, BCL2 |
Platelet activation | 0.98 | 0.0097 | PRKCI, FGA, FGG, PPP1CB |
PI3K-Akt signaling pathway | 0.7 | 0.0116 | MTOR, MCL1, PTEN, BCL2, CDKN1A, PRKCA |
Insulin signaling pathway | 0.94 | 0.0116 | PRKCI, MTOR, FOXO1, PPP1CB |
p53 signaling pathway | 1.11 | 0.0144 | PPM1D, PTEN, CDKN1A |
Jak-STAT signaling pathway | 0.86 | 0.0174 | MTOR, MCL1, BCL2, CDKN1A |
ErbB signaling pathway | 1.02 | 0.0221 | MTOR, CDKN1A, PRKCA |
CRC | 1.01 | 0.0225 | MTOR, BCL2, CDKN1A |
Focal adhesion | 0.77 | 0.029 | PTEN, PPP1CB, BCL2, PRKCA |
Proteoglycans in cancer | 0.78 | 0.029 | MTOR, PPP1CB, CDKN1A, PRKCA |
Sphingolipid signaling pathway | 0.88 | 0.0424 | PTEN, BCL2, PRKCA |
KEGG, Kyoto Encyclopedia of Genes and Genomes; miRNA, microRNA; FDR, false discovery rate; EGFR, epidermal growth factor receptor; CRC, colorectal cancer.

Discussion
CRC is the world’s third most common cancer (16), accounting for approximately 10% of all new cancer cases annually worldwide (17). Adenocarcinoma is the most common histological type of CRC. Although CRC screening for earlier detection has somewhat reduced morbidity and mortality in recent years, the 5-year survival rate of CRC patients remains unsatisfactory (18), and the molecular mechanisms underlying CRC progression are still elusive. CRC is a highly heterogeneous tumor, and developing novel predictive biomarkers is important and needed for obtaining a better understanding of CRC and providing diagnostic and therapeutic strategies. In this study, we conducted a series of analyses on miRNA expression and corresponding clinical data for training and validation set generated from 415 colorectal adenocarcinoma patients in the TCGA database, with an aim to develop a meaningful predictive model related to CRC prognosis.
MiRNAs, an important subset of noncoding RNAs, have been recognized to play multifaceted roles in controlling cellular functions by repressing their target genes (19). For example, let-7 family members can regulate cancer stem cells by targeting HRAS and HMGA2 (20), and miR-21, which is highly expressed in breast cancer, is correlated with poor patient survival (21). Virtually all CRCs exhibit altered miRNA expression (22); for instance, miR-22 contributes to tumorigenesis in CRC (23), and downregulation of miR-34 results in CRC metastasis via an increase in IL6 signaling pathway activity (24). These findings suggest the potential of miRNAs as excellent prognostic biomarkers for CRC survival prediction. The heat map generated in our study intuitively indicates that compared with the normal tissues, the CRC tissues exhibited obvious miRNA expression abnormalities, proving the previous statement by Okugawa that almost all CRCs exhibit altered miRNA expression.
Through a comprehensive analysis including Cox regression with the LASSO method on the training set, seven prognostic miRNAs were finally screened. Model evaluation is dependent on the values of the C index and AUC. The higher the C index and AUC values, the better is the model (25). Our risk score formula, termed the 7-micoRNA signature, was established with a C index of 0.772. The AUC for 5-year survival was 0.889 in the training set and 0.816 in the entire TCGA set, indicating that the signature had good predictive power. Several types of CRC prognostic score models have recently been developed and verified, including an immunoscore with a C index of 0.612 and AUC of 0.630 for 5-year survival (26), a lncRNA score with an AUC of 0.733 for 5-year survival (27), and so on. However, prognostic models comprising miRNAs for use with CRC patients have not been reported, and our signature filled this gap. Moreover, the performance of the 7-micoRNA signatures was evaluated in the training set and verified in the test set and the entire set using ROC curve and Kaplan-Meier survival analysis. The 7-micoRNA signature performed well in distinguishing whether patients with CRC had a high or low prognostic risk.
The heat map for the three data set clearly shows the expression patterns of the seven miRNAs in CRC samples. The expression of miR-144 was high in the low-risk group but low in the high-risk group, and the remaining 6 miRNAs exhibited the opposite pattern. These results indicate that miR-144 is the only negatively regulated miRNA with an antitumor effect; thus, miR-144 may be a protective factor for CRC and may become a new therapeutic target. This possibility needs further study.
Furthermore, among the factors related to the prognosis of CRC patients, clinical parameters, such as TNM stage (28), which is currently a prognostic indicator favored by clinicians, are essential. Cox regression analysis revealed three prognostic factors—age, TNM stage and the 7-micoRNA signature, among which the 7-micoRNA signature was an independent prognostic risk factor. To gain insight into the prognosis of patients with CRC, we performed a transverse ROC analysis and a stratified longitudinal analysis on the entire TCGA set. The AUC of the 7-micoRNA signature was superior to that of TNM stage and age for predicting prognosis. Then, the stratification analysis results suggested that the 7-micoRNA signature could accurately distinguish high-risk patients from low-risk patients stratified by TNM stage and age, which again demonstrated the predictive power of the 7-micoRNA signature.
In addition, from the interaction network of the target genes connected with the 7-micoRNA signature and major gene modules, we could see that PTEN ranked the first and CDKN1A ranks the second among the top10 key genes, they played a critical role in the network. PTEN is a tumor suppressor gene closely associated with tumorigenesis, an important negative regulator of PI3K-Akt signaling pathway, and remains one of the main challenges for CRC treatment (29). Functional enrichment analysis further revealed that EGFR tyrosine kinase inhibitor resistance was the leading reason affecting the prognosis of patients with CRC, and related pathways were mainly PI3K-Akt, p53 and JAK-STAT signal pathway, involving the target genes of MTOR, MCL1, PTEN, BCL2, CDKN1A, PRKCA, among which MTOR, BCL2, CDKN1A were associated with CRC. This states that PI3K-Akt-mTOR signaling pathway is a major factor affecting the prognosis of CRC patients. MTOR, a target protein of the PI3K-Akt signaling pathway, plays an important regulatory role in cell metabolism, development and survival in response to stimulus, which making it a crucial and validated target in the treatment of cancer (30). Kaplan-Meier survival curves of the top10 target genes showed that CDKN1A, EIF4E and SNAI1 were associated with prognosis in patients with CRC from TCGA database. CDKN1A, eIF4E and SNAI1, as downstream regulators of the PI3K-Akt-mTOR signaling pathway, play a vital role in drug resistance and prognosis of EGFR inhibitors for CRC.
To the best of our knowledge, this study is the first to report the relationship between a 7-micoRNA signature and survival in CRC. However, this study has some limitations. First, although the biological functions of the prognostic miRNAs were annotated through functional enrichment analysis, in vivo and in vitro studies are still needed to further reveal the mechanism by which these prognostic miRNAs and related target genes including PTEN, MTOR, CDKN1A, eIF4E and SNAI1 mediate CRC tumor development and prognosis. Second, in the sample data obtained from the TCGA database, white ethnic groups were the most common, and data for Asian ethnic groups were scarce. Although our study showed that the prognosis of CRC patients was not correlated with the ethnic group, whether differences exist within ethnic groups is unknown. More data from Asian ethnic groups are needed for further investigation.
In conclusion, we performed scientific data mining for miRNAs from a TCGA dataset of patients with CRC and identified a 7-micoRNA signature with good predictive performance and superior to other conventional clinical variables. Functional enrichment analysis results suggested that the miRNAs in the 7-micoRNA signature may be related to EGFR tyrosine kinase inhibitor resistance for affecting the prognosis of patients with CRC, and PI3K-Akt-MTOR was the mainly related pathway. PTEN as its upstream molecule, CDKN1A, eIF4E and SNAI1 as its downstream molecules, respectively, play a significant regulatory role, and are potential therapeutic targets.
Acknowledgments
Funding: This work was supported by the National Natural Science Foundation of China (81702324, 81602529); Natural Science Foundation of Hebei Province (H2018206176, H2017206141); and the Medical Science Research Project of Hebei Province (20190510).
Footnote
Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://tcr.amegroups.com/article/view/10.21037/tcr-21-1992/rc
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://tcr.amegroups.com/article/view/10.21037/tcr-21-1992/coif). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
