A ternary model of proton therapy based on boron medium radiosensitization and enhancement paths: a Monte Carlo simulation

Introduction

Background

The physical advantages of proton therapy in dose delivery are well-known. However, it is important to note that proton therapy is considered a low linear energy transfer (LET) (a physical quantity that characterizes the ability of beams to act on matter and is defined as the amount of energy transferred by a charged particle per unit length of path, i.e., L = dE/dL (L is the LET, dE is the energy delivered, dL is the unit length track of charged particles). The unit of LET is keV/m, which is an indicator of the quality of the beam) radiation with a relative biological effectiveness (RBE) typically ranging from 1.1 to 1.2. While proton therapy has shown clinical efficacy, its effectiveness in treating hypoxic or resistant tumors (such as lung adenocarcinoma, glioma, and soft tissue sarcoma) is limited compared to photon radiotherapy.

To overcome these limitations, radiosensitization techniques can be employed to increase the radiosensitivity of tumor cells and improve the effectiveness of radiation therapy. Radiosensitization techniques typically address two situations: (I) tumor hypoxia leading to radioresistance; and (II) the need to limit the dose to the surrounding normal tissues while still delivering a high enough therapeutic dose to the target area for improved clinical efficacy. These techniques can involve the use of drugs or physical pathways to enhance the radiation-killing effect on tumor cells.

Radiosensitizing agents (1), which include small molecules such as oxygen, nitroimidazole, curcumin, thymidine analogs, as well as large molecules like miRNA, oligonucleotides, proteins, and peptides, have limitations in their effectiveness due to poor specificity and the risk of off-target effects (2). While there have been significant advances in the use of metal nano-radiosensitizing and sensitizing therapeutic integration materials, particularly nanogold, their ability to enhance the effect of proton therapy is still limited (3). The reason for this limitation is that the secondary electron dose enhancement effect of nanogold radiosensitization under proton irradiation is not sufficient to directly damage the lethal target (DNA) in the nucleus of the irradiated cells. This is due to the low energy of the collisional ionization secondary electrons, which have a range of only 100 nm on the surface, and can only enhance the indirect contribution of the free radical effect by surface (collisional site) irradiation (3). As a result, the enhancement effect on the RBE of proton therapy is limited.

Rationale and knowledge gap

Sikora et al. and Yoon et al. proposed a novel approach to enhance proton therapy by releasing α particles from the p(¹¹B,α)2α reaction with the target region ¹¹B, based on the high LET α particle product (4 MeV) and the cross section (1.7 barn) of the p(¹¹B,α)2α reaction using 650 keV protons (4,5). Cirrone et al. reported the first enhancement of the p(¹¹B,α)2α reaction, showing that the presence of ¹¹B led to a significant increase in the biological effect of proton-irradiated cells, as demonstrated by the dose-survival curve and chromosomal aberration analysis of prostate cancer cells (DU145) and breast epithelial cells (MCF-10A) at different locations of the extended Bragg peak [spread out Bragg peak (SOBP)] (6). However, subsequent physical calculations and simulation studies led to the opposite conclusion, suggesting that although the p(¹¹B,α)2α reaction could produce α particles with high LET, the safe concentration of ¹¹B in the tumour target area may not be sufficient to induce a visible enhanced biological effect based on its reaction cross section and calculation results. It is worth noting that the p(¹¹B,α)2α reaction is conceptually similar to boron neutron capture therapy (BNCT) [¹⁰B + n → α (1.47 MeV) + Li (0.84 MeV)], which achieves higher biological effects by the reaction of thermal neutrons with ¹⁰B (7). In contrast, the p(¹¹B,α)2α reaction is achieved by the nuclear fission reaction p + ¹¹B → 3α(P-B), and energetic protons at the beam entry port can prevent the production of α particles in normal tissues.

Objective

In this paper, we proposed a “ternary” radiotherapy model, which was boron-based medium to induce the hydrogen-boron fusion reaction (p + ¹¹B → 3α) of incident protons and thermal neutron capture [¹⁰B + n → ⁷Li³⁺ (0.84 MeV) + ⁴He²⁺ (1.47 MeV) + γ (0.477 MeV)]. And then the number and distribution of α particles and thermal neutrons produced by the interaction of radiotherapy protons with boron isotope-doped equivalent tissues of different ratios were first investigated by Monte Carlo simulation.

Proposed “ternary” model of proton therapy

During proton radiotherapy, not only does the interaction between the proton and the tumour target tissue destroy the tumour cells, but the biological effect of proton radiotherapy can also be enhanced in three ways. Firstly, the low-energy proton beam that remains after the initial interaction can produce particles with higher RBE through interaction with ¹¹B. Secondly, the nuclear reaction between the proton and the tumour target tissue can produce particles with higher RBE. Thirdly, the nuclear reaction between thermal neutrons and ¹⁰B, one of the “by-products” of the proton-target interaction, can produce higher RBE particles and photons to enhance the biological effect of proton therapy. These three mechanisms together form a “ternary” model of proton radiotherapy. The three reaction pathways of the ternary model are shown in a schematic form in Figure 1.

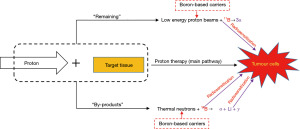

Figure 1 Schematic diagram of the sensitizing effect of boron-based proton “ternary” radiotherapy.

Methods

In this study, the Monte Carlo simulation software tool FLUKA (8,9) and its interface FLAIR (10) (version 4.2) were used. The target material chosen for the simulation was mainly polymethyl methacrylate (PMMA) for the following reasons (11): firstly, it has a similar electron density and depth dose distribution to human tissue, although its elemental composition is not identical to that of human tissue. Secondly, it produces a similar range of fragmentation products to human tissue under the action of radiation. Finally, it is a commonly used target material in experimental procedures. PMMA has a density slightly less than that of water, 0.95 g/cm³, the molecular formula is C₅H₈O₂, and the structural formula see Figure 2.

Figure 2 Structural formula of PMMA with the molecular formula (C₅H₈O₂). PMMA, polymethyl methacrylate.

The FLUKA software tool was used to calculate the low-energy neutron cross section, with the ¹⁰B, ¹¹B, and natural boron (^NB) LOW-MAT cards set at a temperature of 296 Kelvin (K). Boron was incorporated into PMMA materials at mass ratios ranging from 4,999:1 (200 ppm) to 1:1. The simulation was carried out in a homogeneous cube with dimensions of 250 mm × 250 mm × 250 mm and a bin setting of 1 mm in all three directions. The proton beam was scanned with a 5-mm pencil beam full width at half maximum (FWHM) and an energy range of 15–150 MeV󠆷. The recorded quantities during the simulations included the proton beam longitudinal dose distribution and Bragg peak position, as well as the α and neutron counts along the proton beam longitudinal distribution.

The PMMA phantoms used in the experiment were not doped with boron substances but instead were composed of B-X (¹⁰B, ¹¹B, and ^NB) with each having a mass percentage of PMMA:B-X =4,999:1, which corresponds to a percentage concentration of 200 ppm for each B-X in the PMMA.

The experiment was conducted with a 150 MeV proton beam incident on PMMA containing ¹⁰B at varying concentrations.

Statistical analysis

To keep the error of the Monte Carlo simulation within 2%, the number of particles in the simulation was set to 5E+05. Preserve decimal places up to the fifth digit when processing resulting data.

Results

Analysis of α yield

The proton beam was incident from 15–150 MeV into each component of the phantom, and the amount of α particle production at the proton Bragg peak was recorded. The results showed that the highest α particle production was achieved at a proton energy of 60 MeV, as indicated by the dashed line in Figure 3. The trend of α particle production varied across B-X at different energies, but combining the α particle production at each energy, ¹⁰B produced the most (2.40497E–06), followed by ¹¹B (2.38360E–06) and ^NB the least (2.36570E–06). Furthermore, at proton energies ≥30 MeV, the amount of α particle production by PMMA plus B-X was significantly greater than that produced by PMMA alone. The combined analysis suggests that the amount of α particle production is related to both the proton energy and B-X.

Figure 3 The amount of α produced by different proton incidence energies in the B-X and PPAM (200 ppm) phantoms. Dashed lines (a, b, and c) were used to highlight the role of the area and the location of the α peak. B-X is either ¹⁰B, ¹¹B or ^NB. PMMA, polymethyl methacrylate; ^NB, natural boron.

Description and analysis of results on 10B and its effects on α and neutron yields

The experiment was conducted and the resulting α and neutron production was recorded, as shown in Table 1. The analysis revealed that α production decreased with decreasing boron concentration for the same proton energy, while neutron production decreased with increasing boron concentration. This suggests that protons and boron work together to produce α particles with higher biological effects, and at higher boron concentrations, boron absorbs more neutrons and thus generates more α and fewer neutrons. The difference between the α peak position and the proton Bragg peak position varies for different boron isotopes and mass ratios of PMMA, but it is generally small and falls within the range of the proton Bragg peak position, as shown in Figure 4.

Figure 4 Analysis of the α position of the 150 MeV proton beam with boron production, the left side of the figure shows the position of the proton Bragg peak and the position of the produced α deposit.

Analysis of α yield location

The amount of α produced and its corresponding position in the longitudinal direction of the proton beam incidence were recorded for the 150 MeV proton beam incident on the PMMA phantom and compared with the proton beam Bragg peak position. The positional differences between the α position and the Bragg peak position are shown in Table 2. While the differences between the two positions of the α peak position and the proton Bragg peak position for different mass ratios of ¹⁰B to PMMA, they were small and essentially within the range of the proton Bragg peak position, as shown in Figure 4. Therefore, it can be inferred that the use of the “balance” α generated by the interaction of protons with boron drug carriers in proton radiotherapy can potentially further enhance tumor cell killing, leading to proton radiation sensitization.

Neutron position analysis

Table 3 presents the neutron yields and positions for a PMMA phantom with varying ¹⁰B concentrations. While the peak neutron yield position was not located at the proton Bragg peak position, the neutron yield at the Bragg peak position remains at a certain level, albeit lower than the peak position. Figures 5,6 illustrated the neutron number distributions and corresponding proton Bragg peak positions for two ¹⁰B to PMMA concentration ratios, 1:11 and 1:4,999 (200 ppm), respectively. Despite the peak neutron production not being at the proton Bragg peak, a substantial number of neutrons were still present at the Bragg peak position, and they were all of the same order of magnitude.

Figure 5 Neutron number yield and location distribution after irradiation of ¹⁰B and PMMA moulds (mass ratio 1:11) with 150 MeV protons. PMMA, polymethyl methacrylate.

Figure 6 Neutron number yield and location distribution after irradiation of ¹⁰B and PMMA moulds (200 ppm) with 150 MeV protons. PMMA, polymethyl methacrylate.

Description and analysis of B-Xon α and neutron yields

Table 4 discusses the impact of B-X on α and neutron yields at the same proton energy. When the B-X to PMMA ratio is 1:11, the peak α production was lowest with ¹⁰B, followed by ^NB, and highest with ¹¹B. However, when the B-X content was 200 ppm, the peak α production varied significantly among the three types. In terms of peak neutron production, the lowest amount was observed with ¹⁰B, followed by ^NB, and the highest with ¹¹B when the B-X to PMMA ratio was 1:11. The difference between ¹¹B and the other two was more than two orders of magnitude. When the B-X content is 200 ppm, the peak neutron amount was also highest with ¹¹B, followed by ^NB, and lowest with ¹⁰B. However, the difference between the three was of the same order of magnitude. It should be noted that if the target phantom only contains pure ¹⁰B, the difference in the number of neutrons produced compared to the PMMA content was also of the same order of magnitude.

Discussion

Key findings

Our findings showed that the α particle yield decreased with decreasing boron doping concentration, whereas the neutron yield increased with decreasing boron doping concentration. The α particles and thermal neutron products were predominantly distributed near the Bragg peak target area.

Strengths and limitations

The present study examines the neutron production of different isotopes and ratios of boron in equivalent tissue models, finding a significant neutron yield. For instance, at an incident proton beam energy =150 MeV and a ratio of ¹¹B:PMMA =1:11, the number of neutrons produced was 9.53065E−05, with the peak neutron production position around the proton Bragg peak. Notably, when using ¹⁰B as a sensitizer, the number of neutrons produced was only 3.61377E−08 at the same proton energy and peak position, underscoring the importance of selecting the appropriate concentration of ¹⁰B.

In this section, we discuss the potential benefits of using boron as a radiosensitizer to improve the effectiveness of proton therapy in killing tumor cells. One possible mechanism is the ability to concentrate protons at the subcellular level, particularly within the nuclei or DNA fragments of cancerous cells. To capitalize on this, our study proposes the use of a boron-based drug carrier to further enhance the radiosensitizing effect of proton radiotherapy in human tissue.

This paper focused on boron as a sensitizer to enhance the efficacy of proton radiotherapy. The principle of neutron capture therapy (NCT) was employed, which involved the reaction of ¹⁰B with thermal neutrons [¹⁰B +n_th → [¹¹B]* → α + ⁷Li + γ (2.31 MeV)] (the asterisk means that the ¹¹B is “excited state” ) to generate charged particles with a higher relative biological effect (12,13). In contrast to traditional NCT, which utilized external thermal neutrons, our approach involved generating “extra” thermal neutrons during the proton therapy process. To achieve this, a non-toxic neutron trap containing ¹⁰B was administered. However, successful implementation of this approach depended on the production of sufficient thermal neutrons during proton therapy.

Explanations of findings

In this article, we performed a comparative analysis of neutron, α, and low-energy proton production for these models under varying proton beam energies and described the distribution of thermal neutrons and α particles in the longitudinal direction of proton beam incidence. The current limitations of the “ternary” mode of proton radiotherapy include the need for improved boron drug carriers to more accurately deliver the necessary boron concentration to the tumour target site, the large thermal neutron absorption cross section of α particles produced from higher concentrations of ¹⁰B, and the requirement for further biological experimentation and clinical validation to support its effectiveness. Although drugs like sodium borocaptate (BSH) and boronophenylalanine (BPA) have been employed in clinical practice through BNCT, third-generation boron carriers are now being used, but additional research is necessary to optimize their efficacy. The “triadic” proton therapy model, structured into three pathways to enhance the radiation capacity of protons, exhibits limitations such as the absorption of a considerable number of thermal neutrons due to the significant thermal neutron absorption cross section of α particles produced from higher concentrations of ¹⁰B. Therefore, the α particles generated by the interaction between the “remaining” proton and the boron drug carrier can be used to kill tumour cells further, thus enhancing the sensitivity of proton radiation therapy.

Implications and actions needed

Although there is a current dispute regarding the theoretical and experimental outcomes, the notion of utilizing boron-based nuclear reactions to improve proton therapy has sparked numerous subsequent investigations (5,6,14-17). However, further exploration is necessary to resolve the controversy surrounding its physical feasibility and practical biological implications.

Conclusions

Proton therapy ternary model is theoretically feasible from mathematical analysis and Monte Carlo simulation experiments.
