Phytochemicals as estrogen receptor modulators?—a commentary of a network pharmacology study of two commonly employed Chinese herbal medicines in non-small cell lung cancer treatment

Traditional Chinese medicine (TCM) as alternative medicine

TCM is a main supplementary alternative medicine widely used in Asian countries, like Korea, Japan and China. TCM has characteristics such as excellent efficacy, affordable price, and few side effects in the prevention and treatment of diverse pathologies, optimizing the classical therapeutic effect and minimizing chemotherapy-radiotherapy adverse effects (1).

Recent findings reported that TCM serves as a powerful apoptosis activator and immune modulator, exerting tumor growth inhibition (2). Additionally, herbal medicine has emerged as a Chinese anti-cancer approach. Following radiotherapy or chemotherapy, a substantial number of cancer patients tend to turn to TCM, either through oral administration or injections (3). Indeed, with the continuous clinical practice progression in the comprehension of cancer treatment, TCM proves itself efficacy in mitigating the discomfort of pain, vomiting, diarrhea and pancytopenia arising from chemotherapy, radiotherapy, and surgical procedures. Moreover, TCM plays a pivotal role in enhancing treatment outcomes, minimizing negative responses, and improving survival advantages.

Lung cancer—a worldwide health problem

Lung cancer is a highly prevalent form of malignancy in humans and is the leading cause of cancer deaths. Globally, there are an estimated 1.8 million new cases of lung cancer annually and over 1.6 million deaths resulting from this (4). Non-small cell lung cancer (NSCLC) represents 75–80% of total lung cancers. This type usually manifests in advanced stages, which makes it very difficult to deal with. Thereby, the main and standard treatment for NSCLC include surgery, radiotherapy, chemotherapy, targeted therapy, and immunotherapy (5). Not only the treatment used such as chemotherapy and radiotherapy, but also the disease process itself, as well as the duration of the disease seriously diminish the quality of life. Over the past decade, NSCLC treatment has achieved a degree of effectiveness through targeted therapy. Nevertheless, all the commonly used drugs follow a singular pathway and gradually acquire drug resistance.

Significance of in silico pharmacological studies for plant-based therapeutic

Network pharmacology integrates pharmacology and computer analysis technology with systems biology to explore, more efficiently, the complex relationships among components, diseases, active components, and target genes, among others, of the TCM (6). Thus, network pharmacology emerges as a novel field based on systems biology theory, encompassing the network analysis of biological systems. It involves the selection of specific signal nodes (Nodes) for the design of multi-target drug molecules, which can predict the molecular mechanism underlying drug actions in many diseases (7).

The understanding of Network pharmacology discipline may pave the way for the development of novel therapeutic strategies focused on supplementary alternative medicines as TCM.

Outcome analysis

The study in this issue by Li et al. (8) entitled “Network pharmacology study of Citrus reticulata and Pinellia ternata in the treatment of non-small cell lung cancer” evaluated the potential mechanism of Citrus reticulata (C. reticulata) and Pinellia ternata (P. ternata) in the treatment of NSCLC based on network pharmacology analysis.

C. reticulata) and P. ternata are commonly employed in Chinese herbal medicines, predominantly associated with clinical treatment of respiratory diseases. However, phytochemicals of both genus, as apigenin, have been reported as potential antitumoral agents (9,10). It is important to highlight that numerous reports of phytocompounds with antitumoral activity provide grounds for promoting the intake of fruits and vegetables to prevent tumor development. Nevertheless, the chemotherapeutic effects and mechanisms of action have not been elucidated yet. The molecular targets mainly reported of phytocompounds include the Ras/Raf/MEK/ERK and Akt/mTOR pathways, as well as suppressor protein p53 gene (TP53) change expression (11) in coincidence with some targets proposed by Li et al. (8).

Focused on the network pharmacology study, Li et al. (8) concluded that the main active components of C. reticulata and P. ternata in NSCLC treatment were naringenin, baicalein, baicalin, baicalin β-sitosterol and coniferin, among others. Regarding these reported conclusions, there are some aspects to consider as the authors named the β-sitosterol compound as baicalin β-sitosterol and that the parameter of degree of the network to clarify the top 10 compounds of high-degree nodes could be mentioned.

The authors point out that those compounds were the main active components of C. reticulata and P. ternata in NSCLC treatment and they concluded that their mechanism of action on NSCLC could exhibit strong correlation with estrogen receptor 1 (ESR1), cellular oncogene (Fos), nuclear receptor coactivator 3 (NCOA3), TP53 and mitogen activated protein kinase 8 (MAPK8). Furthermore, it might be related to the interleukin-17 (IL-17) signaling pathway regulation, microRNAs in cancer and endocrine resistance, antigen processing and presentation, and other signaling pathways.

We commend Li et al. (8) for this work because it represents a good predictive analysis to postulate potential mechanisms of action and project future test validations. Therefore, based on their results, and bibliographic data (12-15), we suggest that C. reticulata and P. ternata could be beneficial as a supplemental treatment of NSCLC as estrogen receptor (ER) modulators.

ESR1, one of the proposed targets of C. reticulata and P. ternata, encodes an ER, which regulates hormone, and DNA binding, as well as transcription activation. Besides, ESR1 is implicated in endometrial and breast cancer, osteoporosis and its mRNA overexpression is associated with NSCLC prognosis (7). Therefore, ESR1 emerges as a predictive biomarker of therapeutic significance in breast cancer and Atmaca et al. (16) also suggest its potential analogous role in lung cancer. Even more, Atmaca’s subsequent investigations in 2020, demonstrated that ESR1 mRNA assessment through qPCR offers a viable method to examine ESR1 expression to assess the prognosis of metastatic NSCLC (7). Gao et al. (12) also proposed that although ERs play an important role in NSCLC, their effects are still controversial and need further investigation. A new consideration is that ERs may affect NSCLC progression through complicated molecular signaling networks rather than individual targets. For instance, ligand-bound ERs act as nuclear transcription factors to regulate the expression of cellular proliferation and differentiation control genes, but evidence has also indicated the presence of an ER that function independently of ligands. C. reticulata and P. ternata could be involved in a ligand-dependent or ligand-independent ER signaling pathway. C. reticulata and P. ternata showed similar results as reported by Wang et al. (7) on Shan Ci Gu suggesting that TMC treatment for NSCLC involved many binding proteins and act through the endocrine signaling pathway on main targets, including ESR1. Moreover, Chen et al. (17) demonstrated that after ESR1 phosphorylation, it could directly bind to the promoter of a member of Fos family. c-Fos forms heterodimers with a member of the proto-oncogen Jun family of transcription factors (c-Jun), resulting in an activator protein-1 (AP-1) generation, implicated in cell proliferation, invasion, differentiation (18), and inflammation (19). In addition, Güller et al. (20) reported that c-Fos could contribute to hepatocarcinogenesis through stabilization of cyclin D1 within the nucleus regulators.

It also reported the downregulation of c-Fos signaling by flavonoids from the peels of Citrus unshiu (21), the modulatory effects of the phytochemicals of Punica granatum against ERs (22), or even the impact of diverse phytochemicals on the production of inflammatory mediators AP-1 and MAPKs among others (19).

Moreover, ER are members of a family of nuclear receptors (NRs) that could be regulated in a ligand-dependent manner by the nuclear receptor coregulators (NCO), thus recruiting epigenome-modifying enzymes or chromatin remodelers. NCO can be classified into nuclear receptor coactivators (NCOAs) and corepressors, based on their initially recognized ability to stimulate or inhibit gene transcription, correspondingly. The mentioned coregulators perform a variety of functions in the regulation of NR responses, and the functional diversity of these interactions is a growing area of understanding (23). Among NCOAs, NCOA3, one of the proposed target of C. reticulata and P. ternate, has emerged as an attractive target for novel cancer therapeutics as it has demonstrated that it could act as an oncogene in multiple tumors (24) and is essential for pluripotency maintenance (25). ERs are also defined as ligand inducible transcription factors that regulate many target genes involved in cell division and some cancer progression. Taking together, ERs mediated transcription is a complex process regulated at several and different levels. The interplay between ligand, receptor, DNA sequence, cofactors, chromatin context, and post-translational modifications culminates in transcriptional regulation by ER.

Although Li et al. (8) do not refer to the degree of activity of the potential active compounds, the authors propose that naringenin is one of the most biologically active compounds. This is coincident with a recent publication (14) that suggests an antitumor potential for naringenin isolated from citrus peels in breast cancer via estrogen signaling possible modulation.

It has been thus pointed out that, based on Li et al. (8) and according to the bibliographic previously described, C. reticulata and P. ternata might be beneficial for NSCLC treatment by inhibiting cell proliferation. Therefore, it could be proposed that one of the mechanisms of C. reticulata and P. ternata on NSCLC cell proliferation may be associated to cancer pathways outlined in KEGG Pathways in cancer (https://www.genome.jp/pathway/hsa05200) that involved ERs (Figure 1).

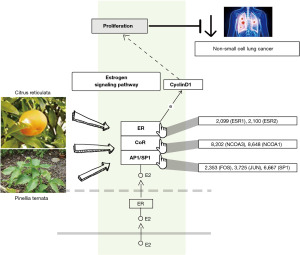

Figure 1 Proposed mechanism of Citrus reticulata and Pinellia ternata on non-small cell lung cancer.

Summing up, the proposed model for mechanisms of action involved in C. reticulata and P. ternata-induced NSCLC growth inhibition would be the modulation of the nuclear receptor (ESR1)—co-repressor (NCOA3) complex in control of cell cycle via c-Fos transcription factor.

As concluding remarks, the antiproliferative effect of phytocompounds from medicinal plants through the modulation of ERs, specifically in lung cells, is a promising mechanism of action that could provide scientific information to find new therapeutic targets.

Acknowledgments

The author thanks to Sworn Translator Maria José Martínez for the language editing.

Funding: None.

Footnote

Provenance and Peer Review: This article was commissioned by the editorial office, Translational Cancer Research. The article has undergone external peer review.

Peer Review File: Available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-1440/prf

Conflicts of Interest: Both authors have completed the ICMJE uniform disclosure form (available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-1440/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

References

1. Yang J, Zhu X, Yuan P, et al. Efficacy of traditional Chinese Medicine combined with chemotherapy in patients with non-small cell lung cancer (NSCLC): a meta-analysis of randomized clinical trials. Support Care Cancer 2020;28:3571-9. [Crossref] [PubMed]
2. Su XL, Wang JW, Che H, et al. Clinical application and mechanism of traditional Chinese medicine in treatment of lung cancer. Chin Med J (Engl) 2020;133:2987-97. [Crossref] [PubMed]
3. Liu J, Li X, Liu J, et al. Traditional Chinese medicine in cancer care: a review of case reports published in Chinese literature. Forsch Komplementmed 2011;18:257-63. [Crossref] [PubMed]
4. Babar L, Modi P, Anjum F. Lung Cancer Screening. [Updated 2023 Apr 27]. In: StatPearls [Internet]. Available online: https://www.ncbi.nlm.nih.gov/books/NBK537283/
5. Miller KD, Nogueira L, Devasia T, et al. Cancer treatment and survivorship statistics, 2022. CA Cancer J Clin 2022;72:409-36. [Crossref] [PubMed]
6. Yuan C, Wang MH, Wang F, et al. Network pharmacology and molecular docking reveal the mechanism of Scopoletin against non-small cell lung cancer. Life Sci 2021;270:119105. [Crossref] [PubMed]
7. Wang Y, Zhang Y, Wang Y, et al. Using Network Pharmacology and Molecular Docking to Explore the Mechanism of Shan Ci Gu (Cremastra appendiculata) Against Non-Small Cell Lung Cancer. Front Chem 2021;9:682862. [Crossref] [PubMed]
8. Li C, Lu H, Jiang X, et al. Network pharmacology study of Citrus reticulata and Pinellia ternata in the treatment of non-small cell lung cancer. Cell Mol Biol (Noisy-le-grand) 2022;67:10-7. [Crossref] [PubMed]
9. Polier G, Ding J, Konkimalla BV, et al. Wogonin and related natural flavones are inhibitors of CDK9 that induce apoptosis in cancer cells by transcriptional suppression of Mcl-1. Cell Death Dis 2011;2:e182. [Crossref] [PubMed]
10. Polier G, Giaisi M, Köhler R, et al. Targeting CDK9 by wogonin and related natural flavones potentiates the anti-cancer efficacy of the Bcl-2 family inhibitor ABT-263. Int J Cancer 2015;136:688-98. [Crossref] [PubMed]
11. Zheng Z, Zhang L, Hou X. Potential roles and molecular mechanisms of phytochemicals against cancer. Food Funct 2022;13:9208-25. [Crossref] [PubMed]
12. Gao X, Cai Y, Wang Z, et al. Estrogen receptors promote NSCLC progression by modulating the membrane receptor signaling network: a systems biology perspective. J Transl Med 2019;17:308. [Crossref] [PubMed]
13. Shalaby NMM, Abd-Alla HI, Ahmed HH, et al. Protective effect of Citrus sinensis and Citrus aurantifolia against osteoporosis and their phytochemical constituents. J Med Plants Res 2011;5:579-88.
14. El-Kersh DM, Ezzat SM, Salama MM, et al. Anti-estrogenic and anti-aromatase activities of citrus peels major compounds in breast cancer. Sci Rep 2021;11:7121. [Crossref] [PubMed]
15. Song S, Huang W, Lu X, et al. A Network Pharmacology Study Based on the Mechanism of Citri Reticulatae Pericarpium-Pinelliae Rhizoma in the Treatment of Gastric Cancer. Evid Based Complement Alternat Med 2021;2021:6667560. [Crossref] [PubMed]
16. Atmaca A, Al-Batran SE, Wirtz RM, et al. The validation of estrogen receptor 1 mRNA expression as a predictor of outcome in patients with metastatic non-small cell lung cancer. Int J Cancer 2014;134:2314-21. [Crossref] [PubMed]
17. Chen C, Li C, Liu W, et al. Estrogen-induced FOS-like 1 regulates matrix metalloproteinase expression and the motility of human endometrial and decidual stromal cells. J Biol Chem 2020;295:2248-58. [Crossref] [PubMed]
18. Kushner PJ, Agard DA, Greene GL, et al. Estrogen receptor pathways to AP-1. J Steroid Biochem Mol Biol 2000;74:311-7. [Crossref] [PubMed]
19. Prasad S, Kumar V, Singh C, et al. Crosstalk between phytochemicals and inflammatory signaling pathways. Inflammopharmacology 2023;31:1117-47. [Crossref] [PubMed]
20. Güller M, Toualbi-Abed K, Legrand A, et al. c-Fos overexpression increases the proliferation of human hepatocytes by stabilizing nuclear Cyclin D1. World J Gastroenterol 2008;14:6339-46. [Crossref] [PubMed]
21. Vu TO, Tran PT, Seo W, et al. Flavonoids from the peels of Citrus unshiu Markov. and their inhibitory effects on RANKL-induced osteoclastogenesis through the downregulation of c-Fos signaling in vitro. Bioorg Chem 2021;107:104613. [Crossref] [PubMed]
22. Usha T, Middha SK, Shanmugarajan D, et al. Gas chromatography-mass spectrometry metabolic profiling, molecular simulation and dynamics of diverse phytochemicals of Punica granatum L. leaves against estrogen receptor. Front Biosci (Landmark Ed) 2021;26:423-41. [Crossref] [PubMed]
23. Jafari H, Hussain S, Campbell MJ. Nuclear Receptor Coregulators in Hormone-Dependent Cancers. Cancers (Basel) 2022;14:2402. [Crossref] [PubMed]
24. Li Y, Liang J, Dang H, et al. NCOA3 is a critical oncogene in thyroid cancer via the modulation of major signaling pathways. Endocrine 2022;75:149-58. [Crossref] [PubMed]
25. Wu Z, Yang M, Liu H, et al. Role of nuclear receptor coactivator 3 (Ncoa3) in pluripotency maintenance. J Biol Chem 2012;287:38295-304. [Crossref] [PubMed]
