Detection of thyroglobulin for diagnosis of metastatic lateral cervical lymph nodes in papillary thyroid carcinoma: accuracy and application in clinical practice

Introduction

As a common pathological type of thyroid carcinoma (TC), papillary thyroid carcinoma (PTC) is the most frequently diagnosed TC (approximately 80–90%) (1). Despite the good prognosis and low mortality rate of PTC, 20–50% of PTC patients present cervical lymph node metastasis at the early stage, but the vast majority are central lymph node metastases (2). The incidence of lateral cervical lymph node metastasis (LLNM) is low; however, compared to PTC patients with central lymph node metastasis, those with LLNM exhibit higher local recurrence and lower survival time (3). Prophylactic lateral cervical lymph node dissection is not recommended for PTC patients (4). Hence, accurate preoperative evaluation of LLNM plays a decisive role in the extent of lymph node dissection in PTC patients, which helps select the appropriate surgical approach. Therefore, preoperative LLNM identification in PTC patients is crucial.

Ultrasound (US) is the most common auxiliary examination used for preoperative evaluation of lymph node status and has an important guiding value in clinical diagnosis. However, US highly relies on the radiologists’ experience and skill level (5). Fine needle aspiration cytology (FNAC) is widely used to evaluate lymph node metastasis in PTC patients, providing diagnostic cytology support for suspicious lymph nodes in the lateral cervical region. However, FNAC has some challenges due to small-diameter lymph nodes or cystic lesions (6). Thyroglobulin (Tg) is a thyroid follicular cell-secreted glycoprotein stored in the follicular lumen. Tg has tissue specificity and is highly expressed in metastatic lymph nodes, well-differentiated TCs, and normal thyroid tissues (7). Huang et al. (8) showed that PTC patients with preoperative serum Tg (sTg) ≤77 ng/mL might skip cervical lymph node metastases, and preoperative sTg levels might help predict LLNM. In 1992, Pacini et al. (9) first proposed that fine needle aspiration washout fluid thyroglobulin (FNA-Tg) improved the diagnosis rate of cervical lymph node metastasis (CLNM) in differentiated TC. Until now, no consensus on the diagnostic cutoff value for FNA-Tg is available, ranging from 0.2–100 ng/mL (10). Therefore, determining the optimal cutoff value (OCV) for FNA-Tg is important for LLNM diagnosis in PTC patients. Hence, in the present study, we determined the OCV for sTg and FNA-Tg to diagnose LLNM in PTC patients. We present this article in accordance with the STARD reporting checklist (available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-1490/rc).

Methods

Patients

We retrospectively analyzed 116 PTC patients who underwent radical resection of thyroid carcinoma with lateral cervical lymph node dissection at the Affiliated Hospital of Zunyi Medical University from June 2018 to July 2022. Patients included 39 males with 42 lymph nodes and 77 females with 83 lymph nodes. The average age was 42.92±12.01 years, ranging from 17 to 77 years. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The Research Ethics Committee of the Affiliated Hospital of Zunyi Medical University reviewed and approved this study (No. KLLY-2021-010). The requirement for patient informed consent was waived due to the retrospective nature of the study. The inclusion criteria were: patients diagnosed using a pathological method; complete clinicopathologic data; underwent lateral cervical dissection and first-time surgery. Meanwhile, we excluded patients with other tumors or who received chemotherapy or radiotherapy.

Measurement of sTg and antithyroglobulin antibody (TgAb)

After venous blood extraction (3–5 mL), we applied an automated electrochemiluminescence immunoassay to measure the blood samples for each patient. The value ranges of the sTg assay were the same as the FNA-Tg assay. A relative TgAb value >115 IU/mL was considered positive (normal, 0–115 IU/mL).

FNA-Tg and FNAC analysis

All enrolled patients signed the informed consent form before the puncture process. The US was conducted to evaluate the cervical lymph node status and mark suspicious lymph nodes on the body surface, which included irregular shape, calcification, long diameter/short diameter (L/S) ≤1.5, cystic necrosis, and lymph hilar structure disappeared (Figure 1) (11). After routine disinfection, we laid the drapes and performed local anesthesia (2% lidocaine, 2 mL). Under US guidance, we punctured the target lymph nodes using 22G needles. Needle retraction and insertion were performed several times forth and back in different needle channels. Punctuation was performed for each lymph node at least three times. Subsequently, the aspirated tissues were smeared and fixed on the slide for pathological exanimation after pulling out the puncture needle. After fine needle aspiration tissue acquisition, we flushed each needle with 2 mL of 0.9% normal saline and prepared washout fluid. The automated electrochemiluminescence immunoassay was used to detect Tg level with a range of 0.04–500 ng/mL.

Figure 1 Ultrasonography is used to evaluate lateral cervical lymph nodes. The arrow refers to cervical lymph nodes. (A) Normal lymph nodes; (B) irregular shape; (C) L/S ≤1.5; (D) cystic necrosis; (E) lymph hilar structure disappeared; (F) calcification. L/S, long diameter/short diameter.

Statistical analysis

Statistical analyses were performed using Statistical Package for Social Science (SPSS) software (v. 18.0). The χ² and Fisher’s exact tests were used to compare groups. Using the pathological results as the gold standard, we conducted the receiver operating characteristic (ROC) curve analysis and calculated the area under the curve (AUC) to determine the OCV of FNA-Tg, sTg, and FNAC. Diagnostic performance was evaluated using the AUC, accuracy, negative predictive value (NPV), positive predictive value (PPV), specificity, and sensitivity. Results were calculated with 95% confidence intervals. A P<0.05 was set as the significant difference.

Results

Clinical and cytopathological characteristics

We collected 125 lymph nodes, 106 were diagnosed as metastatic and 19 as nonmetastatic by postoperative pathology; their clinical characteristics are shown in Table 1. Positive LLNM groups presented significantly higher sTg and FNA-Tg levels than LLNM negative groups (P=0.016, P<0.001, Figure 2A,2B). However, the serum TgAb level did not differ between the two groups (P=0.891, Figure 2C).

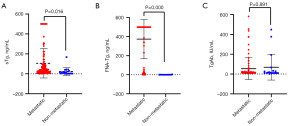

Figure 2 Preoperative indexes in metastatic and nonmetastatic LLNM: (A) sTg; (B) FNA-Tg; (C) TgAb. LLNM, lateral cervical lymph node metastasis; sTg, serum thyroglobulin; FNA-Tg, fine needle aspiration washout fluid thyroglobulin; TgAb, antithyroglobulin antibody.

Cutoff values of sTg for LLNM diagnosis

Furthermore, we constructed a ROC curve for sTg based on the pathological results and obtained an OCV of 17.31 ng/mL (Figure 3). Then, the sTg cutoff value revealed that among the 83 lymph nodes metastasized, 23 had missed diagnoses, representing a diagnostic accuracy of 77.60% (Table S1).

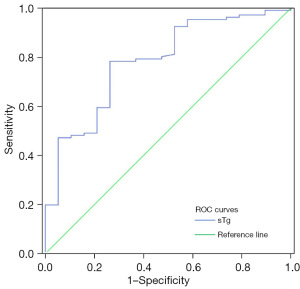

Figure 3 ROC curve of sTg in PTC patients. ROC, the receiver operating characteristic; sTg, serum thyroglobulin; PTC, papillary thyroid carcinoma.

Cutoff value of FNA-Tg for LLNM diagnosis

Regarding the FNA-Tg cutoff value, no uniform standard is currently available, but it mainly comprises three types: (I) FNA-Tg >1.00 ng/mL (12); (II) FNA-Tg/sTg >1 (13); (III) using ROC curves, we can calculate the OCV of FNA-Tg to diagnose LLNM in PTC patients (Figure 4). When the FNA-Tg cutoff value was set as 4.565 ng/mL, the AUC was 0.948, the Youden index was 0.896, the sensitivity was 89.62%, and the specificity was 100%. Meanwhile, using a 1.00 ng/mL cutoff, the sensitivity, specificity, and AUC were 93.40%, 84.21%, and 0.888, respectively. At an FNA-Tg/sTg cutoff value >1, the sensitivity, specificity, and AUC values were 72.64%, 94.74%, and 0.837, respectively (Table 2). Therefore, FNA-Tg showed the best diagnostic performance when the cutoff value was 4.565 ng/mL (Table S2).

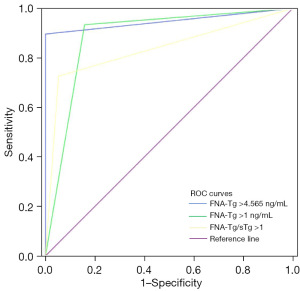

Figure 4 FNA-Tg ROC curve with different cutoff values. FNA-Tg, fine needle aspiration washout fluid thyroglobulin; ROC, the receiver operating characteristic; sTg, serum thyroglobulin.

Diagnostic performance of different procedures

Herein, we included 125 suspicious lymph nodes. Using pathological results, we constructed ROC curves for FNA-Tg + FNAC + sTg, FNA-Tg + sTg, FNA-Tg + FNAC, FNA-Tg, FNAC, and sTg (Figure 5). The combination of FNA-Tg and FNAC presented the best performance. The accuracy, sensitivity, and AUC value of combined FNA-Tg and FNAC were significantly higher than FNA-Tg, FNAC, and sTg. Additionally, compared to the FNA-Tg + FNAC + sTg and FNA-Tg + sTg, the combination of FNA-Tg and FNAC showed a significantly higher AUC value (Table 3).

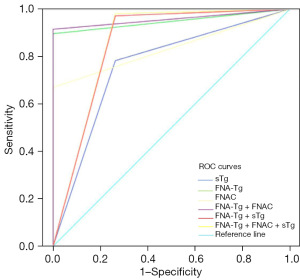

Figure 5 ROC curve of LLNM in PTC diagnosed by different procedures. ROC, the receiver operating characteristic; sTg, serum thyroglobulin; FNA-Tg, fine needle aspiration washout fluid thyroglobulin; FNAC, fine needle aspiration cytology; LLNM, lateral cervical lymph node metastasis; PTC, papillary thyroid carcinoma.

Subgroup analysis

To analysis FNA-Tg-related factors of LLNM in PTC patients, we evaluated the correlation between sTg and TgAb levels. the Pearson correlation analysis indicated sTg and TgAb levels were not correlated (r=−0.145, P=0.106, Figure 6A). Similarly, we explored the connection between FNA-Tg and TgAb, the results indicated no significant correlation between these two factors (r=−0.06, P=0.948, Figure 6B).

Figure 6 Scatter plots based on Pearson correlation analysis: (A) sTg levels and TgAb; (B) FNA-Tg levels and TgAb. sTg, serum thyroglobulin; TgAb, antithyroglobulin antibody; FNA-Tg, fine needle aspiration washout fluid thyroglobulin.

Discussion

The incidence of TC has increased (20%) yearly, becoming one of the most common malignant tumors in women in China (14). As a frequently diagnosed TC type, the 10-year overall survival rate of PTC is 97% (15). Lymph node metastasis is an independent survival risk factor, and approximately 20% of PTC patients present LLNM (16). However, PTC patients with LLNM commonly have a poor prognosis, with 10-year overall survival rates of 81% (17). Previous studies showed that the occurrence of LLNM in PTC patients is closely related to its clinical characteristics (18-20). We found that tumor size, multifocality, and cystic necrosis of lymph nodes were associated with lymph node metastasis in PTC patients. They may serve as an important predictor of lymph node metastasis for PTC patients.

As a popular procedure, FNAC can diagnose PTC preoperatively and evaluate cervical lymph nodes. The sensitivity of FNAC can decrease from 80.6% to 70.9%, influenced by lymph node size, puncture technique, and cystic changes (21). On the other hand, FNAC often leads to false negatives in 6% to 8% of cases and inconclusive results in 20% to 28.5% (22). Herein, the sensitivity of FNAC was 66.98%, the specificity was 100%, and 35 metastatic lymph nodes were missed. FNAC is regarded as the gold standard to diagnose lymph node metastasis preoperatively in PTC patients, but it generates false negatives. Thus, we hypothesized that the missed diagnosis case might be caused by insufficient puncture sample size and excessive red blood cells obscuring the visual field. Hence, exploring a procedure with higher diagnostic performance to improve the diagnostic rate of metastatic lymph nodes is essential.

When normal thyroid tissue becomes cancerous, the follicular lumen might be disrupted, releasing a small quantity of Tg into the blood. Preoperative sTg >188.5 ng/mL can be used as an effective tumor marker of differentiated TC (23). Meanwhile, Kim et al. (24) reported that preoperative sTg levels were positively correlated with the number of lymph node metastasis in differentiated TC patients. In the present study, we confirmed that patients with lymph node metastasis showed increased preoperative sTg compared to those without. Preoperative sTg levels ≥17.31 ng/mL exhibited 78.30% sensitivity and 73.68% specificity, indicating a certain diagnostic value for LLNM detection in PTC patients. However, it presented lower sensitivity, with missed diagnoses of 23 lymph nodes and 5 misdiagnoses.

FNA-Tg is an additional examination procedure on FNAC, which is rarely affected by subjective factors. Due to the high concentration of Tg in metastatic lymph nodes, FNA-Tg can directly indicate the presence of metastasis. Jia et al. (25) reported that FNA-Tg has a high diagnostic value for PTC patients with LLNM, with a sensitivity of 96.25% and a specificity of 96.36%. Meanwhile, due to differences in sample size, Tg assay methods, and Tg assay kits, the OCV of FNA-Tg remained undetermined (22). Sigstad et al. (13) reported that an FNA-T/sTg ratio >1 had the highest sensitivity (100%) with 83.3% specificity. In contrast, Song et al. (12) documented that the OCV of FNA-Tg for LLNM diagnosis in PTC patients was 1.0 ng/mL. Here, FNA-Tg levels ≥4.565 ng/mL had the best diagnostic performance. Hence, the cutoff value calculated by the ROC curve is the optimal criterion for establishing FNA-Tg positivity compared to FNA-Tg/sTg >1 and FNA-Tg >1.00 ng/mL.

In the present study, FNA-Tg had the best diagnostic performance but presented 11 false negatives. Thus, some factors might also interfere with FNA-Tg results. Previous studies have reported that serum TgAb can influence the FNA-Tg level, with lower FNA-Tg levels in TgAb-positive patients than in TgAb-negative (26). However, consistent with Wang et al. (27), TgAb and FNA-Tg levels were not correlated in our study. Possibly, the was an excessive binding of Tg to TgAb sites in patients with high FNA-Tg levels, eliminating the effect of TgAb (28). Baskin (29) suggested that due to no exposure of the intracellular Tg to circulating TgAb, TgAb cannot affect FNA-Tg levels.

The use of a combination of methods is useful in improving the diagnosis of LLNM in thyroid cancer (30). We demonstrated that the sensitivity of FNAC combined with FNA-Tg increased from 66.98% to 91.51% and greatly reduced the false negative rate. Al-Hilli et al. (31) reported that combining FNA-Tg and FNAC significantly increased the detection rate of metastatic lymph nodes in PTC patients by 13%. However, FNA-Tg combined with sTg was not optimal for detecting LLNM in PTC patients. Compared to the combination of FNA-Tg with FNAC, the combination of sTg, FNAC, and FNA-Tg showed significantly lower diagnostic performance. Thus, combining FNAC with FNA-Tg was the best option for diagnosing LLNM in PTC patients.

Conclusions

In conclusion, FNA-Tg showed good diagnostic performance with a cutoff value of 4.565 ng/mL, representing an effective procedure for LLNM diagnosis in PTC patients preoperatively. Also, FNA-Tg combined with FNAC reduced the rate of missed diagnosis and improved the detection rate of suspicious LLNM in PTC patients.
