Construction and validation of a joint diagnosis model based on random forest and artificial intelligence network for hepatitis B-related hepatocellular carcinoma

Xili Jiang1, Jiyun Hu2, Shucai Xie2

1Department of Radiology, The Second People’s Hospital of Hunan Province/Brain Hospital of Hunan Province, Changsha, China; 2Department of Critical Care Medicine, National Clinical Research Center for Geriatric Disorders, Xiangya Hospital, Central South University, Changsha, China

Contributions: (I) Conception and design: All authors; (II) Administrative support: None; (III) Provision of study materials or patients: X Jiang, J Hu; (IV) Collection and assembly of data: All authors; (V) Data analysis and interpretation: S Xie, X Jiang; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Shucai Xie, MD. Department of Critical Care Medicine, National Clinical Research Center for Geriatric Disorders, Xiangya Hospital, Central South University, No. 87 Xiangya Road, Kaifu District, Changsha 410008, China. Email: 282791444@qq.com.

Background: Hepatitis B virus (HBV) is the dominant pathogenic factor of hepatocellular carcinoma (HCC) in Asia and Africa. Early identification and clinical diagnosis are crucial for HBV-related HCC. Random forest (RF) and artificial neural network (ANN) were an innovative and highly effective supervised machine learning (ML) algorithm for the early diagnosis and screening of HBV-related HCC. This study aims to identify significant biomarkers and develop a novel genetic model for the efficient diagnosis of HBV-related HCC.

Methods: Gene Expression Omnibus (GEO) Series (GSE)19665, GSE55092, and GSE121248 were used to identify significant differentially expressed genes (DEGs). The enrichment analysis was performed on Metascape online tool. The RF algorithm and ANN were used to select the potential predictive gene panels and construct an HBV-related HCC diagnostic model. Subsequently, GSE17548, GSE104310, GSE44074, and GSE136247 were used to test the accuracy of the ANN model. Finally, the CIBERSORT algorithm was used to assess the abundance of immune infiltrates in all samples.

Results: First, 116 genes were identified as DEGs, and the DEGs were particularly enriched in cellular hormone metabolic process, monocarboxylic acid metabolic process, NABA extracellular matrix (ECM) AFFILIATED steroid metabolic process and metabolism of bile acid and bile salt. DNA topoisomerase II alpha (TOP2A), C-type lectin domain family 1 member B (CLEC1B), BUB1 mitotic checkpoint serine/threonine kinase B (BUB1B), ficolin 2 (FCN2), C-X-C motif chemokine ligand 14 (CXCL14), cyclase associated actin cytoskeleton regulatory protein 2 (CAP2), ficolin 3 (FCN3), kynurenine 3-monooxygenase (KMO) and cadherin related family member 2 (CDHR2) were available to develop an HBV-related HCC diagnostic model. After validation, the diagnostic model showed high sensitivity (88.5%, 90%, 88.5%, 76.5%) and specificity (100%, 81.8%, 89.5%, 72.2%), and the areas under the receiver operating characteristic (ROC) curves showed excellent efficiency (1, 0.927, 0.921, 0.833). Finally, the percentage of infiltrating immune cell types [B cells naïve, B cells memory, plasma cells, T cells CD8, T cells CD4 memory resting, T cells regulatory (Tregs), T cells gamma delta, natural killer (NK) cells resting, NK cells activated, Macrophages M0, Dendritic cells activated, Mast cells activated] for hepatitis B-related HCC were significantly different from that of non-cancerous liver tissue with HBV.

Conclusions: A novel early diagnostic model of HBV-related HCC was established, and the model showed better efficiency in distinguishing HBV-related HCC from other non-cancerous with HBV individuals.

Keywords: Hepatocellular carcinoma (HCC); hepatitis B virus (HBV); random forest (RF); artificial intelligence network; diagnostic model


Submitted Jul 11, 2023. Accepted for publication Nov 21, 2023. Published online Feb 26, 2024.

doi: 10.21037/tcr-23-1197


Highlight box

Key findings

• A diagnostic model of hepatitis B virus (HBV)-related hepatocellular carcinoma (HCC) was established, and the model showed better efficiency in distinguishing HBV-related HCC from other non-cancerous with HBV individuals.

What is known and what is new?

• In the previous studies, differentially expressed genes and the association pathways involved in HBV-induced HCCs were identified through integrated bioinformatics analysis using multiple datasets. Other types of diagnostic and predictive models for HBV-related HCC have also been established previously.

• Based on Gene Expression Omnibus (GEO) expression data, a diagnostic model of early HBV-related HCC was established.

What is the implication, and what should change now?

• The findings give a deeper and more comprehensive understanding of the occurrence and progression of HCC and its association with HBV and a valuable reference for the early screening and directions for improving the clinical efficacy of HBV-related HCC.


Introduction

Hepatocellular carcinoma (HCC) is the most prevalent primary liver cancer (90%) and the fourth leading cause of cancer-related death worldwide (1). By 2025, it is estimated to threat the health of more than 0.8 million people annually, with Chinese patients accounting for more than half of the global HCC burden (2). Variations in the incidence rate for HCC globally are attributed to diversity in risk factors. The prevalence of hepatitis B and C virus infections, especially the hepatitis B virus (HBV), is responsible for the highest incidence of HCC in East Asia and sub-Saharan Africa, with HBV-induced HCCs accounting for ~60% of cases in Asia and Africa (1,3). Chronic HBV infection leads to persistent liver damage and impaired regeneration, a well-known driving force of liver fibrogenesis and carcinogenesis (4). Therefore, there is an urgent need to identify reliable diagnostic markers to distinguish HBV-related HCC from other non-cancerous individuals with HBV.

Conventionally, early clinical diagnosis of HCC is depended on clinical symptoms, serum alpha-fetoprotein (AFP) and imaging findings in patients with chronic hepatitis or cirrhosis. Despite significant improvement in the prevention, monitoring, early screening, diagnosis and therapy of HCC over the past decade, the prognosis for the vast majority of HCC patients is typically poor. In addition, most patients lack obvious clinical symptoms in the early stage of HCC, and tumor that located deep within the abdominal cavity makes early diagnosis even more challenging. This highlights the importance of cancer research in identifying effective biomarkers, which are an attractive alternative for surveillance and early diagnosis of HCC because of its objectivity and reproducibility. Previous studies have identified a few potential diagnostic markers for HBV-related HCC, including AFP, Des-Gamma Carboxy Prothrombin (DCP), Golgi Protein Complex 73 (GPC 73), Osteopontin (OPN), cell-free/circulating tumor DNA, tumor-associated microRNAs and extracellular vesicles (5-11).

Machine learning (ML), unlike traditional statistical methods, is not rule-based programming but rather learning from examples. ML is an emerging discipline based on the intersection of statistics and mathematical sciences. It builds a statistical model from learning from large massive datasets data to achieve accurate prediction and to guide future research efforts (12,13). The random forest (RF), an innovative and highly effective supervised ML algorithm, uses several different prediction features in the training samples to effectively classify unknown samples by constructing a series of decision trees (13). RF classifier is an integrated approach consisting of multiple decision trees that are independent of each other. Each decision tree processes samples and predicts output labels, and the final output of the model is determined by the class that receives the most votes from the individual trees (14). As RFs overcomes the common problem of over-fitting through the use of bootstrap aggregation, it appears to be more accurate in prediction than other algorithms (15). Another supervised ML algorithm is artificial neural network (ANN), which is based on the functioning of biological neural networks. A neural network is composed of a large number of nodes (or neurons) connected to each other. The connection between each two nodes represents a weighted value for the signal passing through the connection, which is called the weight (16). Usually, these neurons are grouped in layers and process data in each layer, which are then passed forward to the next layers. Finally, the last layer responsible for making decisions and outputting results. The ANN is used to build a model of the complex relationship between input and output data and thus revealing the patterns (17). Compared to conventional programming, neural networks are available to deal with problems that algorithms could not solve, or the available solutions are too complex (17). ANN models are widely used in disease diagnosis, classification, prediction, and survival analysis because of their ability to handle linear and nonlinear relationship of data (18). It is well acknowledged that carcinogenesis and progression of HCC are closely related to mutation of genes, overexpression of various oncogenes and inactivation of tumor suppressor genes (19). With the rapid development in sequencing technology, huge volumes of gene expression profiling data related to cancer are generated for the identification of novel differential genes and diagnostic and prognostic biomarkers. In the previous studies, differentially expressed genes (DEGs) and the association pathways involved in HBV-induced HCCs were identified through integrated bioinformatics analysis using multiple datasets.

In this study, three datasets were merged. The RF algorithm was then used to identify the key genes expressed in HBV-related HCC, and ANNs constructed a genetic diagnostic model of HBV-related HCC. Finally, immune cell infiltration between HBV-related HCC samples and non-cancerous samples with HBV was evaluated. We present this article in accordance with the TRIPOD reporting checklist (available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-1197/rc).


Methods

Figure 1 shows the research framework of this study. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Figure 1 Schematic illustration of the research design. GSE, Gene Expression Omnibus Series; DEGs, differentially expressed genes; RF, random forest.

Gene expression data

Gene expression profiles of Gene Expression Omnibus (GEO) Series (GSE)19665 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE19665) (20), GSE55092 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE55092) (21), GSE121248 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE121248) (22), GSE17548 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE17548) (23), GSE104310 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE104310), GSE44074 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE44074) (24), and GSE136247 (https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE136247) (25) were obtained from the GEO database of the National Centre for Biotechnology Information (https://www.ncbi.nlm.nih.gov/geo/) (raw data are available at https://cdn.amegroups.cn/static/public/tcr-23-1197-1.xlsx, Table 1). The seven datasets were divided into two groups: the training set, which including GSE19665, GSE55092, and GSE121248, and the remaining datasets were classified into the test set to verify the performance of the model. As previously described, the process of converting gene probe IDs to gene symbols was done using A Perl language command. The normalisation between arrays function was used to normalise the gene expression data, and the gene expression data were averaged when multiple probes correspond to a gene. Subsequently, the expression data of the three datasets in training sets were merged and used for the following analysis, the batch effect from the different datasets was removed, and the common genes were finally obtained. The gene expression data with a larger value were subjected to log2 transformation in the limma R package.

Table 1

Details of the GEO dataset

Dataset ID Sample Platform Non-cancerous samples with HBV HBV-related HCC Classification Country Reference
GSE19665 HCC (HBV) GPL570 5 5 Training sets Japan Deng et al. 2010, (20)
GSE55092 HCC (HBV) GPL570 91 49 Training sets USA Melis et al. 2014, (21)
GSE121248 HCC (HBV) GPL570 37 70 Training sets Singapore Wang et al. 2007, (22)
GSE17548 HCC (HBV) GPL570 11 10 Test sets Turkey Yildiz et al. 2013, (23)
GSE104310 HCC (HBV) GPL16791 7 9 Test sets China Yun et al. 2021, not published
GSE44074 HCC (HBV) GPL13536 36 34 Test sets Japan Ueda et al. 2013, (24)
GSE136247 HCC (HBV) GPL17586 19 26 Test sets France Cerapio et al. 2021, (25)

GEO, Gene Expression Omnibus; HBV, hepatitis B virus; HCC, hepatocellular carcinoma.

Identification of DEGs and enrichment analyses

The limma R package v.3.5.2 in R software was used to identify DEGs. The DEGs were selected based on the cut-off criterion that adjusted P value <0.05 and |log2FC| >2. Metascape (http://metascape.org/gp/#/main/step1), a common integrated portal, contains functional enrichment, interactome analysis, gene annotation and membership search to provide a comprehensive gene list annotation and analysis resource for users to grasp biological characteristics (26). In present study, Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analyses were executed using Metascape (https://metascape.org/gp/index.html#/main/step1) online tool. P<0.05 was considered statistically significant.

RF screening for important genes

The RF software package (v.4.1.3) was used to filter out important variables and create an RF model that contributed most to the prediction of HBV-related HCC. First, the average model miscalculation rate of all genes based on out-of-band data was calculated. The best variable number for the binary tree at the node was set to 6, and 2000 was chosen as the best number of trees contained in the RF (27). Based on the point with the smallest error, the best RF model was then built, and the candidate genes for HBV-related HCC diagnosis were determined using the mean decrease Gini. Finally, for the subsequent model construction, the genes with a significance score greater than 4 were chosen as disease-specific genes.

Subsequently, scores were assigned to the expression data of the selected DEGs using the following rules: If an upregulated gene’s log FC value for a sample was greater than the gene’s median expression value across all samples, its score was automatically assigned as 1; otherwise, it was set to 0. If the log FC of the downregulated gene was greater than the mean expression value, its score was automatically assigned as 0; otherwise, it was set to 1. The heatmap of the selected DEGs was drawn to show their expression in the merged dataset.

Neural network to build the disease classification model

The R software package neural net (v.1.44.2) were available to develop an ANN model of the important variables. The weight of each gene was obtained and five hidden layers were set as the model parameters to build a classification model of HBV-related HCC through the obtained gene score. The model accuracy results were obtained for HBV-related HCC samples and non-cancerous samples with HBV in the training set, and the receiver operating characteristic (ROC) software package was used to calculate the areas under the ROC curves (AUCs) classification performance verification results.

Validation of the predictive model

Four independent datasets (GSE17548, GSE104310, GSE44074, GSE136247) were used to verify the accuracy of the ANN model for classifying samples (HBV-related HCC or non-cancerous samples with HBV), and the ROC curves for each dataset were drawn using the pROC software package separately. At the same time, the optimal threshold in the ROC curve and the sensitivity and specificity in classifying cancer and normal samples under this threshold were calculated.

Evaluation of immune cell infiltration

The normalised gene expression data from the merged dataset was available to evaluate the abundance of immune infiltrates in all samples through the CIBERSORT algorithm. The percentages of 22 infiltrating immune cell types were calculated and output with the cutoff criterion that P value <0.05, and their correlations were displayed in a correlation heatmap drawn by the “corrplot” package (28). The ratios of infiltrating immune cells in non-cancerous liver tissues from HBV patients and HBV-related HCC tissues were visualised by a histogram, and the difference was shown by violin diagrams.

Statistical analysis

The limma R package v.3.5.2 in R software was used to identify DEGs. The DEGs were selected based on the cut-off criterion that adjusted P value <0.05 and |log2FC| >2. The performance of ANN model was evaluated using ROCs, and the AUC, sensitivity, and specificity were determined. The correlation between 22 infiltrating immune cell types was assessed by calculating the Pearson correlation coefficient.


Results

Identification of DEGs in HCC

The samples in all datasets were strictly screened, and the samples without chronic HBV infection were excluded. GSE19665, GSE55092, and GSE121248 gene expression data were merged as a training dataset for subsequent analysis. A total of 133 non-cancerous liver tissues with HBV and 124 HBV-related HCC tissues were included in present analysis. As shown in the volcano graph (Figure 2A), 116 genes were identified as DEGs according to the cut-off criterion that adjusted P value <0.05 and |log2FC| >2 (Table S1, Figure S1). Figure 2B shows a heatmap of the top 10 up- and downregulated genes.

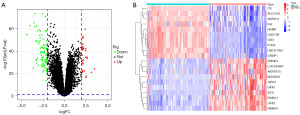

Figure 2 Identification of DEGs in HCC. (A) Volcano plot of differential expression analysis results. The abscissa is log2FC and the ordinate is −log10 adjust P value. The red dots represent the upregulated genes based on an adjusted P<0.05 and log2FC >2; the green dots represent the downregulated genes based on an adjusted P<0.05 and log2FC <2; the black dots represent the remaining stable genes. (B) Heatmap of the top 10 up- and downregulated genes. Colours on the graph from red to blue indicate high to low expression. On the upper part of the heatmap, the blue band indicates the non-cancerous HBV samples and the red band indicates HBV-related HCC samples. FC, fold change; DEGs, differentially expressed genes; HCC, hepatocellular carcinoma; HBV, hepatitis B virus.

Functional enrichment analysis of DEGs in the training dataset

To further investigate the biological functions of the 116 DEGs, GO analysis and KEGG pathway enrichment analysis were performed using online database Metascape. As previously described (29), the GO analysis consisted of three functional groups, namely, the biological process (BP) group, the cellular component (CC) group and the molecular function (MF) group. The results of GO analysis exhibited that the DEGs were particularly enriched in the BP (Figure 3A, Table S2), including monocarboxylic acid metabolic process, response to bacterium, response to peptide, regulation of growth, and cellular response to xenobiotic stimulus. For the CC (Figure 3B), the DEGs were mainly enriched in collagen-containing extracellular matrix, spindle, external side of plasma membrane, blood microparticle, and basolateral plasma membrane. In the MF (Figure 3C), the DEGs were principally enriched in oxidoreductase activity, protein homodimerization activity, carbohydrate binding, amide binding, and lipid transporter activity.

Figure 3 GO analysis and KEGG pathway enrichment analysis of DEGs using the online database Metascape. (A) Biological processes of GO analysis. (B) Cellular components of GO analysis. (C) Molecular functions of GO analysis. (D) KEGG pathway enrichment analysis. GO, Gene Ontology; KEGG, Kyoto Encyclopedia of Genes and Genomes; DEGs, differentially expressed genes.

The results of KEGG pathway enrichment analysis revealed that the DEGs were particularly enriched in bile secretion, cytokine-cytokine receptor interaction, caffeine metabolism, tryptophan metabolism, and steroid hormone biosynthesis (Figure 3D, Table S3).

RF screening for DEGs

All 116 DEGs were included in the RF classifier. Figure 4A shows the relationship between the model error and the number of decision trees. The final model showed a stable error when the number of decision trees was 2000. Therefore, the RF model was built with 2000 trees as the parameter of the final model. Genes with an importance score are shown in Figure 4B; genes with an importance score greater than 4 were selected as the candidate genes for subsequent analysis. Finally, nine genes were selected, DNA topoisomerase II alpha (TOP2A), C-type lectin domain family 1 member B (CLEC1B), BUB1 mitotic checkpoint serine/threonine kinase B (BUB1B), ficolin 2 (FCN2), C-X-C motif chemokine ligand 14 (CXCL14) and cyclase associated actin cytoskeleton regulatory protein 2 (CAP2) being the most important, followed by ficolin 3 (FCN3), kynurenine 3-monooxygenase (KMO) and cadherin related family member 2 (CDHR2). As shown in Figure 4C, CAP2, TOP2A, BUB1B were upregulated in HBV-related HCC samples, while KMO, CDHR2, CXCL14, FCN2, CLEC1B were upregulated in non-cancerous liver tissue with HBV.

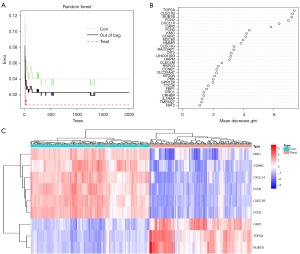

Figure 4 RF was used to screen differential genes, and nine genes were selected. (A) The influence of the number of decision trees on the error rate. The x-axis represents the number of decision trees, and the y-axis indicates the error rate. (B) The importance of the top 30 genes ranked by mean accuracy decreases. (C) Heatmap of the nine important genes generated by RF. The red colour indicates high expression genes in the samples, the blue colour indicates low expression genes in the samples, the red band on the upper side of the heatmap represents HBV-related HCC samples, and the blue band indicates non-cancerous liver tissue with HBV. RF, random forest; HBV, hepatitis B virus; HCC, hepatocellular carcinoma.

Construction of the ANN model

Expression data for these nine genes in each sample were assigned a score of 1 or 0. Based on these nine important variables, an ANN model was constructed and used to distinguish HBV-related HCC tissues and non-cancerous liver tissue with HBV in 257 samples of the merge datasets (Figure 5A). As a result, the model could correctly predict 132 cases in the HBV-related HCC group with 99.2% (132/133) accuracy and 120 cases in the non-cancerous with HBV group with 96.8% (120/124) accuracy. The AUC of the model in the training dataset were close to 1 (average AUC >0.99), showing the highly stable of the model in diagnosing HBV-related HCC (Figure 5B).

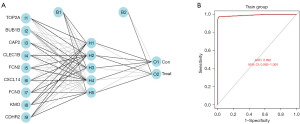

Figure 5 ANN model was constructed in the merged datasets. (A) Construction of a neural network: the neural network topology of the dataset with five hidden layers. (B) The ROC curve of the predictive model of the training dataset. AUC, area under the ROC curve; ROC, receiver operating characteristic; CI, confidence interval; ANN, artificial neural network.

Validation of the ANN model

Four independent datasets (GSE17548, GSE104310, GSE44074, GSE136247) were used to verify the performance of the ANN model to classify samples (HBV-related HCC tissues or non-cancerous liver tissues with HBV). As a result, the model could correctly predict 23 cases in the HBV-related HCC group with 88.5% (23/26) accuracy and 19 cases in the non-cancerous with HBV group with 100% (19/19) accuracy in GSE136247, 9 cases in the HBV-related HCC group with 90% (9/10) accuracy and 9 cases in the non-cancerous with HBV group with 81.8% (9/11) accuracy in GSE17548, 23 cases in the HBV-related HCC group with 88.5% (23/26) accuracy and 17 cases in the non-cancerous with HBV group with 89.5% (17/19) accuracy in GSE104310, and 26 cases in the HBV-related HCC group with 76.5% (26/34) accuracy and 26 cases in the non-cancerous with HBV group with 72.2% (26/36) accuracy in GSE44074. The AUCs of the model in the test dataset were 1 [95% confidence interval (CI): 1–1], 0.927 (95% CI: 0.791–1), 0.921 (95% CI: 0.738–1) and 0.833 (95% CI: 0.725–0.918), respectively (Figure 6).

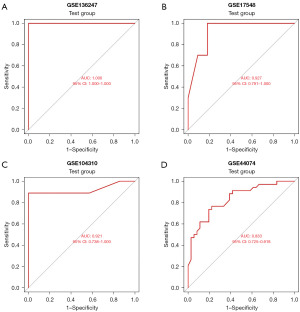

Figure 6 The ROC curve of the ANN model in the validation dataset. (A) GSE136247. (B) GSE17548. (C) GSE104310. (D) GSE44074. GSE, Gene Expression Omnibus Series; AUC, area under the ROC curve; ROC, receiver operating characteristic; CI, confidence interval; ANN, artificial neural network.

Immune cell infiltration results

A total of 133 cases of non-cancerous liver tissues from HBV patients and 124 cases of HBV-related HCC tissues were selected for the immune cell infiltration analysis. Based on the cut-off criterion that P<0.05, 38 cases of HBV-related HCC tissues and 31 cases of non-cancerous liver tissues from HBV patients were selected for CIBERSORT analysis. First, the percentages of 22 kinds of immune cells in each sample were visualised in a histogram (Figure 7A). The correlations of 22 kinds of infiltrating immune cells between HBV-related HCC tissues and non-cancerous liver tissue with HBV were analysed (Figure 7B). For example, T follicular helper cells were positively correlated with T cells CD8+ and macrophages M1. Natural killer (NK) cells resting were positively associated with neutrophils and T cells CD4 naïve. The Wilcoxon test was used to detect significantly different immune cell infiltrates between HBV-related HCC tissues and non-cancerous liver tissue with HBV. The results that presented 12 types (B cells naive, B cells memory, plasma cells, T cells CD8, T cells CD4 memory resting, Tregs, T cells gamma delta, NK cells resting, NK cells activated, Macrophages M0, Dendritic cells activated, Mast cells activated) of immune cells with P<0.05 are shown in a violin diagram in Figure 7C.

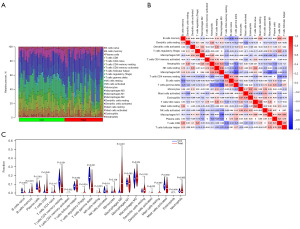

Figure 7 Immune cell infiltration in HBV-related HCC tissues and non-cancerous liver tissue with HBV. (A) The compositions of 22 immune cell types in each sample were shown in a histogram. (B) The correlations of 22 types of immune cells in HBV-related HCC tissues were evaluated. Red: positive correlation; blue: negative correlation. (C) Wilcoxon test was conducted to analyse the different immune cell infiltrates in HBV-related HCC and HBV non-cancerous liver tissues. NK, natural killer; HBV, hepatitis B virus; HCC, hepatocellular carcinoma.

Discussion

This study aimed to establish an effective diagnostic model for HBV-related HCC based on gene expression data from GEO. The three datasets in the training group were from different countries, using the same sequencing platform, which minimised the effect of confounding factors to some extent, 116 DEGs were identified in the merged dataset formed from three HBV-related HCC datasets. Nine important candidate DEGs were acquired through the RF classifier, and a neural network model was created. Four independent datasets were used to verify the classification (HBV-related liver cancer or non-cancerous liver tissues with HBV) efficiency of the model, and the AUC (1, 0.927, 0.921, 0.833) efficiency showed excellent. Four independent datasets from different countries and regions were used to assess the performance of this diagnostic model, increasing the stability, usefulness and credibility of this model. The immune cell infiltration result shows that the percentages of 12 types of immune cells were significantly different between HBV-related HCC tissues and non-cancerous liver tissue with HBV.

RF and ANN are different types of algorithms. RF is an ensemble decision tree approach in which each decision tree processes a sample and predicts an output label. Decision trees in an ensemble are independent. ANN is composed of many layers of nodes that carry the signal and process it to make the final decision (30). An ANN model for the diagnosis and screening of HBV-related HCC was constructed based on nine important genes from RFs. Of these nine genes, TOP2A and BUB1B have been extensively studied in HCC (31-35). KMO (36,37), CDHR2 (38), CLEC1B (39), CXCL14 (40) and FCN2 (41) were significantly decreased in HCC tissues (or) and cell lines, overexpression of these genes exhibited tumor-inhibitory effects towards HCC (36,37), including inhibiting tumor formation and the growth of subcutaneous tumors, suppresseing proliferation, migration and invasion of HCC cells, epithelial-mesenchymal transition (EMT) and induced apoptosis. FCN3 expression was significantly lower in HCC tissues than in normal tissues (42). However, more in vitro and in vivo experiments are needed to further confirm its effect on HCC. KMO (37), CXCL14 (43), CAP2 (44) and FCN3 (45) were prognostic markers in HCC, and the combination of PD-L1high and CLEC1Blow expression has been shown to predict worse outcomes (46).

CAP2 was a valuable molecular marker in the histological diagnosis of early HCC (47), and its overexpression might be related to multistage hepatocarcinogenesis (48). In addition, CAP2 transcriptional levels were significantly suppressed in silibinin-treated HCC cells. Silibinin could be a potential therapeutic agent against HCC, particularly for HBV-related HCCs (49). These findings indicate that CAP2 may play a critical role in the carcinogenesis or progression of HBV-related HCC. CXCL14 was markedly suppressed in HBV-related HCC tissues, and its polymorphisms were associated with advanced-stage chronic HBV infection (50). FCN2 is active in hepatitis B infection (51), and ficolin-2 serum levels and FCN2 haplotypes contribute to the outcome of HBV infection in a Vietnamese cohort (51). FCN2 was implied, which was implied to play a crucial role in innate immunity against HBV infection.

Other types of diagnostic and predictive models for HBV-related HCC have also been established previously. ATP binding cassette subfamily B member 6 (ABCB6), importin 7 (IPO7), translocase of inner mitochondrial membrane 9 (TIMM9), frizzled class receptor 7 (FZD7), and acetyl-CoA acetyltransferase 1 (ACAT1), the five HBV-related genes were identified for constructing a prognostic model, which were capable of accurately differentiating HBV patients from non-HBV patients with HCC (52). Integrated analysis of the microbiome and host transcriptome revealed that six important microbial markers associated with the tumor immune microenvironment or bile acid metabolism showed good classification performance for discriminating 5-year survival and 2-year disease-free survival (53). LncRNA was also a potential diagnostic biomarker for HBV-related HCC, and AL356056.2, AL445524.1, TRIM52-AS1, AC093642.1, EHMT2-AS1, AC003991.1, AC008040.1, LINC00844 and LINC01018 were screened out by ML (54). Based on the data from the hospital authority data collaboration lab, 124,006 patients with chronic viral hepatitis (CVH) with complete data were included to build the models, and HCC ridge score (HCC-RS) from the ridge regression ML model accurately predicted HCC in patients with CVH (55). In addition, another study identified noninvasive biomarkers by applying a urinary proteomic strategy (56).

Infiltrating immune cells, a component of the tumor microenvironment, are involved in many processes, including tumor growth, invasion and metastasis. Accumulating evidence has shown that HCC tumors harbour a significant level of immune cell infiltration, and the status of immune cell infiltration and its characteristics are usually associated with different prognostic outcomes (57,58). The ratio of group 2 innate lymphoid cells (ILC2s) to ILC1s increased from non-tumor to tumor tissue in the majority of the HCC patients, and the high ILC2/ILC1 ratio were correlated to better patient survival rates (59). In this study, the density of B cells memory, T cells CD8, Tregs, NK cells resting, macrophages M0, dendritic cells activated in tumor tissues significantly increased compared with non-cancerous liver tissues with HBV. In contrast, the density of B cells naïve, plasma cells, T cells CD4 memory resting, T cells gamma delta, NK cells activated, mast cells activated in HBV-related HCC tissues significantly decreased. T cells, B cells, NK cells, macrophages and mast cells have been previously reported to be present in immune cell infiltrates of HCC and play essential roles in the development, prognosis and immunotherapy treatment of HCC. High densities of naïve B cells and plasma cells were associated with superior survival (60). The antitumor or tumor-promoting effects of tumor-infiltrating lymphocytes depend on the proportion of the lymphocyte subsets constituent in the tumor microenvironment, and T lymphocytes are the primary tumor-infiltrating lymphocytes (TILs) cells in HCC (61). The mechanism of mast cell activation in HCC is unclear, but its activation facilitates immune escape and resultant tumor growth (58). More importantly, HBV-specific CD8+ T cells, HBV-non-specific CD8+, CD4+ T, B and NK/NKT cells are all involved in the development of HBV-related HCC (62).

This study has some limitations. First, HCC exhibits high heterogeneity, which contains etiologic, geographic and molecular heterogeneity. Molecular heterogeneity can be further classified into interpatient, intertumor and intratumor heterogeneity (63). The HBV-related HCC diagnosis model using an ANN was solely based on gene expression data. Therefore, it is difficult to use a single model to accurately diagnose HCC at an early stage, although the model performed satisfactorily on the training and validation datasets. Second, the number of samples used for the construction and validation of this model was relatively small. Third, subsequent confirmatory experiments and clinical practice are needed to further monitor the accuracy and stability of the diagnostic model.


Conclusions

In conclusion, a combination of three datasets’ expression data was used to select important variables through RF. An ANN model was formulated for the early diagnosis and screening of HBV-related HCC. Finally, the ratio of infiltrating immune cells in non-cancerous liver tissues from HBV patients and HBV-related HCC tissues was assessed. The findings give a deeper and more comprehensive understanding of the occurrence and progression of HCC and its association with HBV and a valuable reference for the early screening and directions for improving the clinical efficacy of HBV-related HCC.


Acknowledgments

Funding: This work was supported by the China Postdoctoral Science Foundation (No. 2022M713535), the Provincial Natural Science Foundation of Hunan (No. 2023JJ41005), and the Health Research Project of Hunan Provincial Health Commission (No. B202309017571).


Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-1197/rc

Peer Review File: Available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-1197/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-1197/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
