Construction of a new prognostic model for colorectal cancer based on bulk RNA-seq combined with The Cancer Genome Atlas data

Introduction

According to the 2022 report from the National Cancer Center (NCC), colorectal cancer (CRC) ranks second in China in terms of morbidity and fourth in terms of mortality among all cancer types, with CRC patients comprising approximately 10% of the total cancer population (1). CRC is a common malignant tumor in the gastrointestinal tract. Initially, it often presents with mild symptoms. However, as the disease progresses, individuals may experience changes in bowel habits, bloody stools, diarrhea, alternating diarrhea and constipation, and localized abdominal pain. In the later stages, systemic symptoms such as anemia and weight loss may occur. CRC is primarily a genetic disorder that develops from precursor colonic lesions/polyps through various tumorigenic pathways (2), and its occurrence is closely related to factors such as smoking (3), high salt intake (4,5), lack of physical exercise (6,7), obesity (8), and family history of the disease. As reported, although the incidence of CRC has slightly decreased in individuals aged over 50 years old, there is an upward trend in the incidence among those under 50, indicating a trend towards younger onset (9). At present, surgical resection, chemotherapy, and drug-assisted therapy are commonly used treatment methods for CRC in clinical practice. Radical surgical resection can reduce the mortality rate for early CRC patients (10,11), and adjuvant systemic therapy after surgical resection can reduce the risk of recurrence and significantly improve the overall survival rate of them (12). Early screening can effectively curb the development of CRC, but a large number of patients in China are still diagnosed with advanced CRC. Immune checkpoint blockade (ICB) shows promise in treating advanced CRC (13), but drug resistance remains a challenge (14), contributing to a high mortality rate. Therefore, developing new immunotherapy targets to improve the survival rate of CRC patients is currently the top priority.

Over the past 5 years, there have been 109,684 publications in the field of bioinformatics analysis, with 35,202 specifically focused on cancer research. With the development of technology, various tools and techniques have emerged to help researchers in exploring the underlying factors contributing to disease occurrence, such as single-cell sequencing, gene chips, etc. At present, bioinformatics analysis is predominantly applied for identifying disease-related key genes (15), constructing risk models related to care indicators (16), and discovering potential drug targets (17). Moreover, researchers worldwide also upload relevant sequencing data to public databases, such as Gene Expression Omnibus (GEO), The Cancer Genome Atlas (TCGA), ArrayExpress databases, etc., which facilitates data sharing and further propels the progress of bioinformatics analysis. At present, the integration of data from multiple datasets or databases is a common approach in bioinformatics analysis to extract disease-related data (18-20).

In this study, CRC-related single-cell, transcription and clinical data were downloaded from publicly available databases, namely GEO and TCGA. Through a series of analyses including differential analysis, CIBERSORTx analysis, least absolute shrinkage and selection operator (LASSO) analysis, Cox univariate analysis and survival analysis, we identified key genes that could serve as prognostic indicators for the prognosis of CRC. Risk score (RS) was established to develop a prognostic risk model. The model was also validated in the validation set, and the correlation between RS and immune-related clinical information was analyzed. Our aim in conducting this analysis is to construct a new prognostic risk model that can effectively evaluate the prognosis of CRC patients, so as to provide early interventional treatment for high-risk populations and ultimately improve the survival rate of CRC patients. We present this article in accordance with the TRIPOD reporting checklist (available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-2281/rc).

Methods

Data acquisition and processing

The CRC-related single-cell RNA sequencing (scRNA-seq) data were obtained from the GSE201348 dataset in the GEO database (https://www.ncbi.nlm.nih.gov/geo/). Two cancer samples (GSM6061645 and GSM6061686) and two normal samples (GSM6061709 and GSM6061713) were selected for subsequent analysis. The “TCGAbiolinks” R package (v 2.25.3) was used to download and process the mRNA data of colon adenocarcinoma (COAD) and rectum adenocarcinoma (READ) from the TCGA database, and consequently the corresponding transcripts per million (TPM) data were obtained and standardized (622 cancer samples, 51 normal samples). Additionally, the GSE12945, GSE29623, and GSE38832 datasets were downloaded from the GEO database using the “GEOquery” R package for validation. Gene IDs in these datasets were converted to gene symbols using GPL96 annotation, and duplicated genes were averaged. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Single-cell analysis

We performed single-cell analysis on four samples selected from the GSE201348 dataset using the “Seurat” R package (v 4.3.0). Quality control of cells was conducted based on the following criteria: (I) selection of genes detected in cells between 200 and 6,000; (II) inclusion of cells with a mitochondrial ratio below 5%. Cell subset annotation was performed using the PanglaoDB database (https://panglaodb.se/).

Cell-cell communication

We used the “CellChat” package (v 1.6.1) to analyze cell-cell communication, and the selected database information was “Secreted Signaling”.

CIBERSORTx analysis

Cibersort analysis was conducted on the cancer samples (622 samples) from the READ and COAD datasets (TCGA-CRC queue) on the CIBERSORTx website (https://cibersortx.stanford.edu/). K-means clustering of the cancer samples was performed using the “factoextra” R package (v 1.0.7). The expression of cibersortx isoforms in 22 immune cells was analyzed using the “ggpubr” R package (v 0.6.0).

Screening of differentially expressed genes (DEGs) and functional analysis

Differential analysis was conducted using the “edgeR” R package. A Wayne diagram was generated using the “VennDiagram” package. Functional enrichment analysis was performed on the metascape website (https://metascape.org/).

Screening of prognostic genes for CRC

Cox univariate analysis was performed on DEGs using the “survival” R package (v 3.5.5). A forest map was plotted using the “forestplot” R package (v 3.1.1). LASSO regression analysis was performed using the “glmnet” package (v 4.1.7). Survival analysis was carried out using the “survival” R package. Receiver operating characteristic (ROC) analysis was conducted using the “survivalROC” R package (v 1.0.3.1). The results of the aforementioned analysis were visualized using the “ggsci” R package (v 3.0.0). Finally, a nomogram was created using the “rms” package (v 6.7.1).

Single-sample gene set enrichment analysis (ssGSEA)

ssGSEA was performed on the genes using the “clusterProfiler” package (v 4.8.1) to reveal the top-ranked pathways.

Correlation analysis

Correlation analysis was performed using the “cor.test” function, “ggplot2”, or “ggpubr” built-in in R language. A correlation heatmap was generated using the “pheatmap” R package (v 1.0.12).

Statistics

The data were statistically analyzed and plotted using the R language, presented as mean ± standard deviation (x¯±s). Pairwise comparison (intra-group comparison) of differences between groups was conducted using the rank sum test and chi-square test, while the whole group comparison was conducted using the Kruskal-Wallis test. Kruskal-Wallis analysis was performed using the “ggpubr” R package (v 0.6.0). The “ggstatsplot” R package (v 0.11.0) was used for chi-square test. P<0.05 was considered for determining a significant difference.

Results

Single-cell analysis

Four samples selected from the bulk RNA-seq GSE201348 were subjected to scRNA-seq analysis. After quality control, a total of 10,619 cells (total 22,830 genes) were included in subsequent analysis. These cells were clustered into 22 clusters (Figure 1A), and 12 cell types were obtained when these clusters were annotated using the PanglaoDB database, namely: cholangiocytes, goblet, epithelial, smooth muscle, macrophages, transit amplifying, fibroblasts, T, endothelial, plasma, dendritic and enteric glia (Figure 1B). The distribution of these 12 cell types in the cancer and normal samples is depicted in Figure 1C, revealing a larger number of epithelial, goblet, and smooth muscle in the normal samples compared to that in the cancer samples. Additionally, differential analysis was conducted on GSE201348, after which 5,210 DEGs were screened out based on P<0.05. Figure 1D shows the expression of the top ten DEGs in different cell types in the two groups of samples, with DST showing significant differences in most cell types.

Figure 1 Single-cell analysis. (A) Cell clustering; (B) cell annotation; (C) the distribution of cells in different samples; (D) the expression of the top ten DEGs in different cell types in both the cancer and normal samples. DEGs, differentially expressed genes.

Cell-cell communication

Cell-cell communication analysis revealed that smooth muscle, epithelial, and cholangiocytes were the top three cell types with the highest number and intensity of interactions (Figure 2A), suggesting that they may play significant roles in CRC development. When cells acted as signalers, they were clustered into four categories based on different interaction patterns between cells. Notably, cholangiocytes, goblet, and epithelial were clustered into pattern 1, and pattern 1 showed a strong correlation with proteinase-activated receptors (PARs), GUCA and GAS pathways (Figure 2B). Correlation analysis further highlighted a strong correlation between cholangiocytes and the GAS pathways (Figure 2C). When cells acted as signal recipients, they were also clustered into four categories according to distinct interaction patterns between cells. In this case, cholangiocytes, goblet, epithelial, smooth muscle, and transit amplifying were clustered into pattern 1, which exhibited a strong correlation with PARs, VISFATIN, BMP, and GUCA pathways (Figure 2D). Correlation analysis showed that epithelial had a strong correlation with GUCA (Figure 2E). Obviously, the PARs signaling pathway ranked first in terms of the overall cellular communication intensity (the sum of reception and output), signifying its crucial role whether cells act as a signal sender or receiver (Figure 2F).

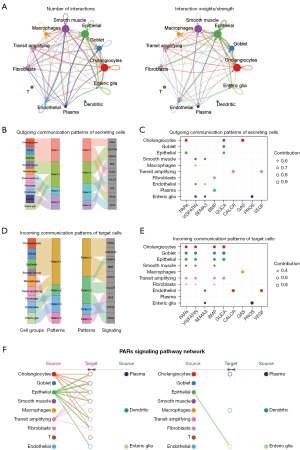

Figure 2 Cell-cell communication. (A) Number and intensity of cell-cell interactions; (B) cluster diagram of cells and pathways when cells act as signalers; (C) the correlation between the cell and the pathway when the cell acts as a signaler; (D) cluster diagram of cells and pathways when cells act as signal recipients; (E) the correlation between the cell and the pathway when the cell acts as signal recipients; (F) chord diagram of the PARs signaling pathway. PARs, proteinase-activated receptors.

CIBERSORTx analysis

We conducted a cibersort analysis using the TCGA-CRC queue (Figure 3A). K-means clustering of the samples revealed the highest slope change when k=3. When the samples were clustered into three categories, the grouping differences were found to be significant (Figure 3B,3C). Based on the k-means clustering results, we classified the samples and conducted survival analysis, and the results showed significant differences (P=0.03) (Figure 3D). Furthermore, we analyzed the expression of k1, k2, and k3 in the 22 types of immune cells (Figure 3E). The analysis revealed non-significant differences in B cells memory and neutrophils, while significant differences were observed in the remaining 20 immune cells. Therefore, we divided the samples into three categories: k1, k2, and k3 for subsequent bioinformatics analysis, representing three different subtypes of cancer.

Figure 3 CIBERSORTx analysis. (A) Cibersort heatmap of the cancer samples; (B) the elbow rule determines the optimal value of k; (C) cluster analysis diagram of k1, k2 and k3 samples; (D) survival curves of k1, k2, and k3 samples; (E) scatter plot of the expression of 22 immune cells in k1, k2, and k3. ^ns, P>0.05; *, P<0.05; **, P<0.01; ***, P<0.001. ajcc, American Joint Committee on Cancer; NK, natural killer.

Screening of key genes and functional analysis

Differential analysis was conducted on the TCGA-CRC queue based on the standard of P<0.05 and |log₂fold change (FC)| >1, and 4,408 DEGs were selected accordingly (Figure 4A). Given the significant differences observed in survival analysis between k1 and k2, we conducted differential analysis specifically on the samples from k1 and k2 based on P<0.05 as the standard, and ultimately identified 1,899 DEGs (Figure 4B). The intersection of DEGs was selected from the scRNA-seq, TCGA-CRC queue, and two subtypes of cancer, and 77 key genes were identified (Figure 4C). Functional enrichment analysis was conducted on these genes (Figure 4D), and a network diagram was plotted (Figure 4E). The results showed that the 77 key genes were mainly involved in steroid metabolic process, completion activation, and classical pathway, etc.

Figure 4 Screening of key genes and functional analysis. (A) Volcano map showing the DEGs in the TCGA-CRC queue; (B) volcano map showing the DEGs between k1 and k2 subtypes of cancer; (C) Venn diagram of the DEGs screened by scRNA-seq, TCGA-CRC cohort, and two cancer subtypes; (D) functional enrichment analysis of the key genes; (E) functional network diagram of the key genes. FC, fold change; TCGA, The Cancer Genome Atlas; CRC, colorectal cancer; scRNA, single-cell RNA; DEGs, differentially expressed genes.

Establishment of RS

Cox univariate analysis was performed on the key genes (Figure 5A), and 14 genes were identified with significant relation to survival. Subsequently, LASSO regression analysis was performed on these 14 genes (Figure 5B,5C), and 7 biomarkers were screened out along with their corresponding coefficients (Figure 5D). We calculated the RS of cancer samples in the TCGA-CRC database based on RS = ∑ (coefficient_i × expression_i) to predict prognosis [RS = (−0.092) × expression level of ATOH1 + (−0.089) × expression level of BMP5 + (−0.41) × expression level of CCL24 + (−0.23) × expression level of CLCA4 + (−0.0049) × expression level of RETNLB + (−0.031) × expression level of SULT1B1 + (−0.029) × expression level of UGT2A3]. We conducted survival analysis based on the RS and divided the samples into high and low evaluation groups based on the optimal cutoff value (cutoff =−0.6133481). The results demonstrated a significant difference (P<0.001) between the high and low evaluation groups (Figure 5E). Additionally, ROC analysis was conducted on the cancer samples in the TCGA-CRC database using the survival time of 1, 3, and 6 years as cutoff points (Figure 5F), revealing that the RS could effectively predict the survival of cancer patients. Figure 5G illustrates the RS, survival information, and expressions of the seven biomarkers for the cancer samples in the TCGA-CRC database.

Figure 5 Establishment of RS. (A) Cox univariate analysis of the key genes; (B) calculation of the regression coefficient; (C) the best prognostic model; (D) coefficients for the seven biomarkers; (E) survival curve between the high and low evaluation groups; (F) ROC analysis of the cancer samples in the TCGA-CRC database; (G) the RS, survival information, and expression of biomarkers for the cancer samples in the TCGA-CRC database. HR, hazard ratio; CI, confidence interval; FP, false positive; TP, true positive; AUC, area under the curve; RFS, recurrence free survival; RS, risk score; ROC, receiver operating characteristic; TCGA, The Cancer Genome Atlas; CRC, colorectal cancer.

RS validation

We validated the prognostic value of the risk model using GSE12945, GSE29623, and GSE38832 datasets. According to survival analysis, these datasets were divided into high/low survival groups based on the optimal cutoff values (−2.403191, −2.271374, and −2.098198, respectively). The results demonstrated that the high survival group had significantly lower overall survival rates compared to the low survival group, with P values of 0.02, 0.05, and 0.03, respectively (Figure 6A-6C). The 1-, 3- and 6-year area under curve (AUC) values of the ROC curve of the risk model in the GSE12945 dataset were 0.821, 0.632 and 0.661, respectively (Figure 6D). Correspondingly, the AUC values were 0.685, 0.572, and 0.509 in the GSE29623 dataset (Figure 6E), and 0.651, 0.549, and 0.526 in the GSE38832 dataset, respectively (Figure 6F). Additionally, we presented the RS, survival information, and biomarker expression of each sample in each dataset (Figure 6G-6I). These data indicate that the constructed prognostic risk model can accurately evaluate the prognosis of CRC patients. Furthermore, the prediction model based on these seven biomarkers is capable of predicting the survival rate of CRC patients (Figure 7A-7C).

Figure 6 RS verification. (A) Survival curves of the RS in the GSE12945 dataset; (B) survival curves of the RS in the GSE29623 dataset; (C) survival curves of the RS in the GSE38832 dataset; (D) ROC curve of the risk model in the GSE12945 dataset; (E) ROC curve of the risk model in the GSE29623 dataset; (F) ROC curve of the risk model in the GSE38832 dataset; (G) RS, survival information and expression of biomarkers for each sample in the GSE12945 dataset; (H) RS, survival information and expression biomarkers for each sample in the GSE29623 dataset; (I) RS, survival information and expression of biomarkers for each sample in the GSE38832 dataset. ROC, receiver operating characteristic; FP, false positive; TP, true positive; AUC, area under the curve; RFS, recurrence free survival; RS, risk score.

Figure 7 Predictive models. (A) Calibration curves; (B) decision curves; (C) nomogram. OS, overall survival.

ssGSEA

Based on the TCGA dataset, we performed ssGSEA on the seven biomarkers that constitute the RS. The results showed that RETNLB was associated with the hippo signaling pathway-multiple species (Figure 8A); SULT1B1 was associated with the peroxisome (Figure 8B); UGT2A3 was involved in endocytosis (Figure 8C); CLCA4 was implicated in the salmonella infection (Figure 8D); CCL24 was linked to the coronavirus disease 2019 (COVID-19) (Figure 8E); BMP5 was implicated in endocytosis (Figure 8F); and ATOH1 played a role in the cAMP signaling pathway (Figure 8G).

Figure 8 ssGSEA. (A) RETNLB; (B) SULT1B1; (C) UGT2A3; (D) CLCA4; (E) CCL24; (F) BMP5; (G) ATOH1. ssGSEA, single-sample gene set enrichment analysis.

Immunological correlation analysis

A correlation analysis was conducted on the 22 immune cells with RS and its constituent genes (Figure 9A), revealing that RS was significantly negatively correlated with plasma cells, activated CD4⁺ memory T cells, macrophages M2, resting dendritic cells, resting mast cells, and eosinophils, but positively correlated with T cells follicular helper, resting natural killer (NK) cells, activated NK cells, macrophages M0, macrophages M1 and activated mast cells. Through literature review, four immune indicators (APM, CYT, TIS, and TILS) and eight immune checkpoints (CD274, CTLA4, HAVCR2, LAG3, PDCD1, PDCA1LG2, SIGLEC15, and TIGIT) were retrieved, and their correlation with RS and its constituent genes were analyzed (Figure 9B). The results demonstrated significant negative correlations of RS with CYT and TILs, and notable positive correlation between RS and SIGLEC15. According to the RS, the cancer samples in the TCGA-CRC database were divided into high/low evaluation sample groups, and the scores of these groups in the 22 types of immune cells were plotted (Figure 9C). Significant differences were observed between the high and low evaluation groups in B cells memory, plasma cells, resting T cells CD4 memory, resting NK cells, activated NK cells, and resting dendritic cells. Figure 9D-9K further illustrates that the RS displayed significant negative correlations with plasma cells, resting T cells CD4 memory, monocytes, and eosinophils, while exhibiting significant positive correlations with T cells follicular helper, resting NK cells, macrophages M0, and activated mast cells. In conclusion, the seven biomarkers selected in the risk model play an important role in regulating the tumor immune microenvironment of CRC patients.

Figure 9 Immunological correlation analysis. (A) Correlation analysis of the 22 immune cells with RS and its constituent genes; (B) correlation analysis of immune indicators and immune checkpoints with RS and its constituent genes; (C) the scores of the high and low evaluation groups from the TCGA-CRC database in the 22 types immune cells; (D) correlation analysis of RS with plasma cells; (E) correlation analysis of RS with resting T cells CD4 memory; (F) correlation analysis of RS with T cells follicular helper; (G) correlation analysis of RS with resting NK cells; (H) correlation analysis of RS with monocytes; (I) correlation analysis of RS with macrophages M0; (J) correlation analysis of RS with eosinophils; (K) correlation analysis of RS with activated mast cells. ^ns, P>0.05; *, P<0.05; **, P<0.01; ***, P<0.001. NK, natural killer; R, Pearson correlation coefficient; RS, risk score; TCGA, The Cancer Genome Atlas; CRC, colorectal cancer.

Correlation between RS and the clinical information from TCGA

The correlation between the risk model and the clinical pathological characteristics of CRC patients was assessed. The Kruskal-Wallis test was used to compare differences in risk models across tumor node metastasis (TNM) stages and RS across stages. Figure 10A shows no significant difference in RS among pathological T stages (P=0.24); Figure 10B demonstrates a significant difference in RS among pathological N stages (P<0.001), specifically between N0 and N1, N0 and N2, and N1 and N2; Figure 10C reveals a significant difference in RS among pathological M stages (P=0.002), with a significant difference between M0 and M1; Figure 10D presents a significant difference in RS among tumor stages (P=0.003), specifically between I and III, I and IV, II and III, and II and IV. Based on the above results, RS is associated with pathological N-stage, pathological M-stage, and tumor stage, but not with pathological T-stage.

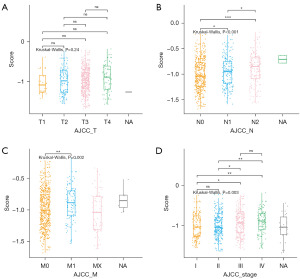

Figure 10 Correlation between RS and the clinical information from TCGA. (A) The differences of RS in each pathological T stage; (B) the differences of RS in each pathological N stage; (C) the differences of RS in each pathological M stage; (D) the differences of RS in each tumor stage. ^ns, P>0.05; *, P<0.05; **, P<0.01; ***, P<0.001. AJCC, American Joint Committee on Cancer; T, tumor; N, node; M, metastasis; NA, not applicable; RS, risk score; TCGA, The Cancer Genome Atlas.

Discussion

CRC is a common malignant tumor in the digestive tract, usually occurring in the colon and rectum. It can be divided into colon cancer and rectal cancer based on its location of onset. These two types of tumors share common histological characteristics and pathogenesis, hence collectively referred to as CRC for research. CRC can be broadly classified into ulcerative, protruding, and infiltrative types, while its histological classification includes adenocarcinoma, adenosquamous carcinoma and undifferentiated carcinoma (21,22). This study addresses the need for effective and reliable predictive biomarkers for monitoring the progression of advanced CRC. The objective is to construct a new prognostic risk model through bioinformatics analysis, with the aim of assessing the prognosis of CRC patients and identifying potential targets to enhance the outcomes of immunotherapy.

We obtained single-cell sequencing data related to CRC from the GEO database for cell annotation and differential analysis. Meanwhile, READ and COAD data were downloaded from the TCGA database for differential analysis. Immune infiltration analysis and k-means clustering were performed on the cancer samples from the READ and COAD data, and the cancer samples were reclassified into three categories (k1, k2, and k3). Subsequently, differential analysis was conducted on the k1 and k2 groups of samples based on the results of survival analysis. Finally, by taking intersection of the differential analysis results, we identified 77 key genes. Functional analysis revealed enrichment of these genes in the steroid metabolic process, complement activation, and classical pathway, etc. Brain metastasis is believed to occur through the entry of circulating tumor cells into brain microvessels. The development of brain metastasis is an important factor for the poor prognosis of patients with advanced cancer. Notably, patients with CRC are particularly prone to developing brain metastasis (23). In animal experiments, hypothalamic oxytocin-producing neurons were found to regulate the progression of colitis-associated cancer (CAC) in mice (24). Inhibition of the renin-angiotensin system pathway has shown efficacy in reducing tumor growth and metastasis, and inhibitors targeting this pathway have demonstrated promising results in in clinical practice (25). Moreover, the (pro) renin receptor has been reported in promoting CRC progression by inhibiting NEDD4L-mediated Wnt3 ubiquitination and regulating intestinal microbiota (26). It is also considered as a potential therapeutic target for pancreatic cancer, CRC, brain cancer and other cancers (27). Elevated levels of intestinal bile acid are a risk factor for CRC (28), as bile acids can be converted by gut microbiota in the small intestine into tumor-promoting secondary bile acids that can promote CRC (29). Bile acids have also been reported as both tumor inducers and promoters in esophageal cancer, CRC and hepatocellular carcinoma, while exhibiting inhibitory effects on breast cancer at specific concentrations (30). Researchers found that loss of intracellular complement C5a/C5aR1 can destabilize β-catenin and significantly block the development of CRC (31), indicating the regulatory role of C5aR1 in the occurrence of CRC through immune regulation (32).

In order to screen out hub genes related to CRC prognosis among the key genes, we conducted Cox univariate analysis on the key genes and identified 14 genes related to CRC prognosis. Subsequently, we conducted LASSO analysis and ultimately selected seven biomarkers (RETNLB, CLCA4, UGT2A3, SULT1B1, CCL24, BMP5, and ATOH1) for constructing a prognostic risk model. According to existing literature reports, RETNLB is a tumor promoter in oral squamous cell carcinoma and is significantly correlated with poor prognosis in CRC patients (33); CLCA4 can reduce the proliferation, migration, and invasion of CRC cells by inhibiting the PI3K/AKT pathway (34-36); CLCA4 serves as a tumor suppressor in esophageal cancer (37), but promotes tumor development in head and neck squamous cell carcinoma (38); UGT2A3 inhibits the proliferation and metastasis of CRC cells (39); similarly, SULT1B1 is a distinct biomarker for CRC (40); CCL24 promotes the occurrence of various cancers, including CRC, non-small cell carcinoma, and nasopharyngeal carcinoma, through M2 macrophage polarization, angiogenesis, invasion and migration, and eosinophil recruitment (41); BMP5 induces a reduction in migration and invasion of breast cancer cells (42), and BMP5 gene deletion delays the occurrence of prostate cancer and skin cancer in mice (43); ATOH1 has been less studied in the mechanism of cancer, but its association with intestinal health has been identified.

The RS has demonstrated a good predictive ability for the prognosis of CRC patients. Clinical correlation analysis has confirmed that RS is associated with pathological N stage, pathological M stage, and tumor staging, but not with pathological T stage. Immunotherapy has emerged as a promising approach in cancer treatment which helps improve the prognosis of cancer patients (44). Infiltration of immune regulatory cells such as regulatory T cells, regulatory macrophages, and myeloid suppressor cells into the tumor tissue can lead to an anti-tumor immune response, thus having a negative impact on the prognosis of cancer patients (45). These immunomodulatory cells are characterized by high expression levels of their immune checkpoints. ICB enhances immune responses or relieves immune suppression by targeting immune checkpoints, which are ligand receptor pairs (46) that inhibits or stimulates immune responses. Immune checkpoints related to tumor cells mediate immune evasion and contribute to maintaining various malignant behaviors, including self-renewal, epithelial mesenchymal transition, metastasis, drug resistance, anti-apoptosis, angiogenesis, and enhancement of energy metabolism (47,48). Remarkable progress has been made in the clinical application of ICB therapy for advanced malignant tumors, with anti PD-1/PD-L1 drugs receiving approval as second-line treatment for metastatic CRC (mCRC) (49). Immune correlation analysis confirmed that RS was negatively correlated with plasma cells, activated T cell CD4 memory, macrophage M2, resting dendritic cells, resting mast cells, eosinophils, CYT, and TILs. RS was positively correlated with T cells follicular helper, resting NK cells, activated NK cells, macrophages M0, macrophages M1, activated mast cells and SIGLEC15. These findings suggest that RS may play an important role in immunotherapy, and these identified biomarkers may serve as targets for improving immunotherapy.

This study also has certain limitations. The analysis of CRC patient data relied on data downloaded from public databases, and the lack of access to individual clinical samples and information restricts the validation in an in vitro setting.

Conclusions

In this study, CRC-related single-cell, transcriptome and clinical data were obtained from publicly available GEO and TCGA databases. Key genes associated with CRC prognosis were identified through differential analysis, CIBERSORTx analysis, LASSO analysis, Cox univariate analysis and survival analysis, leading to the development of a prognostic risk model encompassing seven genes and the establishment of an RS. The correlation of RS with tumor immune microenvironment, pathological N stage, pathological M stage and tumor staging was investigated. We hope that through this analysis, a new prognostic risk model is constructed for evaluating the prognosis of CRC patients, and potential targets are identified for improving immunotherapy.

Acknowledgments

Funding: This work was supported by the Medical and Health Science and Technology Program of Zhejiang Province (No. 2019KY135).

Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-2281/rc

Peer Review File: Available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-2281/prf

Conflicts of Interest: Both authors have completed the ICMJE uniform disclosure form (available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-2281/coif). Both authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
