Construction and validation of senescence risk score signature as a novel biomarker in liver hepatocellular carcinoma: a bioinformatic analysis
Original Article

Construction and validation of senescence risk score signature as a novel biomarker in liver hepatocellular carcinoma: a bioinformatic analysis

Tianqi Lai1,2 ORCID logo, Feilong Li1, Leyang Xiang1, Zhilong Liu1, Qiang Li1, Mingrong Cao1, Jian Sun1, Youzhu Hu1,3, Tongzheng Liu4, Junjie Liang1

1Department of Hepatobiliary Surgery, The First Affiliated Hospital, Jinan University, Guangzhou, China; 2Department of Clinical Medicine, Medical College, Jinan University, Guangzhou, China; 3Department of General Surgery, The Affiliated Shunde Hospital, Jinan University, Foshan, China; 4College of Pharmacy/International Cooperative Laboratory of Traditional Chinese Medicine Modernization and Innovative Drug Development of Ministry of Education (MOE) of China, Jinan University, Guangzhou, China

Contributions: (I) Conception and design: T Lai, J Liang; (II) Administrative support: Y Hu, T Liu, J Liang; (III) Provision of study materials or patients: J Sun, Y Hu, T Liu; (IV) Collection and assembly of data: T Lai, F Li, L Xiang; (V) Data analysis and interpretation: Z Liu, Q Li, M Cao; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Youzhu Hu, MD. Department of Hepatobiliary Surgery, The First Affiliated Hospital, Jinan University, 613 West Huangpu Avenue, Guangzhou 510630, China; Department of General Surgery, The Affiliated Shunde Hospital, Jinan University, Foshan, China. Email: drhyz@hotmail.com; Tongzheng Liu, PhD. College of Pharmacy/International Cooperative Laboratory of Traditional Chinese Medicine Modernization and Innovative Drug Development of Ministry of Education (MOE) of China, Jinan University, 601 West Huangpu Avenue, Guangzhou 510632, China. Email: liutongzheng@jnu.edu.cn; Junjie Liang, MD. Department of Hepatobiliary Surgery, The First Affiliated Hospital, Jinan University, 613 West Huangpu Avenue, Guangzhou 510630, China. Email: jjliang@jnu.edu.cn.

Background: Globally, liver cancer as one of the most frequent fatal malignancies, hits hard and fast. And the lack of effective treatments for liver hepatocellular carcinoma (LIHC), activates the researchers to promote promising precision medicine. Interestingly, emerging evidence proves that cellular senescence is involved in the progression of cancers and is recognized for its hallmark-promoting capabilities. Hence, efforts have been made to construct and validate the senescence risk score signature (SRSS) model as a novel prognostic biomarker for LIHC.

Methods: The existing databases were mined for the following bioinformatics analyses. GSE22405, GSE57957, and senescence-related genes (SRGs) from public databases were utilized as a training set and the validation set was constituted by LIHC and pancreatic adenocarcinoma (PAAD) from The Cancer Genome Atlas (TCGA). After overlapping differentially expressed genes (DEGs) with SRGs, differentially expressed SRGs were identified with the progression of liver cancer through univariate and multivariate Cox regression and enrichment analyses. The model that utilized three SRGs was constructed using the least absolute shrinkage and selection operator (LASSO) regression algorithm. Next, to evaluate the predictive performance of the SRSS model, the overall survival (OS) and survival rates were assessed through Kaplan-Meier (KM) and the receiver operating characteristic (ROC) curves. The predictive value for LIHC prognosis was further evaluated by capitalizing on risk score, nomograms, decision curve analysis (DCA) curves, and clinical information including tumor stages, gender, age, and race.

Results: DEGs were revealed as enriching in multiple tumor-related biological processes (BPs) and pathways. IGFBP3, SOCS2, and RACGAP1 were identified as the three considerable SRGs for the model. The high-risk group had a worse prognosis [both hazard ratio (HR) >1, P<0.001] and ROC curves showed a reliable predictive model with area under the curve (AUC) predictive values ranging from 0.673–0.816 for different-year survival rates respectively. The univariate and multivariate Cox regression analyses exhibited that risk score was the only credible prognostic predictor (HR >1, P<0.001) among clinical features such as tumor stage, age, etc., in LIHC. The nomograms, and DCA curves, combined with multiple clinical information, proved that the predictive ability of SRSS was strongest, followed by nomogram and traditional tumor node metastasis (TNM) stage was the weakest.

Conclusions: In summary, comprehensive analyses supported that the SRSS model can better predict survival and risk in LIHC patients. Promisingly, it may point out a brand-new direction for LIHC therapy.

Keywords: Liver hepatocellular carcinoma (LIHC); senescence risk score signature (SRSS); prognosis; biomarker


Submitted Jan 28, 2024. Accepted for publication Aug 01, 2024. Published online Sep 12, 2024.

doi: 10.21037/tcr-23-2373


Highlight box

Key findings

• In this research, the senescence risk score signature (SRSS) model was constructed and validated as an independent prognostic biomarker for liver hepatocellular carcinoma (LIHC).

What is known and what is new?

• Liver cancer is one of the most frequent fatal malignancies and patients are often diagnosed in advanced stages, contributing to its poor prognosis. Precise biomarkers and more treatment options are desperately needed for liver cancer at an early stage. Moreover, cellular senescence plays a critical role in tumorigenesis when it arises within incipient tumor cells versus stromal cells.

• Comprehensive analyses have selected three senescence-related genes (IGFBP3, SOCS2, and RACGAP1) as the SRSS model which is a novel prognostic biomarker for LIHC.

What is the implication, and what should change now?

• Early diagnosis and prognosis of LIHC could count on the SRSS model by further research.

• New treatments could be developed through the mechanism of cellular senescence in LIHC.


Introduction

Background

As the most frequent fatal malignancy, liver cancer mainly occurs with the risk factor of smoking, cirrhosis, hepatitis B or C virus infection, or nonalcoholic steatohepatitis (1,2). Regrettably, most liver cancers cannot be caught at an early stage, resulting in poor patient outcomes (3). Moreover, the incidence of liver cancer is still rising while the treatments are still limited and not effective enough (3,4). With the booming advancement of the medical realm, numerous treatment options are provided for patients with liver cancer, including surgical resection, local destructive therapies, liver therapy, transplantation, percutaneous ablation, radiation, and transarterial and systemic therapies (5,6). However, the therapeutic effect, survival benefits, and recurrence of liver cancer remain the major problems after those grueling treatments (6,7). In a word, the high mortality rates of liver hepatocellular carcinoma (LIHC) mainly arise from delayed diagnosis, limited accuracy of diagnostic and prognostic biomarkers, and shortage of precise treatment. Therefore, robust biomarkers are desperately needed to accurately diagnose, and forecast patients with LIHC and provide promising therapeutic targets.

While well-known biomarkers like alpha-fetoprotein (AFP), identified 60 years ago, have been used to predict LIHC prognosis and recurrence after liver transplant (8), recent years have witnessed extensive research on treatments such as AFP vaccine and AFP-specific adoptive T-cell transfer for LIHC management (9). However, alternative potential solutions need to be sought with an open-minded approach. Emerging discoveries have highlighted GINS3 (10), and microRNAs signature (11), among other potential biomarkers for LIHC diagnosis and prognosis. Additionally, the considerable role of senescence-related variables in cancers has emerged from recent research (12,13).

Cellular senescence which is not synonymous with aging, is a stress response state in the case of exposure to genotoxic agents, nutrient deprivation, hypoxia, and oncogene activation (14,15). The response could elicit a permanent cell cycle arrest and trigger profound phenotypic changes (16). Notably, senescence is critical in tumorigenesis when it arises within incipient tumor cells versus stromal cells (17). Due to the non-negligibility of senescence, efforts have been made to investigate its innate correlation with cancers (18,19). Moreover, research has concluded that the liver has a unique regenerative capacity in response to a damage event, which is highly associated with senescence (20). The senescence program involves in tumor immune surveillance and the error of this program may facilitate the progression of pre-malignant senescent hepatocytes to LIHC (21,22). Meanwhile, it is unrealistic to directly incorporate senescence-related genes (SRGs) into the LIHC prognostic prediction due to the necessity and complexity of revalidating robust clinical samples. Consequently, given that senescence affects tumor progression and responses to treatment, the senescence risk score signature (SRSS) model could offer enhanced prognostic assessment compared to traditional biomarkers.

Despite the critical role of senescence in LIHC, few studies have unveiled and established a senescence-related model to improve diagnostic and prognostic accuracy. Hence, this study aims to ascertain and construct a novel SRSS model to predict the LIHC prognosis effectively and identify promising therapeutic targets. We present this article in accordance with the TRIPOD reporting checklist (available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-2373/rc).


Methods

Datasets and data preprocessing

The gene expression profiles of GSE22405 (https://cdn.amegroups.cn/static/public/tcr-23-2373-1.xlsx) and GSE57957 (https://cdn.amegroups.cn/static/public/tcr-23-2373-2.xlsx) were collected from the Gene Expression Omnibus (GEO) database (https://www.ncbi.nlm.nih.gov/). The GSE22405 dataset contained 24 non-tumor and 24 LIHC samples. The GSE57957 dataset contained 39 non-tumor and 39 LIHC samples. Moreover, SRGs were directly obtained from the Human Ageing Genomic Resources (HAGR) (https://genomics.senescence.info/cells/) (https://cdn.amegroups.cn/static/public/tcr-23-2373-3.xlsx). The training set was selected after overlapping and differential analysis of the above datasets.

The datasets of LIHC and pancreatic adenocarcinoma (PAAD) from The Cancer Genome Atlas (TCGA) comprising gene expression information, clinical characteristics, and survival materials, were downloaded as the validation sets from Genomic Data Commons (GDC) Data Portal (https://portal.gdc.cancer.gov/). A total of 424 LIHC RNA sequencing (RNAseq) constitute by 377 tumor samples and 50 adjacent-tumor samples. Meanwhile, PAAD samples were obtained with 183 RNAseq from 185 tumor samples and 4 adjacent-tumor samples. Based on the model, the above datasets from TCGA were recalculated and employed as the validation sets.

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Differential analysis

To ascertain differentially expressed genes (DEGs) in the tumor and non-tumor groups, a differential expression analysis was first conducted based on the expressed genes in LIHC. The DEGs were collected by the “DESeq2” software package in R and log2|fold change (FC)| >1 and the adjusted P value <0.05 was set as the criterion. Therefore, DEGs were selected and visualized in the volcano map by the “ggplot2” package in the R.

Identification of senescence-related DEGs

To discriminate differentially expressed senescence genes (DESGs) in LIHC, DEGs, and SRGs were overlapped and visualized in the Venn diagram by the “ggplot2” package in the R. The “survival” software package in R was used to analyze the prognosis of LIHC. Fourteen DESGs related to the prognosis, which are NUSAP1, CXCL12, IGFBP3, CAP2, TOP2A, CDKN3, ASPM, RND3, PRC1, EGR1, SOCS2, RACGAP1, FST, and H2AFZ, were initially screened for genes mutual to the three datasets.

Enrichment analysis

To determine the underlying functions and pathways of DEGs, the “clusterProfilter” R package was utilized to perform Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) analyses. The GO database is a powerful bioinformatics tool to explore functions of genes in three classifications: biological processes (BPs), cellular components (CCs), and molecular functions (MFs). The KEGG is a comprehensive database that can be roughly divided into three categories: systematic information, genomic information, and chemical information. The adjusted P value <0.05 was considered statistically significant.

Construction of the prognostic model

The prognostic DESGs of LIHC were obtained by Cox regression analysis using “survival” software package in R. Then, three noteworthy prognosis-related senescence genes (IGFBP3, SOCS2, and RACGAP1) were discovered by the least absolute shrinkage and selection operator (LASSO) regression analysis using 10-fold cross-validation to procure independent prognostic genes. Furthermore, regression coefficients of independent prognostic factors were procured by multivariate Cox regression analysis. Eventually, the prognostic model was constructed as senescence risk scoring signature (SRSS) = EXPgene1*β1 + EXPgene2*β2 + EXPgene3*β3 + … + EXPgenen*βn, where EXP represents expression level and β represents the regression coefficient from the multivariate Cox.

Validation of the prognostic value of SRSS

First, the risk score of TCGA-LIHC was assessed via the Kaplan-Meier (KM) plotter and then patients were divided into low- and high-risk groups based on the survival median as the cut-off value. To compare the overall survival (OS) of patients among two groups, after statistical differences were confirmed by Log-rank test and Cox regression, we visualized the KM curves using the “survminer” package in R. And then to validate the prognostic efficiency, time-dependent receiver operating characteristic (ROC) curves were investigated by the “timeROC” package and visualized by the “ggplot2” package in R. The area under the ROC curve (AUC) is a probability value, ranging from 0.5 to −1, which is used to evaluate the accuracy of model prediction. Generally, when the value of AUC is greater than 0.7 and closer to 1, it is considered a good prediction model.

Predictive accuracy and benefit of the nomogram

In addition, the model was visualized as a nomogram for predicting the occurrence of events, and the probability of the individual occurrence time was assessed by the scores of each index in the model of independent individuals with external data, using the “rms” package. Subsequently, the effect of clinical variables on prognosis such as tumor stage, gender, age, and risk score of SRSS, was evaluated by performing univariate Cox regression analyses, and multivariate Cox regression analyses were conducted to ascertain whether a variable is an independent prognostic indicator. The P value <0.05 was considered statistically significant.

The tumor stage was established based on the seventh tumor node metastasis (TNM) classification of the American Joint Committee on Cancer (23).

Meanwhile, to evaluate the function of the established model in clinical benefit, the 1-, 3-, and 5-year decision curve analyses (DCA) were conducted. The x-axis is the threshold probability, and the y-axis is net income. The “survival” and “stdca. R” packages were utilized. Furthermore, the concordance index (C-index) ranging from 0.5 to −1, could be used to evaluate the predictive accuracy of traditional TNM-stage, nomogram, and SRSS. The closer the confidence interval (CI) value is to 1, the better the model is.

Validation of SRSS model in PAAD

Liver cancer and pancreatic cancer were both digestive gland tumors, and metastases are commonly detected in PAAD (24). Considering the histological similarities, degree of malignancy, and intimate connection with the liver, TCGA-PAAD (n=183) was utilized to further substantiate the SRSS model and its general applicability in other tumors. Therefore, the risk scores of patients with PAAD were recalculated using the SRSS formula and then the samples were distributed into low- and high-risk groups based on the survival median as the cut-off value. The survival differences and the accuracy of SRSS in PAAD were evaluated through KM-plotter and ROC curves. Similarly, a nomogram integrating the risk score of SRSS with clinical characteristics such as tumor stage, status, race, and age, was employed to further comprehensively determine the probability of survival in PAAD patients. Furthermore, the DCA diagrams were constructed for 1-, 3-, and 5-year survival to confirm the accuracy and clinical benefit of nomogram in PAAD.

Statistical analysis

Most statistical analyses were performed using R software (version 3.6.3). Excel software was utilized for the simple mathematical analysis and processing. A P value less than 0.05 was considered statistically significant.


Results

Analysis and identification of DEGs

To perform differential expression analysis, GSE22405 and GSE57957 were utilized as the training set. Based on the screening criteria: |log2FC| >1 and P<0.05, a total of 196 and 421 DEGs were identified respectively in LIHC (https://cdn.amegroups.cn/static/public/tcr-23-2373-4.xlsx, https://cdn.amegroups.cn/static/public/tcr-23-2373-5.xlsx) were selected and visualized in the volcano map (Figure 1A,1B). Then DEGs were overlapped with SRGs and then 14 DESGs were procured (Figure 1C, https://cdn.amegroups.cn/static/public/tcr-23-2373-6.xlsx). The results suggested that the DESGs might somehow participate in the progression of LIHC and it was worth further research.

Figure 1 Differential analysis in LIHC. (A) The volcano map demonstrated DEGs in GSE22405. (B) The volcano map demonstrated DEGs in GSE57957. (C) The Venn diagram was employed to identify DESGs. SRGs, senescence-related genes; LIHC, liver hepatocellular carcinoma; DEGs, differentially expressed genes; DESGs, differentially expressed senescence genes.

Enrichment analyses

Enrichment analyses were conducted to ascertain the underlying biological function of DEGs in LIHC, including GO and KEGG analyses. As shown in Figure 2A-2C, the noteworthy terms of BP, MF, and CC (2) enrichment analyses were demonstrated. Interestingly, DEGs were enriched in cell proliferation, such as organelle fission, nuclear division, microtubule, tubulin binding, and so on. Moreover, according to the KEGG pathway analysis, DEGs were involved in growth hormone synthesis, secretion, and action pathways in LIHC (Figure 2D). Those biological enrichment analyses showed that DEGs could regulate the process of cell proliferation and are further associated with the development of cancer cells.

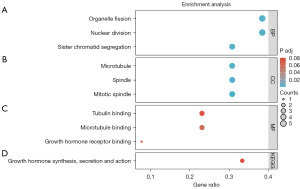

Figure 2 Enrichment analysis of senescence genes in LIHC. (A) The top 3 enrichment terms of BP in LIHC. (B) The top 3 enrichment terms of CC in LIHC. (C) The top 3 enrichment terms of MF in LIHC. (D) The KEGG enrichment pathway in LIHC. BP, biological process; CC, cellular component; MF, molecular function; KEGG, Kyoto Encyclopedia of Genes and Genomes; LIHC, liver hepatocellular carcinoma.

Establishment and prognostic value of SRSS

To discover the underlying senescence genes that could serve as effective biomarkers, univariate and multivariate Cox regression analyses were conducted on the 14 DESGs (Table 1). However, due to insufficient information on H2AFZ, the Cox analyses were undertaken eventually on the other 13 DESGs presented in Table 1. Subsequently, to establish the model of SRSS, 7 DESGs were employed for LASSO regression analysis. As shown in Figure 3A,3B, when the penalty coefficient was 3 the model fit the best, and the equivalent three senescence genes (IGFBP3, SOCS2, and RACGAP1) were adequate for establishing the model (https://cdn.amegroups.cn/static/public/tcr-23-2373-6.xlsx). The heat map, survival status, and risk score of three senescence genes in patients with LIHC also confirmed the prognostic value of SRSS (Figure 3C). Moreover, univariate and multivariate Cox regression analyses were conducted on three senescence genes, and the corresponding regression coefficients were obtained, β1–β3, which were 0.11674, −0.36518, and 0.29059, respectively. Based on the above results, the model was established as follows:

Table 1

Univariate and multivariate Cox regression analysis of 13 DESGs in LIHC (N=373)

Genes Univariate analysis Multivariate analysis
Hazard ratio (95% CI) P value Hazard ratio (95% CI) P value
NUSAP1 0.747 (0.221–2.529) 0.64
CXCL12 0.957 (0.859–1.067) 0.43
IGFBP3 1.178 (1.048–1.326) 0.006 1.127 (1.002–1.268) 0.046
CAP2 1.053 (0.921–1.205) 0.45
TOP2A 1.229 (1.103–1.368) <0.001 1.036 (0.766–1.400) 0.82
CDKN3 1.253 (1.103–1.423) <0.001 0.893 (0.689–1.158) 0.39
ASPM 1.291 (1.123–1.483) <0.001 1.002 (0.722–1.391) 0.99
RND3 1.091 (0.945–1.261) 0.24
PRC1 4.842 (1.111–21.109) 0.04 0.492 (0.069–3.519) 0.48
EGR1 1.010 (0.908–1.123) 0.86
SOCS2 0.688 (0.584–0.810) <0.001 0.680 (0.574–0.806) <0.001
RACGAP1 1.403 (1.199–1.641) <0.001 1.485 (1.027–2.146) 0.04
FST 1.004 (0.910–1.107) 0.94

DESGs, differentially expressed senescence genes; LIHC, liver hepatocellular carcinoma; CI, confidence interval.

Figure 3 Construction of SRSS model. (A) Ten-time cross-validation for screening the LASSO model. (B) LASSO variable trajectory diagram. (C) The risk score, survival status, and heat map of three immune genes in patients with LIHC. SRSS, senescence risk score signature; LASSO, least absolute shrinkage and selection operator; LIHC, liver hepatocellular carcinoma.

SRSS = EXP IGFBP3*0.11674 + EXP SOCS2*−0.36518 + EXP RACGAP1*0.29059 (EXP: expression level of gene).

Validation of SRSS in LIHC clinical prediction

According to the established formula, the risk score of each patient was calculated directly, and then the high- and low-risk groups were divided based on the median and interquartile range. The KM curve (Figure 4A) showed a worse prognosis [P<0.001, hazard ratio (HR) =2.08, 95% CI: 1.46–2.96] in the high-risk group. Meanwhile, the AUC values of 1-, 3-, and 5-year ROC curves were 0.779, 0.726, and 0.673, respectively (Figure 4B). Moreover, the AUC values of different combinations were also investigated (Table 2). The above results preliminarily indicated SRSS as a novel and promising prognostic biomarker in LIHC.

Figure 4 Validating the prognostic value and precision of SRSS. (A) KM curve of low- and high-risk score groups. (B) ROC curve for predicting the sensitivity and specificity of 1-, 3-, and 5-year survival rates. (C) Nomogram combined clinical characteristics with the risk score of SRSS. (D) DCA diagrams for the evaluation of the net benefits of the TNM-stage, SRSS, and nomogram. HR, hazard ratio; CI, confidence interval; AUC, area under ROC curve; TPR, true positive rate; FPR, false positive rate; SRSS, senescence risk score signature; TNM, tumor node metastasis; KM, Kaplan-Meier; ROC, receiver operating characteristic; DCA, decision curve analysis.

Table 2

The AUC values of different combinations

Gene combination AUC value
1 year 3 years 5 years
IGFBP3 0.619 0.654 0.542
SOCS2 0.320 0.344 0.344
RACGAP1 0.732 0.654 0.600
IGFBP3 + SOCS2 0.710 0.707 0.665
IGFBP3 + RACGAP1 0.733 0.693 0.603
SOCS2 + RACGAP1 0.780 0.709 0.670
IGFBP3 + SOCS2 + RACGAP1 0.779 0.726 0.673

AUC, area under the curve.

To determine the prognostic significance of SRSS, further univariate and multivariate Cox regression analyses were conducted for clinicopathological features of LIHC associated with OS (Table 3). Results substantiated that age, tumor status, tumor stage, and risk score were prognostic predictors in TCGA-LIHC, but not gender and race. Significantly, in multivariate Cox regression analysis, the only independent predictor was the risk score. The above results further supported SRSS as a novel and credible biomarker for predicting prognosis in LIHC.

Table 3

Univariate and multivariate Cox regression analysis of clinicopathological features of LIHC associated with OS

Characteristics Total (N) Univariate analysis Multivariate analysis
Hazard ratio (95% CI) P value Hazard ratio (95% CI) P value
Age 368 1.012 (0.998–1.026) 0.09 1.013 (0.998–1.029) 0.10
Gender 368
   Male 249 Reference
   Female 119 1.261 (0.885–1.796) 0.20
Race 357
   White 183 Reference
   Black or African-American 17 1.198 (0.520–2.760) 0.67
   Asian 157 0.756 (0.519–1.101) 0.14
Tumor status 350
   With tumor 151 Reference Reference
   Tumor free 199 0.432 (0.296–0.629) <0.001 0.587 (0.389–0.886) 0.01
Pathologic stage 344
   Stage I 172 Reference Reference
   Stage II 85 1.417 (0.868–2.312) 0.16 1.093 (0.645–1.850) 0.74
   Stage III 83 2.734 (1.792–4.172) <0.001 1.831 (1.145–2.927) 0.01
   Stage IV 4 5.597 (1.726–18.148) 0.004 3.316 (0.782–14.066) 0.10
Pathologic N 367
   NX 113 Reference Reference
   N0 250 0.676 (0.467–0.980) 0.04 0.713 (0.451–1.125) 0.15
   N1 4 1.466 (0.355–6.062) 0.60 0.535 (0.121–2.368) 0.41
Risk score 368 3.959 (2.642–5.933) <0.001 3.226 (2.044–5.092) <0.001

LIHC, liver hepatocellular carcinoma; OS, overall survival; CI, confidence interval.

Simultaneously, the nomogram was made as a scale to visualize the model for calculating and predicting the prognosis of patients with LIHC (Figure 4C). As shown in Table 4, the C-index of TNM-stage, SRSS, and nomogram were in order of 0.639, 0.696, and 0.686. In conclusion, the predictive ability of SRSS was strongest, followed by the nomogram combined with multiple clinical information and the traditional TNM stage was the weakest. Furthermore, the decision curve analysis (DCA) figures showed that the nomogram integrating multiple clinical information has a better clinical application value, which was also consistent with the above result (Figure 4D). The results supported that the value of clinical application was better with SRSS.

Table 4

The C-index values of the TNM-stage, SRSS, and nomogram

Cohorts Variables C-index (95% CI)
LIHC TNM-stage 0.639 (0.607–0.671)
SRSS 0.696 (0.672–0.720)
Nomogram 0.686 (0.660–0.712)
PAAD TNM-stage 0.561 (0.535–0.587)
SRSS 0.657 (0.628–0.687)
Nomogram 0.694 (0.662–0.727)

C-index, concordance index; TNM, tumor node metastasis; SRSS, senescence risk score signature; CI, confidence interval; LIHC, liver hepatocellular carcinoma; PAAD, pancreatic adenocarcinoma.

Validation of SRSS in PAAD

In consideration of the innate connection with LIHC, TCGA-PAAD was utilized as the external validation set, and risk scores for each patient in the PAAD cohort were calculated according to the established SRSS formula. The KM curve showed a worse prognosis in the high-risk group which is consistent with the result of LIHC (Figure 5A). The AUC of the 1-, 3-, and 5-year survival ROC curves (0.697, 0.776, and 0.816 respectively) demonstrated a high level of consistency in predicting OS (Figure 5B). Moreover, the predictive nomogram of PAAD was constructed utilizing clinical features and SRSS (Figure 5C). The C-index values (Table 4) and the DCA figures (Figure 5D) demonstrated that the predictive ability of SRSS was weaker than the comprehensive nomogram in PAAD but stronger than traditional TNM-stage.

Figure 5 Validation of SRSS with TCGA-PAAD. (A) KM curve of low- and high-risk score groups in PAAD. (B) Time-dependent ROC curve for predicting the sensitivity and specificity of 1-, 3-, and 5-year survival rates. (C) Nomogram combined clinical characteristics with the risk score of SRSS. (D) DCA diagrams for the evaluation of the net benefits of the TNM-stage, SRSS, and nomogram. HR, hazard ratio; CI, confidence interval; AUC, area under ROC curve; TPR, true positive rate; FPR, false positive rate; SRSS, senescence risk score signature; TNM, tumor node metastasis; TCGA, The Cancer Genome Atlas; PAAD, pancreatic adenocarcinoma; KM, Kaplan-Meier; ROC, receiver operating characteristic; DCA, decision curve analysis.

Discussion

LIHC, not only is the most frequent primary liver cancer but also the fourth most common cause of cancer-related death (1,25). Meanwhile, cellular senescence plays a pivotal role in liver homeostasis, disease, and regeneration (26). Currently, there are deficient indexes for early diagnosis, accurate prognosis, and more effective treatments for patients with LIHC (27). Therefore, more and more researchers have made efforts to search underlying biomarkers for precise prognoses and treatments, however, not adequate biomarkers have been found (28-30). As cellular senescence is considered to be a promising strategy for liver diseases including cancer (31,32), hence, we involved ourselves in constructing and validating a SRSS model of LIHC for early diagnosis, prognostic prediction, and providing a promising therapeutic target.

Firstly, to investigate the innate connection between LIHC and the senescence mechanism, GSE22405 and GSE57957 were selected as the training sets. Differential analysis was then conducted to identify 196 and 421 DEGs and 14 DESGs. Following this, DEGs were employed for enrichment analyses. Results showed that those DEGs were significantly enriched in cell proliferation, such as organelle fission, nuclear division, microtubule, tubulin binding, and so on. As exhilarating as the results are, cell proliferation has already been widely known to involve in multiple BPs including tumor development (33,34). Moreover, sustained proliferation is a common property of human cancer (35). The results shed light on the possibility of constructing senescence-related biomarkers in LIHC.

Consequently, among DEGs, three senescence genes, including IGFBP3, SOCS2, and RACGAP1, were identified to be strongly related to prognosis in LIHC based on Cox regression analysis and lasso regression analysis. After preliminary verification of prognostic value in LIHC, the SRSS model was constructed for efficient diagnosis and predicting prognosis. IGFBP3, a kind of protein with pleiotropic ability, could regulate cell proliferation, apoptosis, and differentiation (36,37). Moreover, researchers have found IGFBP3 upregulation in the senescent cells (38). As for SOCS2, it could enhance the efficiency of liver cancer radiotherapy by promoting ferroptosis and improving the prognosis of patients (39). Notably, Yang et al. discovered that overexpressed RACGAP1 promoted the proliferation of LIHC cells by reducing the activation of the Hippo and YAP pathways (40). In conclusion, the function of those three promising biomarkers is consistent with the results of the enrichment analysis, which showed that it could regulate the proliferation of cancer cells in a certain mechanism. Therefore, we hypothesized that the established SRSS model might be a robust biomarker in LIHC and more validation is as follows.

The KM curve showed a worse prognosis in the high-risk group. Meanwhile, the time-dependent ROC curve demonstrated that the prognostic prediction of the SRSS model was in good consistency with the actual results. Furthermore, the risk score of SRSS integrating with clinicopathological features of LIHC was analyzed via univariate and multivariate Cox regression analysis and the result supported the risk score of SRSS as an independent prognostic biomarker in LIHC. For further comprehensive evaluation of the prognosis, the survival probability was scored individually through the nomogram with multiple clinical information and risk scores. Consequently, the C-index and DCA figures thoroughly proved that the predictive ability of SRSS was stronger than the nomogram combined with multiple clinical information and traditional TNM-stage.

As another advanced cancer of the digestive system, PAAD is known for its capability of invasion and metastasis with a high fatality rate (41,42). In consideration of the histological similarities, biological function, pathogenesis, and other intimate connections with the liver (43-45), PAAD was selected as the validation set to further evaluate the SRSS. Based on the data from TCGA-PAAD, the results of the KM curve, ROC curve, nomogram, calibration, and DCA diagram were consistent with the above results.


Conclusions

In this study, three SRGs were screened out after exploring the underlying association with LIHC. The SRSS model based on the three SRGs was constructed and validated to be a novel and promising prognostic model independently for LIHC. Hopefully, groundbreaking treatments will be brought out by targeting this novel biomarker of LIHC.


Acknowledgments

Funding: This study was supported by grants from the Medical Scientific Research Foundation of Guangdong Province (No. A2021091 to J.L.), the Fundamental Research Funds for the Central Universities (No. 21622312 to J.L.), the Basic and Applied Basic Research Project of Guangzhou Basic Research Program (No. 2023A04J1917 to J.L.), the Flagship Specialty Construction Project-General Surgery of the First Affiliated Hospital of the Jinan University (No. 711003 to J.L.), the Special Foundation for Scientific Research Development of the Affiliated Shunde Hospital of Jinan University (No. 202101004 to Y.H.), and Guangdong Basic and Applied Research Foundation (No. 2021A1515010259, 2022A1515012581 to J.S.).


Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-2373/rc

Peer Review File: Available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-2373/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://tcr.amegroups.com/article/view/10.21037/tcr-23-2373/coif). All authors report that this study was supported by grants from the Medical Scientific Research Foundation of Guangdong Province (No. A2021091 to J.L.), the Fundamental Research Funds for the Central Universities (No. 21622312 to J.L.), the Basic and Applied Basic Research Project of Guangzhou Basic Research Program (No. 2023A04J1917 to J.L.), the Flagship Specialty Construction Project-General Surgery of the First Affiliated Hospital of the Jinan University (No. 711003 to J.L.), the Special Foundation for Scientific Research Development of the Affiliated Shunde Hospital of Jinan University (No. 202101004 to Y.H.), and Guangdong Basic and Applied Research Foundation (No. 2021A1515010259, 2022A1515012581 to J.S.). The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was performed in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
