Nomogram for predicting cancer-specific mortality risk in endometrial cancer after postoperative radiotherapy
Highlight box
Key findings
• Based on 10,906 postmenopausal patients with endometrial cancer (EC) who received postoperative radiotherapy from the Surveillance Epidemiology and End Results database, a nomogram model for predicting overall survival (OS) and cancer-specific survival (CSS) was constructed and validated.
What is known and what is new?
• Surgery combined with radiotherapy is the standard adjuvant treatment for EC, but there are controversies regarding the impact of different radiotherapy modalities and whether chemotherapy is combined or not on prognosis; the traditional Cox proportional hazards model does not consider the competing risk of non-cancer deaths, which may overestimate the specific mortality rate of EC.
• This study is the first to target postoperative radiotherapy patients with EC after menopause, and simultaneously constructs a CSS nomogram based on the Fine-Gray competing risk model and an OS nomogram based on the Cox model to achieve individualized risk stratification; it confirms that the competing risk model has a greater predictive advantage for long-term survival diseases; it is found that brachytherapy and simple radiotherapy have survival benefits in this population, providing evidence-based basis for optimizing treatment decisions.
What is the implication, and what should change now?
• This nomogram can integrate multiple clinical and pathological factors, providing a more accurate prediction of patient prognosis compared to a single American Joint Committee on Cancer staging system, and assisting clinicians in conducting individualized risk assessment and treatment decision-making.
• For high-risk patients, more aggressive strategies such as combined brachytherapy can be considered; for low-risk patients, excessive treatment can be avoided; it is recommended to prefer radiotherapy alone rather than blindly combining chemotherapy, especially in elderly or patients with multiple comorbidities who are postmenopausal.
Introduction
As cancer treatment methods continue to diversify and improve (1), the cancer mortality rate is steadily declining, with an estimated 2,001,140 new cancer cases and 611,720 cancer deaths in the United States in 2024 (2). Endometrial cancer (EC) is a group of epithelial malignancies that occur in the endometrium. A total of 420,368 new cases were reported globally in 2022 (3). About 75% of these patients were postmenopausal women with a median age of 61 years at diagnosis (4). In the United States, EC is the most common gynecological malignancy, with an estimated 67,880 new cases in 2024. The current recommended treatment for EC is surgery combined with radiotherapy ± chemotherapy (5-7). The choice of adjuvant therapy after surgery for EC in postmenopausal patients remains controversial (8-11). Numerous studies have shown that surgery combined with radiotherapy in high-risk EC patients improves patient survival (12,13). Some studies also concluded that surgery combined with radiotherapy does not improve 5-year survival and disease-free survival (DFS) is generally defined as the recurrence of EC lesions at any (site >6 months later) in EC patients (10), and 7–15% of patients with early EC and 40% of patients with advanced EC will still have recurrence or metastasis after treatment.
Currently, predictive models are widely used to study the prognostic outcome of tumors. Most studies have mainly used traditional survival analysis methods such as Cox proportional hazards model (14-16). A large proportion of postmenopausal EC patients still die from causes other than EC-related specific deaths, which are difficult to predict and can compete with tumor cancer-specific survival (CSS). This can, to some extent, overestimate the mortality of tumor patients and thus reduce the predictive value of death in EC patients. Based on the presence of competing factors, we used a competing risk model to distinguish tumor CSS from death from other causes. Competing risk models have demonstrated benefits in various studies focused on tumor prognosis. For example, in a study focused on metastatic colorectal cancer (mCRC), Qiu et al. predicted the impact of a history of malignancy on the survival of patients with mCRC through competing risk analysis (17). In the field of prostate cancer, Yang’s team established a prognostic competing risk model for elderly patients with transitional cell bladder carcinoma (18). This indicates that when there is a significant risk of death, competing risk models can provide more accurate prognostic assessments.
EC is one of the few cancers for which survival has not improved significantly since the mid-1970s, reflecting the fact that few advances have been made in the treatment of this cancer. In this regard, it is critical to examine which pathologic indicators effectively predict whether each patient will benefit from surgery combined with radiotherapy, whether radiotherapy plus chemotherapy is superior to radiotherapy alone, and which radiotherapy modality achieves the highest survival rate. Therefore, we constructed a prediction model to predict CSS and overall survival (OS) in postmenopausal EC patients treated with surgery combined with radiotherapy based on the Surveillance Epidemiology and End Results (SEER) database. We present this article in accordance with the TRIPOD reporting checklist (available at https://tcr.amegroups.com/article/view/10.21037/tcr-2025-1-2656/rc).
Methods
Patient selection
The data for this article were obtained from the U.S. cancer statistics database—SEER detailing approximately 34% of U.S. demographics, cancer pathology, treatment, and prognosis since 1973. The SEER database has large, comprehensive, and specific information on clinical cases, and this study was based on SEER*Stat 8.4.0.1 software to collect information on patients from 18 registries. Inclusion criteria: patients diagnosed with EC between 2010 and 2015 were included with reference to the International Classification of Diseases for Oncology, 3rd edition (ICD-O-3); EC included the following pathological type classifications: Endometrioid (ICD-0-3 codes 8140, 8210, 8260, 8262, 8380–8383, 8440, 8480–8482, 8560, 8570), Serous (8441, 8450, 8460, 8461), uterine carcinosarcomas (UCSs) (8950, 8951, 8980, 8981), Clear cell (8310, 8313), age at diagnosis ≥50 years, and patients who had undergone surgical treatment and radiotherapy. Exclusion criteria: patients lacking information on race, marital status, tumor-node-metastasis (TNM) stage, metastasis, tumor size, lymphadenectomy, distant metastatic surgery, and follow-up.
Referring to the American Joint Committee on Cancer (AJCC) clinical guidelines and expert opinions, the following 24 predictor variables were selected: basic patient information: age at diagnosis, marital status at diagnosis, and race; tumor-related information: grade, histology, AJCC stage (7th), AJCC T (7th), AJCC N (7th), AJCC M (7th), brain metastasis, liver metastasis, bone metastasis, and lung metastasis, tumor size, first malignant primary indicator, total number of in situ/malignant tumors for patient, sequence number, total number of benign/borderline tumors for patient; treatment information: surgery of primary site, scope regional lymph node surgery, surgery of other regional sites/distant sites, radiation recode, chemotherapy recode, regional nodes positive; and outcome variables: survival months, specific death classification. The outcome events in this study were CSS and OS, with CSS defined as the duration from diagnosis to death from EC and OS defined as the duration from diagnosis to the last follow-up visit, regardless of the cause of death. In the competing risk model, patient death from EC is defined as an event of interest; death from any other cause is defined as a competing event, and if the patient is alive at the end of follow-up, it is defined as a censored event.
Development and validation of OS and CSS nomogram models
Patients extracted from the SEER database were randomly divided into training and validation cohorts in a ratio of 7:3. The training cohort was used to develop nomograms for predicting 1-, 3-, and 5-year OS and CSS probabilities in EC patients. The validation cohort was used to validate the model constructed from the training cohort. Univariate and multivariate stepwise regression analyses using Cox were used to identify influencing factors affecting the prognosis of EC patients, and variables with P<0.05 were identified as independent risk factors associated with OS in EC patients. Nomograms were constructed to predict the 1-, 3-, and 5-year survival of EC. A risk classification system was established based on the total nomogram score of each patient, and patients were divided into two groups according to their prognosis using the median as the cut-off value: low-risk group and high-risk group. Kaplan-Meier curve and log-rank test were used to describe and compare the effects of surgical modality, radiotherapy modality, presence of chemotherapy, and type of pathology on patient OS in the different risk groups.
In this study, EC-induced death and non-EC-induced death were regarded as two competing events. Fine-Gray test and cumulative incidence function (CIF) were used to identify the independent influencing factors affecting the CSS of EC patients, and a nomogram was constructed accordingly. The performance of the model was measured using the concordance index (C-index), the area under the receiver operating characteristic (ROC) curve, and calibration plot. The model constructed in this study was also compared with the model based on AJCC staging model. In addition, we compared the mortality rates predicted by traditional survival analysis with those predicted by the competing risk model. This study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments.
Statistical analysis
R 4.2.2 and SPSS 26.0 were used. We used Chi-squared test for statistical analysis of categorical variables and t-test for continuous variables. Bilateral P values less than 0.05 were considered to be statistically different. Multicollinearity among all continuous and categorical variables was assessed by calculating the variance inflation factor (VIF); the majority of VIFs were below 10, indicating that collinearity was not a substantial concern.
Results
Population baseline characteristics
The 10,906 patients who met the inclusion criteria were randomized into the training cohort (N=7,633) and the validation cohort (N=3,273) with a mean age of 65.61±8.79 and 65.79±8.69 years, respectively. A total of 4,310 patients received chemotherapy; 3,487 (31.9%) received beam radiation; 1,965 (18.1%) received combination of beam with implants or radioisotopes; 5,454 (50.0%) received radioactive implants (includes brachytherapy); 9,547 (87.5%) underwent hysterectomy with bilateral salpingectomy and ovariectomy oophorectomy (Hys + BSO); 1,093 (10.0%) underwent radical hysterectomy; 147 (1.35%) underwent hysterectomy without bilateral salpingectomy and ovariectomy oophorectomy (Hys − BSO). In terms of survival, the mean length of follow-up was 56.6 (range, 1–107) months. Mortality events occurred in 2,794 patients, of which 2,003 (71.7%) patients died from EC and 791 (28.3%) patients died from other causes. The demographic and clinicopathological characteristics of all patients were shown in Table 1.
Table 1
| Factors | Train (N=7,633) | Test (N=3,273) | All (N=10,906) | t/χ2 | P |
|---|---|---|---|---|---|
| Grade | 5.50 | 0.24 | |||
| I | 1,226 [16] | 524 [16] | 1,750 [16] | ||
| II | 2,078 [27] | 828 [25] | 2,906 [27] | ||
| III | 1,950 [26] | 880 [27] | 2,830 [26] | ||
| IV | 696 [9] | 316 [10] | 1,012 [09] | ||
| Unknown | 1,683 [22] | 725 [22] | 2,408 [22] | ||
| Behavior | 1.67 | 0.64 | |||
| Endometrioid | 5,973 [78] | 2,535 [78] | 8,508 [78] | ||
| Serous | 833 [11] | 378 [12] | 1,211 [11] | ||
| Carcinoma | 669 [9] | 298 [9] | 967 [9] | ||
| Clear | 158 [2] | 62 [2] | 220 [2] | ||
| Stage | 5.25 | 0.15 | |||
| I | 4,707 [62] | 2,061 [63] | 6,768 [62] | ||
| II | 875 [12] | 360 [11] | 1,235 [11] | ||
| III | 1,810 [24] | 730 [22] | 2,540 [23] | ||
| IV | 241 [3] | 122 [4] | 363 [3] | ||
| T stage | 1.39 | 0.50 | |||
| T1 | 5,381 [70] | 2,344 [72] | 7,725 [70] | ||
| T2 | 1,125 [15] | 464 [14] | 1,589 [15] | ||
| T3/4 | 1,127 [15] | 465 [14] | 1,592 [15] | ||
| N stage | 7.87 | 0.02 | |||
| N0 | 6,322 [82] | 2,719 [83] | 9,041 [83] | ||
| N1 | 810 [11] | 380 [12] | 1,190 [11] | ||
| N2 | 501 [7] | 174 [5] | 675 [6] | ||
| M stage | 2.18 | 0.14 | |||
| M0 | 7,423 [97] | 3,166 [97] | 10,589 [97] | ||
| M1 | 210 [3] | 107 [3] | 317 [3] | ||
| Surgery of primary site | 0.66 | 0.42 | |||
| ≤50 | 6,843 [90] | 2,951 [90] | 9,794 [90] | ||
| >50 | 790 [10] | 322 [10] | 1,112 [10] | ||
| Regional lymph node surgery | 8.80 | 0.03 | |||
| None | 1,240 [16] | 466 [14] | 1,706 [16] | ||
| 1–3 | 391 [5] | 178 [5] | 569 [5] | ||
| ≥4 | 5,770 [76] | 2,512 [77] | 8,282 [76] | ||
| Other | 232 [3] | 117 [4] | 349 [3] | ||
| Surgery of other regional sites/distant sites | 3.38 | 0.07 | |||
| None | 7,203 [94] | 3,059 [94] | 10,262 [94] | ||
| Other | 430 [6] | 214 [6] | 644 [6] | ||
| Radiation | 0.26 | 0.88 | |||
| Beam | 2,451 [32] | 1,036 [32] | 3,487 [32] | ||
| Combination | 1,369 [18] | 596 [18] | 1,965 [18] | ||
| Brachytherapy | 3,813 [50] | 1,641 [50] | 5,454 [50] | ||
| Chemotherapy | 0.63 | 0.43 | |||
| Yes | 2,998 [39] | 1,312 [40] | 4,310 [40] | ||
| No/unknown | 4,635 [61] | 1,961 [60] | 6,596 [60] | ||
| Bone | 4.35 | 0.04 | |||
| Yes | 17 [0.2] | 15 [0.2] | 32 [0.2] | ||
| No | 7,616 [99.8] | 3,258 [99.8] | 10,874 [99.8] | ||
| Brain | 1.98 | 0.16 | |||
| Yes | 8 [0.1] | 7 [0.1] | 15 [0.1] | ||
| No | 7,625 [99.9] | 3,266 [99.9] | 10,891 [99.9] | ||
| Liver | 0.00 | 0.96 | |||
| Yes | 12 [0.2] | 5 [0.2] | 17 [0.2] | ||
| No | 7,621 [99.8] | 3,268 [99.8] | 10,889 [99.8] | ||
| Lung | 5.03 | 0.03 | |||
| Yes | 29 [0.3] | 23 [1] | 52 [0.5] | ||
| No | 7,604 [99.7] | 3,250 [99] | 10,854 [99.5] | ||
| Indicator | 1.03 | 0.31 | |||
| Yes | 6,725 [88] | 2,906 [89] | 9,631 [88] | ||
| No | 908 [12] | 367 [11] | 1,275 [12] | ||
| Marriage | 5.38 | 0.50 | |||
| Married | 4,059 [53] | 1,745 [53] | 5,804 [53] | ||
| Divorced | 945 [12] | 435 [13] | 1,380 [13] | ||
| Single | 1,412 [19] | 582 [18] | 1,994 [18] | ||
| Widowed | 1,217 [16] | 511 [16] | 1,728 [16] | ||
| Race | 0.31 | 0.58 | |||
| White | 6,206 [81] | 2,676 [82] | 8,882 [81] | ||
| Other | 1427 [19] | 597 [18] | 2,024 [19] | ||
| Sequence number | 0.03 | 0.87 | |||
| 1 primary | 5,952 [78] | 2,557 [78] | 8,509 [78] | ||
| More | 1,681 [22] | 716 [22] | 2,397 [22] | ||
| Age (years) | 65.61±8.79 | 65.79±8.69 | – | −1.02 | 0.31 |
| Nodes (n) | 16.37±35.88 | 14.30±33.98 | – | 2.87 | 0.01 |
| Tumor size (mm) | 47.35±33.58 | 49.18±38.23 | – | −2.38 | 0.01 |
| Time (months) | 56.50±25.41 | 56.59±25.25 | – | −0.18 | 0.86 |
| Number | 1.26±0.57 | 1.26±0.26 | – | 0.16 | 0.87 |
Data are presented as n [%] or mean ± standard deviation. M, metastasis; N, node; T, tumor.
Parameters associated with CSS and OS
In the competing risk model, influencing factors with P<0.05 in the univariate analysis were included in the multivariate analysis, and 13 independent factors influencing the prognosis of postmenopausal EC patients treated with surgery + radiotherapy were eventually identified: age, tissue type, brain metastasis, lung metastasis, marital status, T-stage, N-stage, stage, grade, radiotherapy modality, tumor size, surgical site, and regional lymphadenectomy (Table 2). Sixteen factors influencing OS were identified using univariate and multivariate Cox proportional hazards models, and another three factors were added: bone metastasis, the presence of chemotherapy, and the total number of in situ/malignant tumors for patients. In addition, the CIFs of the significant influencing factors included in the model were plotted in Figure S1.
Table 2
| Variables | Univariate analysis | Multivariate analysis | |||
|---|---|---|---|---|---|
| HR (95% CI) | P | HR (95% CI) | P | ||
| Age | 1.02 (1.02–1.03) | <0.001 | 1.02 (1.01–1.03) | <0.001 | |
| Behavior | |||||
| Endometrioid | Reference | Reference | |||
| Carcinoma | 4.27 (3.72–4.91) | <0.001 | 2.43 (2.04–2.90) | <0.001 | |
| Clear | 2.11 (1.52–2.93) | <0.001 | 1.05 (0.73–1.50) | 0.80 | |
| Serous | 2.85 (2.48–3.26) | <0.001 | 1.45 (1.22–1.73) | <0.001 | |
| Benign and borderline tumor number | 1.13 (0.62–2.06) | 0.70 | NA | NA | |
| Bone metastasis | |||||
| Yes | Reference | Reference | |||
| No | 0.18 (0.08–0.42) | <0.001 | 0.77 (0.33–1.78) | 0.54 | |
| Brain metastasis | |||||
| Yes | Reference | Reference | |||
| No | 0.01 (0.00–0.03) | <0.001 | 0.12 (0.04–0.30) | <0.001 | |
| Chemotherapy | |||||
| Yes | Reference | Reference | |||
| No/unknown | 0.4 (0.36–0.44) | <0.001 | 1.01 (0.86–1.19) | 0.86 | |
| Grade | |||||
| I | Reference | Reference | |||
| II | 2.22 (1.70–2.89) | <0.001 | 2.03 (1.56–2.65) | <0.001 | |
| III | 5.81 (4.53–7.44) | <0.001 | 3.67 (2.83–4.77) | <0.001 | |
| IV | 7.43 (5.69–9.72) | <0.001 | 3.75 (2.80–5.04) | <0.001 | |
| Unknown | 3.09 (2.38–4.03) | <0.001 | 2.4 (1.84–3.13) | <0.001 | |
| First malignant primary indicator | |||||
| Yes | Reference | Reference | |||
| No | 1.19 (1.02–1.39) | 0.03 | 1.01 (0.86–1.20) | 0.87 | |
| Liver | |||||
| Yes | Reference | Reference | |||
| No | 0.13 (0.06–0.28) | <0.001 | 0.6 (0.29–1.22) | 0.16 | |
| Lung | |||||
| Yes | Reference | Reference | |||
| No | 0.09 (0.05–0.17) | <0.001 | 0.47 (0.23–0.96) | 0.04 | |
| Marriage | |||||
| Married | Reference | Reference | |||
| Divorced | 1.16 (0.98–1.36) | 0.08 | 1.09 (0.92–1.30) | 0.32 | |
| Single | 1.04 (0.90–1.21) | 0.58 | 1.05 (0.90–1.23) | 0.55 | |
| Widowed | 1.59 (1.38–1.82) | <0.001 | 1.28 (1.10–1.48) | 0.002 | |
| M stage | |||||
| M0 | Reference | Reference | |||
| M1 | 5.63 (4.62–6.85) | <0.001 | 1.28 (0.75–2.18) | 0.36 | |
| Nodes | 1.00 (1.00–1.00) | <0.001 | 1 (1.00–1.01) | 0.11 | |
| N stage | |||||
| N0 | Reference | Reference | |||
| N1 | 2.36 (2.05–2.71) | <0.001 | 1.36 (1.09–1.7) | 0.007 | |
| N2 | 2.9 (2.47–3.4) | <0.001 | 1.28 (1.01–1.63) | 0.04 | |
| Tumor number | 1.01 (0.93–1.11) | 0.76 | NA | NA | |
| Surgery of other regional sites/distant sites | |||||
| None | Reference | Reference | |||
| Other | 1.84 (1.53–2.22) | <0.001 | 1.09 (0.89–1.34) | 0.40 | |
| Race | |||||
| White | Reference | Reference | |||
| Other | 1.48 (1.31–1.67) | <0.001 | 1.09 (0.96–1.25) | 0.19 | |
| Radiation | |||||
| Beam | Reference | Reference | |||
| Brachytherapy | 0.35 (0.31–0.40) | <0.001 | 0.64 (0.55–0.74) | <0.001 | |
| Combination | 0.71 (0.62–0.82) | <0.001 | 0.80 (0.69–0.92) | 0.002 | |
| Regional lymph node surgery | |||||
| None | Reference | Reference | |||
| <4 | 1.26 (0.99–1.60) | 0.06 | 1.89 (1.13–3.16) | 0.02 | |
| ≥4 | 0.82 (0.71–0.94) | 0.004 | 1.19 (0.74–1.92) | 0.46 | |
| Other | 0.89 (0.64–1.25) | 0.51 | 1.40 (0.82–2.41) | 0.22 | |
| Sequence number | |||||
| 1 primary | Reference | Reference | |||
| More | 0.99 (0.88–1.13) | 0.92 | NA | NA | |
| Size | 1.00 (1.00–1.01) | <0.001 | 1.00 (1.00–1.00) | 0.002 | |
| Stage | |||||
| I | Reference | Reference | |||
| II | 1.62 (1.36–1.94) | <0.001 | 1.03 (0.74–1.42) | 0.88 | |
| III | 2.95 (2.62–3.33) | <0.001 | 1.44 (1.09–1.91) | 0.01 | |
| IV | 8.01 (6.58–9.74) | <0.001 | 1.82 (1.04–3.19) | 0.04 | |
| Surgery of primary site | |||||
| ≤50 | Reference | Reference | |||
| >50 | 1.70 (1.47–1.96) | <0.001 | 1.38 (1.18–1.61) | <0.001 | |
| T stage | |||||
| T1 | Reference | Reference | |||
| T2 | 1.79 (1.55–2.07) | <0.001 | 1.43 (1.09–1.86) | 0.009 | |
| T3/4 | 3.48 (3.08–3.93) | <0.001 | 1.45 (1.16–1.80) | <0.001 | |
CI, confidence interval; CSS, cancer-specific survival; HR, hazard ratio; M, metastasis; N, node; NA, not applicable; T, tumor.
Nomograms and validation of CSS and OS

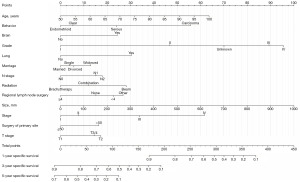

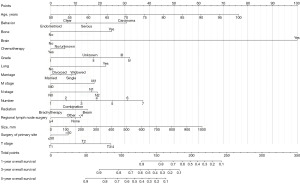

Nomograms predicting CSS and OS for surgery combined with radiotherapy in postmenopausal EC patients were constructed using Fine-Gray and Cox, respectively (Figures 1,2). In the competing risk nomogram, the C-indexes were 0.800 [standard error (SE): 0.002] and 0.775 (SE: 0.003) for the training and validation cohorts, respectively; the 1-, 3-, and 5-year areas under the curve (AUCs) for the training cohort were 0.861 [95% confidence interval (CI): 0.839–0.884], 0.805 (95% CI: 0.790–0.820), and 0.791 (95% CI: 0.775–0.806); the 1-, 3-, and 5-year AUCs for the validation cohort were 0.810 (95% CI: 0.762–0.857), 0.785 (95% CI: 0.761–0.809), and 0.775 (95% CI: 0.751–0.798), respectively (Figure 3A,3B). It indicated that the nomogram constructed based on the competing risk model in this study possessed good accuracy and predictive power in predicting patient CSS.
In the nomogram constructed by Cox, C-indexes were 0.753 (SE: 0.006) and 0.726 (SE: 0.009) for the training and validation cohorts, respectively; the 1-, 3-, and 5-year AUCs for the training cohort were 0.828 (95% CI: 0.801–0.855), 0.788 (95% CI: 0.773–0.802), and 0.772 (95% CI: 0.758–0.787), respectively; the 1-, 3-, and 5-year AUCs for the validation cohort were 0.809 (95% CI: 0.768–0.851), 0.758 (95% CI: 0.735–0.781), and 0.736 (95% CI: 0.714–0.758), respectively (Figure 3C,3D). Again, this indicated that the model constructed in this study had good accuracy in predicting OS in EC patients.
Calibration plot showed that nomograms had good agreement between predicted survival and observed survival in the training set and validation set (Figure S2). In estimating cancer-specific mortality (CSM) in EC patients, the 1-, 3-, and 5-year CSMs estimated by competing risk models were 3.13%, 12.85%, and 18.25%, and the 1-, 3-, and 5-year CSMs estimated by Cox proportional hazards model were 3.37%, 13.87%, and 19.77%. The mortality estimated by traditional survival analysis at different time points is higher than that by competitive risk model (Table 3).
Table 3
| Time (months) | Cox (%) | Fine-Gray (%) | |
|---|---|---|---|
| CSM | Death from other causes | ||
| 12 | 3.37 | 3.13 | 0.77 |
| 24 | 9.08 | 8.41 | 1.87 |
| 36 | 13.87 | 12.85 | 3.31 |
| 48 | 17.22 | 15.94 | 4.69 |
| 60 | 19.77 | 18.25 | 6.09 |
| 72 | 21.64 | 19.93 | 7.80 |
| 84 | 23.22 | 21.32 | 9.49 |
CSM, cancer-specific mortality.
Comparison with the AJCC staging model

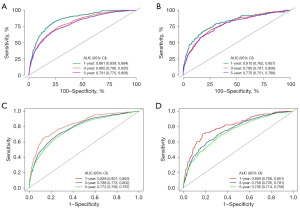

The model AUCs for the training set of the prediction model constructed according to AJCC staging (7th) at 12, 36, and 60 months were 0.715 (95% CI: 0.681–0.749), 0.679 (95% CI: 0.661–0.697), and 0.667 (95% CI: 0.650–0.684); the model AUCs for the validation set of the prediction model constructed according to AJCC staging (7th) at 12, 36, and 60 months were 0.695 (95% CI: 0.640–0.749), 0.660 (95% CI: 0.633–0.688), and 0.652 (95% CI: 0.627–0.677) (Figure 4). The performance of the final model we constructed was much better than that of the AJCC staging model, which had insufficient predictive power in the training and validation sets.
Risk stratification

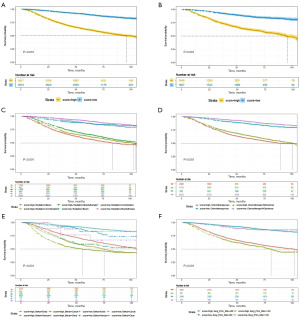

We calculated individual scores for each patient for risk stratification and classified them into high- and low-risk groups based on the median (72.954). According to the Kaplan-Meier curve, the risk stratification system could accurately identify OS in the high- and low-risk groups. The 1-, 3-, and 5-year probabilities of OS for the low-risk group were 99.1%, 94.5%, and 90.6%, respectively, while the 1-, 3-, and 5-year probabilities of OS for the high-risk group were 93.3%, 73.6%, and 61.8%, respectively. The difference in survival rates between the high- and low-risk groups was statistically significant (P<0.0001) (Figure 5A,5B).
Subgroup analysis
To evaluate the survival benefit of different radiotherapy modalities, different pathological staging, the presence of chemotherapy, and different surgical modalities in EC patients in different risk groups, we compared the OS of patients in different groups. The radiotherapy modalities included beam radiation; combination of beam with implants or radioisotopes; and radioactive implants (including brachytherapy). Surgical modalities included local surgery, exenteration, or other surgery types (L/E/OTH) and Hys ± BSO; radical hysterectomy. KM curve showed that Brachytherapy significantly prolonged OS in both the high- and low-risk groups, so Brachytherapy had the greatest survival advantage (Figure 5C). Subgroup analysis of surgery combined with radiotherapy ± chemotherapy showed that surgery without chemotherapy had a survival advantage compared with surgery combined with chemotherapy (Figure 5D). Subgroup analysis of pathological staging showed that Endo had the greatest survival advantage in both the low- and high-risk groups, while UCSs had the worst survival prognosis (Figure 5E). In the high-risk group (nomogram score >72.954), patients treated with L/E/OTH/Hys ± BSO had significantly higher OS than those treated with radical hysterectomy; while in the low-risk group, neither L/E/OTH/Hys ± BSO was significantly associated with OS (Figure 5F).
Discussion
We constructed nomograms of CSS and OS in postmenopausal EC patients treated with radiotherapy combined with surgery by competing risk model and Cox proportional hazards model, and both had high accuracy in predicting mortality. There was an overall increasing trend in EC morbidity and mortality, which may be attributed to the global increase in both obesity rate and population aging. Approximately 70% of EC recurrences occurred within the first 3 years after the initial surgery (19-21). To our knowledge, this is the first study to assess the CSS and OS prognosis of postmenopausal EC patients undergoing surgery combined with radiotherapy using competing risk model and Cox proportional hazards model.
As expected, Grade and Stage of EC were the two prominent predictors of competing risk nomograms. Consistent with previous studies, higher Grade and Stage suggested a worse EC prognosis (22). This was because higher Grade and Stage indicated a high degree of malignancy in EC, which implied that the tumor was prone to metastasis and spread. Patients with UCSs and uterine serous carcinoma (USC) had a worse prognosis, with a 141% survival risk increased by UCSs and 44% by USC. The occurrence of distant metastasis (i.e., brain, lung, liver, bone metastasis, etc.) remains an important cause of poor survival outcomes (23). In our CSS analysis, patients without brain metastasis had an 88% lower risk of survival; those without lung metastasis had a 53% lower risk of survival, which is consistent with the findings of Li (24). We found that age played a key role in the total score. Every 1-year increase in patient age was associated with a 2% increase in survival risk. It was shown that age >65 years was a strong independent poor-prognosis factor (25) and that old women with EC had higher relapse and mortality rates compared with young women (22,25-30). Regardless of whether they underwent lymphadenectomy and the presence of lymph node metastasis, old women faced a worse prognosis for survival (31) and were more likely to have non-endometrioid tumor histologic lesions. It suggested a significant positive correlation between age and genomic instability (GI) in EC patients, with GI levels increasing with the age of cancer patients (32). It seemed that with aging, EC exhibited a more aggressive tumor phenotype characterized by mutant p53 expression and downregulation of E-cadherin expression, which in turn led to tumors being diagnosed more advanced in old patients (33), all of which are associated with a worse prognosis.
In risk-stratified subgroup analysis, UCSs had lower survival rates than the other 3 pathological types in both the high- and low-risk groups. Although UCSs are rare, they account for 16.4% of all uterine cancer-related deaths (34,35), which may be related to the heterogeneous component of UCSs. UCSs include both epithelial and mesenchymal malignant cell components. The former may present with endometrioid, clear cell, or serous features; the latter is both “homologous” in that it resembles endometrial stromal sarcoma or leiomyosarcoma, and “heterologous” in that it has features of extrauterine specialized connective tissue (muscle, cartilage, and bone) (36-38), so the invasion of vascular lymphatic vessels is very common (39). Lymph nodes are positive at diagnosis in 30–40% of UCSs, and 10% of patients also show visceral metastasis, especially in the lungs (40). Thus, the 5-year survival rate of advanced or metastatic UCSs does not exceed 10–30% (41). We found that the adoption of combination and brachytherapy was a protective factor for EC. In the risk-stratified subgroup analysis, the low-risk and high-risk groups showed that patients receiving radiotherapy had longer survival times compared to those receiving chemoradiotherapy, and patients undergoing brachytherapy had longer survival times compared to those receiving external beam radiotherapy (EBRT). This finding was consistent with the results of the GOG-249 trial (42): stage I and II EC patients with high or intermediate risk factors were randomly assigned to the group receiving pelvic radiotherapy alone or to the group receiving chemotherapy (three cycles of carboplatin and paclitaxel) followed by vaginal brachytherapy; progression-free survival (PFS) and OS were not found to be superior in the chemoradiotherapy group than in the group receiving external radiation alone, and the recurrence in the pelvic cavity and para-aortic region increased significantly in the radiochemotherapy group. Another PORTEC-3 trial demonstrated a significant increase in the incidence of adverse events and a decrease in health-related quality of life in EC patients during and after treatment with chemoradiotherapy (9). In contrast, one study showed that patients receiving chemotherapy alone reported two to seven times the probability of vaginal recurrence or pelvic recurrence (35%, 18%) than patients receiving radiotherapy (18%, 9%) or chemoradiotherapy (5%, 7%) (43). Radiotherapy delays pelvic recurrence and chemotherapy delays distant metastasis, but whether chemoradiotherapy is superior to radiotherapy alone in improving OS and failure-free survival remains controversial and still needs to be further investigated in larger prospective trials. However, the observed differences in survival may be due in part to these unmeasured differences in baseline risk rather than to differential efficacy of treatment modalities alone. The survival advantage of brachytherapy needs to be further validated in prospective studies or in more detailed individual patient data.
Nomograms are widely used in many fields, and nomograms with individualized predictive power can be used to identify and stratify patients. Mortality rates estimated by traditional survival analysis were higher than those estimated by competing risk model in either time period. This suggests that traditional survival analysis may overestimate mortality from disease. This may be due to the fact that competitive risk model is more suitable for predictive studies of diseases with long survival, whereas traditional survival analysis is more suitable for etiological studies (44). Currently, some studies have also developed predictive models for different phenotypes of EC with good predictive performance. Wu et al. developed a nomogram for predicting OS in patients with low-grade endometrial stromal sarcoma (LG-ESS) with the stepwise regression based on the Akaike information criterion (AIC) minimum, which has a better identification ability to identify high-risk patients (45). Yan et al. constructed a survival nomogram of EC patients with lung metastasis using the Cox model to analyze the association between clinical characteristics of EC with lung metastasis and OS (46). The nomogram was validated to have stable identification ability. Yang et al. developed and validated a nomogram based on log odds of positive lymph nodes (LODDS) to predict postoperative OS in stage IIIC EC patients, and the nomogram showed good predictive ability with C-index: 0.742; AIC: 8228.95 (47).
Using C-index, ROC, and calibration plot, we validated that the OS and CSS prediction models are highly predictive. Compared with simple AJCC staging, we also considered demographic and tumor-related information to quantify the effects of these factors and to more comprehensively and specifically predict CSS and OS in postmenopausal EC patients receiving post-surgical radiotherapy. The predictive performance of our model is much better than that of AJCC staging. Also, the results of internal validation showed good agreement between the predicted and actual observed values of survival. Our predictive model can be integrated into clinical workflows for risk stratification and treatment decisions. In clinical practice, physicians can utilize this model for individualized risk assessment of patients, thus optimizing treatment plans. For example, for high-risk patients, more aggressive treatment strategies, such as combined radiotherapy and brachytherapy, can be considered; for low-risk patients, overtreatment can be avoided. Additionally, this model can serve as a tool for clinical research to aid in designing more precise treatment trials.
Nevertheless, several limitations should be acknowledged. Our model was derived from the SEER database, which—while extensive—contains incomplete records and lacks external validation. Such omissions can introduce selection and information bias; for example, SEER does not fully capture the biological behavior of rare subtypes such as UCS or provide molecular or genomic profiles. Prospective, multicenter studies are therefore warranted to externally validate the model, ensure complete pathologic and treatment data collection, and integrate molecular biomarkers (48), thereby further enhancing predictive accuracy and clinical utility.
Conclusions
Our study successfully developed and validated a nomogram for predicting OS and CSS in postmenopausal EC patients treated with surgery and radiotherapy, which outperform existing risk stratification tools. The nomogram demonstrated superior performance compared to the AJCC staging model and identified key prognostic variables influencing survival outcomes. It also revealed that chemoradiotherapy was associated with lower survival rates than radiotherapy alone in both low- and high-risk groups, and brachytherapy showed a survival advantage over EBRT. These findings provide valuable insights for individualized risk assessment and treatment decision.
Acknowledgments
We thank the SEER public database for for providing the data used in this study.
Footnote
Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://tcr.amegroups.com/article/view/10.21037/tcr-2025-1-2656/rc
Peer Review File: Available at https://tcr.amegroups.com/article/view/10.21037/tcr-2025-1-2656/prf
Funding: This study was supported by
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://tcr.amegroups.com/article/view/10.21037/tcr-2025-1-2656/coif). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
References
- Sonkin D, Thomas A, Teicher BA. Cancer treatments: Past, present, and future. Cancer Genet 2024;286-287:18-24. [Crossref] [PubMed]
- Siegel RL, Giaquinto AN, Jemal A. Cancer statistics, 2024. CA Cancer J Clin 2024;74:12-49. [Crossref] [PubMed]
- Koskas M, Crosbie EJ, Fokdal L, et al. Cancer of the corpus uteri: A 2025 update. Int J Gynaecol Obstet 2025;171:60-77. [Crossref] [PubMed]
- Sebastiano J, McGlone SA, Samuels ZV, et al. Evaluating Radiotheranostic Targets for Endometrial Cancer. J Nucl Med 2025;66:1631-8. [Crossref] [PubMed]
- Onstad M, Ducie J, Fellman BM, et al. Adjuvant therapy for grade 3, deeply invasive endometrioid adenocarcinoma of the uterus. Int J Gynecol Cancer 2020;30:485-90. [Crossref] [PubMed]
- Leung KC, Cheng JNS, Yip WWL, et al. Retrospective study of neoadjuvant radiotherapy for locally advanced surgically inoperable endometrial carcinoma. Int J Gynecol Cancer 2025;35:102655. [Crossref] [PubMed]
- Padival AM, Patel BM, Parekh CD, et al. The role of neoadjuvant chemotherapy in clinically advanced endometrial cancer: a real-world retrospective single-institutional study. Int J Gynecol Cancer 2026;36:102784. [Crossref] [PubMed]
- Miller DS, Filiaci VL, Mannel RS, et al. Carboplatin and Paclitaxel for Advanced Endometrial Cancer: Final Overall Survival and Adverse Event Analysis of a Phase III Trial (NRG Oncology/GOG0209). J Clin Oncol 2020;38:3841-50. [Crossref] [PubMed]
- de Boer SM, Powell ME, Mileshkin L, et al. Adjuvant chemoradiotherapy versus radiotherapy alone for women with high-risk endometrial cancer (PORTEC-3): final results of an international, open-label, multicentre, randomised, phase 3 trial. Lancet Oncol 2018;19:295-309. [Crossref] [PubMed]
- de Boer SM, Powell ME, Mileshkin L, et al. Adjuvant chemoradiotherapy versus radiotherapy alone in women with high-risk endometrial cancer (PORTEC-3): patterns of recurrence and post-hoc survival analysis of a randomised phase 3 trial. Lancet Oncol 2019;20:1273-85. [Crossref] [PubMed]
- Winarto H, Ibrahim NAA, Putri YM, et al. Adjuvant chemoradiotherapy versus chemotherapy or radiotherapy in advanced endometrial cancer: a systematic review and meta-analysis. PeerJ 2022;10:e14420. [Crossref] [PubMed]
- Michalak M, Warenczak Florczak Z, Staszewska-Nowak A, et al. Adjuvant therapy for early endometrial cancer - who benefits the most from a radiation therapy? Ginekol Pol 2020;91:6-12. [Crossref] [PubMed]
- Sabater S, Andres I, Lopez-Honrubia V, et al. Does postoperative irradiation improve survival in early-stage endometrial cancer? Brachytherapy 2018;17:912-21. [Crossref] [PubMed]
- Oseledchyk A, Leitao MM Jr, Konner J, et al. Adjuvant chemotherapy in patients with stage I endometrioid or clear cell ovarian cancer in the platinum era: a Surveillance, Epidemiology, and End Results Cohort Study, 2000-2013. Ann Oncol 2017;28:2985-93. [Crossref] [PubMed]
- Hou X, Yue S, Liu J, et al. Association of Tumor Size With Prognosis in Patients With Resectable Endometrial Cancer: A SEER Database Analysis. Front Oncol 2022;12:887157. [Crossref] [PubMed]
- Rodriguez VE, LeBrón AMW, Chang J, et al. Guideline-adherent treatment, sociodemographic disparities, and cause-specific survival for endometrial carcinomas. Cancer 2021;127:2423-31. [Crossref] [PubMed]
- Qiu Y, Cao N, Meng D, et al. Survival and risk factors for metastatic colorectal cancer patients with a history of prior malignancy. Sci Rep 2025;15:4045. [Crossref] [PubMed]
- Yang L, Chen C, Wang Q, et al. Development and Validation of a Competitive Risk Model in Elderly Patients with Transitional Cell Bladder Carcinoma. Med Sci Monit 2025;31:e946332. [Crossref] [PubMed]
- Kilgore JE, Jackson AL, Ko EM, et al. Recurrence-free and 5-year survival following robotic-assisted surgical staging for endometrial carcinoma. Gynecol Oncol 2013;129:49-53. [Crossref] [PubMed]
- Fung-Kee-Fung M, Dodge J, Elit L, et al. Follow-up after primary therapy for endometrial cancer: a systematic review. Gynecol Oncol 2006;101:520-9. [Crossref] [PubMed]
- Ben Arie A, Lavie O, Gdalevich M, et al. Temporal pattern of recurrence of stage I endometrial cancer in relation to histological risk factors. Eur J Surg Oncol 2012;38:166-9. [Crossref] [PubMed]
- Xie G, Qi C, Yang W, et al. Competing risk nomogram predicting cancer-specific mortality for endometrial cancer patients treated with hysterectomy. Cancer Med 2021;10:3205-13. [Crossref] [PubMed]
- Creasman WT, Morrow CP, Bundy BN, et al. Surgical pathologic spread patterns of endometrial cancer. A Gynecologic Oncology Group Study. Cancer 1987;60:2035-41.
- Li R, Yue Q. A nomogram for predicting overall survival in patients with endometrial carcinoma: A SEER-based study. Int J Gynaecol Obstet 2023;161:744-50. [Crossref] [PubMed]
- Vance S, Yechieli R, Cogan C, et al. The prognostic significance of age in surgically staged patients with Type II endometrial carcinoma. Gynecol Oncol 2012;126:16-9. [Crossref] [PubMed]
- Poupon C, Bendifallah S, Ouldamer L, et al. Management and Survival of Elderly and Very Elderly Patients with Endometrial Cancer: An Age-Stratified Study of 1228 Women from the FRANCOGYN Group. Ann Surg Oncol 2017;24:1667-76. [Crossref] [PubMed]
- Lachance JA, Everett EN, Greer B, et al. The effect of age on clinical/pathologic features, surgical morbidity, and outcome in patients with endometrial cancer. Gynecol Oncol 2006;101:470-5. [Crossref] [PubMed]
- Hag-Yahia N, Gemer O, Eitan R, et al. Age is an independent predictor of outcome in endometrial cancer patients: An Israeli Gynecology Oncology Group cohort study. Acta Obstet Gynecol Scand 2021;100:444-52. [Crossref] [PubMed]
- Yan BC, Li Y, Ma FH, et al. Preoperative Assessment for High-Risk Endometrial Cancer by Developing an MRI- and Clinical-Based Radiomics Nomogram: A Multicenter Study. J Magn Reson Imaging 2020;52:1872-82. [Crossref] [PubMed]
- Cheng Y, Dong Y, Tian W, et al. Nomogram for Predicting Recurrence-Free Survival in Chinese Women with Endometrial Cancer after Initial Therapy: External Validation. J Oncol 2020;2020:2363545. [Crossref] [PubMed]
- Benedetti Panici P, Basile S, Salerno MG, et al. Secondary analyses from a randomized clinical trial: age as the key prognostic factor in endometrial carcinoma. Am J Obstet Gynecol 2014;210:363.e1-363.e10. [Crossref] [PubMed]
- Chatsirisupachai K, Lesluyes T, Paraoan L, et al. An integrative analysis of the age-associated multi-omic landscape across cancers. Nat Commun 2021;12:2345. [Crossref] [PubMed]
- Gonzalez-Rodilla I, Boix M, Verna V, et al. Patient age and biological aggressiveness of endometrial carcinoma. Anticancer Res 2012;32:1817-20.
- Nama N, Cason FD, Misra S, et al. Carcinosarcoma of the Uterus: A Study From the Surveillance Epidemiology and End Result (SEER) Database. Cureus 2020;12:e10283. [Crossref] [PubMed]
- Pautier P, Genestie C, Rey A, et al. Analysis of clinicopathologic prognostic factors for 157 uterine sarcomas and evaluation of a grading score validated for soft tissue sarcoma. Cancer 2000;88:1425-31.
- Pezzicoli G, Moscaritolo F, Silvestris E, et al. Uterine carcinosarcoma: An overview. Crit Rev Oncol Hematol 2021;163:103369. [Crossref] [PubMed]
- McConechy MK, Hoang LN, Chui MH, et al. In-depth molecular profiling of the biphasic components of uterine carcinosarcomas. J Pathol Clin Res 2015;1:173-85. [Crossref] [PubMed]
- Cherniack AD, Shen H, Walter V, et al. Integrated Molecular Characterization of Uterine Carcinosarcoma. Cancer Cell 2017;31:411-23. [Crossref] [PubMed]
- Silverberg SG, Major FJ, Blessing JA, et al. Carcinosarcoma (malignant mixed mesodermal tumor) of the uterus. A Gynecologic Oncology Group pathologic study of 203 cases. Int J Gynecol Pathol 1990;9:1-19.
- Ravishankar P, Smith DA, Avril S, et al. Uterine carcinosarcoma: a primer for radiologists. Abdom Radiol (NY) 2019;44:2874-85. [Crossref] [PubMed]
- Bansal N, Herzog TJ, Seshan VE, et al. Uterine carcinosarcomas and grade 3 endometrioid cancers: evidence for distinct tumor behavior. Obstet Gynecol 2008;112:64-70. [Crossref] [PubMed]
- Randall ME, Filiaci V, McMeekin DS, et al. Phase III Trial: Adjuvant Pelvic Radiation Therapy Versus Vaginal Brachytherapy Plus Paclitaxel/Carboplatin in High-Intermediate and High-Risk Early Stage Endometrial Cancer. J Clin Oncol 2019;37:1810-8. [Crossref] [PubMed]
- Secord AA, Geller MA, Broadwater G, et al. A multicenter evaluation of adjuvant therapy in women with optimally resected stage IIIC endometrial cancer. Gynecol Oncol 2013;128:65-70. [Crossref] [PubMed]
- de Glas NA, Kiderlen M, Vandenbroucke JP, et al. Performing Survival Analyses in the Presence of Competing Risks: A Clinical Example in Older Breast Cancer Patients. J Natl Cancer Inst 2016;108:djv366. [Crossref] [PubMed]
- Wu J, Zhang H, Li L, et al. A nomogram for predicting overall survival in patients with low-grade endometrial stromal sarcoma: A population-based analysis. Cancer Commun (Lond) 2020;40:301-12. [Crossref] [PubMed]
- Yan G, Li Y, Du Y, et al. Survival nomogram for endometrial cancer with lung metastasis: A SEER database analysis. Front Oncol 2022;12:978140. [Crossref] [PubMed]
- Yang XL, Huang H, Kou LN, et al. Construction and validation of a prognostic model for stage IIIC endometrial cancer patients after surgery. Eur J Surg Oncol 2022;48:1173-80. [Crossref] [PubMed]
- Liu H, Li Y, Karsidag M, et al. Technical and Biological Biases in Bulk Transcriptomic Data Mining for Cancer Research. J Cancer 2025;16:34-43. [Crossref] [PubMed]
