Value of 3.0T magnetic resonance imaging in the diagnosis of retroperitoneal tumors

Introduction

Retroperitoneal tumors (RPTs) arise from within the retroperitoneal cavity (1), but external to the retroperitoneal organs. Various types of tumors can arise in the retroperitoneal space, and may be classified as cystic or non-cystic lesions (2) and fat-containing or fat-deficient (3), with a majority being mesenchymal, neurogenic, embryonic urogenital, or lymphatic system tumors.

The optimal treatment approach for RPTs is surgical removal (4-7) when they are localized with no evidence of distant metastasis. Despite surgical removal, local recurrence is the primary mode of failure in up to 50% of the cases at five years post-surgery (8-11). Thus, accurate preoperative localization and characterization of RPTs is important for allowing a direct surgical approach. Although most RPTs present with similar clinical findings and their diagnosis is often challenging for radiologists, predominant or specific features are present in the various types, and have a tendency to occur in uncommon places (12-15). Findings on functional magnetic resonance imaging (MRI) have been reported to have the potential to differentiate pathologically malignant tumors from the benign types (16). However, the radiographic features of retroperitoneal neoplasms often overlap. Single, nonspecific image features are insufficient for the differentiation of tumor type.

To our knowledge, there have been few studies that have addressed the statistical correlation between MRI findings and the differentiation between benign and malignant tumors of RPT. Therefore, in this study, we aim to differentiate between benign and malignant tumors using malignant scores.

Methods

Patients and clinical data

The Institutional Review Board (IRB) of our hospital waived the need for approval and ruled out the need for obtaining informed consent from the patients. All information obtained from patients was anonymized and de-identified prior to analysis. Between January 2011 and January 2017, 103 patients with a diagnosis of RPT were retrospectively identified at our hospital. Among these patients, 22 were excluded from the study either because a preoperative MRI examination had not been performed (n=18) or because the patient did not undergo surgical treatment (n=4). The remaining 81 patients (44 males and 37 females) with a median age of 52 years (range, 12–79 years) were enrolled in this study. The full clinical records of those patients were reviewed retrospectively. Contrast-enhanced MRI was performed in 67 patients (82.7%), while non-enhanced MRI was performed in 14 (17.3%) due to patients’ allergy to the contrast material or unwillingness to undergo contrast enhanced MRI.

MRI scans

MRI was performed in all 81 patients using a 3.0T MR superconductivity scanner (Signa Excite, GE Healthcare, USA). The scan parameters were shown in Table 1.

Image analysis

The MRI scans were reviewed by two radiologists (with 29 and 14 years of experience, respectively) who were unaware of the histopathologic diagnoses, but had knowledge of the clinical data. Final consensus was reached for: (I) lesion location (17); (II) number of lesions (single or multiple); (III) lesion size (major diameter and minor diameter); (IV) lesion margins (well defined or ill-defined); (V) morphology [oval/round or others (irregular)]; (VI) T1/T2 signal intensity (homogeneous or heterogeneous); (VII) MRI values for high and low signal intensity [well contrast enhanced or poorly contrast enhanced tumor signal intensity in the portal-venous phase was measured by manually placing regions of interest (ROI) in the hyperintense or hypointense area]; and (VIII) tumor apparent diffusion coefficient (ADC) value in mm²/s was measured by placing ROI which were round, 30–50 mm² square and consisted of more than 20 pixels in the lowest ADC values area of solid part of the tumor (Figure 1). In addition, the radiologists were asked to document the presence of septae, hemorrhage, necrosis, and fat.

Figure 1 A female who is 52 years old. The mass was found on check-up for one month. The tumor had regular shape and well-defined margin, showed hypointense on T1WI/DUAL (A/B), heterogeneous hyperintense on T2WI/FS (C), and marked enhanced on enhanced MR imaging (D). And hyperintense on DWI (E). ADC =2.117×10⁻³ mm²/s (F). Pathology: neurofibroma.

Statistical analysis

The sensitivity, specificity, and accuracy of the diagnostic criteria were used to describe the morphology of the lesion. The counting data were expressed by rate using the Chi squared test (Pearson or McNemar), and the quantitative data were compared using the t-test and F test. Receiver operating characteristic (ROC) analysis was performed, and the area under the curve (AUC) was calculated. This study evaluated the comprehensive indices with all significant MRI values, each of which was assigned a score if one of the indices applied to each lesion, by combining the various statistically significant indices to calculate the Youden Index (YI) and find the optimal diagnostic threshold score. The sensitivity, specificity, and accuracy of the threshold were calculated, at inspection level α=0.05. When P values using SPSS software, version 18.0 (IBM, NY, USA) were <0.05, the difference was considered statistically significant. The cartogram was drawn by GraphPad Prism software, version 7.0 (GraphPad, CA, USA).

Results

Clinical data

Fifty-three patients (65.4%) were asymptomatic, and the remainder presented with abdominal discomfort (21 cases; 25.9%), backache (5 cases; 6.2%), or fatigue (2 cases; 2.5%). Seventy-six patients (93.8%) had a single lesion while five patients (6.2%) had multiple lesions; 50 cases (61.7%) were malignant, and 31 cases (38.3%) were benign.

Pathological type and retroperitoneal space classification

The pathological types of the tumors are shown in Table 2. Based on studies by Tirkes et al. (17), Shanbhogue et al. (18), and retroperitoneal anatomy (1), the 81 cases were subgrouped into four cross-sectional spaces according to the pathology.

Indicators differentiating benign and malignant RPTs

Lesion margin

Diagnosis of malignant lesions among the RPTs on the basis of ill-defined borders in the MRI scans was found to be statistically significant. Use of an ill-defined border as the criterion for diagnosis of malignant lesions among the RPTs was statistically significant. The sensitivity and specificity were 36.0% and 93.5%, respectively (χ²=8.98, P=0.003) (Table 3). In total, 61 cases (75.3%) had well defined margins, including 29 benign (47.5%) and 32 malignant tumors (52.5%), while 20 cases (24.7%) had ill-defined margins, including 2 benign (10%) and 18 malignant tumors (90%).

Lesion morphology

Use of an irregular shape as the criterion also had statistical significance. The sensitivity and specificity were 68.0% and 58.1%, respectively (χ²=5.338, P=0.021). In total, 34 cases (42%) including 18 benign and 16 malignant tumors had oval/round shapes, while 47 cases (58%) including 13 benign and 34 malignant tumors had irregular shapes.

Solid or mixed cystic and solid texture of the lesions

Use of a solid texture as the criterion was statistically significant as well (χ²=5.857, P=0.040). In total, 69 solid lesions (85.2%) included 24 benign (34.8%) and 45 malignant tumors (65.2%), and 12 mixed solid and cystic lesions (13.3%) included 7 benign (58.3%) and 5 malignant tumors (41.7%). A higher solid content in tumors was correlated with malignancy.

Lesion size

Major diameters were 1.5–21.0 cm with mean of 8.2 cm; minor diameters were 1.4–17.1 cm with mean of 6.1 cm (Figure 2A). A larger size correlated with malignancy. ROC curves plotted for long and short diameters showed the following: AUC_major =0.748, P_major <0.001; AUC_minor =0.766, P_minor <0.001 (Figure 2B). The calculated YI indicated that a major diameter >5.85 cm and a minor diameter >5.35 cm were the best diagnostic thresholds for diagnosing malignant lesions among the RPT; the sensitivity and specificity were 80.0% and 64.5%, 64.0% and 90.3%, respectively (χ²_major=16.261, P_major <0.001; χ²_minor =23.012, P_minor <0.001).

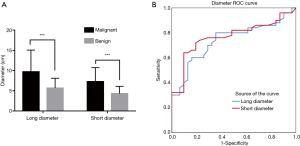

Figure 2 The long and short diameter between benign and malignant retroperitoneal tumors. (A) Showed the bar chart of long and short diameter (***, P<0.001); (B) showed ROC curves of long and short diameter for diagnosing RTs by 3.0T MR. ROC, receiver operating characteristic.

ADC value

The ADC_malignant =1.185×10⁻³ mm²/s [range =(0.525–2.62)×10⁻³ mm²/s, mean =1.078×10⁻³ mm²/s] and ADC_benign =1.705×10⁻³ mm²/s [range =(0.688–3.15)×10⁻³ mm²/s, mean =1.523×10⁻³ mm²/s] (Figure 3A). The difference in ADC between benign and malignant RPT had statistical significance (t=3.657, P<0.001) (Figure 3B). The best threshold for diagnosing malignant RPT was 1.2×10⁻³ mm²/s; the sensitivity and specificity were 64% and 74.2%, respectively (χ²=11.167, P=0.001), accuracy were 61.7%.

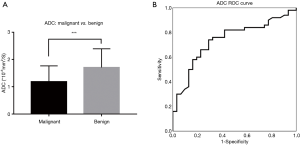

Figure 3 The ADC value between benign and malignant retroperitoneal tumors. (A) Showed the bar chart of ADC value (***, P<0.001); (B) showed ROC curves of ADC value for diagnosing RTs by 3.0T MR. ADC, apparent diffusion coefficient; ROC, receiver operating characteristic.

Indicators with no statistical significance

The MR signal intensity was also analyzed, the results showed no statistical significance (Table 4).

Comprehensive evaluation index

Malignant scores were calculated by combining all six statistically significant diagnostic indices as a multiple evaluation index. In this study, the malignant score was calculated by malignant indices for each tumor. In addition, the total number was calculated and the score curve was plotted. The ROC curve provided the best determination threshold (Figure 4). Higher scores were correlated with higher chances of malignancy.

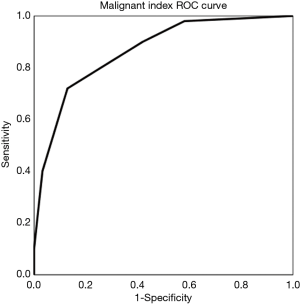

Figure 4 The ROC curves for multiple evaluation indexes for diagnosing RTs by 3.0T MR. ROC, receiver operating characteristic.

This study evaluated the comprehensive indices with significant MRI values, each of which was assigned a score if one of the indices applied to the lesion (ill-defined border scores 1, well-defined border scores 0; irregular shape scores 1, round or oval shape score 0; solid scores 1, cystic and mixed solid and cystic score 0; major diameter >5.85 cm scores 1, major diameter <5.85 cm scores 0; minor diameter >5.35 cm scores 1, minor diameter <5.35 cm scores 0; and ADC <1.2×10⁻³ mm²/s scores 1, ADC >1.2×10⁻³ mm²/s scores 0). Based on the malignant score, the present study calculated YI, and demonstrated that a score ≥4 was the best diagnostic threshold (Table 3). The sensitivity and specificity for this score was 82.0% and 77.4%, respectively (χ²=27.984, P<0.001).

Discussion

The retroperitoneal space is deep, and a neoplasm in this area usually presents with no specific symptom except abdominal discomfort or distention. The RPTs have a variable and non-specific presentation and may resemble with other neoplastic lesions. The RPT could be preliminarily diagnosed by location and MRI, providing a reference for clinical treatment. However, there are many pathological types of neoplasms in the retroperitoneal space. Our study included 17 different types of RPTs, without including all pathological types. MRI manifestations of RPT are complex. The various MRI signs demonstrate an intersection between different pathological lesions and benign and malignant lesions. Single signs are not sufficient for the diagnosis of benign and malignant RPT.

Margin, morphology, solidity, major diameter, minor diameter, and ADC value of the lesion are the six indicators that could predict the malignant nature of the RPT. Margin and morphology are usually indicators that help to differentiate benign from malignant tumors. Ill-defined border and irregular shape were used to indicate malignancy in our study. Demehri et al. (19) also reported that ill-defined or infiltrative margins are factors that can predict malignancy. Solid lesions had high tendency toward malignancy than cystic or mixed solid and cystic lesions in our study. The most common cystic lesions in the retroperitoneal space are lymphangioma and cystic mesothelioma, and most of them are usually benign (20). In terms of size, our study showed that a bigger size correlated with greater tendency for malignancy. Major diameter >5.85 cm or minor diameter >5.35 cm can be used as the diagnostic indicators to indicate malignancy. Demehri et al. (19) also reported that a bigger size of the tumor with ill-defined or infiltrative margins, peritumoral edema, and early arterial enhancement are factors that can predict malignancy. However, all malignant peripheral nerve sheath tumors occurred in patients with neurofibromatosis. Our study did not take early arterial enhancement into consideration. Instead, we used the MRI signal intensity which showed no statistical significance in the differentiation of benign from malignant RPT. With regard to the ADC value, Nagata et al. (21) shared the opinion that the mean ADC value of benign non-myxoid tumors [(1.31±0.46)×10⁻³ mm²/s] was significantly higher than that of malignant non-myxoid tumors [(0.94±0.25)×10⁻³ mm²/s] (P<0.001). In their report on diffusion weighted imaging of peripheral nerve sheath tumors throughout the body, Demehri et al. (19) reported that only minimum ADC was useful. However, contrary to this, Chhabra et al. (16) reported that minimum ADC was not useful.

The purpose of our study was to convert subjective analyses of radiologists into a more objective evaluation, which increased their statistical value. We found that six evaluation indices had statistical value, by combining the various statistically significant indices to calculate the YI. We found that a total score ≥4 was the best diagnostic threshold from which a meaningful radiological result could be declared. However, we have to admit that the sensitivity and specificity obtained by malignant score indices do not seem to be superior to the sensitivity and specificity of the single factor. In other words, using a single factor in the clinical patients might have a time advantage over the malignant score.

Our study has several limitations. First, it was limited by its retrospective nature. Second, our study incorporated six findings which were obtained by the univariate analysis into malignant score indices. All six factors may not necessarily be independent predictive factors of malignancy. However, this has been ignored in many medical journals. We could use a multivariate analysis, such as logistic regression model, when enrolling more patients in the near future. And more importantly, we only differentiated the benign RPT from the malignant through the MRI, and did not focus on texture analysis or radiomics of the images. Kim et al. (22) reported that texture analysis of the ADC could be useful for the diagnosis of malignancy of myxoid tissue such as in schwannoma. Finally, we only mentioned the diagnosis, but did not provide the prognosis of the different treatments for RPT. Nussbaum and colleagues (23) found that both preoperative and postoperative radiotherapy were significantly independent predictors of improved overall survival in retroperitoneal sarcoma.

In summary, RPTs represent a diverse group of neoplasms, often with non-specific imaging findings. The MRI manifestations of benign and malignant lesions and different pathological types of the lesions usually overlap. It is difficult to obtain a better diagnosis no matter what indicator is used alone. A more accurate and stable diagnosis could be made through a comprehensive analysis of the various meaningful diagnostic indicators and signs of RPT.
