Imaging of synchronous multiple primary lung adenocarcinoma with concomitant EGFR and KRAS mutations: a case report and review of the literature

Introduction

Lung cancer continues to be the leading cause of cancer-related death worldwide (1). As the most common histological form of lung cancer, lung adenocarcinoma is closely associated with oncogene mutations. Many studies show that computed tomography (CT) features are associated with genotypes (2,3). However, research on the prediction of tumor mutation status from imaging finding, especially the gene phenotype of multiple primary lung cancer (MPLC) has not been performed. EGFR and KRAS are the two most common oncogenes of lung adenocarcinoma and have received the most attention regarding the development of targeted therapy. Compared with other mutation types associated with lung adenocarcinoma, lung adenocarcinoma with EGFR mutation shows a good response to treatment with EGFR tyrosine kinase inhibitors (TKIs), such as gefitinib and erlotinib (4-6). However, KRAS mutation is still considered a poor prognosis factor. It is associated with resistance to TKIs and is considered an undruggable target, as efforts to therapeutically target KRAS mutations have been unsuccessful (7). In clinical practice, EGFR mutations predict favorable progression-free survival (PFS), particularly in advanced non-small cell lung cancer (NSCLC) patients and these patients tend to have a better prognosis (7). In contrast, studies have shown that KRAS mutations are associated with a poor prognosis in patients with NSCLC, especially in patients with adenocarcinoma and early-stage NSCLC (7,8). These two oncogenes were previously thought to be mutually exclusive in lung cancer patients (9).

In MPLC, prediction of the types of gene mutations by imaging features before treatment planning is crucial for individualized clinical treatment and can compensate for the lack of a pathological diagnosis. Here, we report a synchronous multiple primary lung adenocarcinoma with concomitant EGFR and KRAS mutations in which cystic lung adenocarcinoma was also found, and CT imaging characteristics are discussed as the key point.

We present the following article in accordance with the CARE reporting checklist (available at http://dx.doi.org/10.21037/tcr-20-3258).

Case presentation

The patient was a 71-year-old man with a history of tuberculosis whose father died of lung cancer. He had an approximately 52-year history of smoking 20 cigarettes a day. Four years’ prior, a left pulmonary nodule was incidentally found during a physical examination, and the patient visited our hospital for examination because of the recent development of a cough. The physical examination results showed no significant abnormalities except for a mild coughing symptom.

A CT scan showed two lung lesions, which indicated double primary lung cancer. Specifically, CT scans in June 2017 revealed bilateral lesions in the lungs, with a solid mass in the upper lobe of the left lung (Figure 1A,B,C,D) and cyst-like lung adenocarcinoma in the upper lobe of the right lung (Figure 1A,B,C,D), both of which were considered primary lung cancer. In detail, a superficial lobulated mass in the posterior segment of the tip of the left upper lobe, with a maximum cross-section of 2.4 cm × 1.6 cm, was visible and contained small empty bubbles, multiple spiculations on the edge and vacuoles at the local level. Moreover, there were several large vessels surrounding the lesion. In the right lung apex and posterior segment of the mediastinum, an irregular cystic lesion was visible with an unclear boundary and a local wide base attached to the mediastinal pleura. The maximum cross-section was approximately 4.2 cm × 2.5 cm. There were multiple ground-glass opacity (GGO) around the lesion. The wall of the local cystic cavity was thin with irregular margins, nodules on the wall were visible, and blood vessels were observed to be running through the lesion. Septations and ground-glass opacities were observed in the mass. No enlarged lymph nodes were found. The remaining lobes contained scattered small nodules.

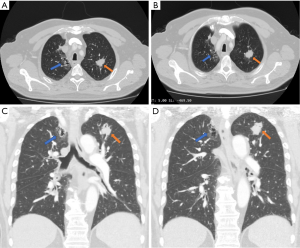

Figure 1 Computed tomography (CT) images. The blue arrow indicates the location of the right lung mass, and the orange arrow shows the left lung mass. The left solid lung cancer exhibits multiple burrs in the transverse axial view, and the right lung cancer has a cystic airspace in the transverse axial view at different levels (A,B). Lesions in both lungs are visible on different reconstructed coronal planes (C,D).

Pathological results confirmed that both lesions were lung adenocarcinoma. The left lung mass consisted of poorly differentiated adenocarcinoma accompanied by neuroendocrine carcinoma differentiation (Figure 2A), and the right lung mass was moderately differentiated adenocarcinoma (Figure 2B). Immunohistochemical examination showed different types of gene mutations. The left lung tumor exhibited mutation of the KRAS gene at exon 2, codon 12 but no EGFR gene mutations in exons 18, 19, 20, or 21 (Figure 3A); the right lung mass contained a deletion mutation of the EGFR gene exon 19 but no mutation of the KRAS gene in exon 2, codon 12 or 13 (Figure 3B). Laboratory tests revealed an abnormal CEA tumor marker level, which returned to normal only at several days after the operation of left lung mass. It is worth mentioning that the patient's last blood CEA value in our hospital was increased. I don’t know if it was a hematological indication of tumor recurrence. The CEA values were 10.07, 4.49, 4.25, 3.09, 10.05 and 22.73 ng/mL on June 26, 2017, August 17, 2017, September 16, 2017, November 7, 2017, March 26, 2018 and June 28, 2018, respectively (reference 0.0–5.0 ng/mL).

Figure 2 Pathological images. (A) Left pulmonary poorly differentiated adenocarcinoma with differentiation of neuroendocrine carcinoma, ×100 with immunohistochemical staining; (B) right pulmonary moderately differentiated adenocarcinoma, ×400 with hematoxylin-eosin staining.

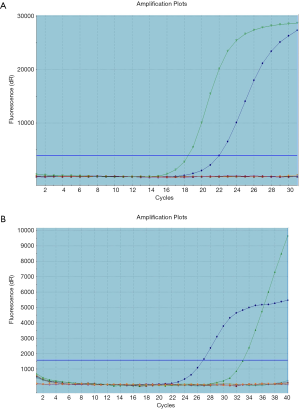

Figure 3 Detection of EGFR and KRAS mutations in multiple pulmonary nodules by real-time PCR. (A) KRAS mutation testing in the left lung lesion; (B) EGFR mutation testing in the right lung lesion.

The patient underwent thoracoscopic left upper lobectomy on July 4, 2017 and thoracoscopic right upper lobectomy with systematic lymph node dissection on September 19, 2017. The patient was in good condition at that time. The final review date of this patient was June 28, 2018 in our hospital. Then, the patient returned home for treatment in Harbin, the capital of Heilongjiang Province in China. According to the follow-up information, the patient developed mediastinal lymph node and left cerebellar mass metastasis according to an imaging diagnosis on September 6, 2018. Chemotherapy and immunosuppressant programmed cell death protein 1 (PD-1) therapy were performed for clinical treatment. The patient did not receive TKIs and died on October 28, 2019 because of multiple organ metastasis.

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Discussion

To our knowledge, this is the first report to focus on CT imaging characteristics of MPLC displaying different EGFR and KRAS molecular profiles with concurrent cystic lung cancer. At present, research on the pathogenic factors of lung cancer at the molecular level is being performed. In recent years, exploration of the imaging characteristics of different oncogenes has become a focus of research. The advantages of imaging, including that it is noninvasive, repeatable, economical and practical, can compensate for the lack of a pathological diagnosis, and most importantly, imaging will be beneficial for patients.

There are limited numbers of reports that have examined the association between EGFR/KRAS mutations and CT imaging features. However, current studies show differences in the imaging features correlated with EGFR and KRAS mutations. A meta-analysis and other original studies have demonstrated that a high GGO proportion is associated with EGFR mutations in lung adenocarcinoma (2,10-12). EGFR mutations are uncommon in the solid predominant subtype (2,13). Smaller tumors (tumor diameter ≤3.0 cm) with bubble-like lucency, homogeneous enhancement, or pleural retraction are independent predictive factors of EGFR mutations (2,12). In contrast, KRAS mutations often occur in patients with large solid lesions (tumor diameter >3.1 cm) (14) that have no other distinct imaging features. The size features are inconsistent, but other imaging features of this case have been verified in cases of EGFR and KRAS mutations. In addition, convergence of the surrounding structure and multiple bilateral lung metastases are also CT features of EGFR-mutant tumors according to previous reports (15). Currently, clinical imaging data are insufficient to determine the mutation characteristics; therefore, further exploration of the potential molecular imaging features and large cohort studies or clinical trials should be performed to assist in clinical decision making. These markers would offer useful information for determining the appropriate treatment strategy of lung adenocarcinoma detected by CT when the patient cannot tolerate surgery or the specimen is not sufficient for genetic testing after pathological examination. Moreover, mutations in EGFR and KRAS show a mutually exclusive pattern (9), which also proves the case is bilateral MPLC with different origins. Comprehensive EGFR and KRAS gene mutation analysis can differentiate MPLC from metastasis and can better improve the currently used clinicopathological diagnostic criteria (16,17).

MPLC is an important feature in this case. The incidence rate of MPLC has been increasing over the past few years with the increasing use of novel diagnostic methods, such as CT (18). MPLC represents diffuse pulmonary lesions with radiologic features on chest CT and genomic profiles that are important for preoperative diagnosis and clinical intervention planning. The problem of tissue sampling from such multiple small locations in the lung intrinsically remains, even with sophisticated CT-guided techniques. Moreover, identification of intrapulmonary metastases from MPLC still lacks uniform guidelines. Therefore, noninvasive and reproducible imaging features need to be explored, which could contribute to better prevention and earlier diagnosis. Lung cancer with intrapulmonary metastasis can be considered when the main lesion is a solid nodule with pleural attachment and the intrapulmonary accompanying lesion is also a solid nodule without lobules, speculation or bubble-like lucency (19). However, if the tumor is very small, it is still difficult to distinguish the primary cancer from intrapulmonary metastases according to the imaging characteristics. MPLC has been associated with better overall survival (OS) than lung cancer with intrapulmonary metastasis (20). For treatment, surgical resection remains the first choice for MPLC, and the maximum retention of lung function is also essential; thus, sublobectomy is now a commonly used surgical strategy. The 8^th WHO lung cancer staging system has previously proposed the standard diagnosis and staging mode of MPLC, which is very practical.

Another unique feature of this case is that the patient’s right lung cancer was a cystic lung adenocarcinoma. It is likely that the widespread use of CT in daily clinical practice and the evolution of lung cancer screening programs have contributed to the increasing frequency of cystic lung adenocarcinoma encountered in imaging studies. Cystic airspaces in lung cancer are associated with smoking (21), and the patient had a 52-year history of smoking. Moreover, the most common pathologic type of cystic lung cancer is lung adenocarcinoma (22), as in this case. Cystic lung adenocarcinoma presents on CT as a “cystic area”, containing air and a well-defined thin wall, which is the most common imaging feature; in addition, septation(s) can be observed within this area, and wall nodule(s), ground-glass opacities and irregular margins can be found around the area (22). All of the above radiologic features were observed in this case. Regarding clinical diagnosis, it is worth mentioning that the early signs of cystic lung adenocarcinoma are not obvious; therefore, it is easily misdiagnosed. The formation mechanism of cystic lung cancer is uncertain. However, to date, most studies tend to support the “check-valve” mechanism, which argues that the tumor originates from the alveolar wall and produces abundant fibrous tissue, resulting in narrowing and focal stenosis of the airway feeding that portion of the lung (22,23).

There are several limitations of our report. First, we failed to observe the growth and imaging changes of the lung adenocarcinoma with EGFR and KRAS mutations because of rapid resection of the tumors. Second, the gene mutation type of the metastatic mediastinal lymph node was not determined. Provided that metastasis was driven by the EGFR mutation, TKIs could have prolonged the OS of the patient. Third, it is also a pity that we are unable to obtain the specific clinical treatment details of the patient after he returned home.

Conclusions

Overall, MPLC accompanied by EGFR and KRAS mutations, with the right lung cancer nodule presenting as cystic lung adenocarcinoma, is relatively rare. Early detection of tumor genotypes is challenging but very important for precise treatment and prognosis prediction. Additional cases are needed to precisely analyze the underlying mechanism that leads to different gene phenotypes exhibiting different imaging findings.
