A five-gene expression signature of centromeric proteins with prognostic value in lung adenocarcinoma
Original Article

A five-gene expression signature of centromeric proteins with prognostic value in lung adenocarcinoma

Yangwei Wang#, Jiaping Chen#, Wangyang Meng#, Rong Zhao, Wei Lin, Peiyuan Mei, Han Xiao, Yongde Liao

Department of Thoracic Surgery, Union Hospital, Tongji Medical College, Huazhong University of Science and Technology, Wuhan, China

Contributions: (I) Conception and design: Y Wang, Y Liao, H Xiao; (II) Administrative support: Y Liao; (III) Provision of study materials or patients: Y Wang, W Meng, R Zhao; (IV) Collection and assembly of data: J Chen, H Xiao, W Lin; (V) Data analysis and interpretation: H Xiao, Y Wang, P Mei; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Han Xiao; Yongde Liao. Department of Thoracic Surgery, Union Hospital, Tongji Medical College, Huazhong University of Science and Technology, Wuhan, China. Email: 13260536972@163.com; liaotjxw@126.com.

Background: Centromere proteins (CENPs) form a large protein family. Sixteen proteins in this family are positioned at the centromere throughout the cell cycle. The overexpression of CENPs is common in many cancers and predicts a poor prognosis. However, a comprehensive analysis of CENPs expression has not been conducted, and their clinical significance in lung adenocarcinoma (LUAD) is unclear.

Methods: We investigated the expression differences of the CENP family in LUAD using The Cancer Genome Atlas (TCGA) and the Genotype-Tissue Expression (GTEx) cohorts. Kaplan-Meier curve survival analysis was performed to assess their independent prognostic values. We then tested 5 clinical LUAD specimens by quantitative real time polymerase chain reaction (qRT-PCR). The risk model was constructed with least absolute shrinkage and selection operator (LASSO). Cox regression analyses were carried out to determine independent prognostic indicators. Weighted gene coexpression network analysis (WGCNA) was employed to define the coexpression networks.

Results: The messenger RNA (mRNA) expression of 15 differential CENP proteins was higher in LUAD than in normal lung tissues. Among them, 10 CENP proteins had significant prognostic value. The risk model comprising CENPF, CENPU, CENPM, CENPH, and CENPW showed a significant correlation [hazard ratio (HR) 1.75, 95% confidence interval (CI): 1.3–2.35; P=2e−04]. However, the prognostic accuracy was not strong [1-year survival: area under curve (AUC) 0.63; 3-year survival: AUC 0.62; 5-year survival: AUC 0.6]. The qRT-PCR results showed that the 5 CENPs were upregulated in LUAD tissues compared to in normal lung tissues. A total of 441 hub genes coexpressed with the 5 CENPs were identified.

Conclusions: CENPF, CENPU, CENPM, CENPH, and CENPW have prognostic values and may be potential targets for LUAD treatment.

Keywords: Lung adenocarcinoma (LUAD); prognosis; risk model; CENP protein family; centromere

Submitted Sep 01, 2022. Accepted for publication Dec 06, 2022. Published online Feb 06, 2023.

doi: 10.21037/tcr-22-2166

Highlight box

Key findings

• In this study, we assessed the prognostic value of the centromere proteins (CENP) family proteins and constructed a risk model involving CENPF, CENPU, CENPM, CENPH, and CENPW in lung adenocarcinoma (LUAD).

What is known and what is new?

• In previous studies, the CENP family proteins were generally found to be hyperexpressed in various types of cancers and associated with the clinical characteristics and outcomes based on their roles in cell mitosis. At present, there is no comprehensive screening and systemic evaluation of the CENP protein family in malignant tumors, especially LUAD.

• In this study, differentially expressed CENPs at the transcriptional level were screened, and their prognostic value and correlations with clinicopathological parameters, genetic alteration, and the coexpression pattern were revealed. Moreover, a risk model involving CENPs was constructed using the least absolute shrinkage and selection operator (LASSO).

What are the implications, and what should change now?

• This study provided a risk model for prognostic assessment and identified potential therapeutic targets in LUAD.

• Additional clinical data are needed to validate the model. Furthermore, the interaction mechanism between CENPs and downstream molecules should be further explored.


Lung cancer remains the leading cause of cancer-related death worldwide, with significant morbidity and mortality rates (1). Lung adenocarcinoma (LUAD) is the most common lung cancer subtype, with an average 5-year survival rate of 15% (2,3), and most patients are diagnosed at an advanced stage (4,5). Thus, the discovery of reliable biomarkers is critical for determining the prognosis of LUAD. Chromosomal instability (CIN) is a marker of cancer in almost 90% of human tumors (6-8), and abnormal expression of the centromere protein (CENP) family is closely related to CIN (9-11).

CENP is a large protein family with more than 20 members, which are mainly involved in the constitutive centromere-associated network (CCAN) (12-14), a group of 16 CENP family proteins positioned at the centromere throughout the cell cycle (14). CCAN forms the centromere base connecting the centromere and microtubule. In the CCAN, CENP family proteins are divided into several functional groups: CENPC, CENP-H/I/K, CENP-L/M/N, CENP-O/P/Q/R/U, and CENP-T/W/S/X (15). For instance, CENPA, also known as histone H3-like centromeric protein A, which is replicated during the S-phase, is involved in the formation of the centromeric nucleosome structure and is essential for the localization of all known kinetochore components (14). CENPA interacts with CENP-C/N and participates in mitotic progression and chromosome segregation (12). Accumulating at the G2 phase of the cell cycle, CENPE acts as kinesin to link kinetochores to the releasing microtubule plus-end and interacts with mitogen-activated protein (MAP) kinases and extracellular signal-regulated kinases 1 and 2 (ERK1 and ERK2) (16,17). It has been found that the expression of CENP family proteins is upregulated in several cancers and is related to the advanced cancer characteristics of patients, including clinical stage, grade, and metastasis (11,16-19).

Several CENP proteins are reported to be associated with multiple common cancers, including hepatocellular carcinoma, breast cancer, gastric cancer, and lung cancer; however, there is currently a lack of research on the CENP protein family (11,16,17,20-22). The reduced expression of CENPE or overexpression of CENPH contributes to tumor progression, and these may be novel prognostic biomarkers in human hepatocellular carcinoma (20,22). Moreover, the high expression of CENPH is related to poor prognosis in patients with gastric cancer (21). In lung cancer, CENPA upregulation is associated with poor prognosis and may serve as a potential therapeutic target for patients with LUAD (23), CENPE regulated by FOXM1 promotes LUAD proliferation (17), and CENPH has been reported to be a prognostic biomarker for patients with non-small cell lung cancer (NSCLC) (24). However, no comprehensive screening of the CENP protein family in malignant tumors has been conducted thus far. Moreover, the existing research is mostly based on small sample sizes and does not consider the interaction between CENP family members.

In the present study, bioinformatics analysis based on several large online databases was performed to explore the relationship between CENPs and clinicopathological parameters and their prognostic value in LUAD (Figure 1). We present the following article in accordance with the TRIPOD reporting checklist (available at https://tcr.amegroups.com/article/view/10.21037/tcr-22-2166/rc).

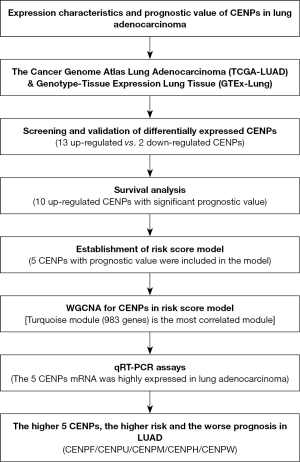

Figure 1 Flowchart of the identification of differentially expressed proteins in CENP family members and their prognostic value in LUAD. CENP, centromere protein; LUAD, lung adenocarcinoma; TCGA, The Cancer Genome Atlas; GTEx-Lung, Genotype-Tissue Expression Lung Tissue; qRT-PCR, quantitative real time polymerase chain reaction; WGCNA, weighted gene coexpression network analysis.


Gene databases

We integrated the RNA-sequencing (RNA-seq) data of 526 LUAD tissues and 59 normal lung tissues from The Cancer Genome Atlas (TCGA) database (http://cancergenome.nih.gov) and 288 normal lung tissues from the Genotype-Tissue Expression (GTEx) (25) database (https://gtexportal.org/). These data were used to evaluate the CENP expression differences between LUAD and normal lung tissues.

Selection of differential genes

We analyzed most members of the CENP protein family. To screen CENPs that are differentially expressed in LUAD and normal lung tissues, we used the “limma” package in Bioconductor (Bioconductor—Open Source Software for Bioinformatics Copyright 2017) and R version 3.2.5 (The R Project for Statistical Computing) packages. to analyze the expression of CENP family proteins in 526 tumor tissues and 347 normal lung tissues. The screening threshold was |log fold change (FC)| >1.0 and adjusted P<0.05. A heat map and violin plot were used to demonstrate the gene expression levels.

Survival analysis of differential CENPs

The Kaplan-Meier method was used to analyze the survival of 526 patients with LUAD to explore the prognostic value of differentially expressed CENPs in patients with LUAD. Moreover, the “corrplot” package in R was used to visualize the correlation among CENPs.

Cox proportional hazards models

We obtained the survival time and status of 526 patients with LUAD from TCGA database and then constructed a risk model of CENPs with differential expression using the least absolute shrinkage and selection operator (LASSO) Cox regression algorithm. Kaplan-Meier survival analysis, receiver operating characteristic (ROC) curve, and univariate and multivariate Cox regression analysis were performed to evaluate the accuracy of the risk model.

Gene coexpression network analysis

The coexpression network of differentially expressed CENPs was constructed by weighted gene correlation network analysis (WGCNA) in R (The R Foundation of Statistical Computing), and the corresponding hierarchical clustering and gene modules were generated to screen out gene modules that were closely related to the clinical features and differential expression of the CENP protein family with the prognostic value for LUAD.

RNA extraction and quantitative real time polymerase chain reaction (qRT-PCR)

We used the RNAprep FastPure Tissue & Cell Kit (Tsingke Biotechnology, Beijing, China) and ABScript III Reverse Transcriptase (ABclonal, Wuhan, China) to extract messenger RNA (mRNA) from LUAD and normal tissue and performed reverse transcription according to the manufacturer’s protocol. Finally, qRT-PCR experiments were carried out using ABScript II One-Step SYBR Green RT-qPCR Kit (ABclonal). The primer sequences were as follows: CENPW: 5'-GAT GGA ACT GGC TGA GAC ACT AAC C-3' (forward) and 5'-AAG ACT CTT GCT TGA TGC TGA GGT G-3' (reverse); CENPM: 5'-ACA GCA AAT ACA GTC TCC AGA A-3' (forward) and 5'-GAA ACA CAC CTT CCC CAA GAA-3' (reverse); CENPU: 5'-GAA AAG AAA AGG CAG CGT ATG A-3' (forward) and 5'-AAT ATG CTG CAT TCC TAA GGG A-3' (reverse); CENPF: 5'-TAC AAC GAG AGA GTA AGA ACG C-3' (forward) and 5'-CTA CCT CCA CTG ACT TAC TGT C-3' (reverse); CENPH: 5'-TTC CAG AAC CTT ATT TTG GGG A-3' (forward) and 5'-CTT CTC AAG CTG CAG AAC AAT T-3' (reverse).

Patients and tissue samples

A total of 5 patients LUAD underwent surgical resection at the Tongji Hospital of Huazhong University of Science and Technology, Tongji Medical College (Wuhan, China). Snap-frozen tissues from these patients were collected at Tongji Hospital in 2018. The 5 patients were histologically diagnosed with primary LUAD. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). It was approved by the Research Ethics Committee, Tongji Medical College, Huazhong University of Science and Technology (No. 20180403). Informed consent was waived due to the retrospective nature of this study.

Statistical analysis

Following a normality check, the Student’s t-test was used to evaluate normally distributed data, and Mann-Whitney tests were used to analyze nonnormally distributed data. The correlation between CENPs was examined using the Pearson test, while the correlation between these DEGs and clinicopathologic characteristics was examined with Kendall rank correlation coefficient testing. The prognostic significance of CENPs was assessed using Kaplan-Meier survival analysis and Cox multivariate regression analysis. Differences were considered to be statistically significant at P<0.05.


Differential expression analyses of CENP family members in LUAD

A total of 15 differentially expressed CENP family members were screened out (Table 1), and 13 CENP family members were upregulated compared with the normal tissues: CENPF, CENPA, CENPU, CENPM, CENPE, CENPI, CENPK, CENPH, CENPL, CENPW, CENPN, CENPQ, and INCENP (Figure 2A). Two CENP family members were downregulated, namely CENPUP2 (logFC –1.028; P<0.001) and CENPT (logFC –1.514; P<0.001) (Figure 2A). The violin plots showed that CENPF (logFC 3.720; P<0.001) were significantly upregulated and that CENPUP2 (logFC –1.02; P<0.001) were significantly downregulated in tumor tissues (Figure 2B).

Table 1

The differential expression of 24 CENPs in lung adenocarcinoma

CENPs LogFC AveExpr t P Adj.P β Change
CENPA 3.247537077 6.117932933 34.22669389 2.33e−163 9.47e−162 362.8805908 Up
CENPF 3.720029395 9.063292383 41.98118255 1.89e−211 2.29e−209 473.5150655 Up
CENPE 2.458642295 7.557335664 31.86512482 2.60e−148 8.00e−147 328.2642046 Up
CENPB 0.174938294 11.7181103 4.425952599 1.08e−05 1.90e−05 1.304591913 Stable
INCENP 1.370221774 9.160947297 27.47616633 3.51e−120 6.43e−119 263.5573823 Up
CENPC −0.04437037 9.519976219 −1.36183773 0.1736013 0.2034584 −7.46063137 Stable
CENPJ 0.09992807 8.58660911 2.284476046 0.0225834 0.0307698 −5.78425074 Stable
CENPH 1.982387332 7.431167486 34.49783924 4.46e−165 1.87e−163 366.8351839 Up
CENPU 2.547406909 7.965051181 36.17931184 1.10e−175 5.75e−174 391.243498 Up
CENPW 1.796088492 7.014250978 22.57557371 3.32e−89 3.50e−88 192.3280442 Up
CENPM 2.518778578 7.036015964 28.81203931 9.67e−129 2.05e−127 283.2474704 Up
CENPO 0.325312428 8.74232919 7.0502545 3.64e−12 8.42e−12 15.79720682 Stable
CENPT −1.51423458 10.37256876 −26.5606414 2.50e−114 4.11e−113 250.0991236 Down
CENPI 2.382413306 6.427262231 31.03463241 5.39e−143 1.49e−141 316.0347634 Up
CENPN 1.540384156 7.87364105 25.98125103 1.23e−110 1.90e−109 241.6059193 Up
CENPK 2.132952807 6.968600679 31.57624334 1.84e−146 5.44e−145 324.0126868 Up
CENPV 0.135675099 8.289197752 2.122279385 0.034096 0.0444279 −6.13987356 Stable
CENPP −0.29374296 7.494897026 −6.92150784 8.66e−12 1.98e−11 14.9450106 Stable
CENPQ 1.434607439 7.449989654 25.70371121 7.18e−109 1.07e−107 237.545656 Up
CENPL 1.826436692 7.650182282 37.11307898 1.55e−181 9.36e−180 404.7019582 Up
CENPCP1 0.408609084 1.445567364 5.519305999 4.49e−08 8.91e−08 6.592921301 Stable
CENPUP2 −1.02813774 1.176967002 −13.6614034 1.22e−38 5.34e−38 76.21181011 Down
CENPIP1 0.085278812 0.058108903 2.886643811 0.00399 0.0058634 −4.23834699 Stable
CENPUP1 0.006482708 0.021025974 0.659995781 0.5094311 0.5467224 −8.16965633 Stable

CENPs, centromere proteins; FC, fold change; AveExpr, average expression; Adj., adjusted.

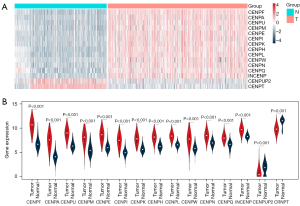

Figure 2 The differentially expressed CENP family members were screened in TCGA and GTEx databases. (A) Heat map depicting the differential expression analysis of 15 CENP family members in the training databases. (B) Violin diagram depicting the 15 CENP family members’ expression in the tumor and normal tissues. CENP, centromere protein; TCGA, The Cancer Genome Atlas; GTEx, Genotype-Tissue Expression.

Prognostic values of CENP family members in patients with LUAD

For differentially expressed CENP family members, we performed survival analysis using the “survival” and “survcomp” R packages. Prognostic information was obtained from 513 patients with LUAD in TCGA database. Among the 15 differentially expressed CENP family members, 10 proteins had a significant prognostic value, including CENPF, CENPA, CENPU, CENPM, CENPE, CENPK, CENPH, CENPW, CENPN, and INCENP. High expression of these proteins predicted a shorter overall survival (OS) (Figure 3A-3F). We then assessed the connection between the mRNA levels of 15 CENP family members and found that CENPF, CENPA, CENPU, CENPM, CENPE, CENPK, CENPH, CENPW, CENPN, and INCENP were well correlated with each other as prognostic factors (Figure 3G).

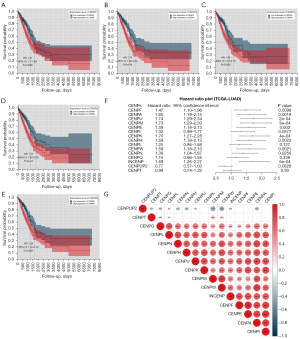

Figure 3 The survival analysis of 15 differentially expressed CENP family members. (A-E) Kaplan-Meier curves for overall survival of CENPF (HR: 1.47, 95% CI: 1.10–1.96; P=0.0099 <0.05), CENPU (HR: 1.74, 95% CI: 1.29–2.34, P=2e−04 <0.001), CENPH (HR: 1.59, 95% CI: 1.18–2.13, P=0.0023 <0.05), CENPM (HR: 1.73, 95% CI: 1.29–2.33, P=3e−04 <0.001), and CENPW (HR: 1.59, 95% CI: 1.18–2.13, P=0.0021 <0.05). (F) The multivariate cox proportional hazard analysis of 15 differentially expressed CENP family members. (G) The correlation analysis of 15 differentially expressed CENP family members as displayed by circle size and P value. **, P<0.01; ***, P<0.001. CENP, centromere protein; HR, hazard ratio; CI, confidence interval.

Construction of the risk model and its relationship with clinicopathological features and prognosis

To evaluate the relationship between CENP family members and clinical outcomes, we established a risk assessment model for 10 genes in TCGA LUAD data set using the LASSO Cox regression algorithm (Figure 4A,4B). The LASSO algorithm screened genes that were closely related to prognosis, including CENPF, CENPU, CENPM, CENPH, and CENPW, and then constructed the risk prediction model. We divided TCGA LUAD data set into high-risk (n=248) and low-risk (n=265) groups according to the median risk score to evaluate the correlation between the risk model and clinical characteristics (Table 2). The results showed that the risk model was related to the T stage (P<0.001) and M stage (P<0.05) (Figure 4C). The Kaplan-Meier curve showed that the prognosis of the high-risk group was poor [hazard ratio (HR): 1.75, 95% confidence interval (CI): 1.30–2.35; P=2e−04]. At the same time, the area under the ROC curve (AUC) values for the 1-, 3-, and 5-year survival were 0.63, 0.62, and 0.6, respectively, indicating that the diagnostic value of risk model was not strong (Figure 4D,4E).

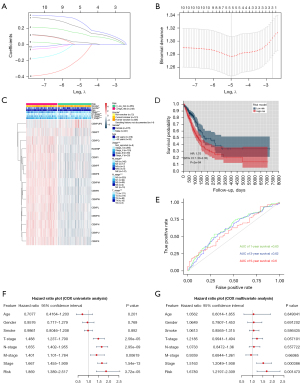

Figure 4 Construction of a risk model and its relationship with clinicopathological features and prognosis. (A) Distribution of LASSO coefficients for 10 differentially expressed CENP family members. (B) Partial likelihood deviation of the LASSO coefficient distribution. (C) Heatmap of the relationship between the risk model and clinicopathological features including age, gender, smoking, stage, T stage, N stage, and M stage. (D) Survival analysis of the high- and low-risk groups, which were differentiated by the risk model (HR: 1.75, 95% CI: 1.30–2.35; P=2e−04). (E) The receiver operating characteristic (ROC) curve of the prognostic value of the risk model (1-year survival: AUC 0.63; 3-year survival: AUC 0.62; 5-year survival: AUC 0.6). (F) The clinicopathological features and risk factors were identified using univariate analysis. (G) The clinicopathological features and risk factors were identified using multivariate analysis. *, P<0.05; **, P<0.01; ***, P<0.001. CENP, centromere protein; HR, hazard ratio; CI, confidence interval; AUC, area under the curve; LASSO, least absolute shrinkage and selection operator.

Table 2

Clinical characteristics of 513 patients in TCGA-LUAD

Characteristics No. of patients (%)
Age (years)
   <50 35 (6.82)
   ≥50 478 (93.18)
   Male 237 (46.20)
   Female 276 (53.80)
   Nonsmoker 72 (14.04)
   Current smoker 121 (23.59)
   Former smoker 306 (59.65)
   Smoking history not documented 14 (2.73)
Pathological tumor (T) statusa
   T1 171 (33.33)
   T2 275 (53.61)
   T3 46 (8.97)
   T4 18 (3.51)
   TX 3 (0.58)
Pathological node (N) statusa
   N0 335 (65.30)
   N1 94 (18.32)
   N2 69 (13.45)
   N3 2 (0.39)
   NX 13 (2.53)
Pathological metastasis (M) statusa
   M0 342 (66.67)
   M1 17 (3.31)
   M1a 2 (0.39)
   M1b 5 (0.97)
   MX 147 (28.65)
Clinical stagea
   I 280 (54.58)
   II 120 (23.39)
   III 80 (15.59)
   IV 25 (4.87)
Risk score
   Low 265 (51.66)
   High 248 (48.34)

a, pathological tumor (T) status, pathological node (N) status, and clinical stage are from the eighth edition of Union for International Cancer Control (UICC)/American Joint Committee on Cancer (AJCC) lung cancer stage classification [2017]. TCGA-LUAD, The Cancer Genome Atlas-lung adenocarcinoma.

We then performed Cox regression to analyze the LUAD data of TCGA by univariate and multivariate analysis. Univariate Cox regression analysis found that stage (HR: 1.667, 95% CI: 1.455–1.909; P=1.54e−13), T stage (HR: 1.488, 95% CI: 1.237–1.79; P=2.56e−05), N stage (HR: 1.655, 95% CI: 1.402–1.955; P=2.95e−09), M stage (HR: 1.401, 95% CI: 1.101–1.784; P=0.00619), and risk score (HR: 1.869, 95% CI: 1.389–2.517; P=3.72e−05) were correlated with prognosis. Multivariate Cox regression analysis showed that stage (HR: 1.5163, 95% CI: 1.2049–1.908; P=0.000386) and risk score (HR: 1.678, 95% CI: 1.2197–2.309; P=0.001473) were correlated with prognosis (Figure 4F,4G).

To verify the expression levels of CENPM, CENPW, CENPU, CENPF, and CENPH in LUAD tissues, we collected tumor specimens from 5 patients with LUAD and paired normal tissues for qRT-PCR. We observed that the mRNA expression levels of the above 5 genes in tumor tissues were higher than those in corresponding normal tissues. The mRNA expression level of CENPM was significantly overexpressed in tumor tissue (Figure 5).

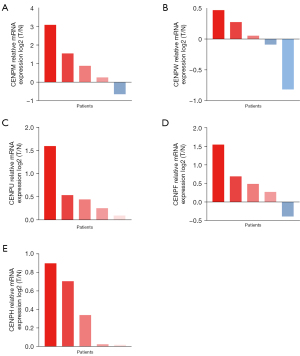

Figure 5 The mRNA expression levels of the 5 CENPs in paired LUAD tissue was verified by qRT-PCR assays (5 pairs). (A) CENPM mRNA expression in normal and LUAD tissue. (B) CENPW mRNA expression in normal and LUAD tissue. (C) CENPU mRNA expression in normal and LUAD tissue. (D) CENPF mRNA expression in normal and LUAD tissue. (E) CENPH mRNA expression in normal and LUAD tissue. CENP, centromere protein; LUAD, lung adenocarcinoma; qRT-PCR, quantitative real time polymerase chain reaction; mRNA, messenger RNA; T, tumor; N, normal.

WGCNA construction and analysis of the correlation between the module and clinical characteristics

In TCGA LUAD data set (526 tumor tissues and 59 normal tissues), the median absolute value deviation (MAD) of hub genes was calculated, and the first 5,000 genes in terms of MAD value were selected to construct the WGCNA network. On the premise of maintaining appropriate network connectivity, the weighting factor β value was determined as 4 (Figure 6A,6B), and a total of 16 gene modules were established (Figure 6C). We then selected the modules related to clinical characteristics (age, gender, smoking, and stage), CENPF, CENPU, CENPM, CENPH, and CENPW. The turquoise module was positively correlated with CENPF (coefficient: 0.84; P=2e−137), CENPU (coefficient: 0.83; P=2e−133), CENPM (coefficient: 0.76; P=2e−99), CENPH (coefficient: 0.8; P=6e−115), and CENPW (coefficient: 0.84; P=6e−136) expressions. The brown module was negatively correlated with CENPF (coefficient: –0.57; P=6e−45), CENPU (coefficient: –0.62; P=4e−56), CENPM (coefficient: –0.58; P=7e−48), CENPH (coefficient: –0.56; P=9e−44), and CENPW (coefficient: –0.5; P=2e−34) expressions (Figure 6D). Genes in 2 modules may be regulated by the CENP family members. These results suggest that genes in the turquoise and brown modules may be regulated by CENPF, CENPU, CENPM, CENPH, and CENPW, and play an important role in the prognosis of patients with LUAD.

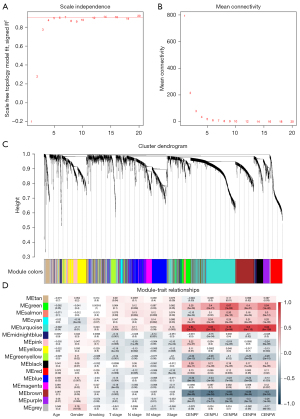

Figure 6 Screening of the module genes CENPF, CENPU, CENPM, CENPH, and CENPW in WGCNA and identification of their correlation with clinical features. (A,B) In different β values (the soft threshold is shown by the number in the figure), we calculated the scale-free index and average connectivity. When the soft threshold power was 4, an approximate scale-free topology was achieved. (C) Based on the common topology, there were 16 overlapping colors of the gene clustering tree, with each color representing a group of highly related genes. (D) The heat map shows the correlation between different gene modules and age, gender, smoking, TNM stage, CENPF, CENPU, CENPM, CENPH, and CENPW. The P value is shown in parenthesis, and correlation coefficient is outside of the parenthesis. CENP, centromere protein; WGCNA, weighted gene correlation network analysis; TNM, tumor, node, and metastasis.

Functional enrichment analysis and identification of hub genes

To further explore the hub gene in the turquoise module, we selected the tumor tissue and normal tissue in TCGA LUAD data set and analyzed the differences between the 983 genes in the turquoise module. Finally, 162 downregulated genes and 279 upregulated genes were screened (Figure 7A). Next, we performed Gene Ontology (GO) enrichment analysis on 441 differential genes. Among them, the molecular function term suggested cofactor binding as the main function (gene ratio >0.04; P<0.05) (Figure 7B). In terms of biological process, it was enriched in mitotic sister chromosomal aggregation, DNA replication, sister chromosomal aggregation, nuclear chromosome aggregation, mitotic nuclear division, nuclear division, chromosome aggregation, and organelle fission (gene ratio >0.04; P<1e−13) (Figure 7C). The cell component term indicated that it was located in the kinetochore, chromosome, central region, microtubule, spindle, condensed chromosome, and chromosomal region (gene ratio >0.04; P<1e−07) (Figure 7D).

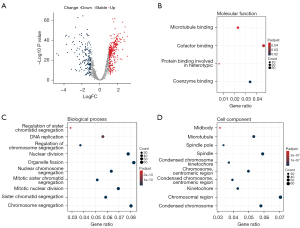

Figure 7 The GO function enrichment of turquoise module genes and the screening of hub genes with prognostic value. (A) The volcano map shows 441 differentially expressed genes in the turquoise module (162 upregulated vs. 279 downregulated genes). (B-D) The GO functional enrichment of 441 differentially expressed genes, including molecular function, cell component, and molecular function. FC, fold change; GO, Gene Ontology.


An abundance of evidence indicates that CENPs not only participate in cell viability and mitosis but also are related to the progression and prognosis of several tumors (13,19,24,26). However, a comprehensive analysis of CENP expression and clinical significance in LUAD has not been conducted. In this study, we analyzed the transcriptional levels and their correlation with clinicopathological parameters, genetic alteration and coexpression pattern, potential function, and prognostic value of different CENP family members in LUAD. Fifteen CENP family proteins are differentially expressed in LUAD tissue. We used the LASSO algorithm to construct a risk model with 5 CENPs: CENPF, CENPU, CENPM, CENPH, and CENPW. The differential expression of these 5 CENP proteins was validated by qRT-PCR on the mRNA level, and WGCNA was performed to screen the genes related with these 5 CENP proteins. The molecular function term suggests cofactor binding as the main function. Our results can facilitate a more accurate individualized prediction for patients with LUAD and provide important guidance for the prognosis of the disease.

Various studies have indicated that CENPF is involved in the progression and metastasis of many cancers. For instance, the COUP-TFII-FOXM1-CENPF axis regulated by microRNA (miR)-101 and miR-27a contributes to the metastasis of prostate cancer (27). The HnRNPR-CCNB1/CENPF axis leads to the tumor proliferation and metastasis of gastric cancer (28). However, the role of CENPF in lung cancer remains unclear. Transcriptome analysis research suggests that CENPF acts as an oncogene in lung cancer (29). In this study, higher CENPF mRNA expression was observed in patients with LUAD, and the clinical characteristics were related. A short OS and progression-free survival (PFS) were also observed in patients with high CENPF expression.

Like CENPF, studies on CENPH in lung cancer are scarce. A study linking clinicopathologic characteristics with the CENPH expression pattern suggests that CENPH may be a prognostic biomarker for early NSCLC (24). Similar results were found in our study, and the potential function and mechanism of CENPH in LUAD were predicted for further research.

CENPM has attracted considerable attention due to its function in tumor progression (30,31). The upregulation of CENPM facilitates tumor metastasis in pancreatic cancer and promotes hepatocarcinogenesis. The results of our investigation demonstrate that CENPM was upregulated in LUAD tissue and related to tumor stage and nodal metastasis status. It may also be a predictive biomarker, as shorter OS and PFS were observed in patients with high CENPM expression.

The CENP-O-P-Q-U-R complex is part of the CCAN and participates in chromosome congression and oscillations throughout the cell cycle (14,32). A few studies have linked these proteins with tumors. One study indicated that CENPU was essential for papilloma development in a skin carcinogenesis model (33). In the current study, we found that CENPU was significantly upregulated in the tumor tissues of patients with LUAD. Individual tumor stage and nodal metastasis status were also related. Interestingly, the CENP-O/Q/U perform biological functions as a complex, since they compose the CENP-O-P-Q-U-R complex, which is a part of the CCAN. It thus seems that they share a similar biological process and may have a similar effect on tumor development.

CENPW is involved in the formation of the CENP-T-W-S-X complex, which directly binds to DNA and plays a crucial role in cell division during mitosis (14,34). We suggest that CENPW may be a potential biomarker of LUAD, as we found its expression level was increased in tumor tissues and related to clinical characteristics, and patients with high CENPW expression have a poor prognosis.

Some limitations to this study should be noted. First, a validation data set was lacking, so additional clinical data are needed to validate the model. Second, the interaction mechanism between the CENP proteins and downstream molecules needs to be further explored. Finally, future research should use a greater number of clinical samples to verify our findings.


The results of our study indicated that the mRNA expression levels of 13 CENP family members were upregulated in lung cancer tissues compared to those in normal tissues. CENPW, CENPM, CENPU, CENPF, and CENPH were significantly positively associated with prognosis in patients with LUAD. Furthermore, a poor OS prognosis was observed in patients with high mRNA expression of CENPs. According to the coexpression network of the 5 CENPs, 441 hub genes were screened, with their main function being cell mitosis. Future research will focus on the detailed mechanisms of the CENP family.


The research results are based on the data generated by TCGA Research Network and the Genotype-Tissue Expression (GTEx) database. We would like to thank Jimmy Zeng and his team for their selfless help in contributing to the bioinformatics analysis methods and thank Qi Tan for supporting us in our experiments.

Funding: This work was supported by the National Natural Science Foundation of China (No. 82072593) and Department of Science and Technology of Hubei Province (No. 2020BCB027).


Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://tcr.amegroups.com/article/view/10.21037/tcr-22-2166/rc

Data Sharing Statement: Available at https://tcr.amegroups.com/article/view/10.21037/tcr-22-2166/dss

Peer Review File: Available at https://tcr.amegroups.com/article/view/10.21037/tcr-22-2166/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://tcr.amegroups.com/article/view/10.21037/tcr-22-2166/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Research Ethics Committee, Tongji Medical College, Huazhong University of Science and Technology (No. 20180403). Informed consent was waived due to the retrospective nature of this study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.


  1. Hirsch FR, Scagliotti GV, Mulshine JL, et al. Lung cancer: current therapies and new targeted treatments. Lancet 2017;389:299-311. [Crossref] [PubMed]
  2. Kim JW, Marquez CP, Kostyrko K, et al. Antitumor activity of an engineered decoy receptor targeting CLCF1-CNTFR signaling in lung adenocarcinoma. Nat Med 2019;25:1783-95. [Crossref] [PubMed]
  3. Chen H, Carrot-Zhang J, Zhao Y, et al. Genomic and immune profiling of pre-invasive lung adenocarcinoma. Nat Commun 2019;10:5472. [Crossref] [PubMed]
  4. Nigro A, Ricciardi L, Salvato I, et al. Enhanced Expression of CD47 Is Associated With Off-Target Resistance to Tyrosine Kinase Inhibitor Gefitinib in NSCLC. Front Immunol 2020;10:3135. [Crossref] [PubMed]
  5. Bria E, Milella M, Cuppone F, et al. Outcome of advanced NSCLC patients harboring sensitizing EGFR mutations randomized to EGFR tyrosine kinase inhibitors or chemotherapy as first-line treatment: a meta-analysis. Ann Oncol 2011;22:2277-85. [Crossref] [PubMed]
  6. Carter SL, Cibulskis K, Helman E, et al. Absolute quantification of somatic DNA alterations in human cancer. Nat Biotechnol 2012;30:413-21. [Crossref] [PubMed]
  7. Cimini D. Merotelic kinetochore orientation, aneuploidy, and cancer. Biochim Biophys Acta 2008;1786:32-40. [PubMed]
  8. Taylor AM, Shih J, Ha G, et al. Genomic and Functional Approaches to Understanding Cancer Aneuploidy. Cancer Cell 2018;33:676-689.e3. [Crossref] [PubMed]
  9. Shrestha RL, Ahn GS, Staples MI, et al. Mislocalization of centromeric histone H3 variant CENP-A contributes to chromosomal instability (CIN) in human cells. Oncotarget 2017;8:46781-800. [Crossref] [PubMed]
  10. Putkey FR, Cramer T, Morphew MK, et al. Unstable kinetochore-microtubule capture and chromosomal instability following deletion of CENP-E. Dev Cell 2002;3:351-65. [Crossref] [PubMed]
  11. O'Brien SL, Fagan A, Fox EJ, et al. CENP-F expression is associated with poor prognosis and chromosomal instability in patients with primary breast cancer. Int J Cancer 2007;120:1434-43. [Crossref] [PubMed]
  12. Sharma AB, Dimitrov S, Hamiche A, et al. Centromeric and ectopic assembly of CENP-A chromatin in health and cancer: old marks and new tracks. Nucleic Acids Res 2019;47:1051-69. [Crossref] [PubMed]
  13. Hinshaw SM, Harrison SC. Kinetochore Function from the Bottom Up. Trends Cell Biol 2018;28:22-33. [Crossref] [PubMed]
  14. McKinley KL, Cheeseman IM. The molecular basis for centromere identity and function. Nat Rev Mol Cell Biol 2016;17:16-29. [Crossref] [PubMed]
  15. Hara M, Fukagawa T. Critical Foundation of the Kinetochore: The Constitutive Centromere-Associated Network (CCAN). Prog Mol Subcell Biol 2017;56:29-57. [Crossref] [PubMed]
  16. El-Arabey AA, Salama SA, Abd-Allah AR. CENP-E as a target for cancer therapy: Where are we now? Life Sci 2018;208:192-200. [Crossref] [PubMed]
  17. Shan L, Zhao M, Lu Y, et al. CENPE promotes lung adenocarcinoma proliferation and is directly regulated by FOXM1. Int J Oncol 2019;55:257-66. [PubMed]
  18. Srivastava S, Zasadzińska E, Foltz DR. Posttranslational mechanisms controlling centromere function and assembly. Curr Opin Cell Biol 2018;52:126-35. [Crossref] [PubMed]
  19. Smurova K, De Wulf P. Centromere and Pericentromere Transcription: Roles and Regulation … in Sickness and in Health. Front Genet 2018;9:674. [Crossref] [PubMed]
  20. Lu G, Shan T, He S, et al. Overexpression of CENP-H as a novel prognostic biomarker for human hepatocellular carcinoma progression and patient survival. Oncol Rep 2013;30:2238-44. [Crossref] [PubMed]
  21. He WL, Li YH, Yang DJ, et al. Combined evaluation of centromere protein H and Ki-67 as prognostic biomarker for patients with gastric carcinoma. Eur J Surg Oncol 2013;39:141-9. [Crossref] [PubMed]
  22. He P, Hu P, Yang C, et al. Reduced expression of CENP-E contributes to the development of hepatocellular carcinoma and is associated with adverse clinical features. Biomed Pharmacother 2020;123:109795. [Crossref] [PubMed]
  23. Wu Q, Chen YF, Fu J, et al. Short hairpin RNA-mediated down-regulation of CENP-A attenuates the aggressive phenotype of lung adenocarcinoma cells. Cell Oncol (Dordr) 2014;37:399-407. [Crossref] [PubMed]
  24. Liao WT, Wang X, Xu LH, et al. Centromere protein H is a novel prognostic marker for human nonsmall cell lung cancer progression and overall patient survival. Cancer 2009;115:1507-17. [Crossref] [PubMed]
  25. GTEx Consortium. Laboratory, Data Analysis &Coordinating Center (LDACC)—Analysis Working Group; Statistical Methods groups—Analysis Working Group. Genetic effects on gene expression across human tissues. Nature 2017;550:204-13.
  26. Sun X, Clermont PL, Jiao W, et al. Elevated expression of the centromere protein-A(CENP-A)-encoding gene as a prognostic and predictive biomarker in human cancers. Int J Cancer 2016;139:899-907. [Crossref] [PubMed]
  27. Lin SC, Kao CY, Lee HJ, et al. Dysregulation of miRNAs-COUP-TFII-FOXM1-CENPF axis contributes to the metastasis of prostate cancer. Nat Commun 2016;7:11418. [Crossref] [PubMed]
  28. Chen EB, Qin X, Peng K, et al. HnRNPR-CCNB1/CENPF axis contributes to gastric cancer proliferation and metastasis. Aging (Albany NY) 2019;11:7473-91. [Crossref] [PubMed]
  29. Meng F, Zhang L, Ren Y, et al. Transcriptome analysis reveals key signature genes involved in the oncogenesis of lung cancer. Cancer Biomark 2020;29:475-82. [Crossref] [PubMed]
  30. Xiao Y, Najeeb RM, Ma D, et al. Upregulation of CENPM promotes hepatocarcinogenesis through mutiple mechanisms. J Exp Clin Cancer Res 2019;38:458. [Crossref] [PubMed]
  31. Zheng C, Zhang T, Li D, et al. Upregulation of CENPM facilitates tumor metastasis via the mTOR/p70S6K signaling pathway in pancreatic cancer. Oncol Rep 2020;44:1003-12. [Crossref] [PubMed]
  32. Kagawa N, Hori T, Hoki Y, et al. The CENP-O complex requirement varies among different cell types. Chromosome Res 2014;22:293-303. [Crossref] [PubMed]
  33. Saito M, Kagawa N, Okumura K, et al. CENP-50 is required for papilloma development in the two-stage skin carcinogenesis model. Cancer Sci 2020;111:2850-60. [Crossref] [PubMed]
  34. Chun Y, Lee M, Park B, et al. CSN5/JAB1 interacts with the centromeric components CENP-T and CENP-W and regulates their proteasome-mediated degradation. J Biol Chem 2013;288:27208-19. [Crossref] [PubMed]

(English Language Editor: A. Kassem)

Cite this article as: Wang Y, Chen J, Meng W, Zhao R, Lin W, Mei P, Xiao H, Liao Y. A five-gene expression signature of centromeric proteins with prognostic value in lung adenocarcinoma. Transl Cancer Res 2023;12(2):273-286. doi: 10.21037/tcr-22-2166
