Prognostic model construction and immune microenvironment analysis of esophageal cancer based on gene expression data and microRNA target genes

Introduction

Esophageal cancer (EC) ranks the seventh common cancer in terms of incidence (572,000 new cases) and the sixth most common cause of death from cancer worldwide in 2,018 (509,000 deaths) (1). Due to the insidious onset, highly invasive properties, and rapid progress, most EC patients are diagnosed at an advanced stage. The prognosis of EC patients is poor (2). Consequently, there are still in urgent need for more reliable and non-invasive prognostic biomarkers to guide EC personalized treatment.

Recent studies has proved dysregulation of specific microRNAs could contribute to metaplastic and neoplastic processes in the oesophageal mucosa. MicroRNAs are short, non-coding RNAs regulating gene expression. Li et al. found microRNAs-target gene played an important role in cancer initiation and progression (3). Although the contribution of microRNAs to EC development has been extensively studied, little has been done on microRNA targeting genes in EC. Previous studies showed tumor microenvironment (TME) may play a crucial role in the tumorigenesis and progression of EC. The TME includes a complex collection of components to keep a dynamic balance exists between the pro- and anti-tumor factors within the TME, which profoundly influences the prognosis of patients with cancer (4-7).

This study aimed to identify a panel of potential prognostic genes according to the intersection of differentially expressed mRNAs (DEmRNAs) and the target genes of differentially expressed microRNAs (DEmiRNAs), and to explore the prognostic value of these genes. We further clarified the immunological roles of prognostic genes among EC patients, therefore providing a comprehensive insights into esophageal tumor development. We present this article/case in accordance with the TRIPOD reporting checklist (available at https://tcr.amegroups.com/article/view/10.21037/tcr-22-2588/rc).

Methods

Data downloading and processing

Gene expression data included 160 tumor samples and 11 normal samples, microRNA data included 185 tumor samples and 13 normal samples, 366 somatic mutation data and corresponding clinical data were collected from The Cancer Genome Atlas (TCGA) dataset (8) as the training cohort. Furthermore, The GSE53625 dataset from the Gene Expression Omnibus (GEO) database as the validation cohort was downloaded (9). Data with incomplete survival information were excluded. The training dataset comprised 144 EC patients while the validation dataset comprised 179 EC patients.

The edgeR (10) package was employed to identify DEmiRNAs or DEmRNAs. The criteria of DEmiRNAs or DEmRNAs were false discovery rate (FDR) q value <0.05 and log₂ |fold change (FC)| >1.5.

Target genes of DEmiRNAs were selected by TargetScan (http://www.targetscan.org/vert_72/) and microRNA Data Integration Portal (mirDIP) databases (http://ophid.utoronto.ca/mirDIP/index.jsp). Further, a panel of prognostic genes were identified by taking the intersection of DEmRNAs and target genes of DEmiRNAs. To better understand the deep molecular mechanism behind these potential prognostic biomarkers, we conducted pathway enrichment analysis based on Gene Ontology (GO) database (11) and Kyoto Encyclopedia of Genes and Genomes (KEGG) database (12).

Construction and validation of a prognostic model

Least absolute shrinkage and selection operator (LASSO) Cox regression analysis was used to select differential genes to construct final prognostic model using the R package “glmnet” (13). Then, Cox regression analysis was performed to construct the best prognostic model and make proportional hazards assumption with R package “survival” and “MASS”. The prognostic genes eventually screened in the training dataset were used to construct the prognostic model, and then verified in the validation dataset. According to the prognostic model formula, the risk score of each patient was calculated, and then divided EC patients into high-risk and low-risk groups according to the median risk value. Subsequently, we constructed a prognostic model using genes, tumor node metastasis (TNM) stage, and risk group, and validation in the validation dataset; 1-, 2-, and 3-year receiver operating characteristic (ROC) curves were drawn using the R package “timeROC” (14). Then, according to the genes, TNM stage, and risk group and other prognostic factors, the nomogram was constructed to predict overall survival (OS).

Analysis of immune status of EC patients

Moreover, immune cell infiltration, gene checkpoint gene expression, and significantly mutated gene identification were also assessed between the high-risk group and low-risk group. The software CIBERSORT (15) was used to deconvolve the expression matrix of human immune cell subtypes to calculate the relative proportions of 22 immune cells in EC samples. The EC immune checkpoint genes were searched in the literature and found that the most studied EC immune checkpoint inhibitors were CTLA4, PDCD1, LAG3, TIGIT, IDO1, TDO2, CD19, STAT3, CD47 and WT1 (16-24). The differences between the high risk group and the low risk group of these immune checkpoint genes were explored. The R package “maftools” was used to analyze variant genes for somatic mutation data. Somatic mutation data for different risk groups were used to detect mutation types and single nucleotide variants (SNV). Differential mutant genes (DMG) were identified based on Fisher’s exact test, P<0.05 (25).

Statistical analysis

Baseline characteristics between different groups were analyzed using Student’s t-test or Wilcoxon rank sum test as appropriate for continuous variables and χ² test for categorical variables. All statistical analyses were carried out with R (4.1.2).

Ethical statement

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Results

TCGA and GEO datasets and patients characteristics

Baseline clinical characteristics of included EC patients were presented in Table 1, including 144 samples from TCGA database as training set and 179 samples from GEO database as validation set. EC patients in training set were more likely to be older males than patients in validation set (P<0.05).

Identification of differentially expressed genes and enrichment analysis

In total, 428 genes were identified as DEmRNAs, including 177 up-regulated genes and 251 down-regulated genes in gene expression data (Figure 1A); 2,029 target genes of DEmiRNAs were identified by TargetScan and mirDIP databases. There are 55 common genes between DEmRNAs and DEmiRNAs target genes (Figure 1B). GO and KEGG enrichment analysis was performed for DEmRNAs, DEmiRNAs and 55 common genes, and the results showed that DEmRNAs were mainly enriched in mitotic nuclear division, nuclear division and chromosome segregation (Figure S1A), DEmiRNAs was mainly enriched in muscle system process, response to zinc ion and muscle contract ion (Figure S1B), and 55 common genes were mainly enriched in muscle system process, response to zinc ion and muscle contraction and other KEGG pathways (Figure 1C).

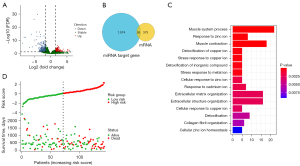

Figure 1 Results of differential gene analysis. (A) Volcano plot showing the differentially up-regulated (red nodes) and down-regulated genes (blue nodes). (B) Venn diagram of DEmRNAs and DEmiRNAs target genes. (C) Enrichment analysis of the common genes between DEmRNAs and DEmiRNAs target genes. (D) Scatterplots illustrate the distribution of risk scores and survival status of EC patients. FDR, false discovery rate; DEmRNAs, differentially expressed mRNAs; DEmiRNAs, differentially expressed microRNAs; EC, esophageal cancer.

Construction and validation of a risk score prognostic model

Differential genes were screened by LASSO Cox analysis, including ARHGAP11A, CELF2, H1.4, H2AC8, HMGB3, ZNF367, LRIG1, PRR11, and COL4A1. Then, these differential genes were included in multivariate Cox stepwise regression analysis, and genes with P<0.05 were selected to construct a prognostic model. The prognostic genes were ARHGAP11A, H1.4, HMGB3, LRIG1, PRR11, and COL4A1. The prognostic genes were validated in the validation cohort. A risk score for each patient was calculated and then divided samples from the training and validation cohorts into high-risk group and low-risk group based on the median, respectively. The results (Figure 1D) showed that the prognosis of the high-risk group was significantly poorer than that of the low-risk group in the training cohort. Compared with the low-risk group in Figure 2A,2B, patients in the high-risk group had significantly shorter OS in both the training and validation cohorts (all P<0.001) datasets.

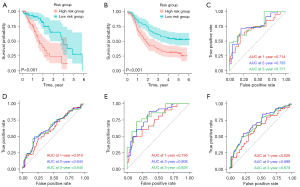

Figure 2 Construction and validation prognostic models. (A) Kaplan-Meier survival analysis with the 6 genes and TNM stage risk score as a stratification factor in the TCGA cohort. (B) Kaplan-Meier survival analysis with the 6 genes and TNM stage risk score as a stratification factor in the GEO cohort. (C) ROC curves of the risk score for predicting 1-, 2-, and 3-year survival in the TCGA cohort. (D) ROC curves of the risk score for predicting 1-, 2-, and 3-year survival in the GEO cohort. (E) ROC curves of the risk score combined with clinical factors for predicting 1-, 2-, and 3-year survival in the TCGA cohort. (F) ROC curves of the risk score combined with clinical factors for predicting 1-, 2-, and 3-year survival in the GEO cohort. AUC, area under the curve; TNM, tumor node metastasis; TCGA, The Cancer Genome Atlas; GEO, Gene Expression Omnibus; ROC, receiver operating characteristic.

This study constructed a risk score prediction model using the above prognostic genes, and the 1-, 2-, and 3-year areas under the curve (AUC) for EC risk scores in the training cohort were 0.714, 0.755, and 0.777, respectively (Figure 2C). The AUC in the validation cohort were 0.616, 0.644, and 0.645, respectively. These findings further indicated these prognostic genes had great potential in predicting future prognosis for EC patients (Figure 2D). Subsequently, used eight independent prognostic factors including prognostic genes, TNM stage, and risk group to constructed a risk prediction model. For prognosis prediction for the training cohort, the performance of the models with 1-, 2-, and 3-year AUC equaled 0.736, 0.806, and 0.828 (Figure 2E). For validated prognostic predictions, the performance of the models with 1-, 2-, and 3-year AUC was 0.626, 0.699, and 0.679, respectively (Figure 2F).

Independent prognostic role of the prognostic gene signature

A multivariate Cox regression model consisting of age, TNM stage, gender, and risk group was used to confirm whether the risk score was an independent prognostic indicator (Figure 3A). TNM stage and risk group were found to remain significantly associated with OS [hazard ratio (HR) =0.37, 95% CI: 0.20–0.69, P=0.002; HR =2.54, 95% CI: 1.38–4.69, P=0.003]. This study constructed a nomogram to predict patient OS by eight independent prognostic factors, including prognostic genes, TNM stage, and risk group (Figure 3B,3C). The calibration curve clarified an excellent calibration performance of this prognostic model.

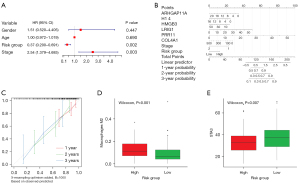

Figure 3 Cox regression analysis and immune infiltration analysis. (A) Multivariate Cox regression analysis of forest plots. (B) Nomogram to predict the probability of 1, 2, and 3 years OS in EC patients. (C) Normative curve for predicting the probability of 1, 2, and 3 years OS in EC patients. The X axis represents nomogram predicted survival, and the Y axis represents the actual survival. (D) Comparisons of the immune cell members between high-risk group and low-risk group. (E) Significant immune checkpoint genes for EC patients with risk score as a grouping factor. HR, hazard ratio; CI, confidence interval; OS, overall survival; EC, esophageal cancer.

Immune status of EC patients with different risk groups

The CIBERSORT method was used to estimate the immune infiltration differences between 22 immune cells in EC patients in the high-risk group and low-risk group. The correlation between different immune cell infiltration rates was weaker (Figure S2). The expression level of Macrophage M2 in the high-risk group was significantly higher than that in the low-risk group (P=0.001) (Figure 3D), the difference of other immune cells was not statistically significant (Figure S3). The relationship between different risk groups and key immune checkpoints (CTLA4, PDCD1, LAG3, TIGIT, IDO1, TDO2, CD19, STAT3, CD47, WT1) was analyzed. The expression level of STAT3 immune checkpoint was significantly higher in low-risk group than in high-risk group (P<0.05) (Figure 3E). Combining these results, the study found that the different risk groups of EC can accurately indicate the immune level.

Figure 4A,4B showed a panoramic of the 15 genes with the highest mutation frequency in the low-risk and high-risk groups for each sample. TP53 and TTN occupy the top two places in the two cohorts, indicating that these two genes were mainly involved in the occurrence and progression of tumors. As shown in Figure 5A,5B, the number of genes that significantly co-occur in pairs in the high-risk group is less than that in the low-risk group, while the number of genes with mutually exclusive mutations is greater than that in the low-risk group.

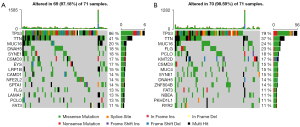

Figure 4 Waterfall plot shows the mutation distribution of the top 15 most frequently mutated genes. The central panel shows the types of mutations in each EC sample. The upper panel shows the mutation frequency of each EC sample. The bar plots on the right side show the frequency and mutation type of genes mutated in the low-risk and high-risk cohort. The bottom panel is the legend for mutation types. (A) High risk group. (B) Low risk group. EC, esophageal cancer.

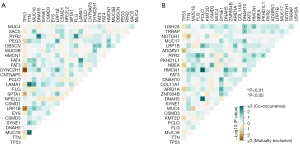

Figure 5 The heatmap illustrates the mutually co-occurring and exclusive mutations of the top 25 frequently mutated genes. The color and symbol in each cell represent the statistical significance of the exclusivity or co-occurrence for each pair of genes. (A) High risk group. (B) Low risk group. Symbols indicated statistical significance for the Mann-Whitney U test: *P<0.05; **P<0.01.

Discussion

In this study, the intersection of DEmRNAs and target genes of DEmiRNAs was applied to identify EC prognostic genes, including ARHGAP11A, H1.4, HMGB3, LRIG1, PRR11, and COL4A1. Six prognostic genes were used to build EC prognostic model in training set, then GEO database was applied to validate their prognostic value among EC patients. According to the median risk score, included EC patients were divided into high-risk or low-risk group. Then, in the immune microenvironment, the expression level of M2 in macrophages in the high-risk group was observably higher than that in the low-risk group. For the immune checkpoint, only the STAT3 immune checkpoint in EC patients was significant in the low-risk group compared with the high-risk group. Finally, among the somatic mutation genes of EC, the mutation frequency of the top 15 genes, TP53 and TTN were in the top 2 in the high-risk group and the low-risk group were found.

Most genes included in the prognostic model of this study have been reported to be associated with many different malignancies. For example, Lawson et al. found that ARHGAP11A is highly expressed in a subtype of basal-like breast cancer (BLBC). Previous study showed decreased migration velocity of BLBC without ARHGAP11A, indicating their oncogenic potential could be evaluated by their ability to induce cellular transformation (26). RhoGAPs is a newly discovered class of cancer biomarkers. ArhGAP11A, a member of the RhoGAP family, induces cell cycle arrest and apoptosis by binding tumor suppressor p53. ArhGAP11A directly binds p53 and promotes its transcriptional function through a Rho-independent mechanism. The expression level of ArhGAP11A was proved to have impact on cell proliferation and apoptosis (27,28).

HMGB3 is a member of the high mobility group box (HMGB) family, which is overexpressed in gastric and bladder cancers. And in colorectal cancer, breast cancer is up-regulated at both mRNA and protein levels (29-31). In addition, LRIG1 is associated with survival in patients with various cancers (32). The LRIG1 gene is located on chromosome 3p14.3, and deletion of this region is associated with a variety of tumors. The degree of low expression of LRIG1 increases with the increase of tumor grade, and the susceptibility of glioma is related to the LRIG1 gene (33). LRIG1 functions as a thyroid tumor suppressor (34).

Previous studies have explored the prognostic value of differential genes among EC patients, this study further combined the target genes of DEmiRNAs to construct prognostic model. Both ROC analysis and calibration curve showed this prognostic model in the study had better discrimination and calibration performance. In addition, we also explored the difference of TME between high-risk group and low-risk group. In addition, we used the external data GEO dataset as a validation cohort. However, several limitations of this study need to be considered. Firstly, the prognostic model has only been validated in the GEO dataset and further validation in other independent large sample cohorts is required to ensure the reliability of our model. Secondly, for immune checkpoints, we only found a part of immune checkpoints, and many others were not included in the analysis. Thirdly, in this study, a small sample size was included. Lastly, these findings were from population based study, further experiments are needed to clarify deep molecular mechanism underlying the association between TME and EC.

Conclusions

The use of DEmRNA and DEmiRNA target genes to make a more accurate diagnosis and prognosis prediction of EC patients, so as to formulate individualized treatment plans on this basis, for the prognosis of patients bring greater benefits.

Acknowledgments

We are very grateful to those who participated in our research. Without their dedication and cooperation, our research could not begin. We are very grateful to all patients and staff who participated and contributed to TCGA and GEO for all their support.

Funding: This work was supported by grants from the National Natural Science Foundation of China (Nos. 82222064, 81973147, 81573246), Health Science and Technology Development Program of Shandong Province (No. 202005010068), National Key Research and Development Program (No. 2022YFC2010100), and Shandong University Distinguished Young Scholars. The funders had no role in study design, data collection, and analysis, decision to publish, or preparation of the manuscript.

Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://tcr.amegroups.com/article/view/10.21037/tcr-22-2588/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://tcr.amegroups.com/article/view/10.21037/tcr-22-2588/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
